Model: Reticam 3100
The Reticam 3100 is a fully automatic, non-mydriatic fundus camera designed for efficient retinal imaging in clinical environments. With a built-in computer, high-resolution imaging system, and intelligent automation, it enables fast and accurate fundus photography with minimal operator effort.
Its one-touch operation and dual-camera autofocus system make it ideal for ophthalmology clinics, hospitals, and screening programs, improving workflow and patient experience.
One-touch automatic operation for fast image acquisition
Built-in computer with integrated design for compact setup
24 MP high-resolution imaging with 10.1″ TFT touch screen
Non-mydriatic imaging (minimum pupil size: 3.3 mm)
Dual-camera system for fast pupil detection and autofocus
Auto exposure and fast focusing for consistent image quality
Soft illumination technology for patient comfort
Mosaic function up to 135° wide-field imaging
Supports FFA (optional) and FAF (optional) imaging modes

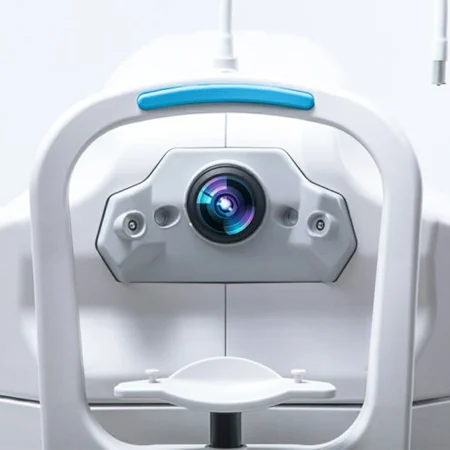

Dual-camera system is like eyes of the device.It searches and locates the pupil for fast andaccurate autofocus.

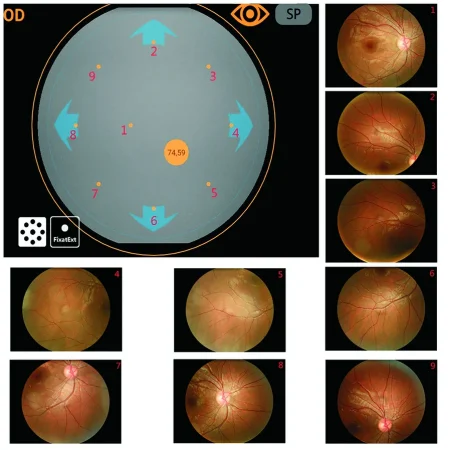

Mosaic Function can generate the fundus images up to 135° field of view form 9 images of 50° field width each .More fixation points are distributed between 9 internal fixations shown.

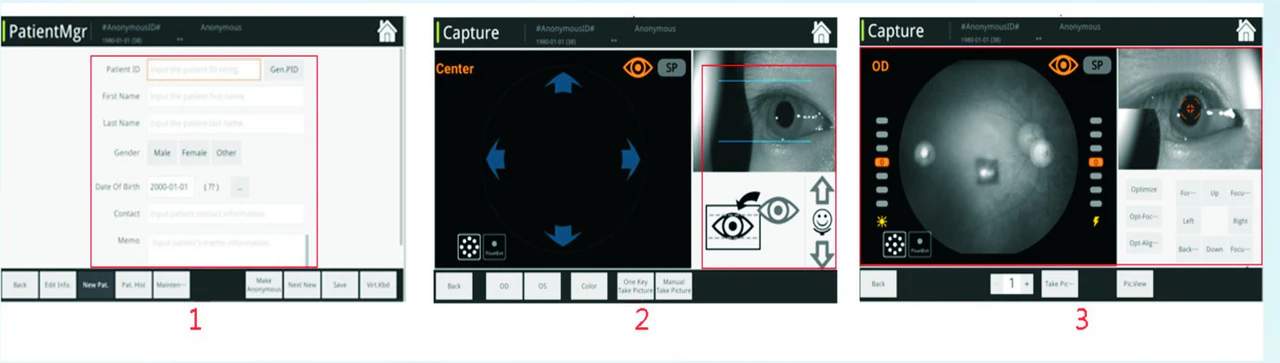

Enter patient information
Select eye (OD/OS) and align pupil
Click “Capture”
→ High-quality fundus image generated within seconds
Resolution: 24 megapixels
Display: 10.1-inch TFT touch screen (rotary)
Field of View: 50° (single), up to 135° (mosaic)
Minimum Pupil Size: 3.3 mm
Imaging Modes:
Color fundus photography
Fluorescein angiography (FFA, optional)
Fundus autofluorescence (FAF, optional)
Dual-camera system: Accurate pupil tracking and autofocus
Soft lighting system: Reduces pupil constriction, supports continuous imaging
Step motor design: Low noise operation for a comfortable clinical environment.
| Parameter | Specification |
|---|---|
| Acquisition modes | Non-mydriatic / mydriatic photography, anterior segment photography, fundus, fluorescence angiography (FFA optional), auto fluorescence (FAF optional) |
| Field of view | 50° |
| Minimum pupil size | ≥3.3 mm |
| Focus modes | Auto / manual |
| Operation | Auto |
| Image acquisition time | Within 10 seconds |
| Image resolution | 2 megapixels |
| Working distance | 35 mm |
| Diopter compensation | ±25 D |
| Fixation | External fixation / internal fixation |
| DICOM 3.0 | YES |
| Dimensions | 380 mm (L) × 550 mm (W) × 475 mm (H) |
| Weight | 26.5 kg |
| Power supply | 100–240 V, 50/60 Hz |
Note: specifications and design are subject to change without notice.
