Model: ARK-8500

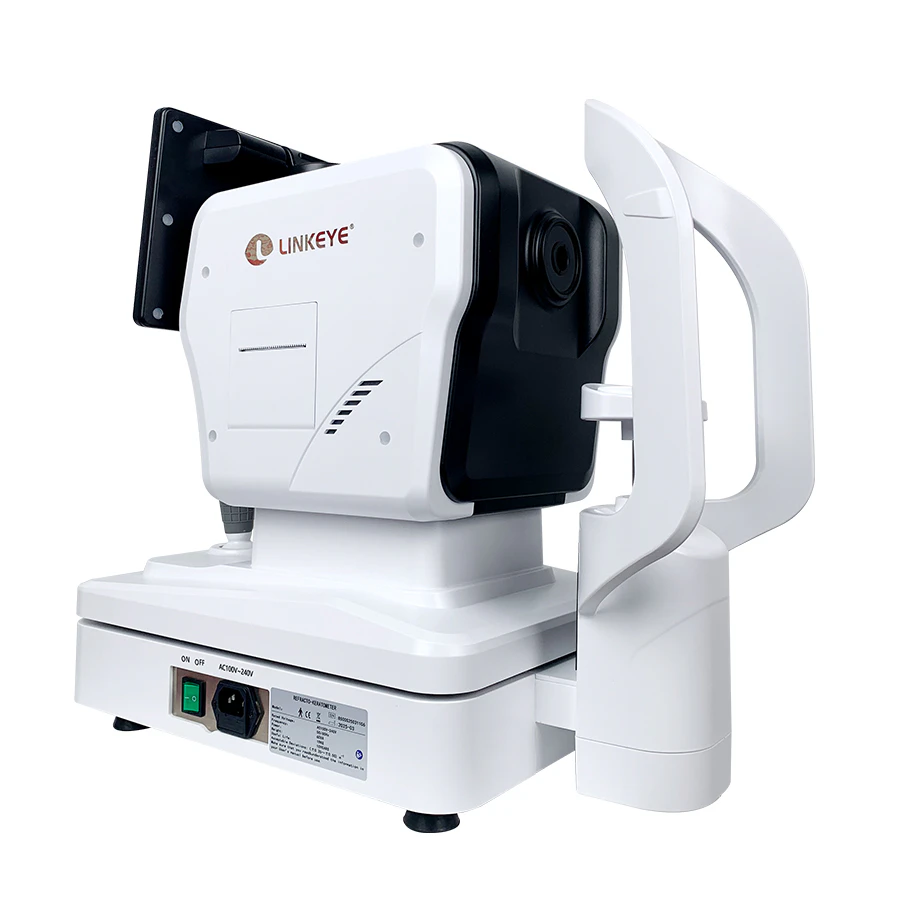

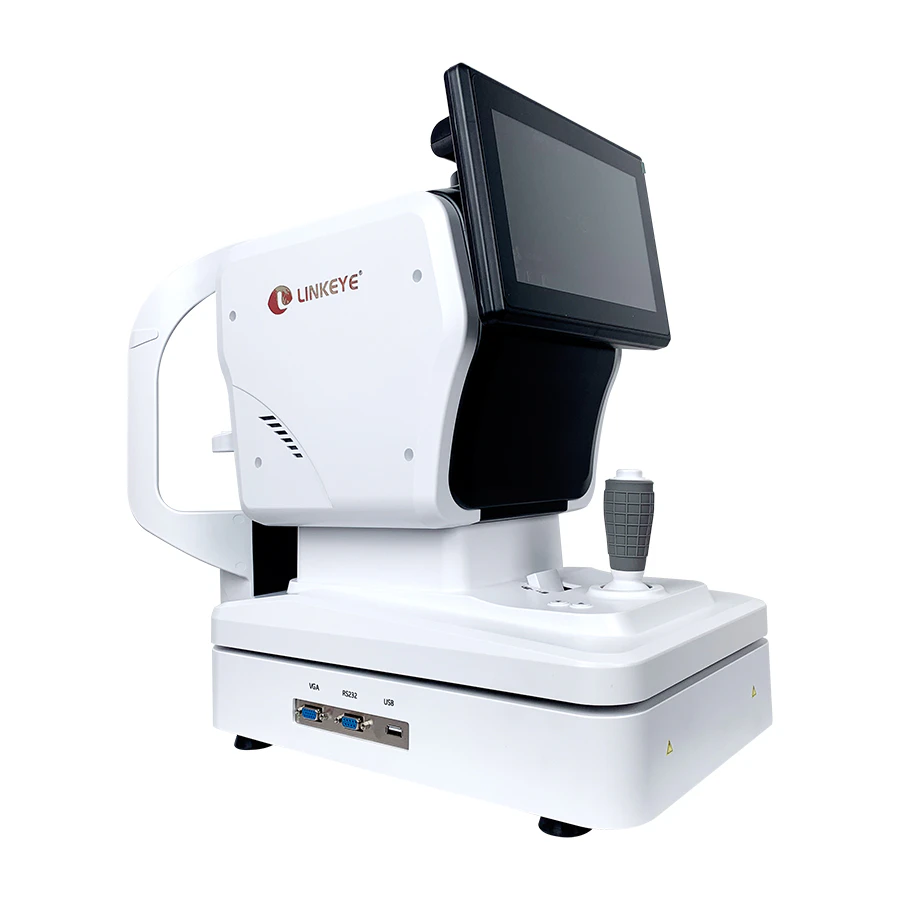

The ARK-8500 is a high-speed Hartman-type auto refractometer designed for fast and stable eye measurement. The flip monitor supports flexible viewing, and the device provides automatic horizontal, vertical, and back-and-forth motorized focusing. A built-in thermal printer with auto-cut ensures efficient reporting.

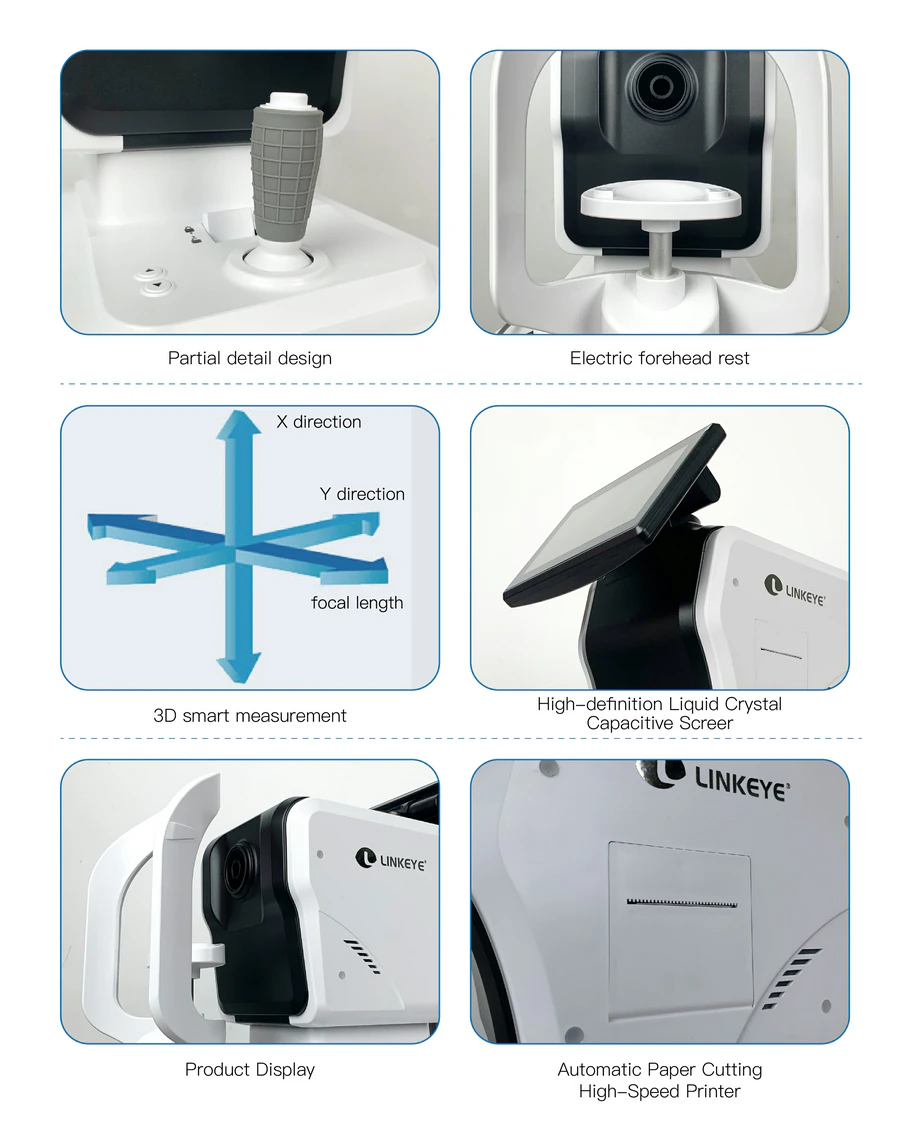

Auto horizontally, vertically, and back force motorized focus, to find the optimal measurement position, eliminating the need for manual fine-tuning and ensuring fast, precise readings.

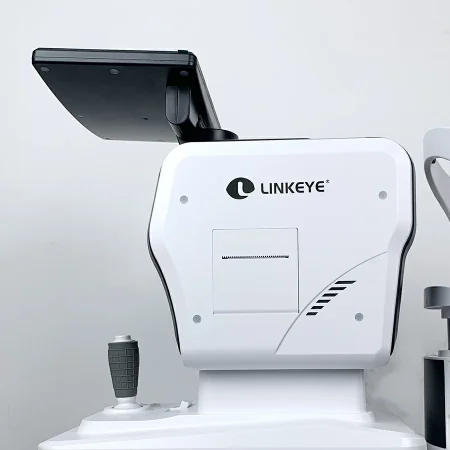

It allows doctors to flexibly adjust the viewing angle according to their position, and is also suitable for confined spaces or multi-angle operating environments.
| Specification | Details |
|---|---|
| VD Range | 0.0, 12.0, 13.75, 15.0 |
| Spherical Range | -30.00D ~ +25.00D (VD = 12mm, 0.01, 0.06, 0.12, 0.25 increments) |
| Cylinder Range | 0.00D ~ ±12.00D (0.06, 0.12, 0.25 increments) |
| Axis | 1° ~ 180° (1° increments) |
| Cylinder Symbol | -, +, ± |
| PD | 10 ~ 85mm |
| Mini Pupil Size | 2.0mm |
| Average Measurement Time | <0.5 seconds |
| Pupil Diameter | 2.00–8.00mm |
| Max Brightness | <30uw (safety assured) |
| Curvature Radius | 5.0 ~ 10.0mm (0.01mm increments) |
| Refractive Power | 33.00D ~ 67.0D (corneal equivalent diopter = 1.3375) |
| Corneal Power | 0.00D ~ -15.00D (0.06D / 0.12D / 0.25D increments) |
| Data Save | 10 groups Left/Right eye |
| Axis (Corneal) | 1° ~ 180° |
| Target | Auto Fog |
| Monitor | 9-inch TFT Touch Screen (Flip) |
| Printer | 57mm width, auto cut |
| Power | AC 100~250V, 50/60Hz, wide voltage |
| Net Weight | 22 kg |
| Gross Weight | 26.5 kg |
| Packing Size | 680mm (L) × 400mm (W) × 640mm (H) |
