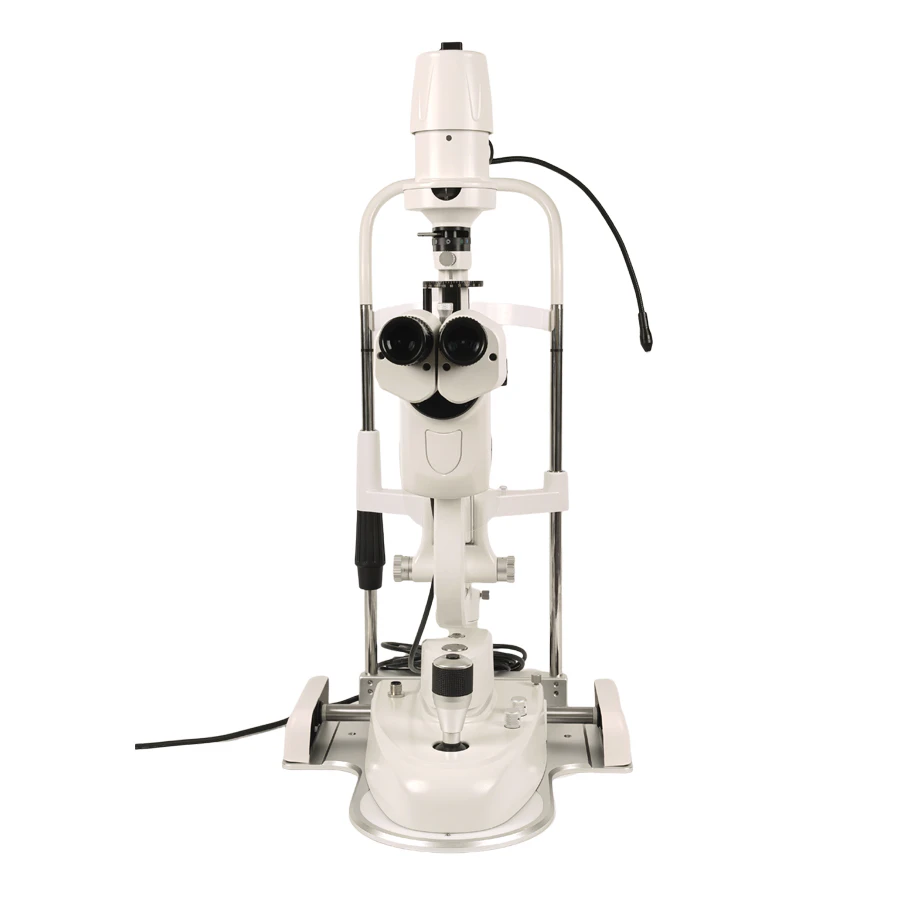

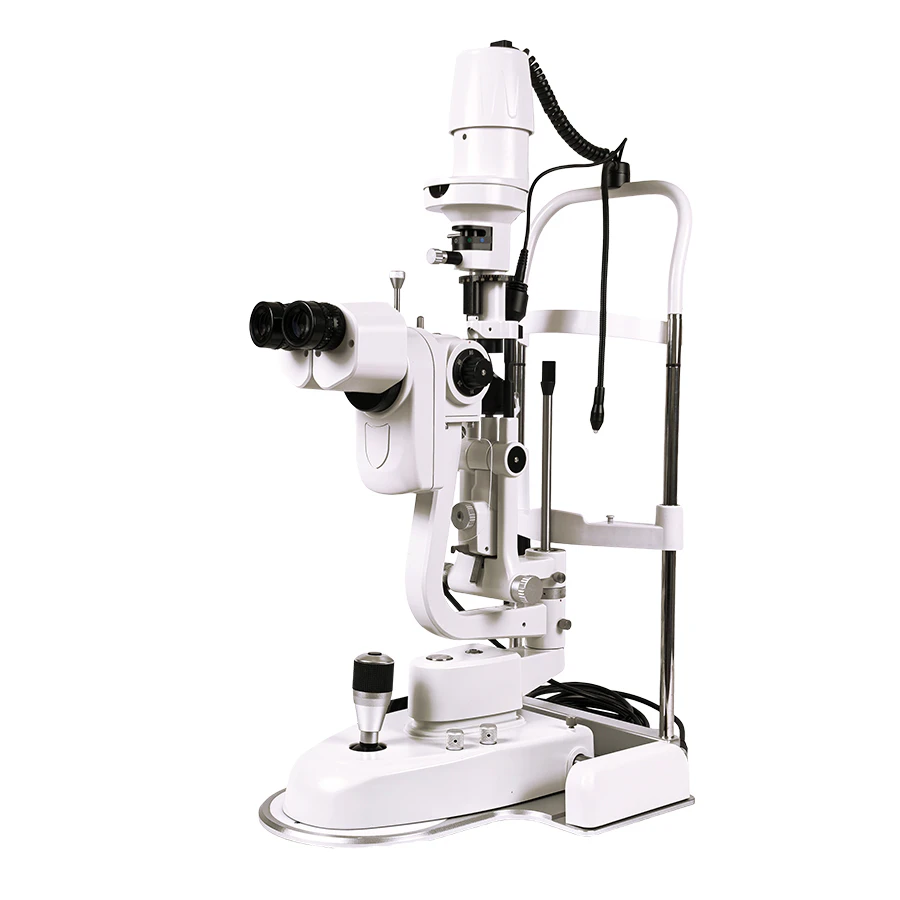

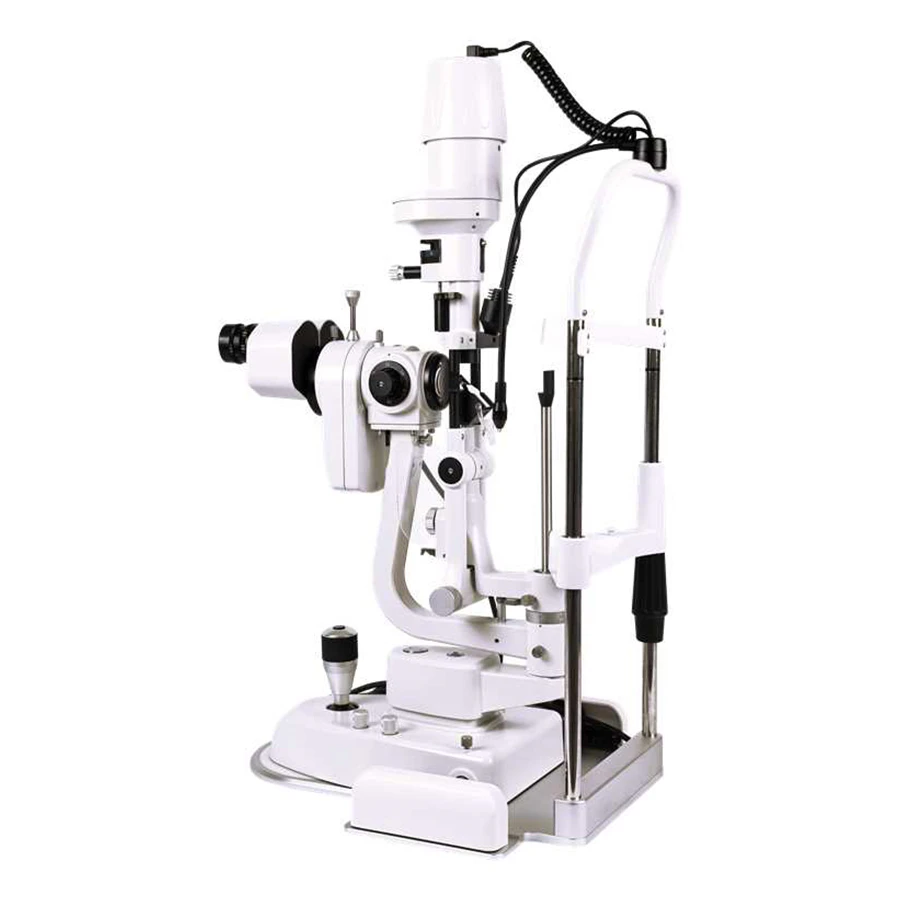

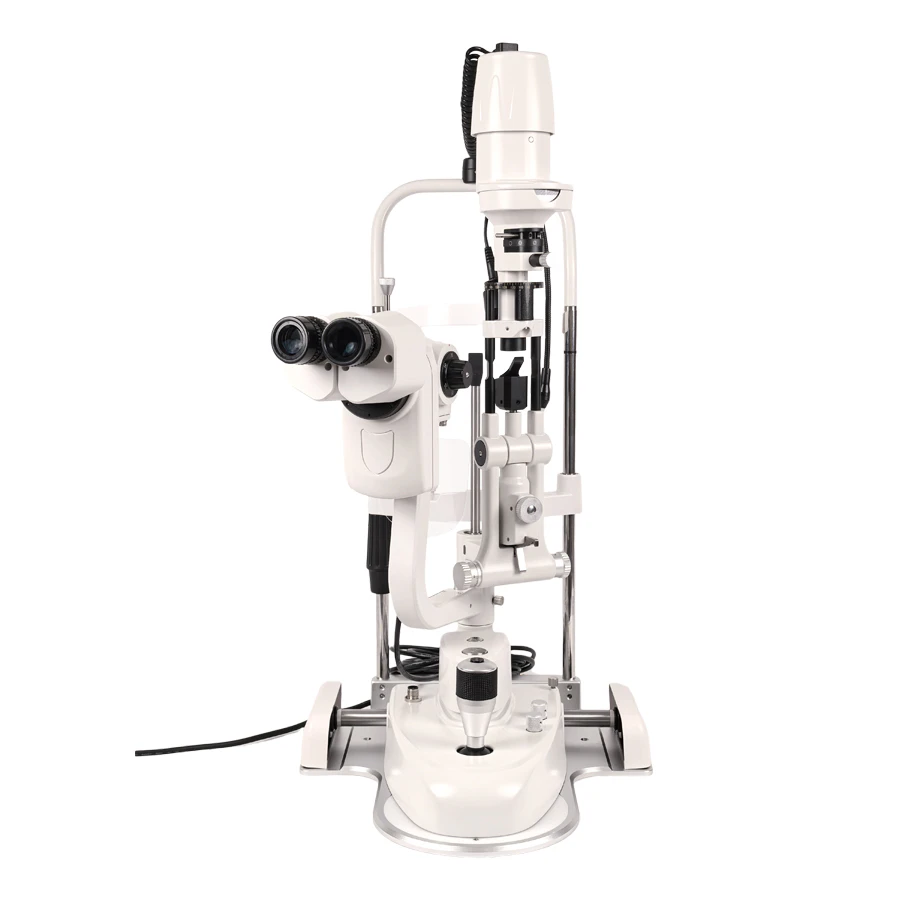

Model: SL-520C
SL-520C is an AC-powered slit lamp biomicroscope intended for use in eye examination of the anterior eye segment, from the cornea epithelium to the posterior capsule.It is used to aid in the diagnosis of diseases or trauma which affect the structural properties of the anterior eye.
It is suitable for anterior segment eye examinations, including the corneal epithelium to the posterior lens capsule, and supports the assessment of cataracts and other anterior segment eye diseases.

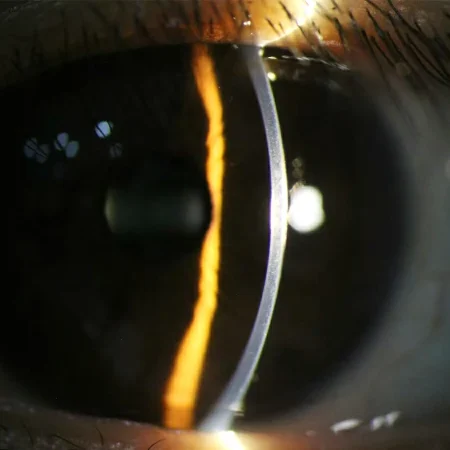

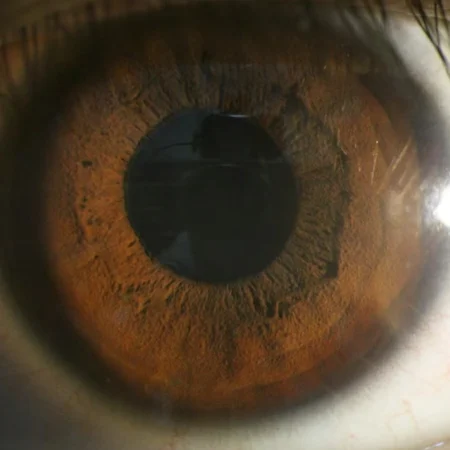

Professional software and camera make exams faster, capturing clear eye images for accurate diagnosis and easy follow-up.
| Parameter | Specification |
|---|---|
| Model | SL-520C |
| Illumination Tilting | 5°, 10°, 15°, 20° |
| Illumination Type | Haag-Streit Type |
| Eyepiece Magnification | 12.5X |
| Slit Width | 0 mm ~ 14 mm (continuously adjustable) |
| Slit Length | 1 mm ~ 14 mm (continuously adjustable) |
| Slit Angle | 0° ~ 180° (continuously adjustable) |
| Filters | Heat Absorption, Grey, Redfree (Green), Cobalt Blue |
| Light Source | Warm LED |
| Magnification Levels | 6.3X, 10X, 16X, 25X, 40X |
| Diopter Adjustment | ±7D |
| Pupil Distance Range | 52 mm – 85 mm |
| Software | Embedded software; OD/OS auto recognition; image/video acquisition; image processing & marking; diagnostic report output |
| Fixation Target | Red LED |
| Light Control | Stepless dimming (on base) |
| Voltage | 100V–240V, 50/60 Hz |
| Image Collector | Built-in CCD, 20 MP |
| Slit Aperture Sizes | φ0.2, φ1, φ3, φ5, φ10, φ14 mm |
| Microscope Type | Galilean System |
| Magnification Changer | Revolving Drum |
| Visual Field Diameter | 6X: 33 mm; 10X: 22 mm; 16X: 14 mm; 25X: 8.5 mm; 40X: 5.5 mm |
