Model: NCT-5000AB

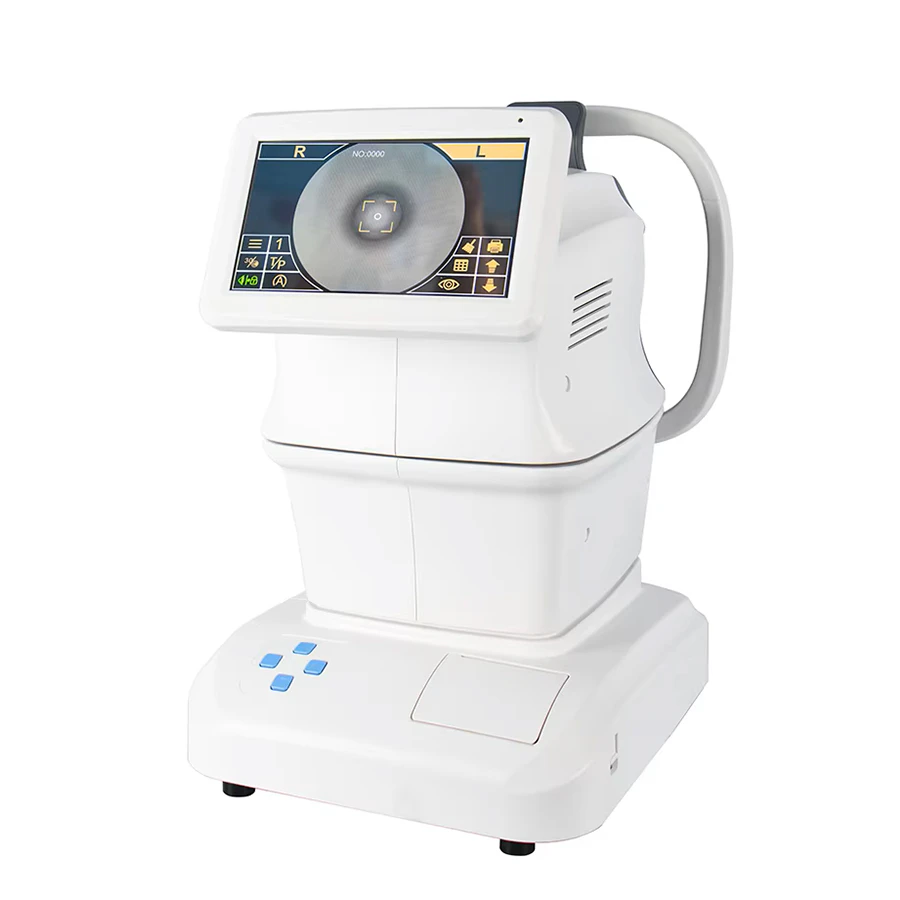

The NCT-5000AB (including models NCT-5000A and NCT-5000B) delivers fast, accurate, and comfortable non-contact intraocular pressure measurement with fully automatic operation, intelligent safety control, and a highly flexible 7-inch touch 80° flip screen for easier examination and observation.Contactless tonometry is safe for patient, and reduces discomforts and the risk of infections during the exam.
This automatic tonometer machine has professional software, and ophthalmologists can choose manual, automatic, and fully automatic measurement modes according their preferences. Roatable 7 inches color LCD touch screen makes the operation more convenient. You can measure intraocular pressure and cornea thickness with this tonometer, and simply print the exam report with built-in auto paper cutting thermal printer.

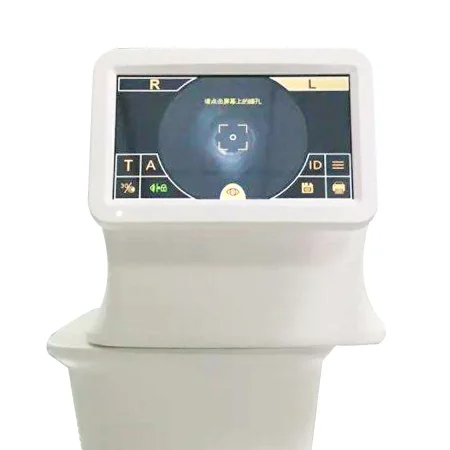

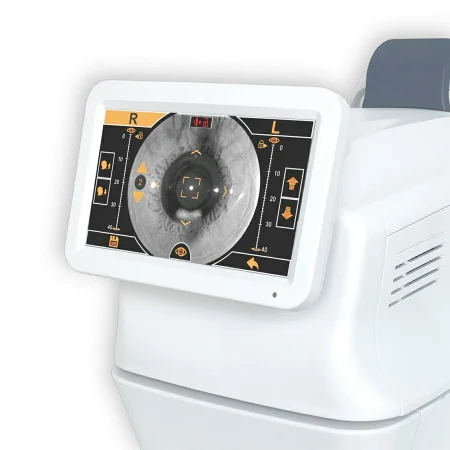

The 7-inch color LCD touch screen can rotate 180° vertically and 60° horizontally, allowing flexible operation from different angles. This design makes it easier for the operator to assist patients and ensures a smoother, more efficient testing process.

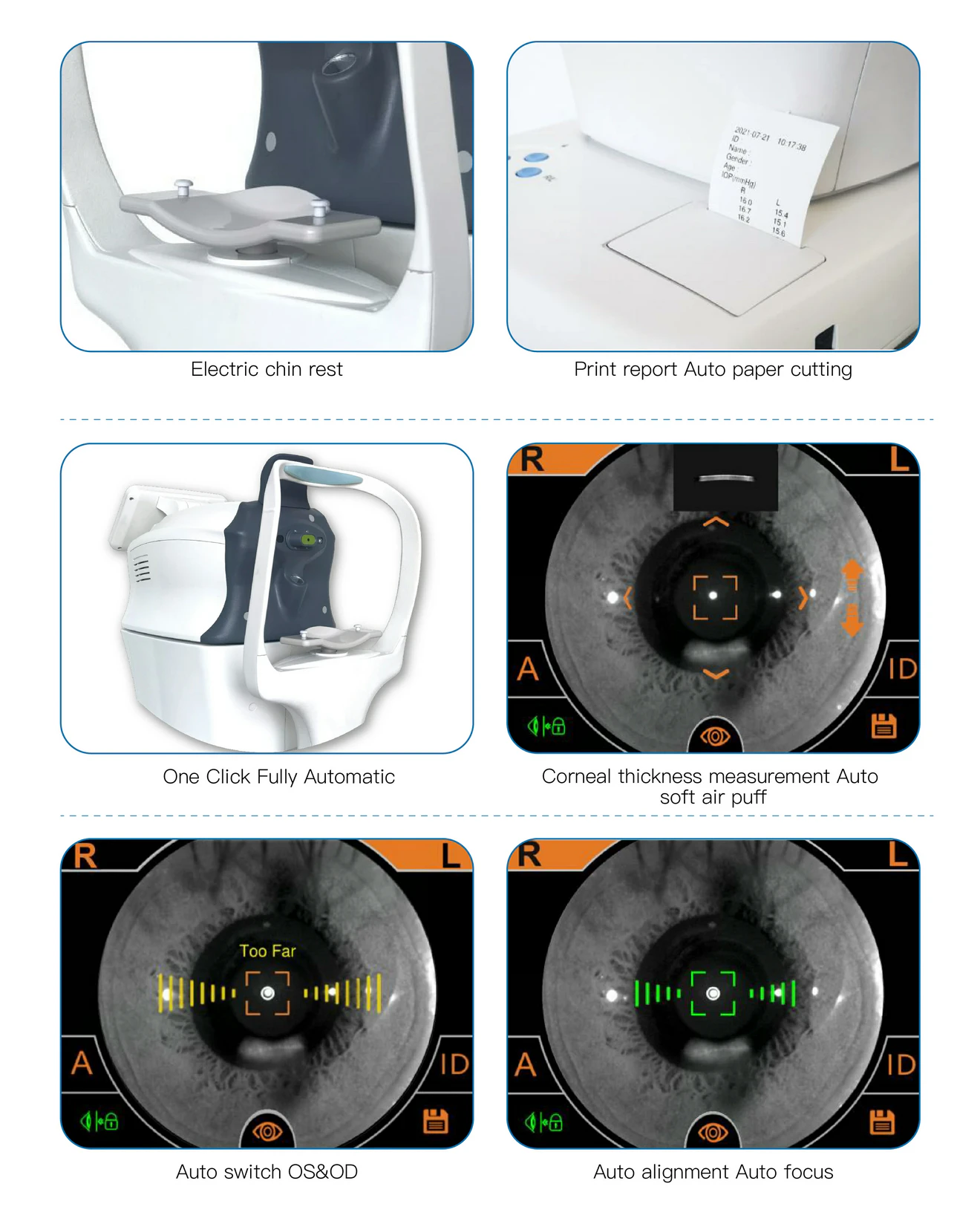

3D automatic intraocular pressure measurement for both eyes. Auto soft air puff, auto alignment, auto focus, auto left and right eye switch.It provides fast, accurate, and comfortable intraocular pressure testing for both eyes.
Display
| 7″ 1024 * 600 color touch screen Support up and down 180°, left and right 60° turning |
| Corneal thickness measurement | Support (NCT-200A) |
| Measurement range CT | 400-800um |
| Measurement increment-CCT | 10um |
| Light Source | Blue LED |
| Fixation lamp | 1 internal fixation lamp (green LED), 2 external fixation lamps |
| Measuring head moving range | Up and down stroke: 45 mm, Left and right stroke: 90 mm Front and back stroke: 40 mm |
| Lifting range of lower jaw drag | 68 mm |
| Working distance | 11 mm (calculated from the front of nozzle) |
| Measurement accuracy | 1mmHg (0.133Kpa ) |
| Measuring range | 0-60mmhg (0-8kpa) (including free switching between 30 / 60mmhg) |
| Power Supply | AC100-240V, 50/60HZ |
| Ambient temperature | 50° |
| Scope of operation | 16mmx10mm |
| Printer | Built in thermal printer, automatic paper cutting |
| Data storage | Internal memory card + optional external USB memory |
| Networking | DICOM3.0 |
| Measurement mode | Fully automatic / automatic / manual |
| Operating system | Embedded system |
| Mobile platform | Fully automatic platform / manual platform |
| Data input and output | Input: USB Output: LAN/ RS232C |
| Focusing mode | 3D full auto focus / manual focus |
| Jet detection | After power on, check whether the measuring system of the instrument works normally |
| Safety limit | Support |
| Intraocular pressure measurement | Each eye was measured three times continuously, and the average value was calculated Normal intraocular pressure range: 10-21mmhg (1.33kpa-2.80kpa) |
| Corneal thickness measurement | Each eye was measured three times continuously, and the average value was calculated Normal corneal thickness: about 550um |
| Full automatic measurement | Press the measurement button to complete the intraocular pressure test automatically |
| 24-hour dynamic intraocular pressure measurement | It can monitor intraocular pressure measurement dynamically 24 hours, and print it on the same report sheet with intraocular pressure data |
| Printing | Data can be printed directly after measurement |
| Storage | 10 sets of measurement data can be stored |
| Data export | Can be exported to PDF or JPG format |
| Size and weight | 500*300*500, <25kg |
NCT-5000A vs NCT-5000B
| Parameter | NCT-5000A | NCT-5000B |
|---|---|---|
| Measurement mode | Fully automatic / Automatic / Manual | Fully automatic / Automatic / Manual |
| Corneal thickness measurement | Not support | Support |
| Corneal thickness measurement details | – | Measurement range – CCT: 400–800 μm Measurement increment – CCT: 10 μm Light Source: Bluetooth LED |
| Display | 1 internal fixation light (green LED), 2 external fixation lights | 1 internal fixation light (green LED), 2 external fixation lights |
| Measurement accuracy | 1 mmHg (0.133 Kpa) | 1 mmHg (0.133 Kpa) |
| Measurement range | 0–60 mmHg (0–8 Kpa) Include automatic switching between 30/60 mmHg | 0–60 mmHg (0–8 Kpa) Include automatic switching between 30/60 mmHg |
| Printer | Built-in thermal printer, automatic paper cutting | Built-in thermal printer, automatic paper cutting |
| Data output/input | Input: USB; Output: LAN / RS232C | Input: USB; Output: LAN / RS232C |
| Size and weight | Size and weight | Size and weight |
