Model: ASP-100A

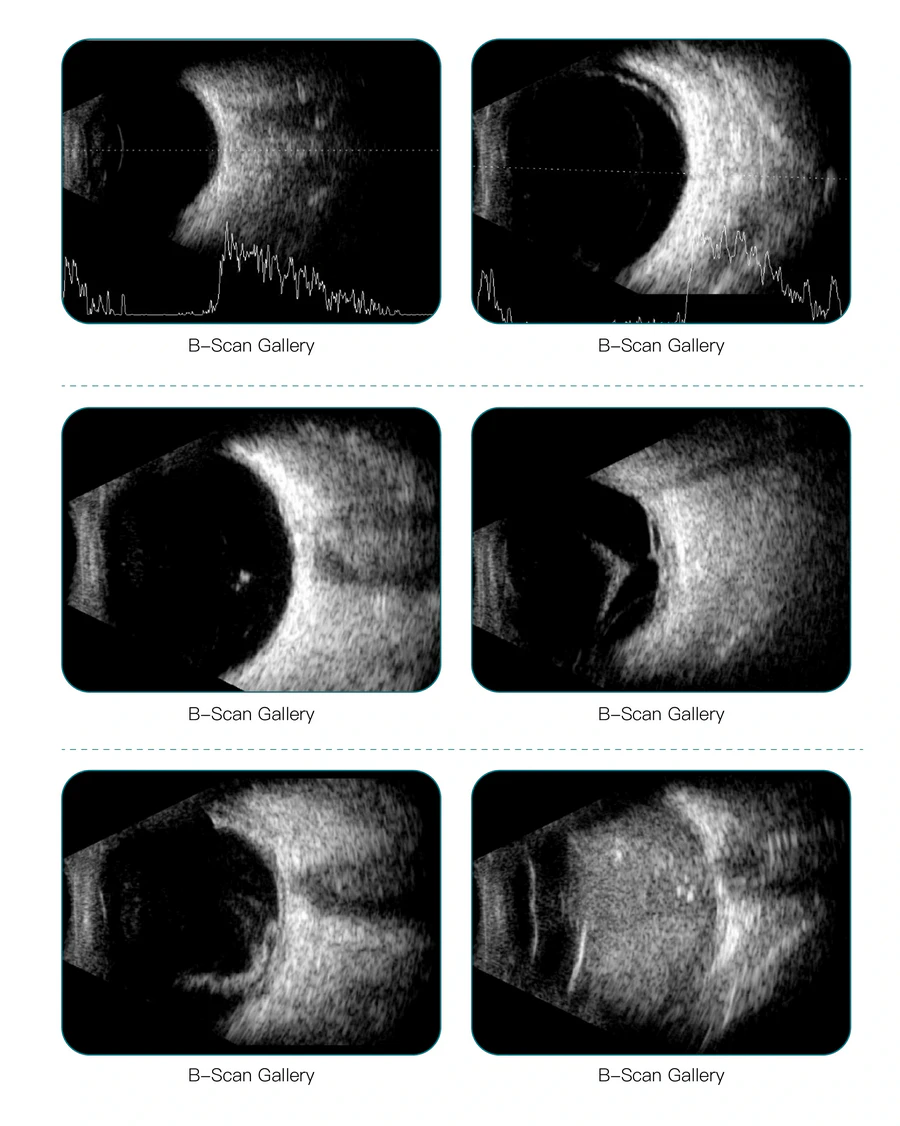

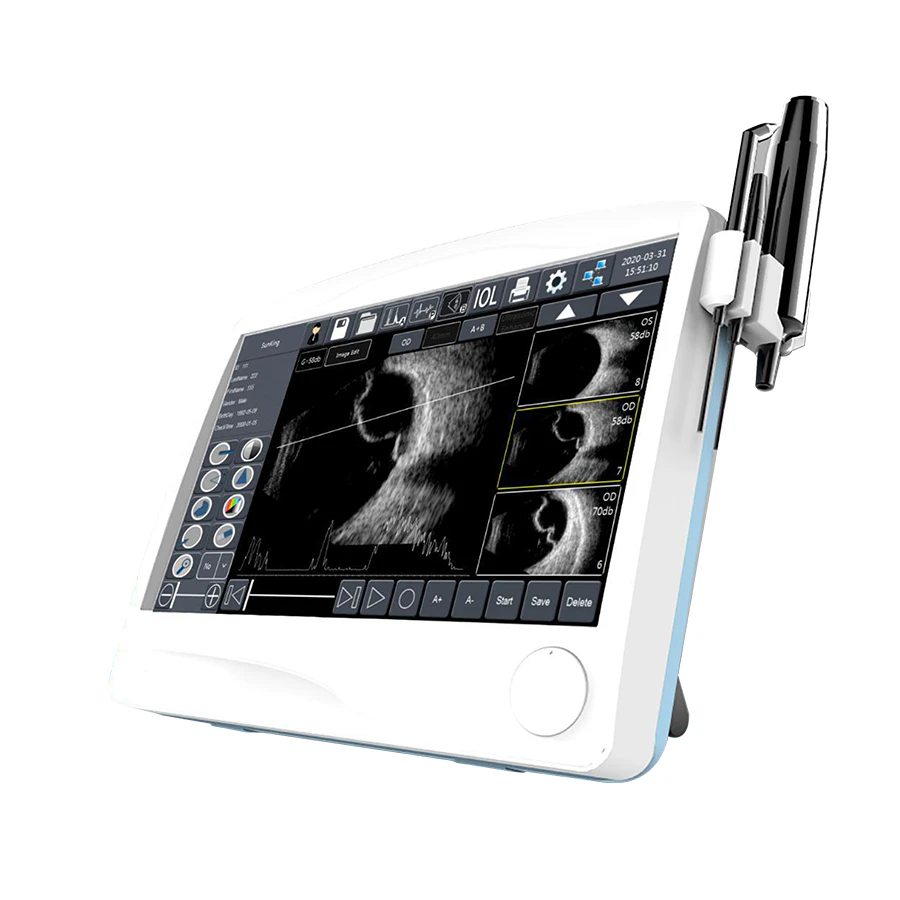

LK-3000ABP is an ophthalmic ultrasound scanner with A, B, and P probes. This ophthalmic ABP scan can be used for various eye examinations. A scan allows you to measure axial length and make IOL calculation; B scan provides HD images for diagnosing posterior segment of eyeball; while P scan, also called pachymeter, detects cornea thickness.

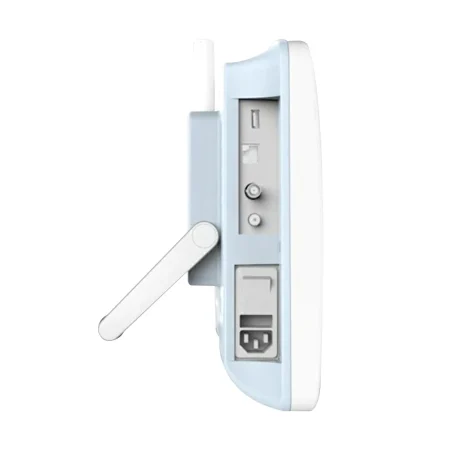

Seamlessly connect to printers, networks, or external devices. A dedicated port supports printing and exporting reports, transferring data via USB, or connecting to the hospital network.

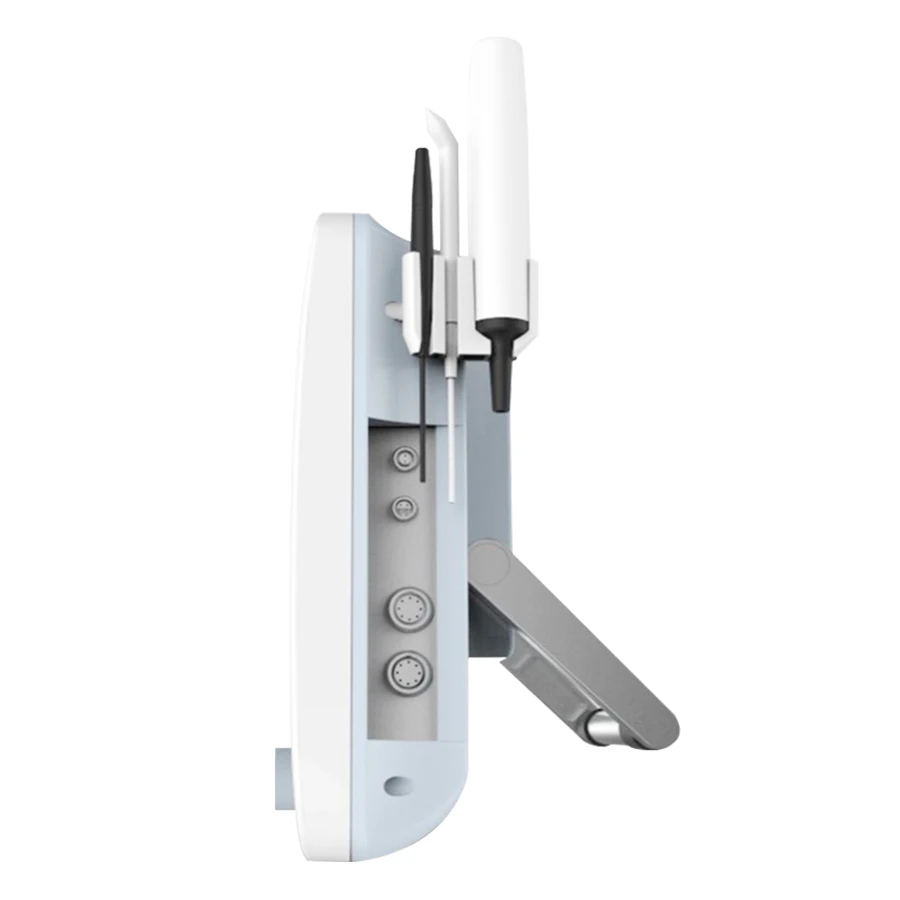

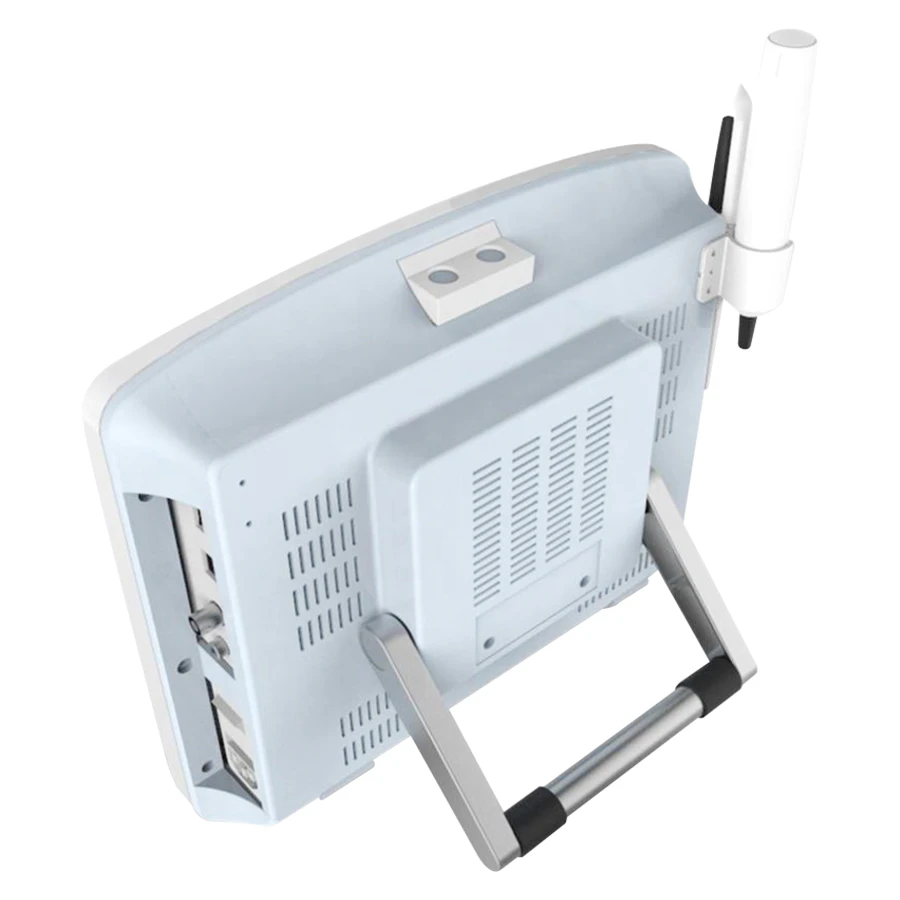

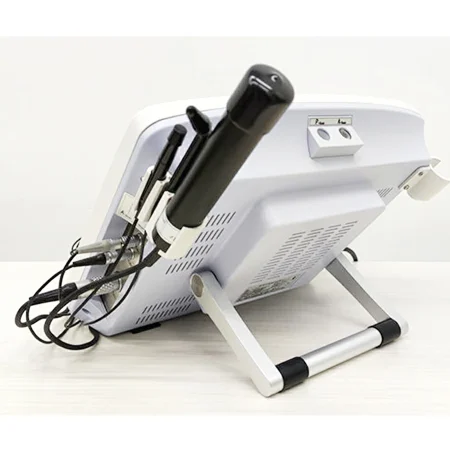

One Station - LK-3000ABP holds all three (A, B, P) securely in its built-in holder — always within reach. Combined with a sturdy adjustable stand and smart ventilation, it’s designed for smooth, uninterrupted exams from morning to night.
| Module | Parameter | Specification |
|---|---|---|
| B-Scan | Frequency | 10 MHz |
| Scan Mode | Mechanical Sector Scanning | |
| Gray Levels | 256 | |
| Adjustable Gain | 20 – 105 dB | |
| Depth | > 60 mm | |
| Angle of Exploration | 53° | |
| Time Gain Control (TGC) | 0 – 30 dB | |
| Image Freezing | 20 pcs | |
| Resolution | Axial < 0.2 mm, Lateral < 0.4 mm | |
| Display Mode | B, B+A | |
| Report Print | Video Print | |
| Playback | 150 frame and Playback Screenshot | |
| 20M Ultrasound | Frequency | 20 MHz |
| Resolution | Axial < 0.1 mm, Lateral < 0.2 mm | |
| Depth | > 20 mm | |
| Angle of Exploration | 53° | |
| A-Scan | Frequency | 10 MHz |
| Measurement Range | 0 – 60 mm | |
| Accuracy | < 0.04 mm | |
| Default Eye Mode | 6 Different Modes and 3 Customized Modes | |
| IOL Calculation | 6 different methods and comparing calculation | |
| Calculation Method | Standard Deviation | |
| Pachymeter | Frequency | 20 MHz |
| Accuracy | < 0.01 mm | |
| Depth | 0.3 – 1.5 mm | |
| Output Mode | Video Print | |
| Other Parameters | Computer | Built-in System, 12.1 inch Touch Screen Display |
| Picture Processing | Brightness, Contrast, Image Playback, Pseudo-color image Measurement, Image Remark | |
| Printer | Sony Duplicator, Computer with Graphic Workstation |
Trusted Services:
1. Video chat to check LK-3000ABP ultrasound scanner.
2. Free online technical support and training.
3. Free online installation support.
4. 1-3 Years quality warranty.
5. Lifetime after sales support.
6. Most products are CE and ISO 13485 certificated.
7. Free input voltage and plug customization for electrical machines.
8. Fast worldwide shipping, 5-10 working days delivery for most countries.
9. Partial prepayment is acceptable before shipping.
10. Discount price, non-branded or customized products can be offered for distributors.
