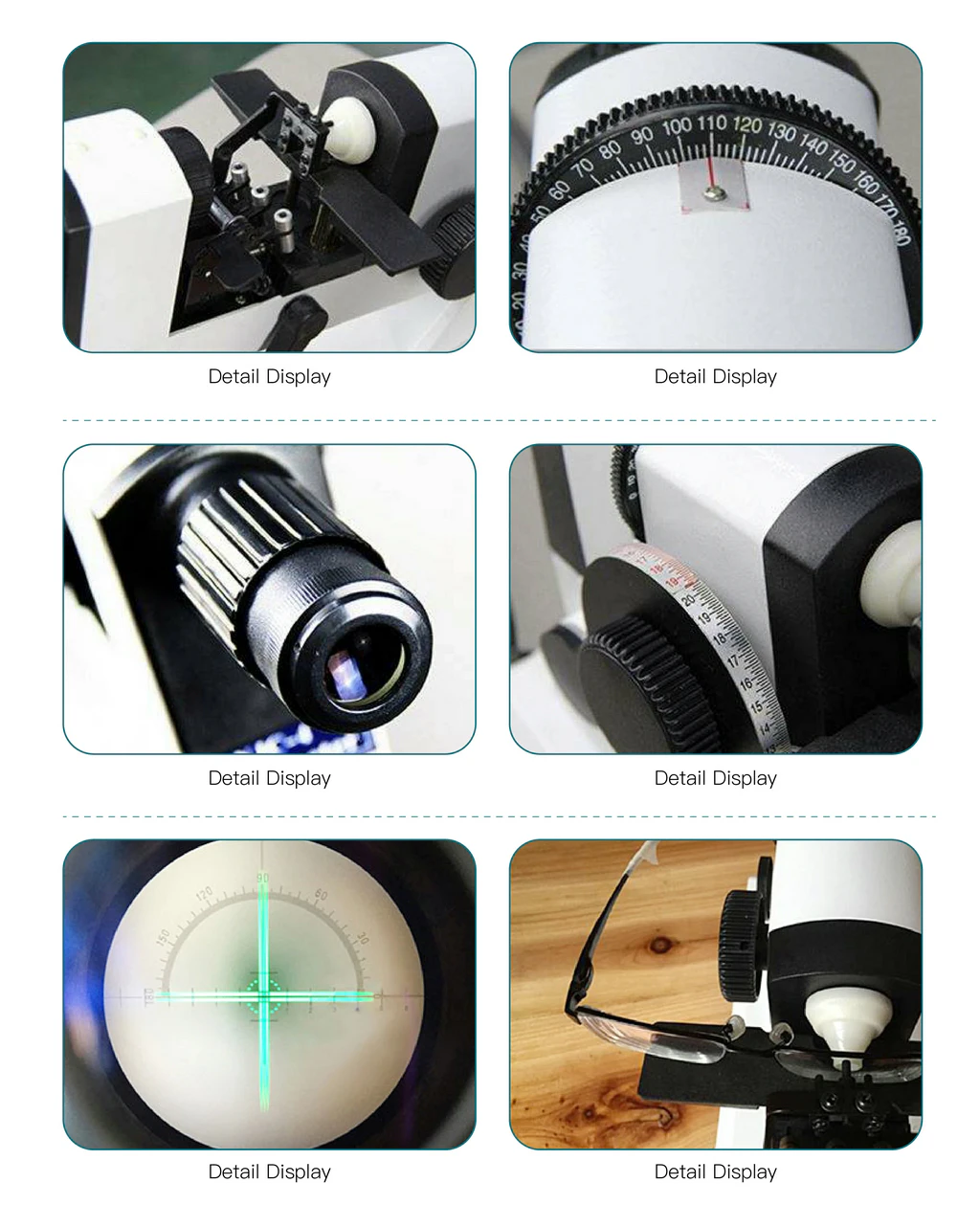

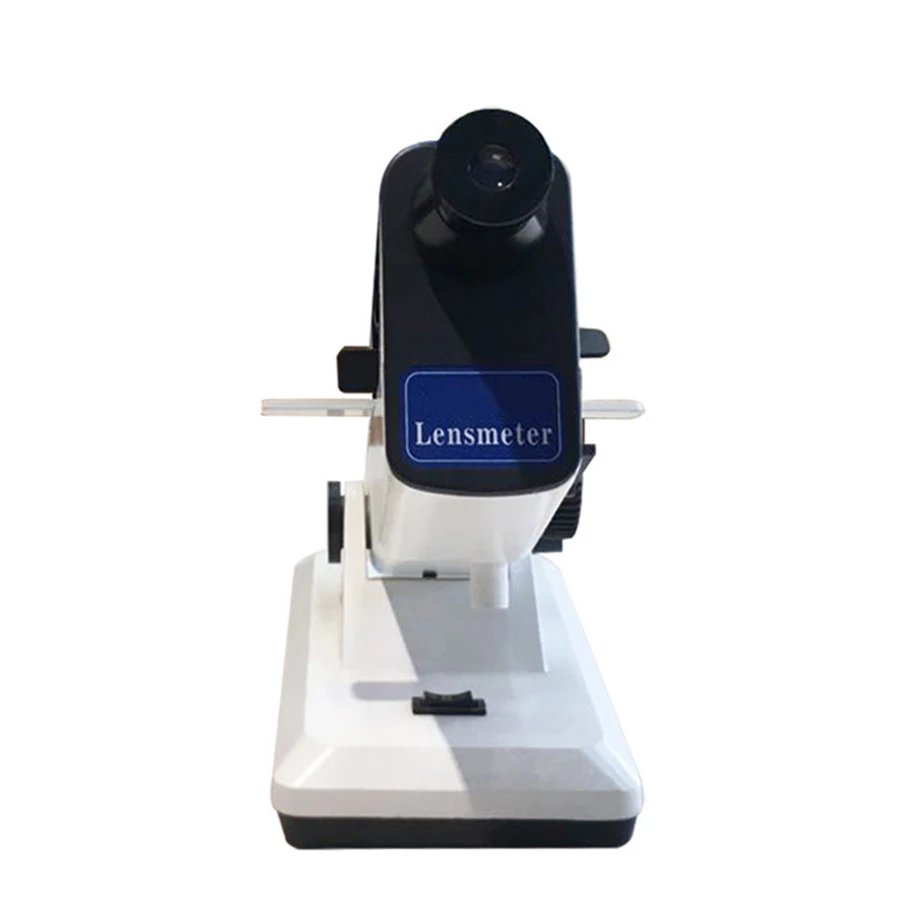

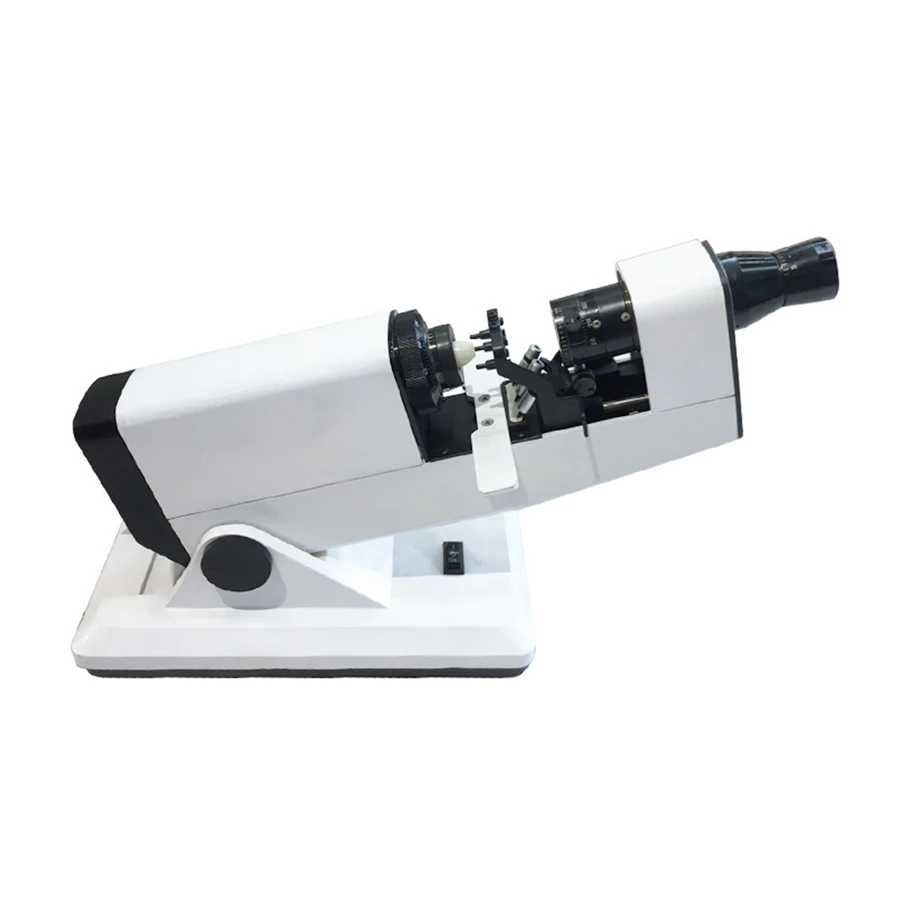

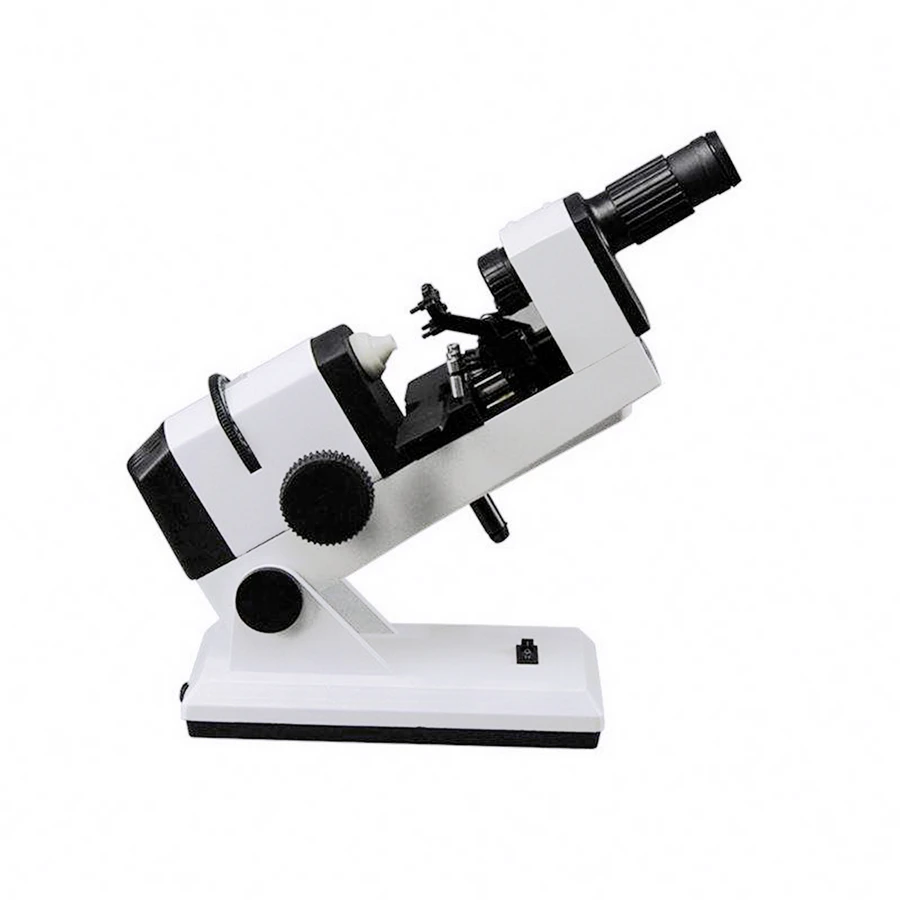

Model: HLM-150
The HLM-150 Manual Lensmeter is designed for routine lens measurement in optometry clinics, optical shops, and ophthalmology departments. It delivers stable and accurate readings with a wide measurement range, making it suitable for single-vision, bifocal, and progressive lenses.
| Parameter | Specification |
|---|---|
| Ranges of Measurement | 0 to ±25 D |
| Minimum: Outer Reading | 0.125 D |
| Inner Reading | 0.125 D graduation up to 0 to ±5 D 0.25 D graduations over ±5 D to ±25 D |
| Digital Display Resolution | 0.01 D |
| Cylinder Axis Range | 0 ~ 180° |
| Prismatic Power Range | 0 ~ 5 Δ prism diopters, 1 Δ graduations (with prism compensation device) 0 ~ 20 Δ prism diopters, 1 Δ graduations |
| Prismatic Base Angle | 0 ~ 180° |
| Eyepiece Adjustment | ±5 D |
| Dimension of Objective Lens | Φ16 ~ Φ86 mm |
| Overall Size | 275 × 120 × 430 mm |
| Weight | 4 kg |
| Lighting Bulb | ~220 V / -3 V 3 W or ~110 V / -3 V 3 W |
Trusted Services:
1. Video chat to check HLM-150 Hand Lens Meter.
2. Free online technical support and training.
3. Free online installation support.
4. 1-3 Years quality warranty.
5. Lifetime after sales support.
6. Most products are CE and ISO 13485 certificated.
7. Free input voltage and plug customization for electrical machines.
8. Fast worldwide shipping, 5-10 working days delivery for most countries.
9. Partial prepayment is acceptable before shipping.
10. Discount price, non-branded or customized products can be offered for distributors.
