Model: CT-1000

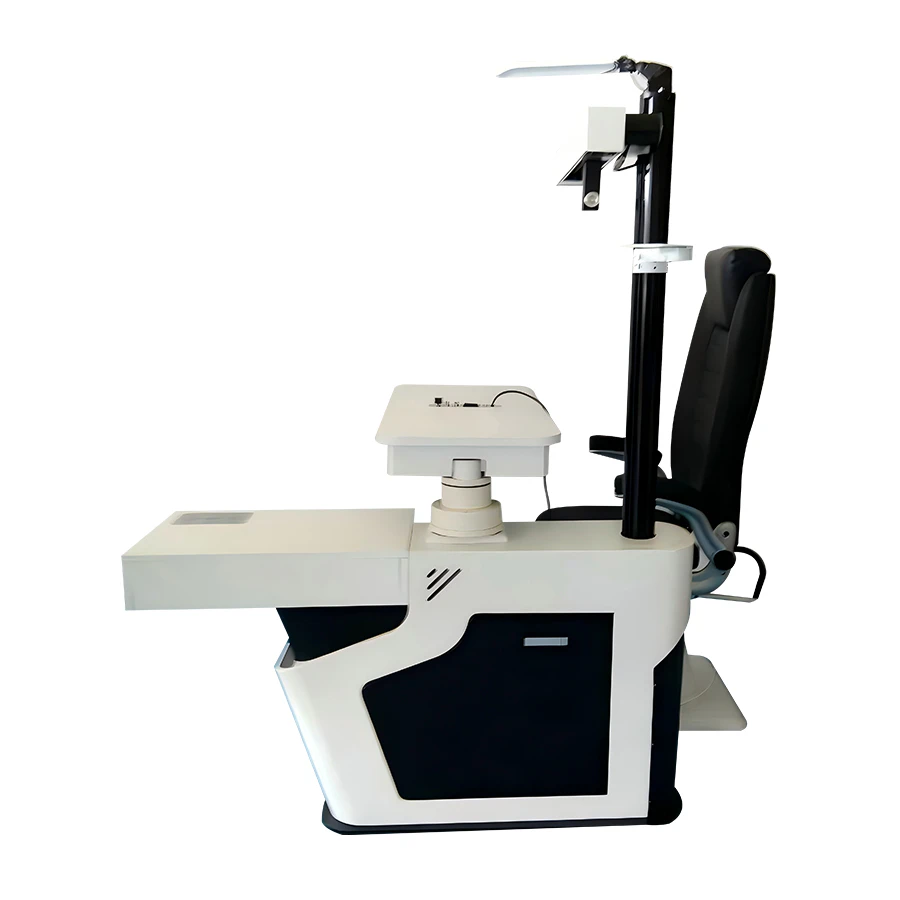

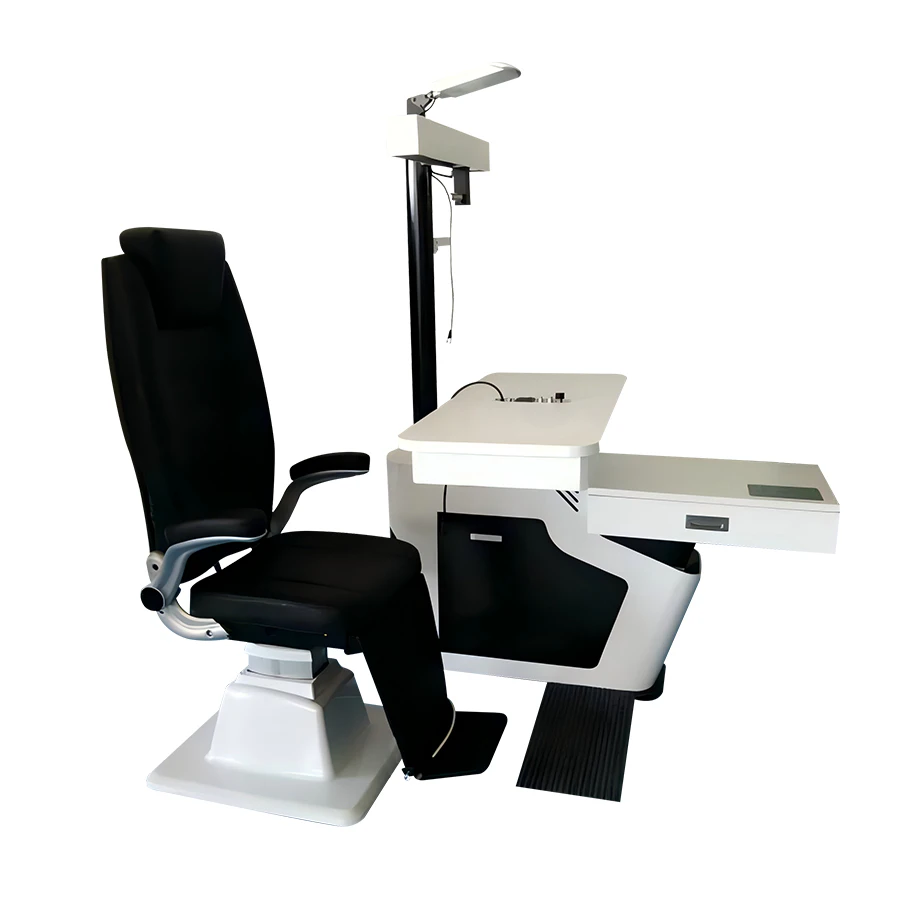

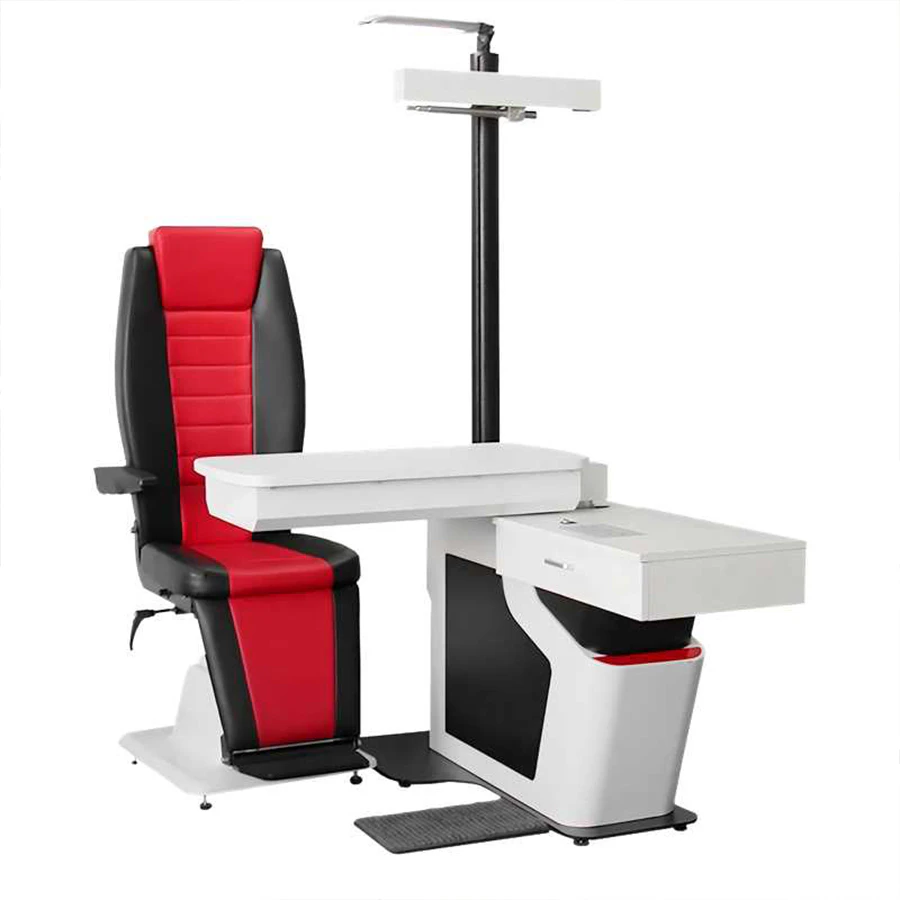

The CT-1000 automatic ophthalmic unit is a fully automatic chair and stand unit designed for efficient eye examinations. The table, column, and phoropter arm all move automatically, and the leather patient chair operates quietly with a linear motor.

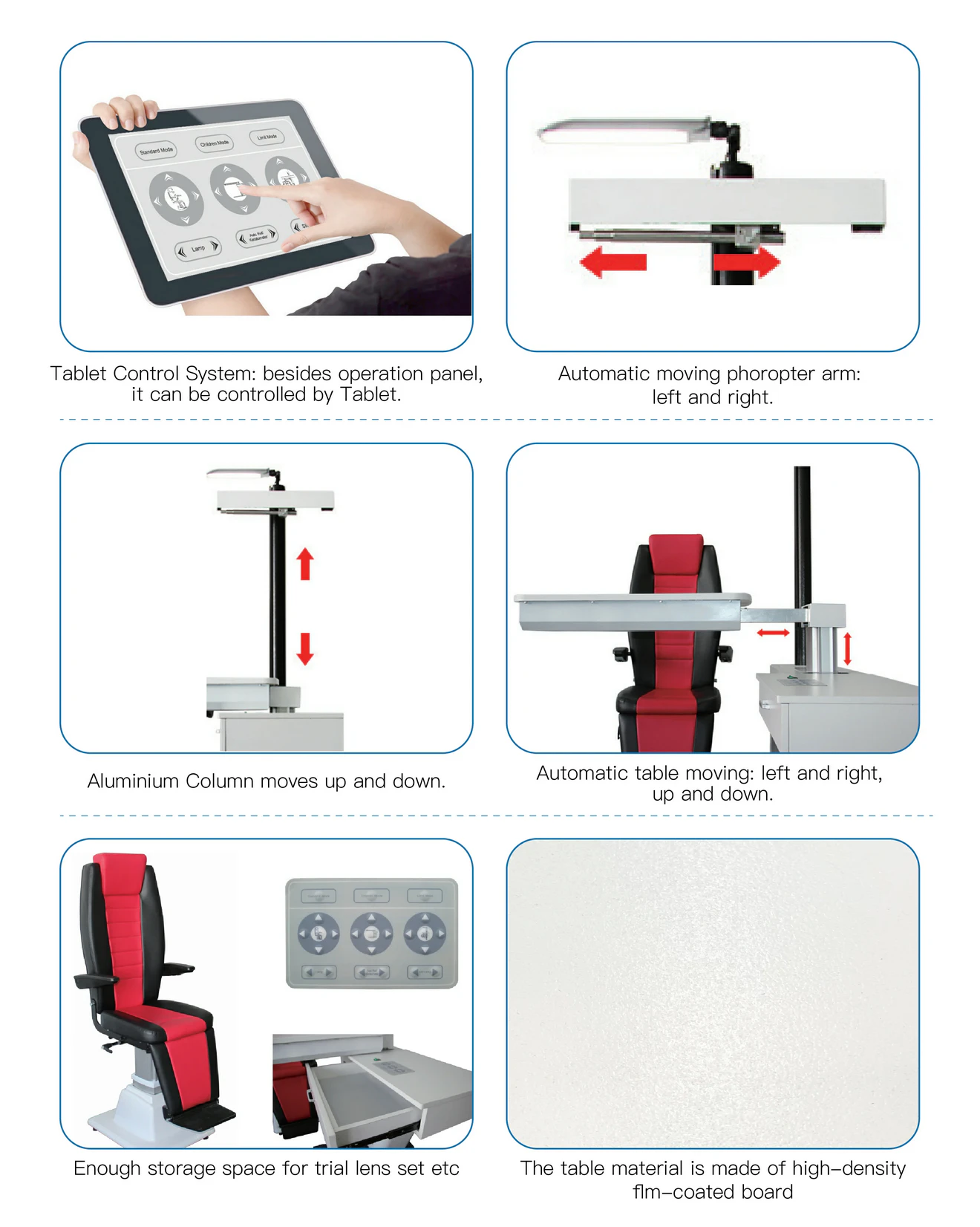

It supports multiple instruments, including auto refractometer, auto phoropter, slit lamp, auto lensmeter, and trial lens set, with a built-in drawer for convenient storage. Wireless control is available via operation panel, mobile device, or tablet.

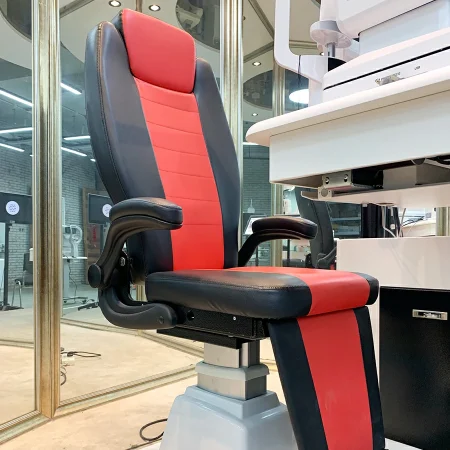

The CT-1000 with a quiet linear motor, allowing smooth electric adjustments. It can move up/down and rotate automatically, ensuring comfortable positioning for various eye exams.

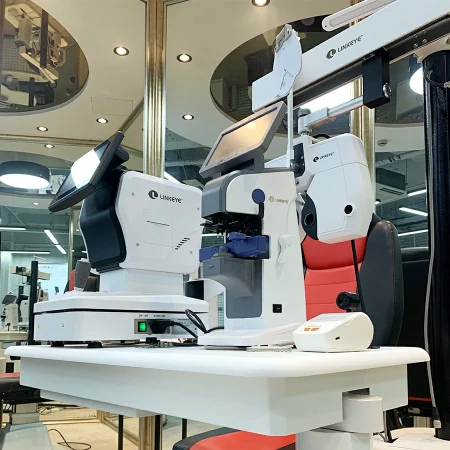

CT-1000 automatic ophthalmic unit includes a high-density table that can rotate 90° and support two instruments simultaneously, such as an auto refractometer, phoropter, slit lamp, or auto lensmeter.
| Unit size | 1200×1300×1800mm | Chair back angle | 140° |
| Table size | 850×450mm | Chair movement mode | Pulley move (optional) |
| Small table size | 620×400mm | Chair height | 700mm |
| Drawer size | 520×350mm | Chair loading ability | 250kg |
| Control mode | Film button/ phone remote control/ flat panel remote control | Lamp | LED (24V, 7W) |
| Configuration equipment | Computer refractometer/ electric cattle eye/ slit lamp/ focus meter | Electric Voltage | AC220V/ 110V 50/ 60HZ |
| Table rotation angle | 90° | Weight | 200kg |
| Countertop left and right movement distance | 400mm | ||
| Countertop up and down distance | 150mm | ||
| Column (cattle eye arm) left and right moving distance | 400mm | ||
| Column (cattle eye arm) up and down distance | 120mm | ||
| Chair left and right movement distance | 150mm | ||
| Chair up and down distance | 150mm | ||
