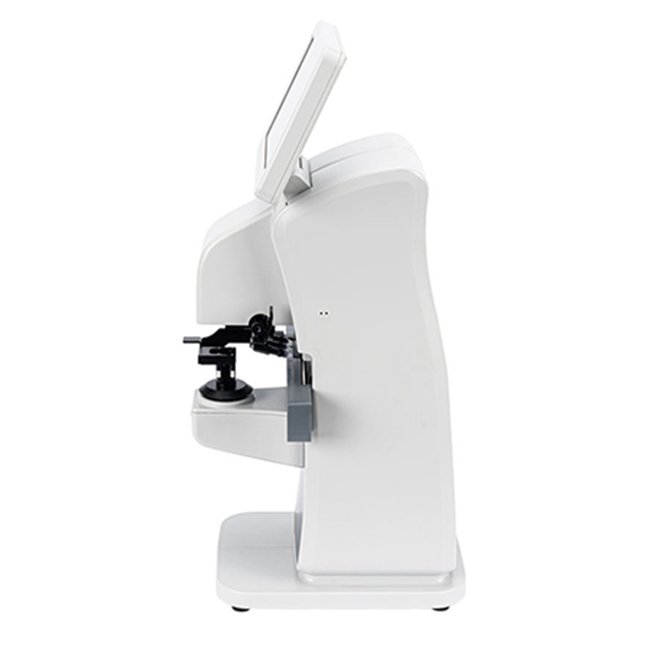

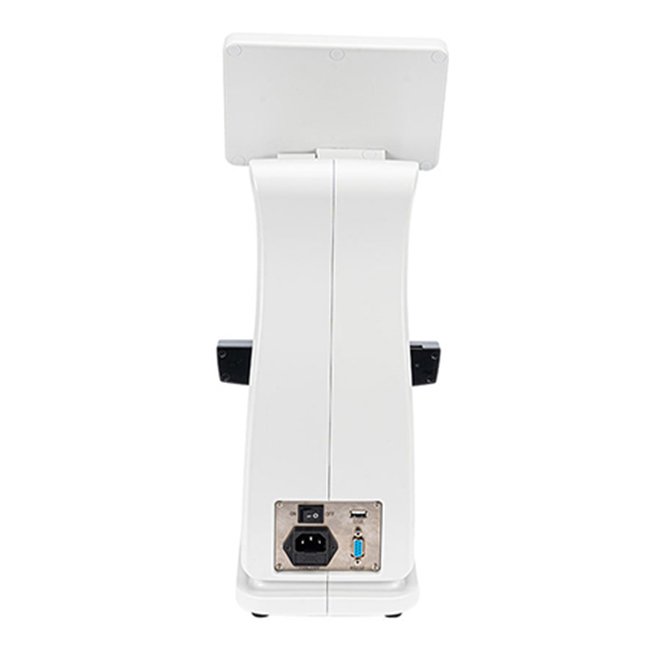

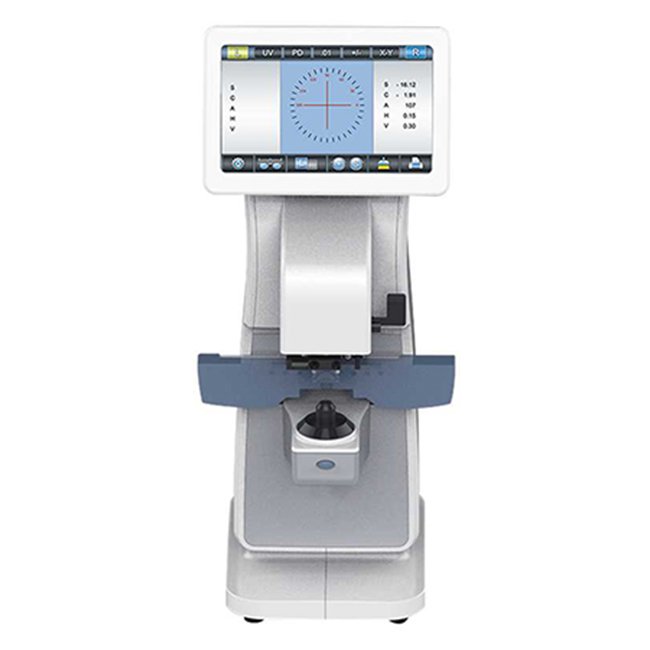

Model: AL-800
The AL-800 combines modern design, high-end technology, and precise assembly for efficient lens testing in clinics or optical labs.
The AL-800 digital lensmeter is designed for accurate, fast lens measurements. It features a reversible HD touch LCD and precise Hartmann multi-point technology. The device quickly recognizes single vision, bifocal, progressive multifocal, and contact lenses.

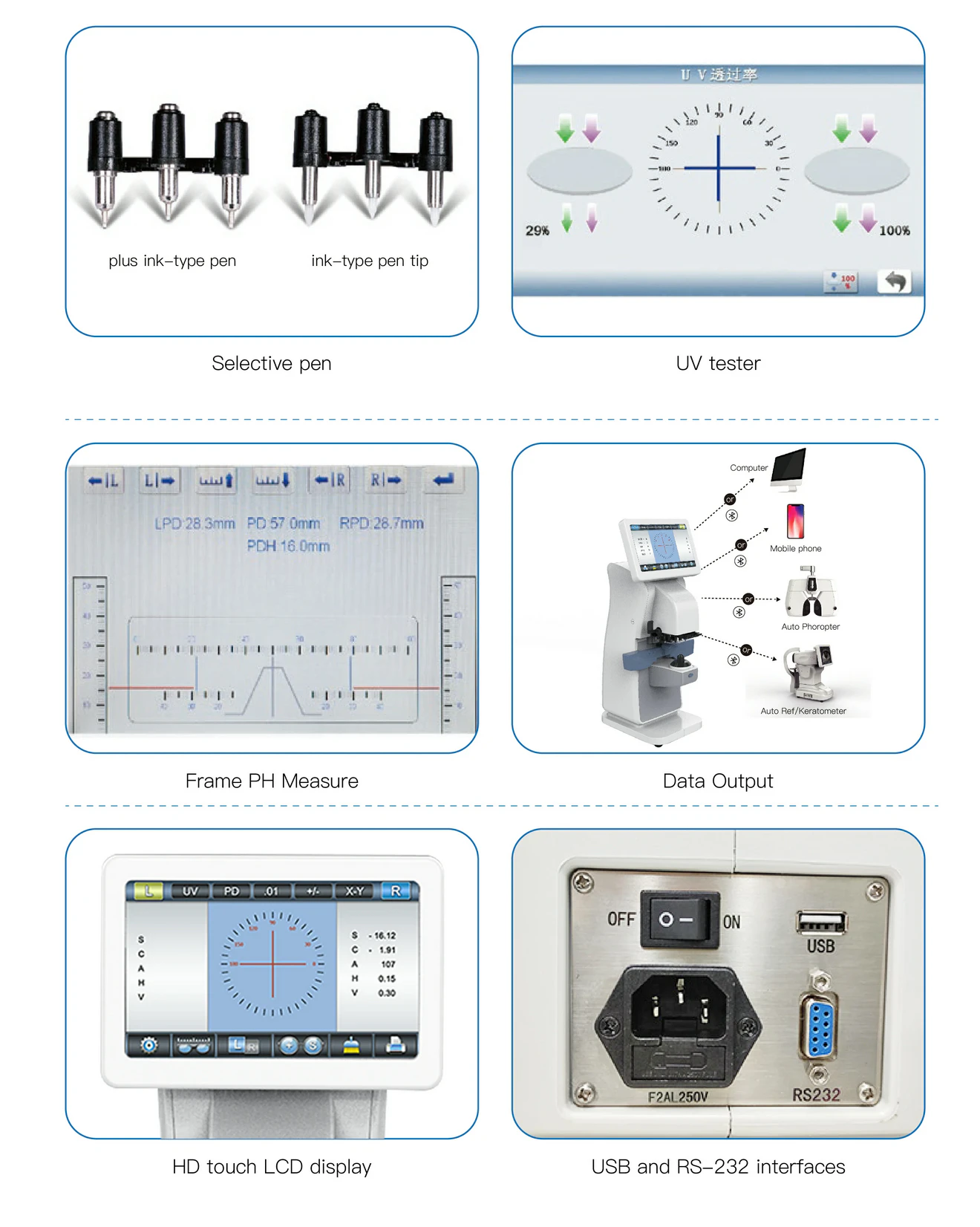

It measures pupil distance, lens frame pupil height, and UV/blue light transmittance without ABBE compensation. Additional features include a fine dotting device, selective dotting pen, and external data transmission.

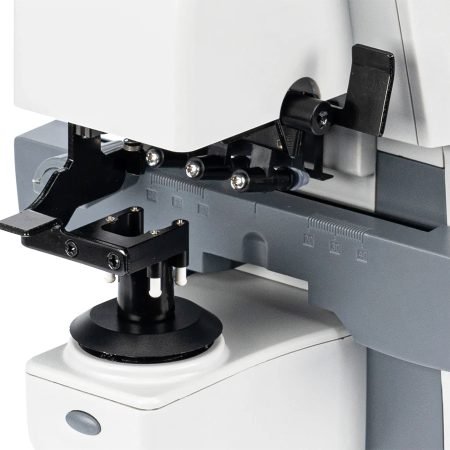

The fine marking device allows precise marking of lenses for accurate alignment and measurement. It works with the selective dotting pen to mark single vision, bifocal, and progressive lenses quickly. This ensures proper positioning for lens processing and fitting.
The Hartmann measuring system uses multi-point detection to accurately measure lens power, astigmatism, and progressive multifocal lenses. It provides fast, reliable readings with high precision for all lens types.
Technical Data | |
Transmission Ratio of Measurable Lens | > 10%, when the degree exceeds±10D, the transmittance of the lens is required to be > 20% |
Contact Lens | 0 to ±25D, BC 6.00 to 9.00 |
Display | 7.0-inch HD touch LCD display |
Menu | User friendly design, simple and easy to operate |
Diameter of Lens Used | 20mm-100mm |
Power Supply | AC 100 (+ 10%) – 240 (+ 10%) V50/60Hz 40VA |
Maximum Power | 40W |
Gross Weight | 6kg |
Box Size | 550mm * 300mm * 290mm (length * width * height) |
Environment Condition |
|
A. Temperature: 5-40℃ (service temperature) – 20-60 ℃(storage/transportation temperature) B. Humidity: 30-85% (no condensation) (use humidity) 10-95% (storage transportation humidity) C. Atmospheric pressure: 700-1060hpa D. Altitude: up to 2000m E. Others: no harmful dust and smoke | |
Optional Accessories | Printer (built-in thermal printer, paper width: 57mm) |
Spherical Mirror | 0 to ±35D(reading accuracy 0.01D/ 0.06D/ 0.12D/ 0.25D) |
Cylinder Sphere | 0 to ±10D(reading accuracy 0.01D/ 0.06D/ 0.12D/ 0.25D) |
Cylindrical Mirror Axis Position | 0°- 180°(reading accuracy: 1°） |
ADD | 0 to 10 D(reading accuracy 0.01D/ 0.06D/ 0.12D/ 0.25D) |
Prism | 0 to 15△ (0.01△ ) |
Reading Resolution | 0.01D/ 0.06D/ 0.12D/ 0.25D |
Trusted Services:
1. Video chat to check AL-800 Auto Lensmeter.
2. Free online technical support and training.
3. Free online installation support.
4. 1-3 Years quality warranty.
5. Lifetime after sales support.
6. Most products are CE and ISO 13485 certificated.
7. Free input voltage and plug customization for electrical machines.
8. Fast worldwide shipping, 5-10 working days delivery for most countries.
9. Partial prepayment is acceptable before shipping.
10. Discount price, non-branded or customized products can be offered for distributors.
