Model: YZ-24BD

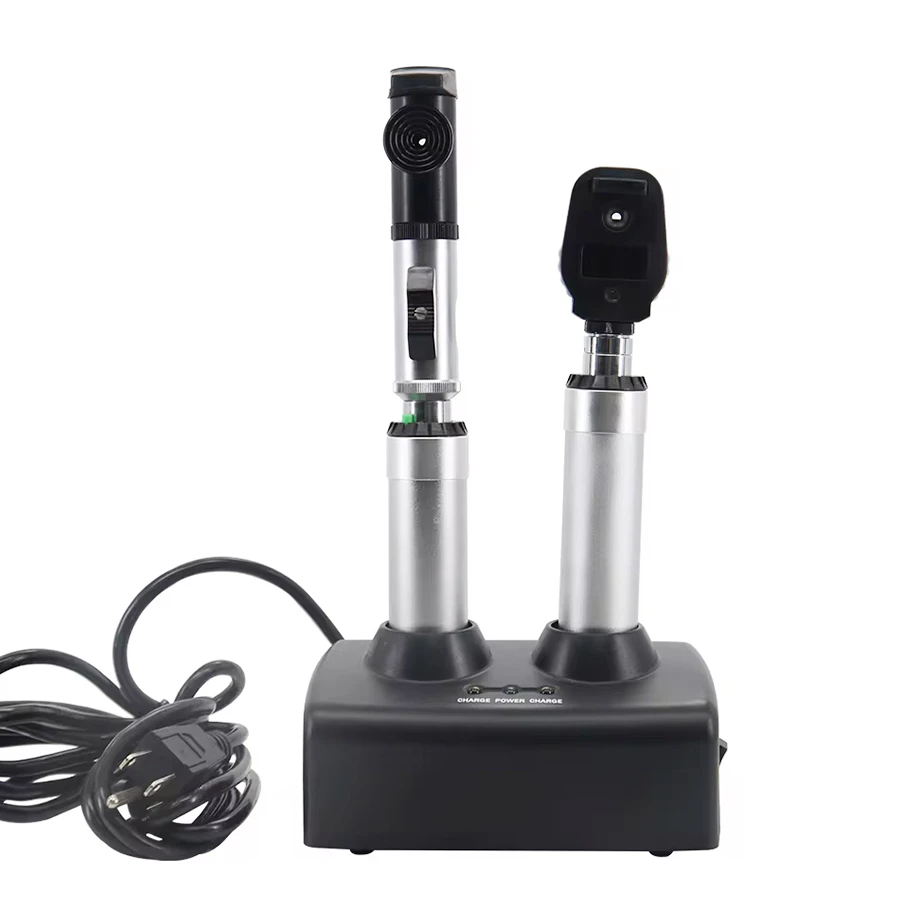

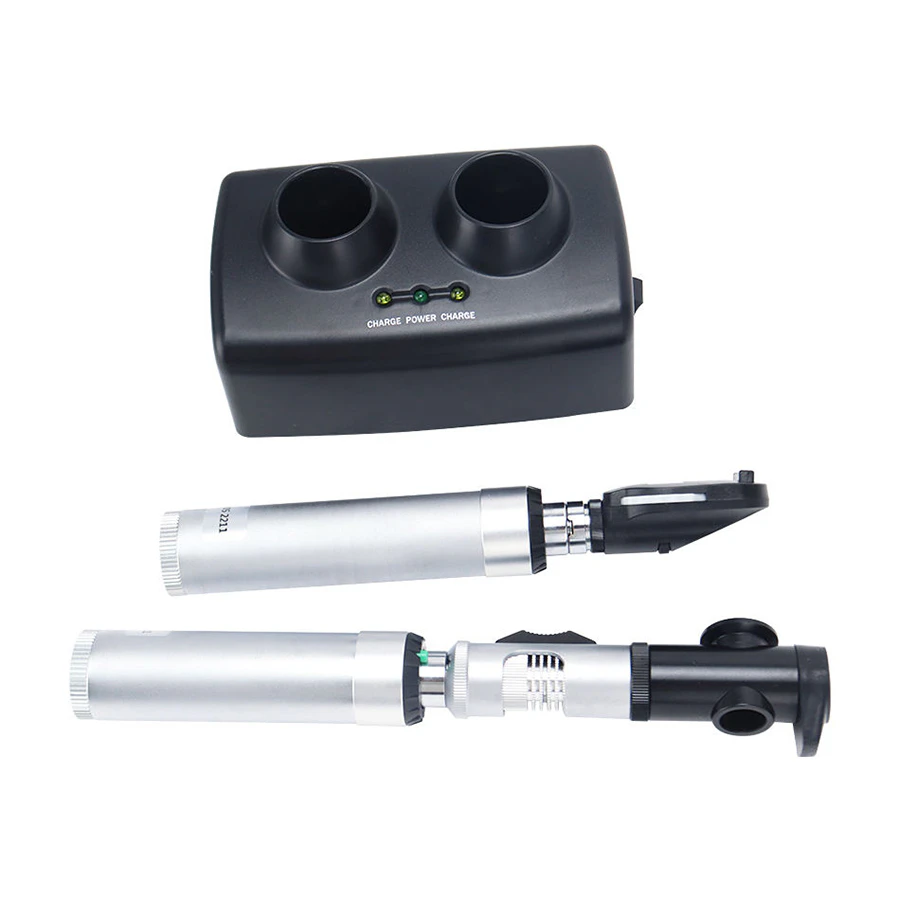

YZ-24BD Ophthalmic Diagnostic Set combines the YZ-24B Retinoscope and YZ-11D Direct Ophthalmoscope for accurate eye exams.
YZ-24BD Ophthalmic Diagnostic Set combining the YZ-24B Streak Retinoscope and YZ-11D Chargeable Direct Ophthalmoscope for accurate and efficient eye examinations.
YZ-24B Retinoscope provides precise reflex detection for refraction assessment, while the YZ-11D Ophthalmoscope delivers clear, bright fundus observation in a portable, rechargeable design.
The YZ-24BD combines the YZ-24B Streak Retinoscope and YZ-11D Direct Ophthalmoscope in one set, allowing both refraction and fundus examinations with a single kit. This modular design enhances clinical efficiency, offering flexibility for different diagnostic needs in daily eye care practice.

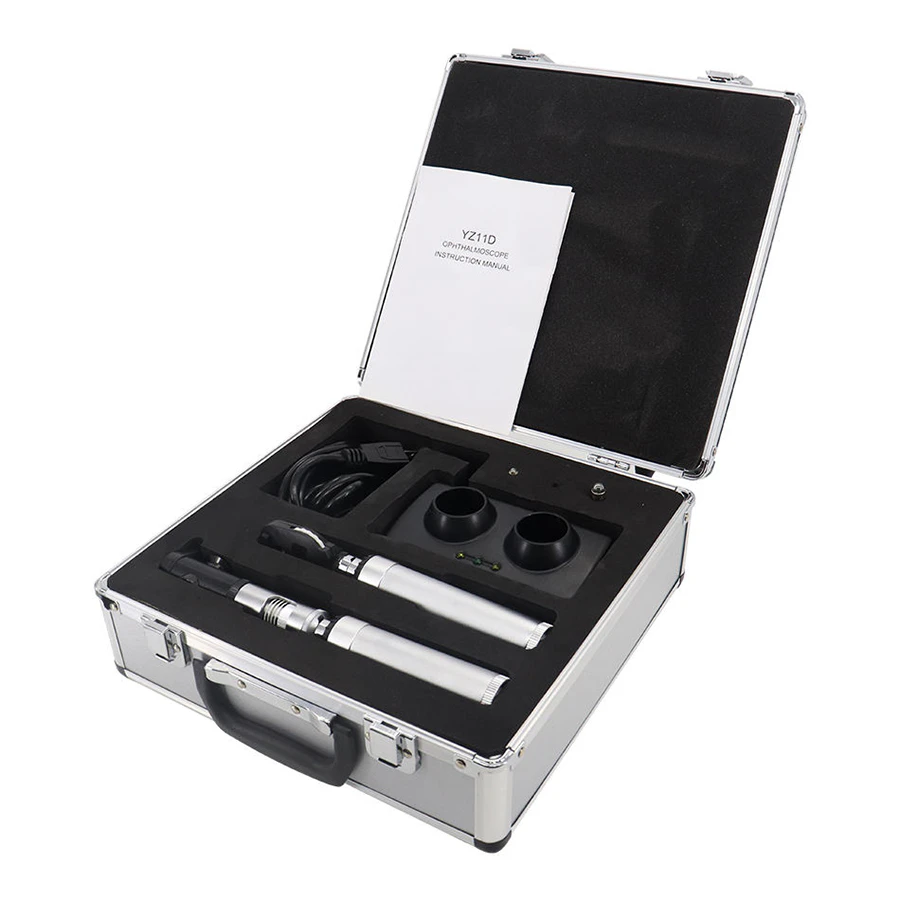

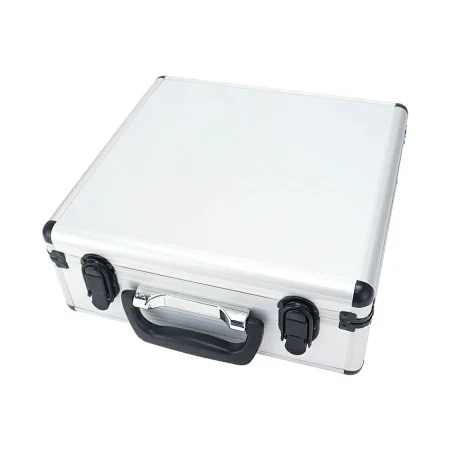

The set is housed in a durable aluminum case that securely holds both instruments and their accessories. The compact and protective design ensures safe storage and easy transport, making it suitable for use in clinics, hospitals, or mobile eye examinations.
HY-11D Direct Ophthalmoscope:
Features:
1. Improved light path and excellent optical performance.
2. Imported halogen bulb provides high and adjustable brightness and good color rendering.
3. Smart, portable and convenient for mobile inspection.
4. Equipped with special charger, quick and convenient recharging, against over recharging.
5. Anti-recharging and anti-discharging function protects the battery.
Specifications:
| Illumination Form | Big Spot, Small Spot, Slit, Net, Red Free |
| Diopter Compensation | -35D～ 20D, 24 in total, 0, ±1, ±2, ±3, ±4, ±5, ±6, ±8, ±10, ±15, ±20D |
| Illumination Source | 3.5V/2.8W, Halogen Bulb |
| Power Supply | AC220V/ 50Hz, AC110V / 60Hz |
| Power(Main Body) | Li Battery Pack 3.7V, Rechargeable |
YZ-24B Streak Retinoscope:
Features:
1. The filament can be 360°rotated and upward and downward moved.
2. Quickly and precisely measure the astigmatism axis.
3. The light can be converged, radiated and paralleled.
4. Continuously adjustable brightness.
5. Convenient quick recharging.
6. Anti-overcharging function and anti-discharging function protects the battery.

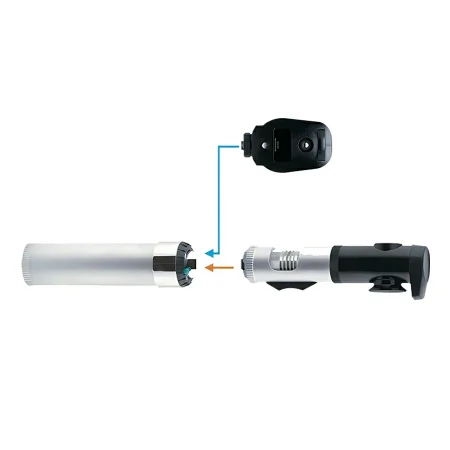

7. Can also be connected with the head of ophthalmoscope.
8. Double electricity double sufficient power: YZ24B and YZ11D could be charged at the same time.
Technical Specification:
| Working Distance | 0.67mm |
| Streak | 3mm-20mm |
| Streak Rotation | 360° |
| Illumination Source | 3.5V/2.8W Halogen Bulb. |
| Power (main Body) | Li battery pack DC:3.7V |
| Input Voltage | AC220V±22V/50HZ±1Hz, AC110V±11V/60Hz±1Hz |
Trusted Services:
1. Video chat to check YZ-24BD Ophthalmic Diagnostic Set.
2. Free online technical support and training.
3. Free online installation support.
4. 1-3 Years quality warranty.
5. Lifetime after sales support.
6. Most products are CE and ISO 13485 certificated.
7. Free input voltage and plug customization for electrical machines.
8. Fast worldwide shipping, 5-10 working days delivery for most countries.
9. Partial prepayment is acceptable before shipping.
10. Discount price, non-branded or customized products can be offered for distributors.
