Model: VT-5C
The VT-5C is applicable to ophthalmology department of hospitals and spectacle stores for precision measurement of visual functions such as myopia, hyperopia, astigmatism, eyesight balance, heterophoria, stereoscopic vision and eyesight amalgamation.
The VT-5C Manual Phoropter is suitable for hospitals and optical shops to test myopia, hyperopia, astigmatism, binocular balance, heterophoria, stereoscopic vision, and visual fusion. It is available in two color options to fit different clinical environments.

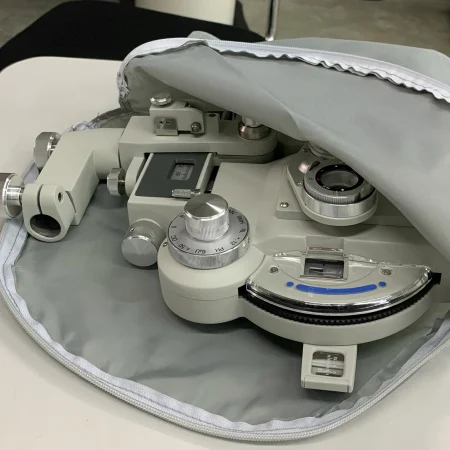

Designed with a balanced structure that reduces operator fatigue during long testing sessions. Its smooth surfaces and easy-to-clean materials help maintain hygiene, ensuring comfort and safety for both patients and examiners.

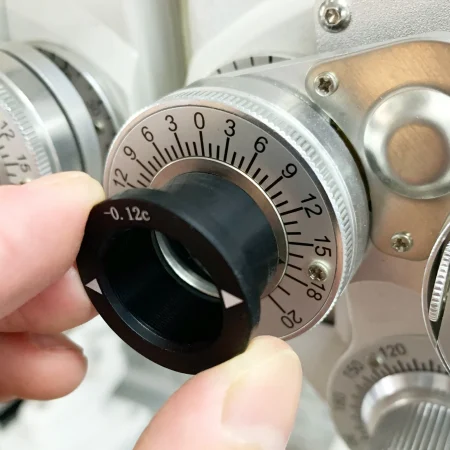

The adjustable parts allow smooth control of axis, cylinder, and sphere settings, making refraction more accurate. Each component moves easily and locks firmly, helping examiners achieve precise alignment and faster adjustments during eye testing.

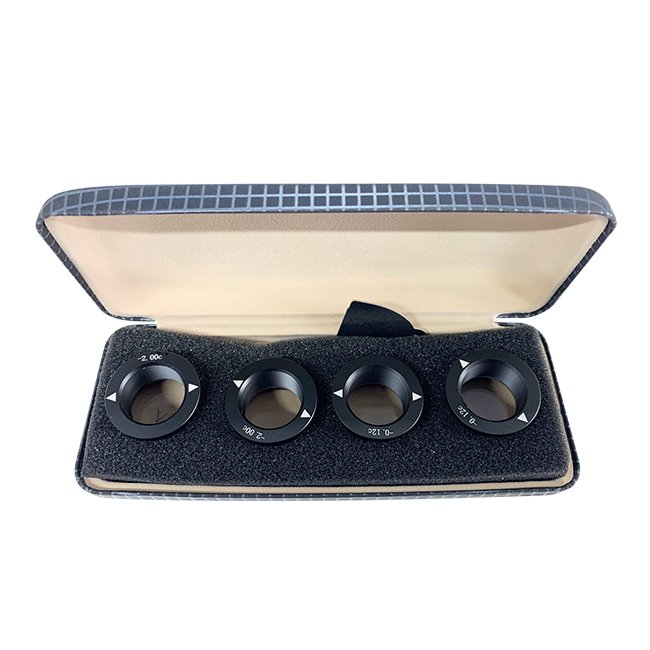

| Sphere powers range | ±16.75Dto-19.00D,with minimum reading 0.25D or 0.12D |
| (when 0.12D auxiliary lens or optional±0.12D lens is in use) | |
| Cylinder powers range | 0 to-6.00D,with minimum reading 0.25Dor0.12D |
| ( when auxiliary lens is in use) 0 to-8.00D | |
| ( when-2.00D auxiliary lens is in use) | |
| Astigmatic axis scale | 0 to 180°in 5°steps |
| Cross Cylinder | reversal type (synchronized with astigmatic axis) ±0.25D,or±0.50D |
| Rotary prism | 0 to20△D in 1△D steps |
| P.D. adjustment | 48-80mm;Step:1mm |
| Forehead rest adjustment | 16mm forward and backward |
| Convergence | The optical axes 0g thelenses are aligned at a diatance of 400mm from the vertexes of the corneas (2mm each for right and left inward)Interpupillary distance enabling convergence=57mm to 80mm |
| Corneal distance device | 2mm forward and 5mm backward from standard plane;with scale |
| Effective field of view | 19mm |
| Weight | 5kgs |
| Size | 291-323mm×315mm×85mm |
