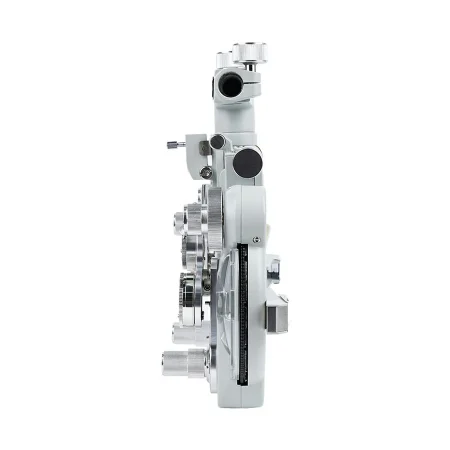

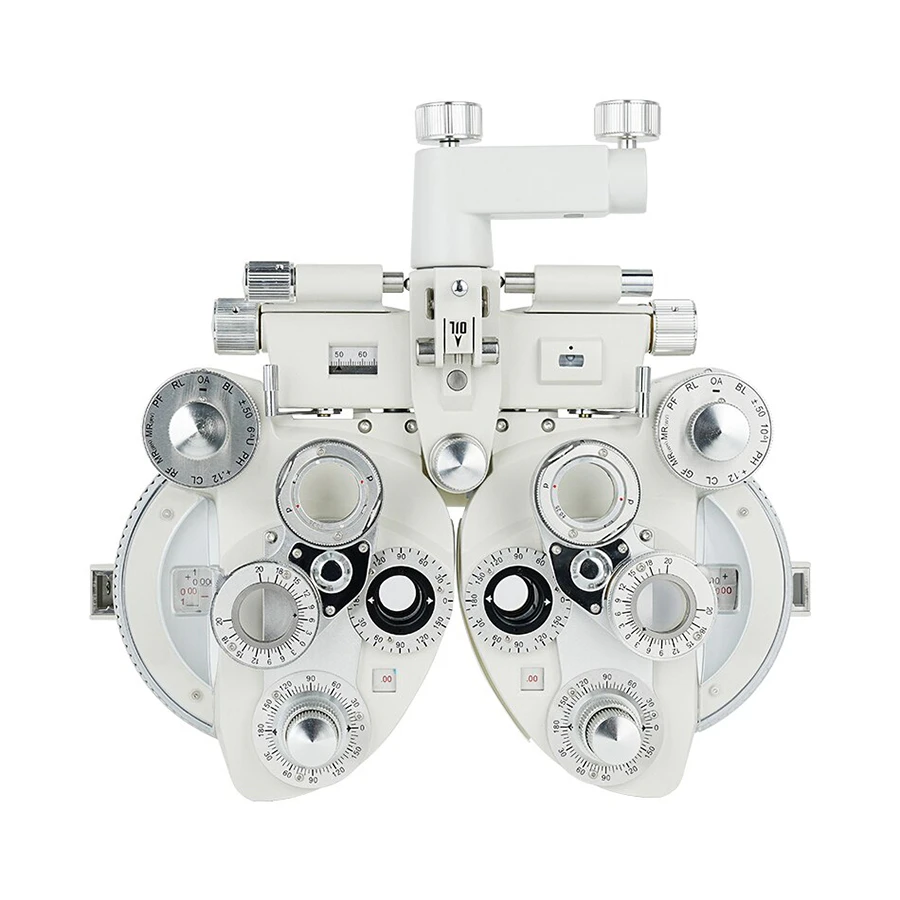

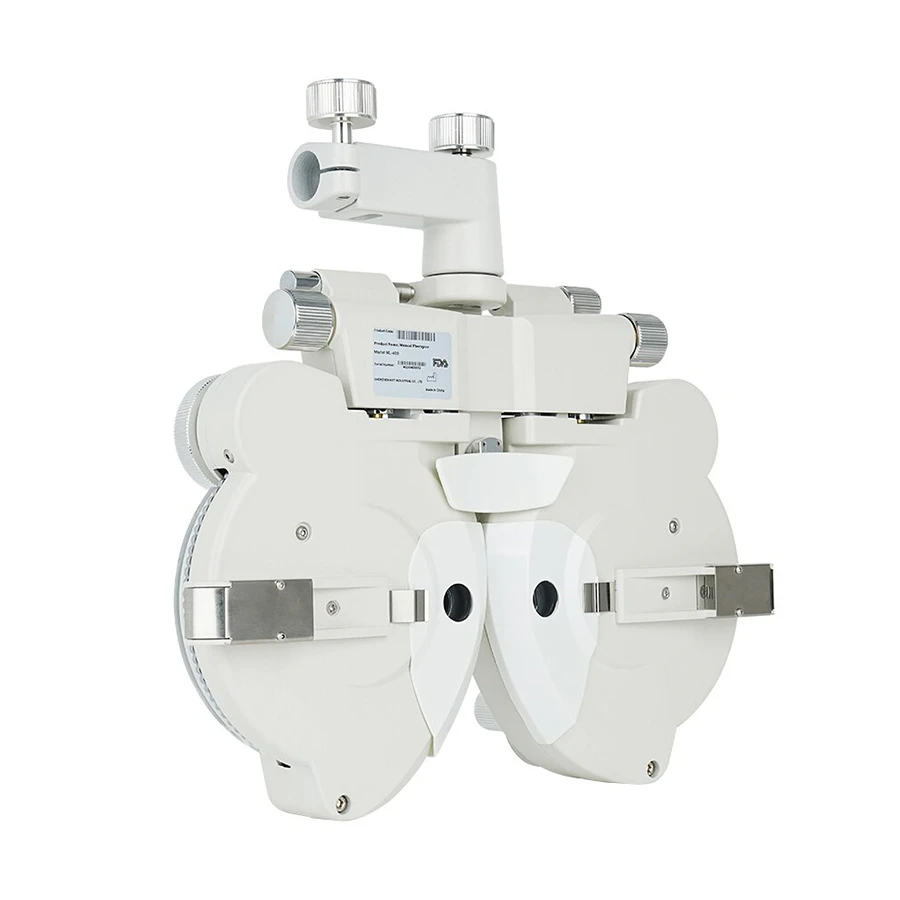

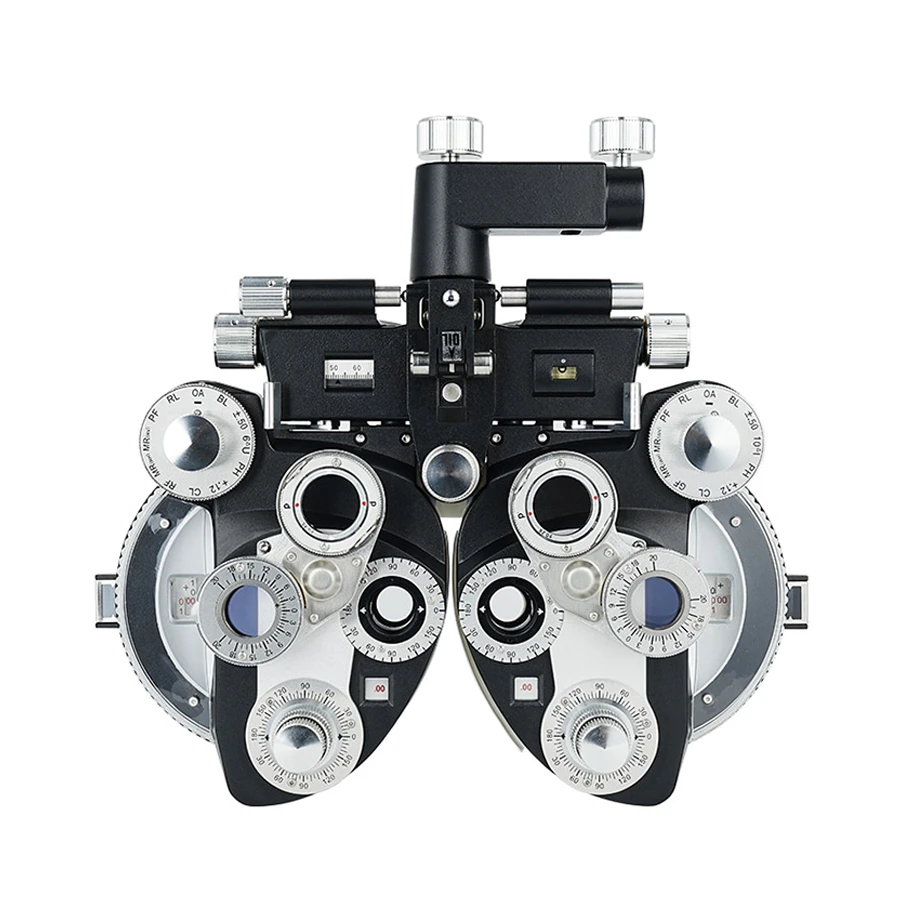

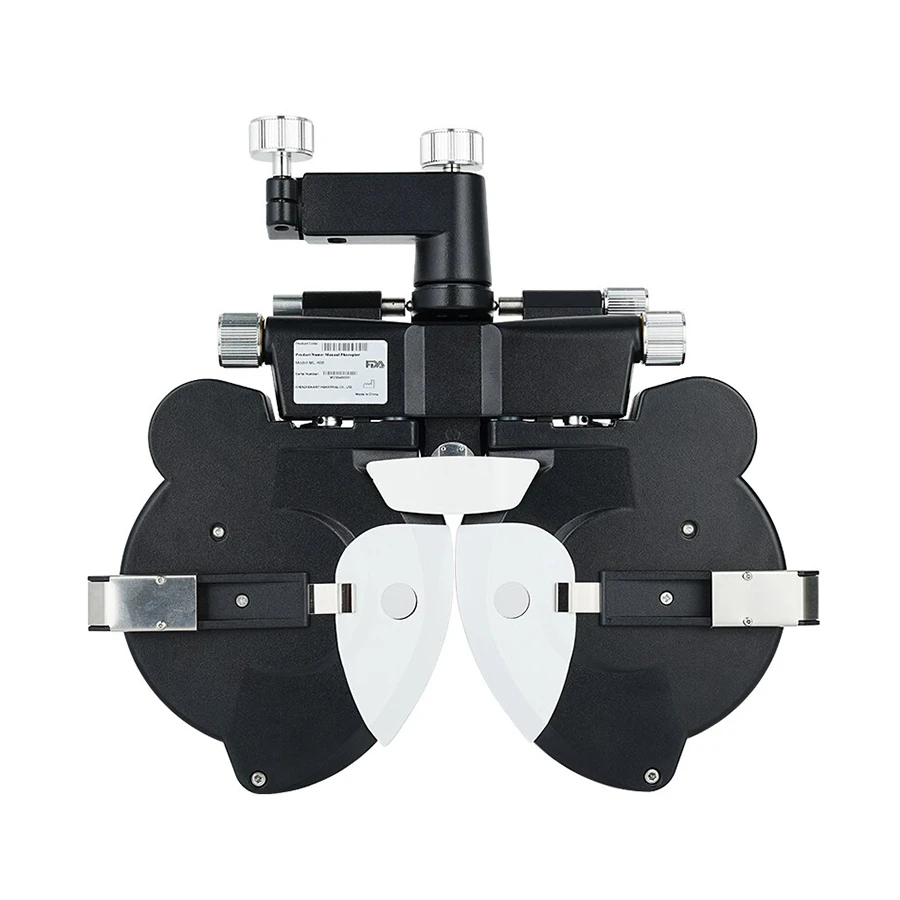

Model: VT-10
The VT-10 Manual Phoropter is designed for routine refraction examinations in optometry clinics, optical shops, and hospital ophthalmology departments. It features ergonomic operation, clear scale markings, and smooth lens switching for accurate and efficient visual testing.
Clinical Applications:
Subjective refraction testing
Visual acuity and astigmatism evaluation
Routine eye examinations in clinics and optical stores

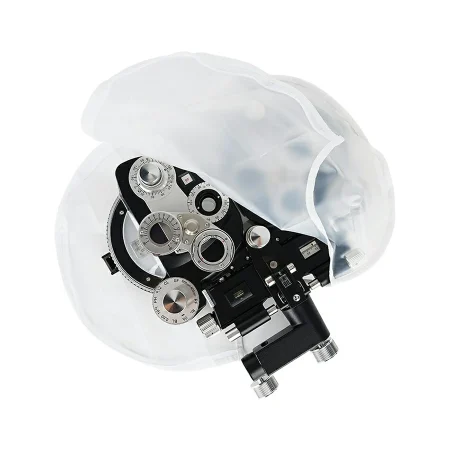

VT-10 ships with a custom-fit, translucent dust cover that fully seals the optical assembly—preventing contamination and ensuring long-term calibration stability for reliable refraction results.
Only 85mm deep yet fully equipped with full-range refraction optics, the VT-10 fits seamlessly into compact exam lanes or mobile setups—maximizing clinical workflow without compromising on precision or ergonomics.
| Parameter | Specification |
|---|---|
| Sphere Range | -19.00 D ~ +16.75 D (Step: 0.25 D) |
| Cylinder Range | 0.00 D ~ -6.00 D (Step: 0.25 D) (0.00 D to -8.00 D with additional lens of -2.00 D) |
| Cylinder Axis | 0° to 180°, 5° steps |
| Cross Cylinder | ±25 diopters (Note: Content states ±0.25D for “Cross-cylinder lens”) |
| Cross-cylinder lens | ±0.25 D |
| Rotary Prisms | 0 △ to 20 △, 1 △ steps |
| P.D. Adjustment | 48 – 75 mm, 1 mm steps |
| Dimensions | 345 × 295 × 85 mm |
| Net Weight | 4.5 kg |
Trusted Services:
1. Video chat to check VT-10 Manual Phoropter.
2. Free online technical support and training.
3. Free online installation support.
4. 1-3 Years quality warranty.
5. Lifetime after sales support.
6. Most products are CE and ISO 13485 certificated.
7. Free input voltage and plug customization for electrical machines.
8. Fast worldwide shipping, 5-10 working days delivery for most countries.
9. Partial prepayment is acceptable before shipping.
10. Discount price, non-branded or customized products can be offered for distributors.
