Model: ASP-500AB

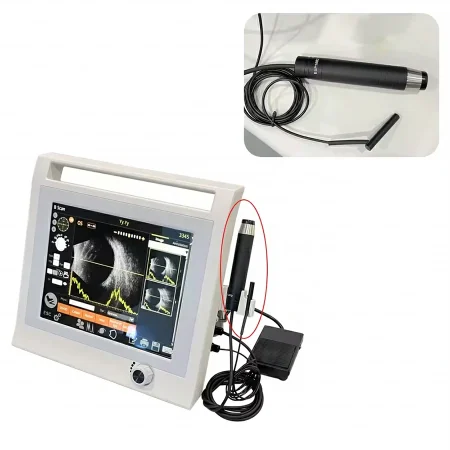

The Ultrasound ASP-500AB Scanner is a professional eye diagnostic machine for ophthalmologists, equipped with A and B probes. The A probe measures axial length and other eye parameters for accurate IOL calculation, while the B probe captures black-and-white images of internal eye structures, aiding diagnosis, especially in cataract cases.

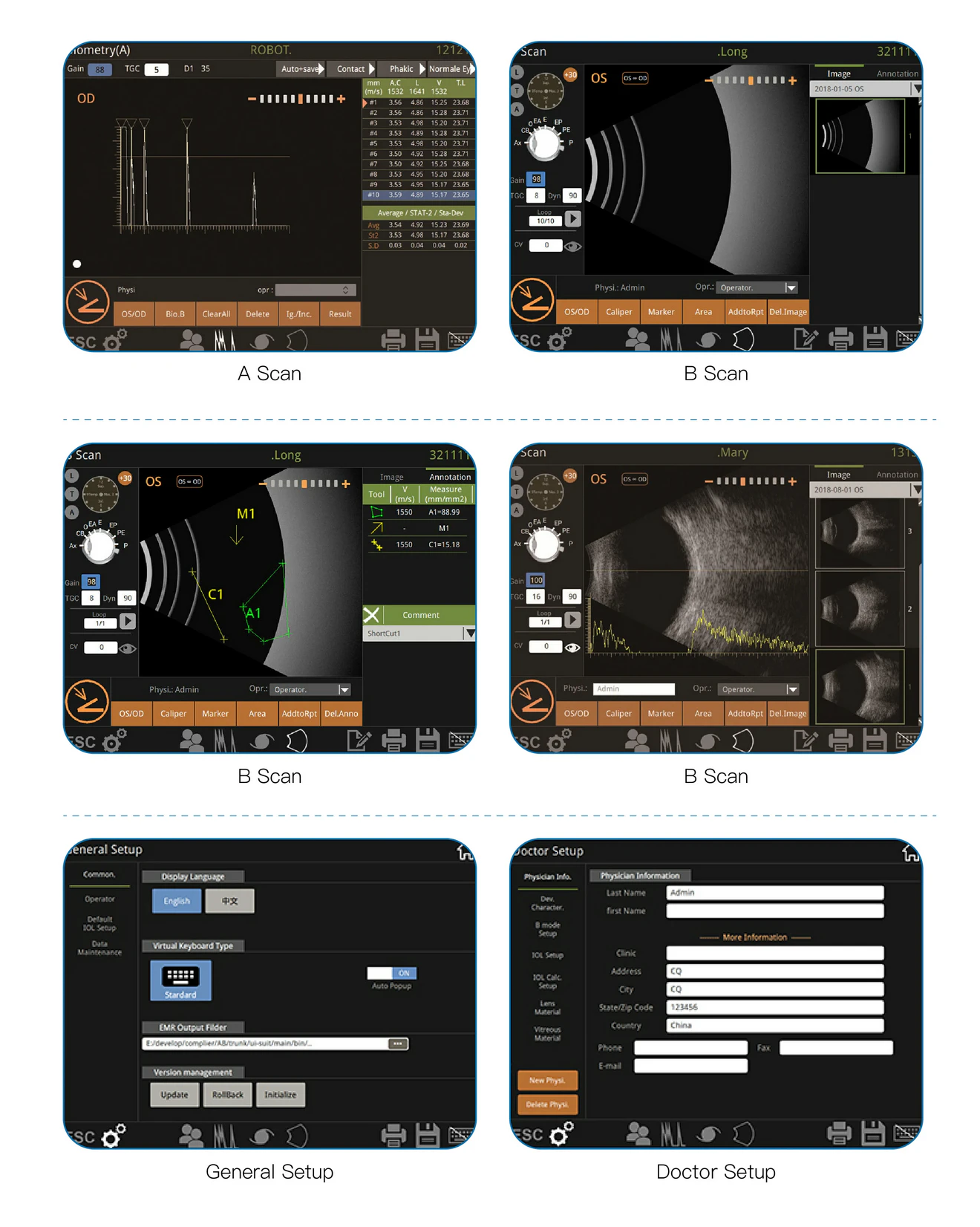

This digital ultrasound scanner features advanced software for easy adjustment of parameters and images. The A-Scan measures anterior chamber depth, lens thickness, and axial length for precise surgical planning. The B-Scan provides clear eyeball images to help detect cataract, vitreous disease, ocular trauma, retinal or choroid detachment, macular disease, and intraocular tumors.
A and B probes can provide patients with safer and more efficient medical services, and help to achieve precise management of the entire process of ophthalmic diseases, from screening to diagnosis of complex conditions.

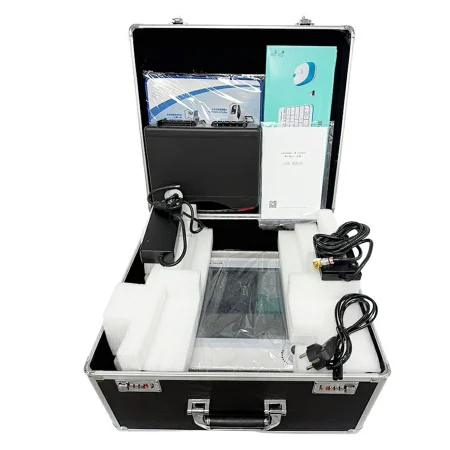

A carrying case and instruction manual ensure safe transportation and standardized operation of the equipment, together supporting medical diagnostics or scientific research applications.
| A-Scan biometry | |
| Probe frequency | 10MHz |
| Measuring mode | contact |
| Measuring range | over 5mm ~40mm |
| Measuring error | ≤±0.05mm |
| Measuring type | length of optic axis, automatic calculation, result analysis |
| Image freezing | auto, auto preservable, manual |
| Intraocular lens Implantation (IOL) formula | SRK-T, SRK II, HOLLADAY, BINKHORST-II,HOFFER-Q, HAIGIS |
| Gain | 20~ 110dB |
| Time gain adjustment | 0~30dB |
| B-scan Patterns | |
| Probe frequency | 10MHz |
| Probing depth | ≥50mm |
| Axial Resolution | ≤0.2mm |
| Lateral resolution | ≤0.3mm |
| Gain adjustment | 20~110dB |
| Time gain adjustment | 0~30dB |
| Operation mode | eyecup, gel, aqueous capsule |
| Post-processing measuring tools | area, length, mark and annotation |
| Review | 100 images available |
| Others | |
| Size | 340mm(L) x 320mm(W) x 115mm(H) |
| Weight | 10Kg |
| Power supply | 100~ 240V 50/60V |
