Model: SW-800

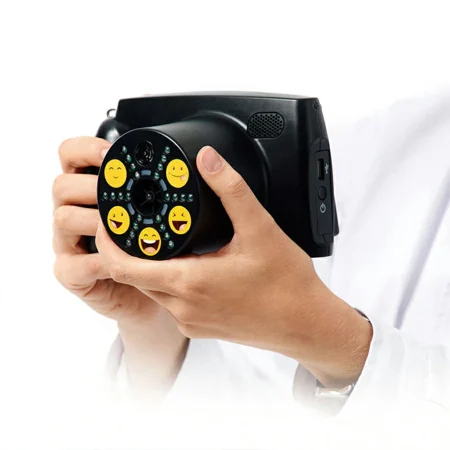

The SW-800 is a handheld, fast, and accurate vision screener for quick refractive testing in clinics, hospitals, and schools. It measures myopia, hyperopia, astigmatism, anisometropia, pupil size, and PD in just one second.
A portable, automated eye exam device that completes eye screening in one second, suitable for children and people who are difficult to cooperate with.
Advanced optical detection principles provide accurate results, including myopia, hyperopia, astigmatism, stability, pupil size changes, anisometropia, asymmetry fixation, and abnormal light reflection.
| Operation mode | Bino/Mono |
| Optometry | Automatic |
| DS | Range: -7.50D~ 7.50D, Resolution: 0.25D/0.01D |
| Accuracy: ±0.50D | |
| DC | Range: 0.00D~3.00D, Resolution: 0.25D/0.01D, Accuracy: ±0.50D |
| Axis | Range: 1°~180° Axis: Range 1°~180° |
| Resolution: 1° Accuracy: ±5° | |
| Pupil size | Range: 4.0mm~9.00mm |
| Resolution | 0.1mm Accuracy: ±0.1mm |
| Pupil distance | Range: 35mm~80mm |
| Resolution: 1mm, Accuracy: ±1mm | |
| Gaze | 0°~20° |
| Measuring distance | 1m±5cm |
| Time per measurement | ~1s |
| Fixation target | Light flash, attractive sound |
| Date interface | Wi-Fi, USB |
| Battery | Rechargeable lithium batteries, 6 hours of duration, Replaceable |
| Size | 180mmX130mmX110mm |

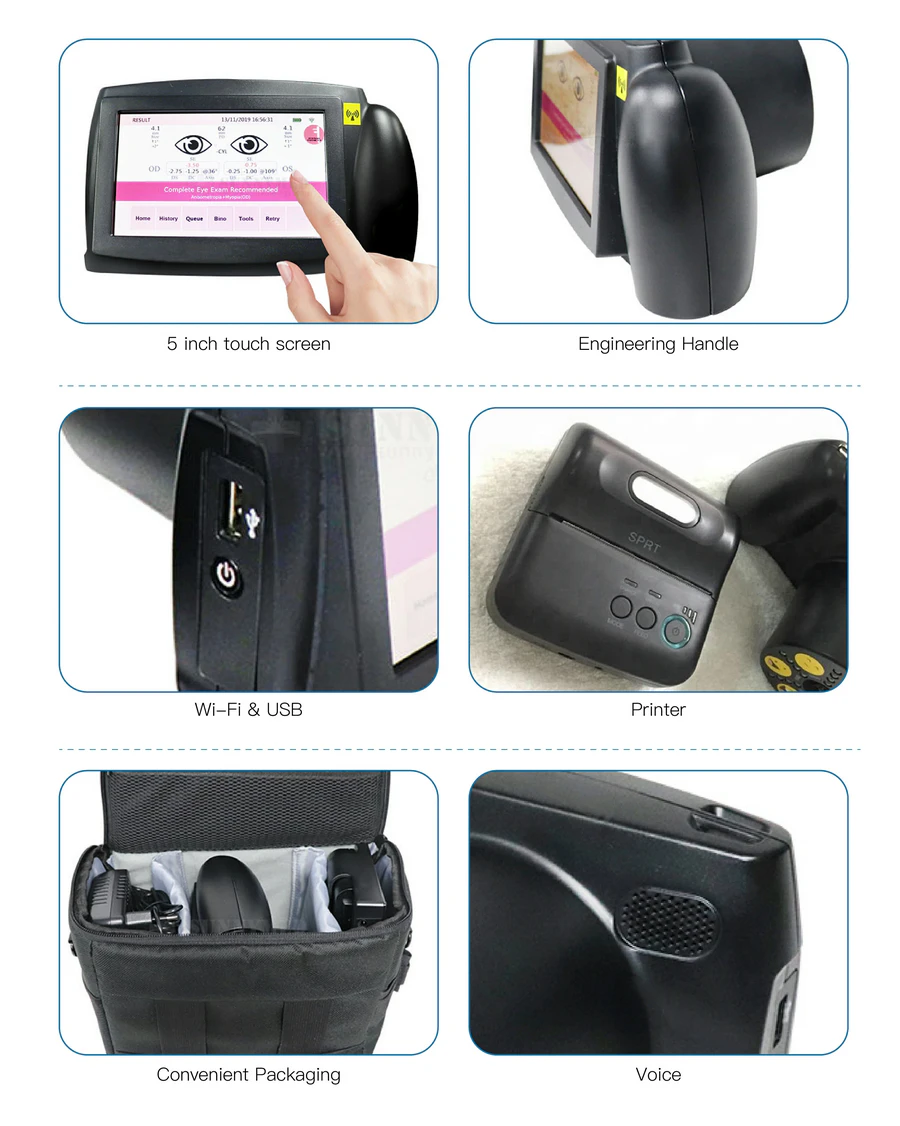

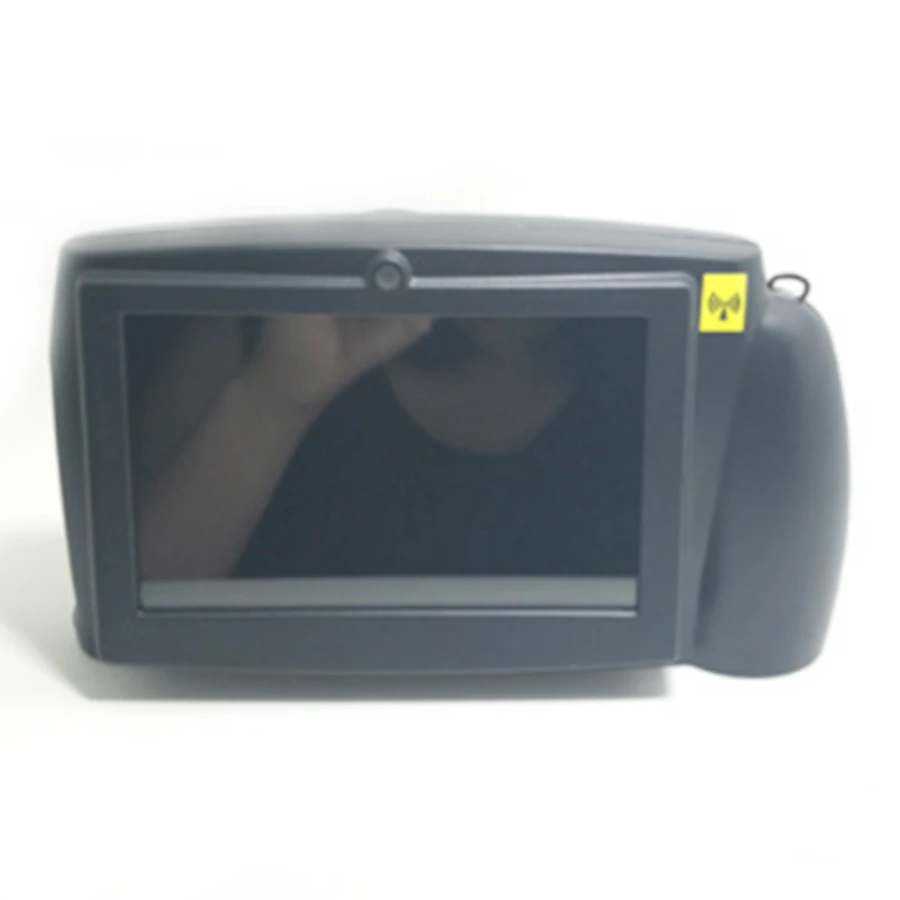

| Display | 5 inch touch screen |
| Weight | 0.8Kg |
| Optional accessories | Camera tripods, printer, etc |
