Model: SW-1000
The SW-1000 is a combined A scan and pachymeter (P Scan) system for precise ophthalmic measurements. Both modules feature a large color LCD screen with touch input for easy operation.
The SW-1000 is a professional ophthalmic ultrasound machine combining A Scan and Pachymeter (P Scan) modules, designed for precise, efficient eye measurements in clinics and hospitals. Both modules feature a large color LCD screen with touch input, ensuring intuitive and easy operation. The system supports manual and automatic curve freezing, ultrasound waveform display, and built-in thermal printing, enabling accurate measurement, clear record keeping, and streamlined workflow.
Pachymeter (P Scan) Features:
1.Large color liquid-crystal screen.
2.Touch screen input, easy operation.

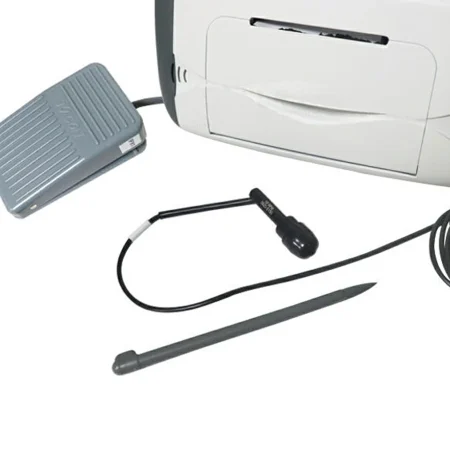

3.Curve freezing: Manual/Auto mode, controlled by pedal.
4.Built-in speed thermal printer.
5.Can display ultrasound waveform when measuring.
6.Each group is the average of 20 measurements.
7.Switch between IOP measured value and actual value.
A Scan Features:
1.Large color liquid-crystal screen.
2.Touch screen input, easy operation.
3.Curve freezing: Manual/Auto mode, controlled by pedal.
4.Built-in speed thermal printer.
5.Enter the name & ID; easy to check archive.

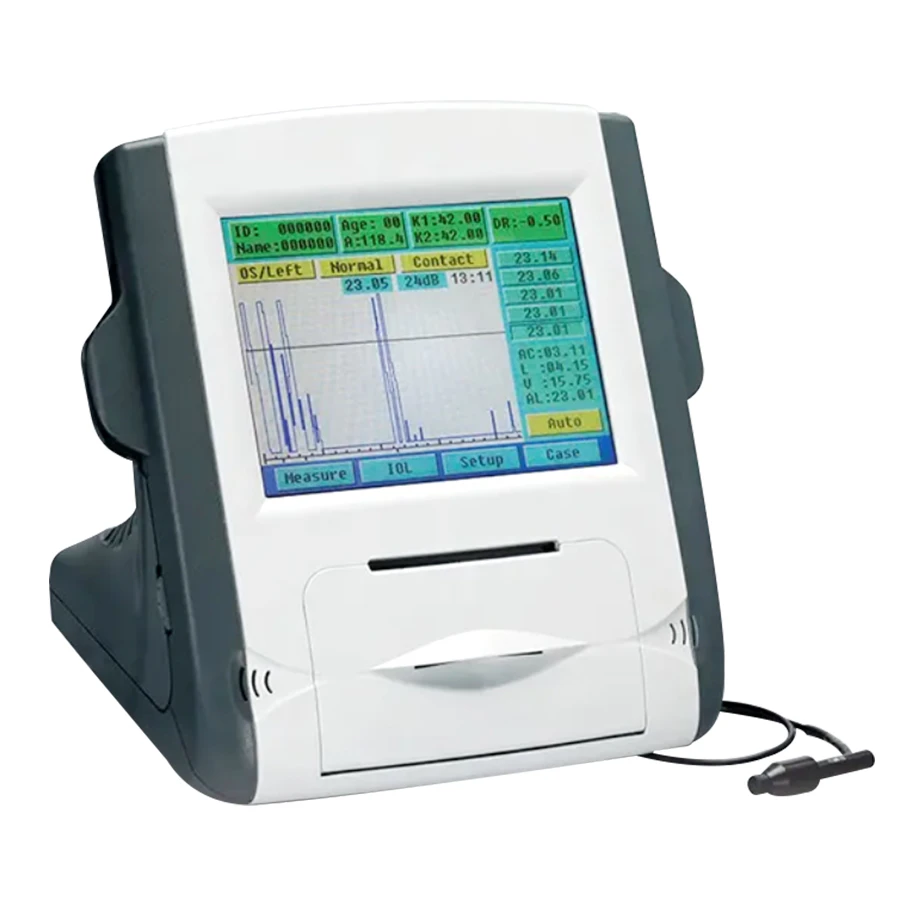

The SW-1000 features a large LCD that clearly displays ultrasound waveforms and measurement data, making it easier for clinicians to read results and monitor measurements in real time.

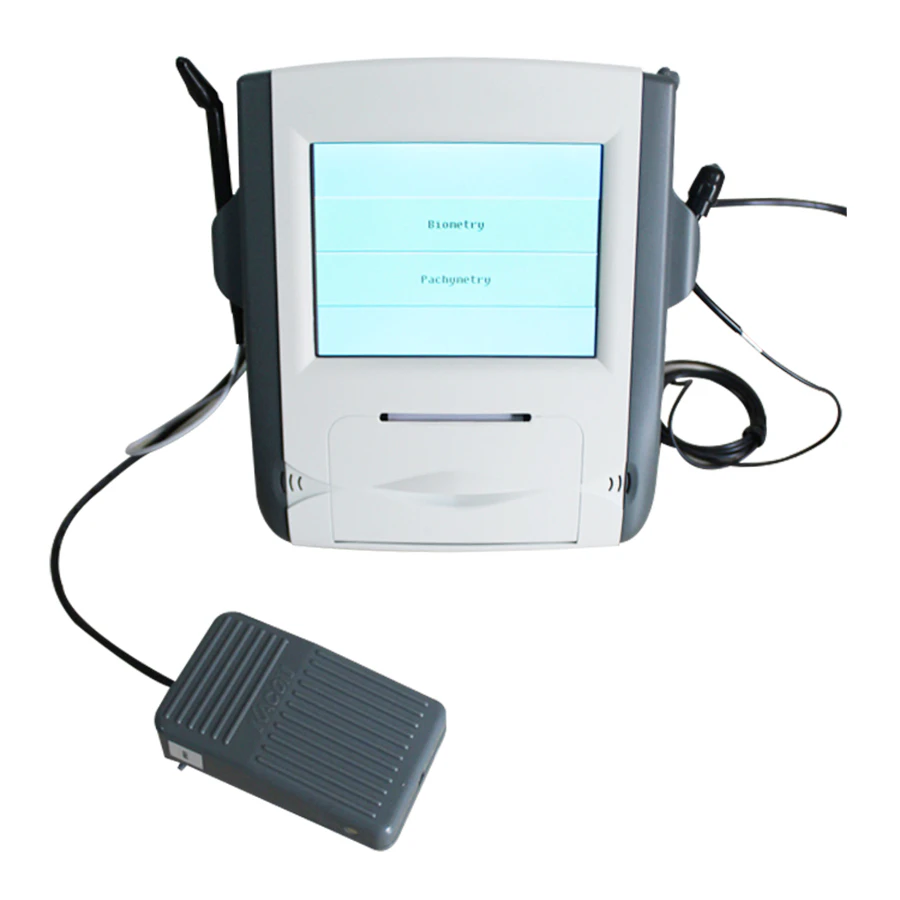

The device offers both manual and automatic measurement modes, which can be conveniently controlled via foot pedal. This allows hands-free operation, improves workflow efficiency, and provides flexibility for different examination needs.
| A scan probe | 10MHz import small size probe, built-in luminotron |
| Measuring range | 15mm-40mm |
| Measurement precision | ±0. 05mm; with macula lutea trace function |
| Measurement | Anterior chamber depth, lens thickness, vitreous body length, total length and average |
| Method of measurement | immersion and contact |
| Eye mode | Phakic/ Aphakic/Dense/ various IOL |
| IOL formula | SRK-II, SRK-T, BINKHORST- Ⅱ, HOLLADAY, HOFFER-Q, HAIGIS |
| Storage | 10 cases, 5 readings each case |
| Output | A scan waveform and IOL calculation sheet |
Trusted Services:
1. Video chat to check Sw-1000 Ultrasound A/P Scan.
2. Free online technical support and training.
3. Free online installation support.
4. 1-3 Years quality warranty.
5. Lifetime after sales support.
6. Most products are CE and ISO 13485 certificated.
7. Free input voltage and plug customization for electrical machines.
8. Fast worldwide shipping, 5-10 working days delivery for most countries.
9. Partial prepayment is acceptable before shipping.
10. Discount price, non-branded or customized products can be offered for distributors.
