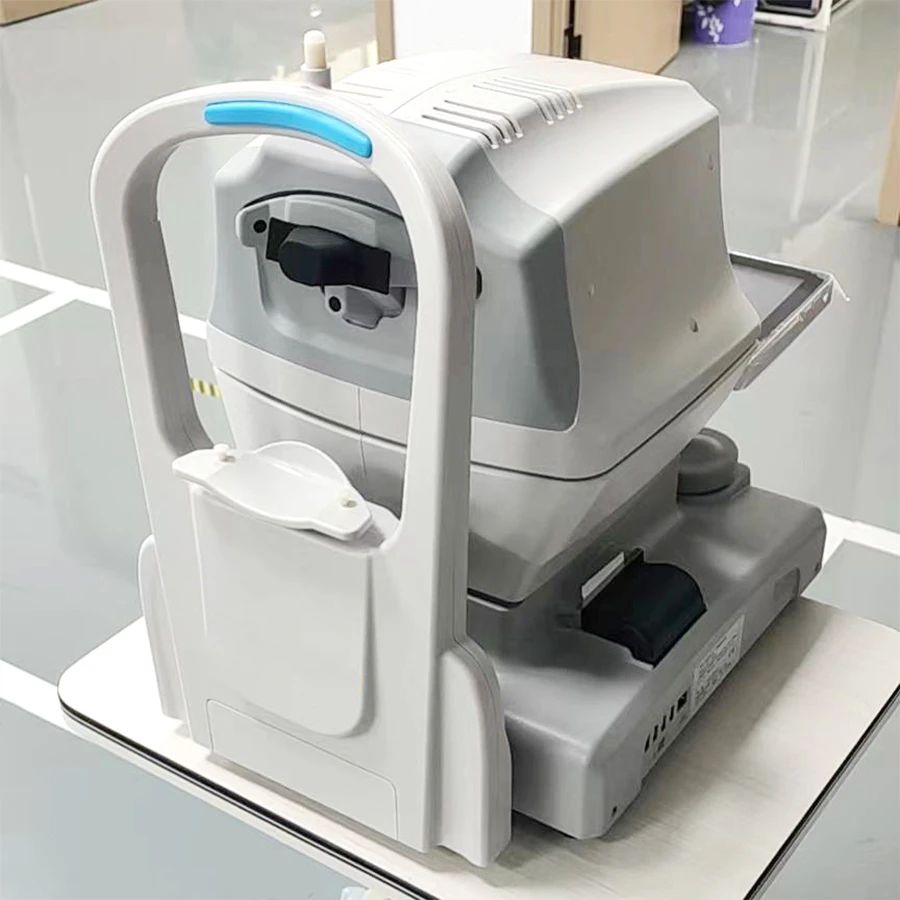

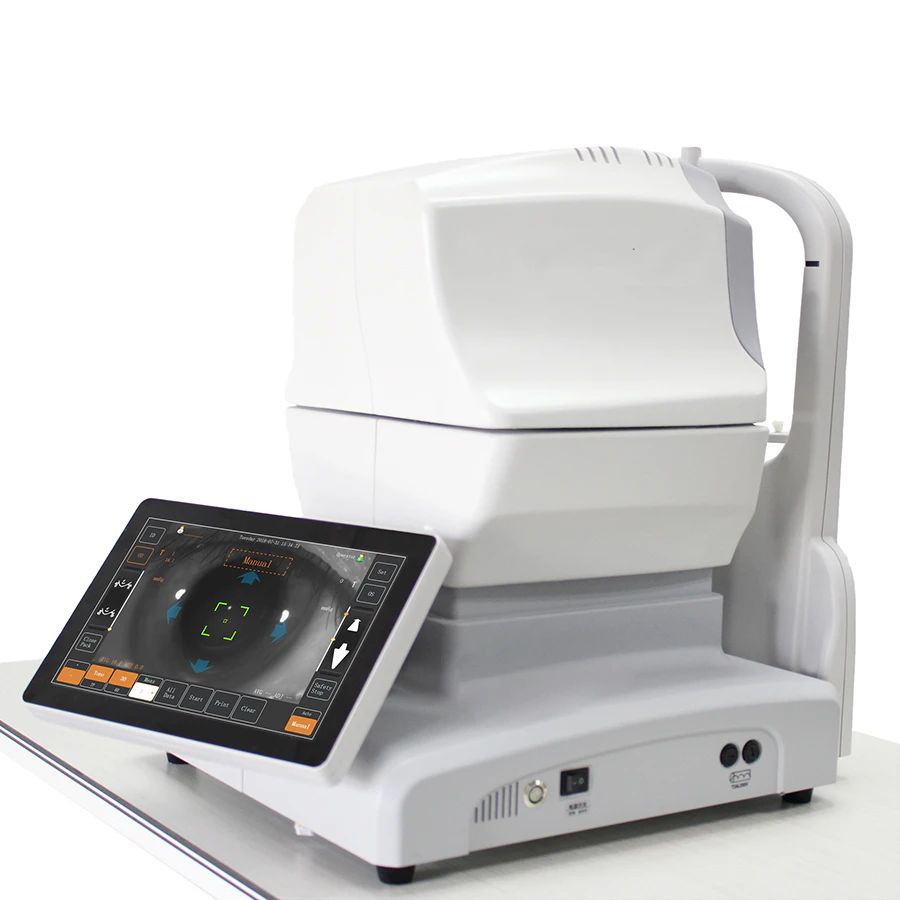

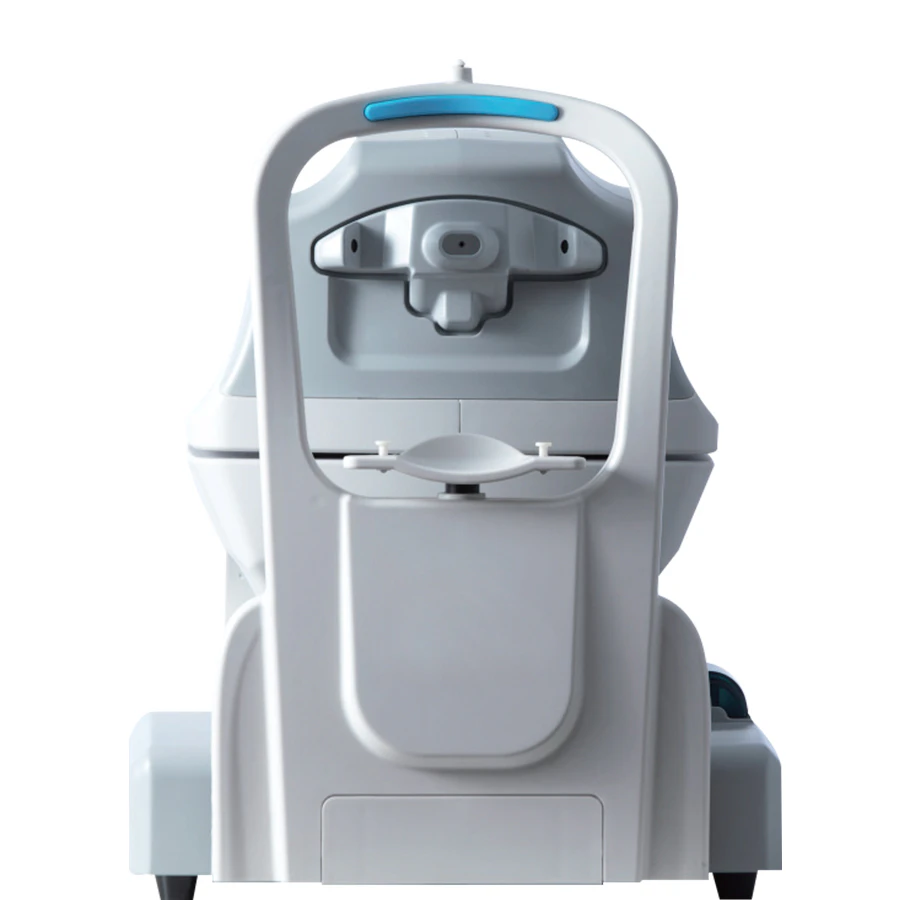

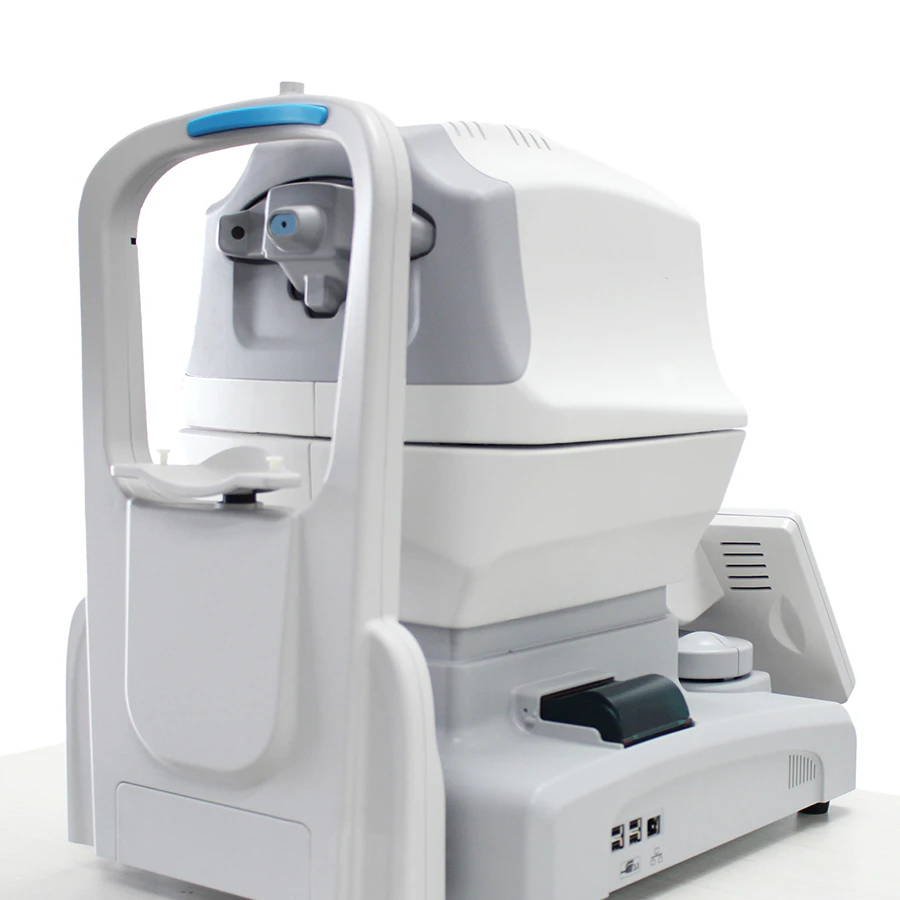

Model: ST-1000
The ST-1000 is a fully automatic non-contact tonometer designed for fast and accurate intraocular pressure (IOP) measurement. It uses an air puff system to perform contactless testing, minimizing the risk of corneal infection or injury while improving patient comfort.
ST-1000 air puff non-contact tonometer utilizes image control and feature recognition for auto 3-D positioning of xyz with reliable judgment and measurement results within 10 seconds, and easy to operate.The air puff non-contact tonometer can be used to measure intraocular pressure (IOP) and corneal thickness.
Auto 3-D Positioning of XYZ Automatically aligns the device in three dimensions (X, Y, Z) to ensure precise and reliable intraocular pressure measurements without manual adjustment.
Generates accurate printed reports of all test results, providing clear and reliable documentation for clinical use.
| Intraocular pressure (IOP) measuring range | 1mmHg~30mmHg /1mmHg~60mmHg ( precision of 1mmHg) |
| Measuring system | dual sensor system of light and pressure |
| Working distance | ≥11mm |
| R/L | automatic detection and display |
| Measuring result | 10 times per eye; 3 times result printing per eye |

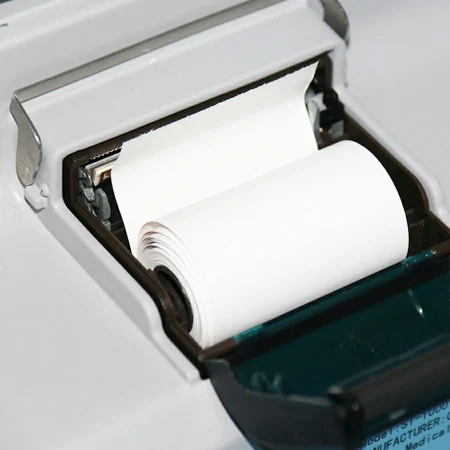

| Recording | build-in printer |
| Measuring mode | auto/manual |
| Focus | when luminous spot is in the focus frame, 2 modes can be chosen. auto mode: auto intraocular pressure measurement manual mode: when it’s good focus, the frame will turn yellow into green, and click to start the measurement |
| Error indication | if the measurement signal is weak, the IOP will be enclosed by ( ), or display “ERR ” |
| Safety limit button | install measurement for minimum distance between head and patient |
| Safety functions | the distance between air nozzle and cornea is controlled in preset range(such as 11mm); it will stop going forward when the cornea is too closed to air head. |
| Movement range | ≥30mm（front to back)/ 90mm(left to right)/ 30mm(vertical) |
| Jaw layer vertical movement | 0~65mm with under jaw layer |
| Display mode | 10.1-inch HDMI color LED touch monitor |
| Output port | USB2.0 |
| Working platform | electric elevating platform |
| Weight | 19.7kg |
| size | 380 mm (L) x 460mm (W) x 505mm (H) |
| Power supply | 220V/50HZ |
Trusted Services:
1. Video chat to check ST-1000 non-contact automatic tonometer.
2. Free online technical support and training.
3. Free online installation support.
4. 1-3 Years quality warranty.
5. Lifetime after sales support.
6. Most products are CE and ISO 13485 certificated.
7. Free input voltage and plug customization for electrical machines.
8. Fast worldwide shipping, 5-10 working days delivery for most countries.
9. Partial prepayment is acceptable before shipping.
10. Discount price, non-branded or customized products can be offered for distributors.
