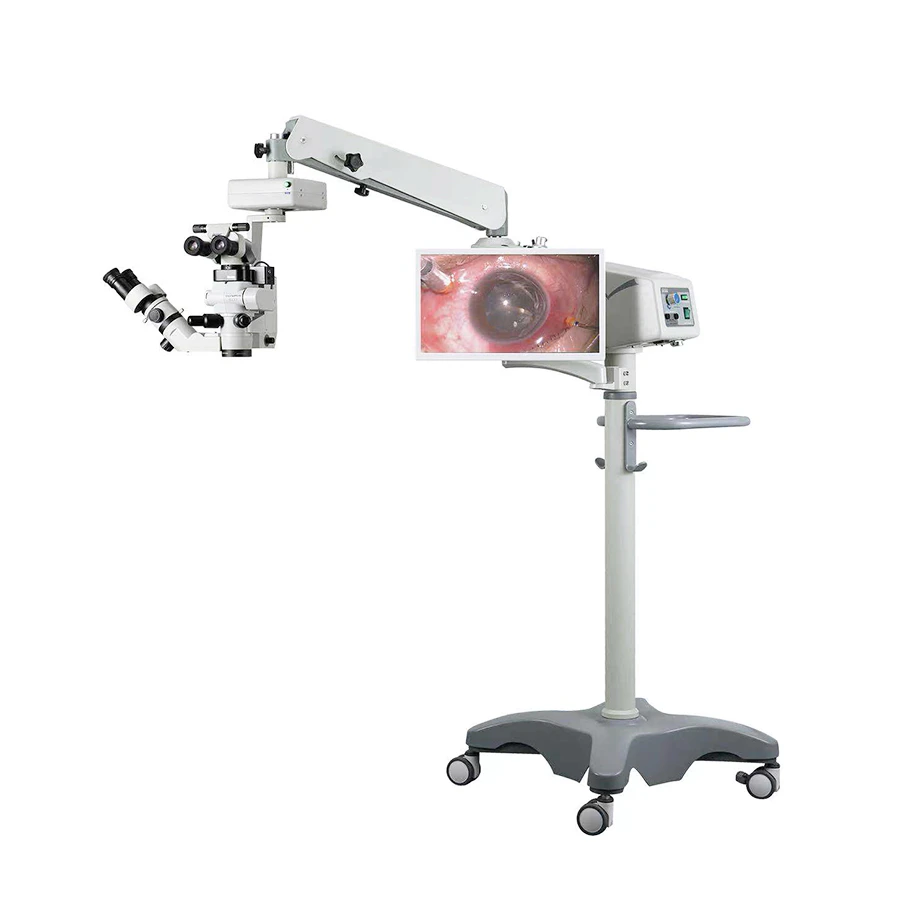

SM2000L 20X Ophthalmic Operation Microscope

Model: SM2000L

  • OLYMPUS optical system ensures clear, sharp, and stable imaging
  • Motorized magnification range 4×–20×, controlled by foot switch
  • 30° observation angle with wide-field 10× eyepieces for comfortable viewing
  • Double Philips tungsten bulb illumination (≥80,000 lux) provides bright and uniform lighting
  • Long working distance (≥170 mm) suitable for various surgical procedures
  • Video system and digital web set-up

Explore Details

The SM2000L Ophthalmic Operation Microscope is designed for ophthalmic surgery, wet lab training, and general microsurgical procedures. It combines reliable optical performance with smooth motorized control and flexible configuration for daily clinical use.

Clinical Applications:
Ophthalmic surgery
Wet lab and surgical training
General microsurgery requiring high magnification and stability

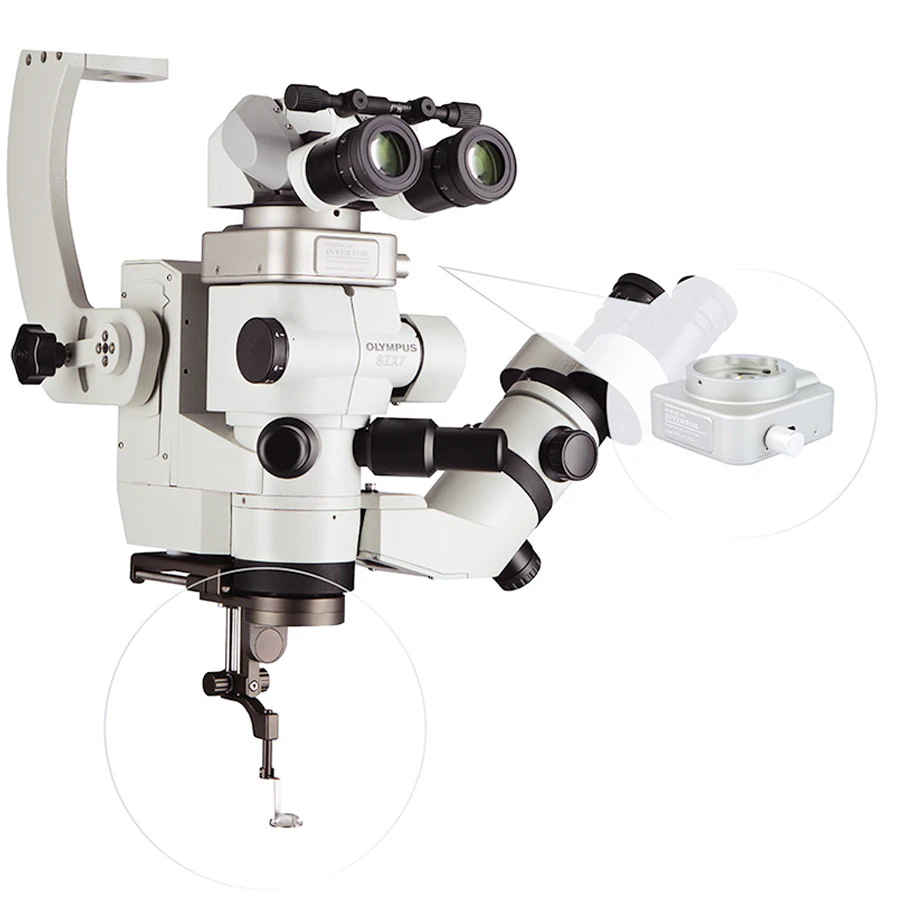

SM2000L Olympus Optics

Olympus Optics

With Japanese OLYMPUS original main mirror, 65mm wide field of vision, strong stereoscopic impression, good depth of field

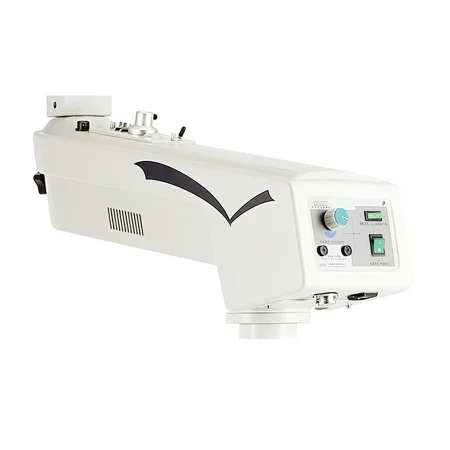

SM2000L partial image

Integrated Control Panel

One-touch illumination control and mode switching—right on the microscope head, for instant adjustment without breaking focus.

SM2000L 20X Ophthalmic Operation Microscope

Specifications:

ParameterSpecification
OpticsOLYMPUS
Eyepiece10x wide field
Observation Angle30°
Pupil distance50 – 76 mm
Diopter±5 D
x–y speed2.2 mm/sec foot control
Magnification4X – 20X motor control
Field of View8 mm – 50 mm
Working Distance≥170 mm
Fine Adjustment±20 mm foot control
Assist. MicroscopeStereo Coaxial
Magnification (Assistant)4X, 7X
Light SourceDouble Philips Tungsten Bulb, 15V 150W, intensity ≥80,000 Lux
Arm Extension1200 mm
Up and Down Adjustment±150 mm
Base560 mm × 560 mm
Foot SwitchX–Y, Focus, Magnification, Light control

Video
