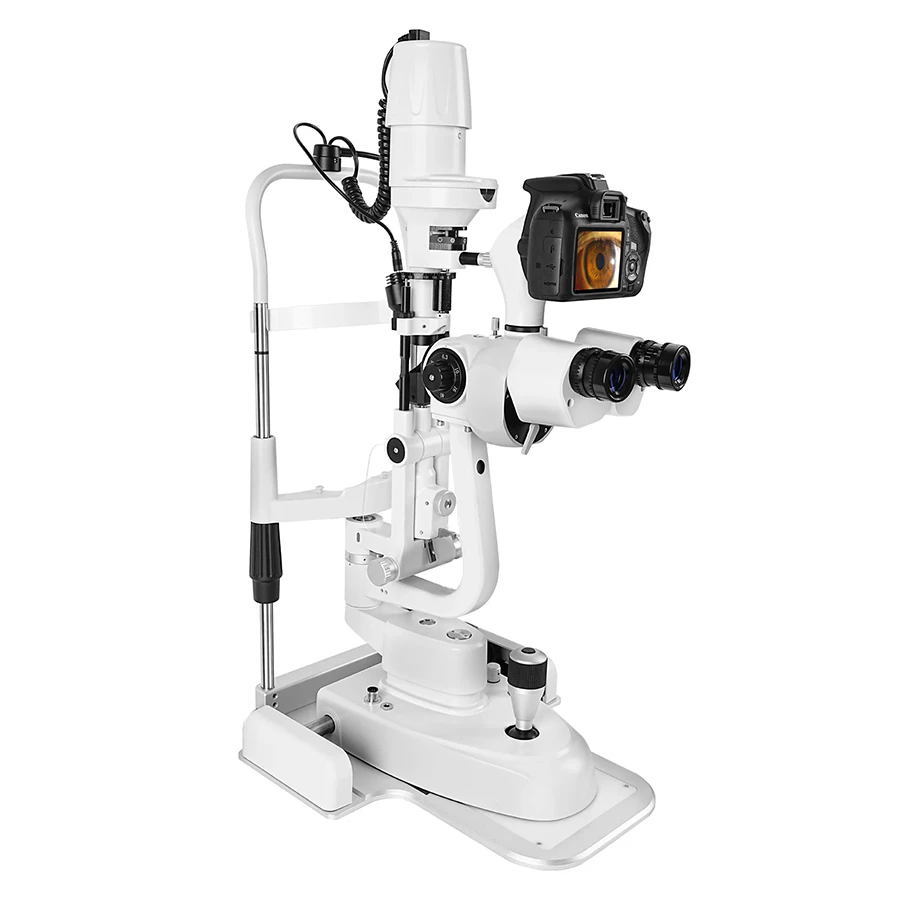

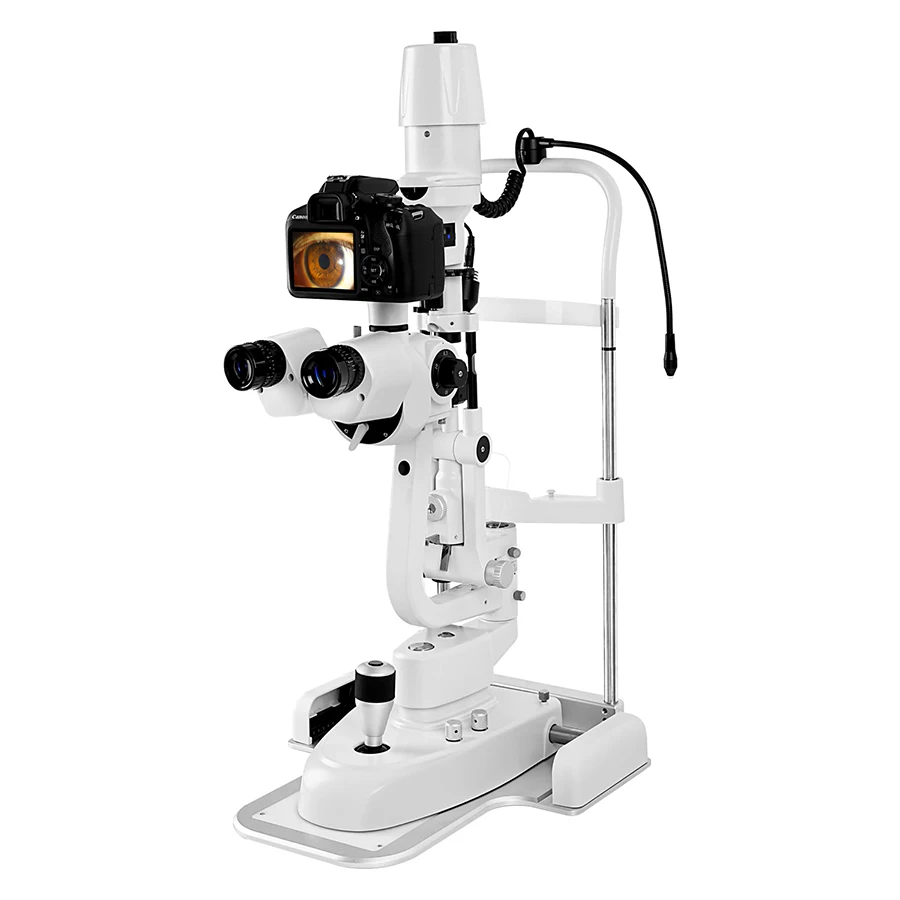

Model: SL-520 Image System

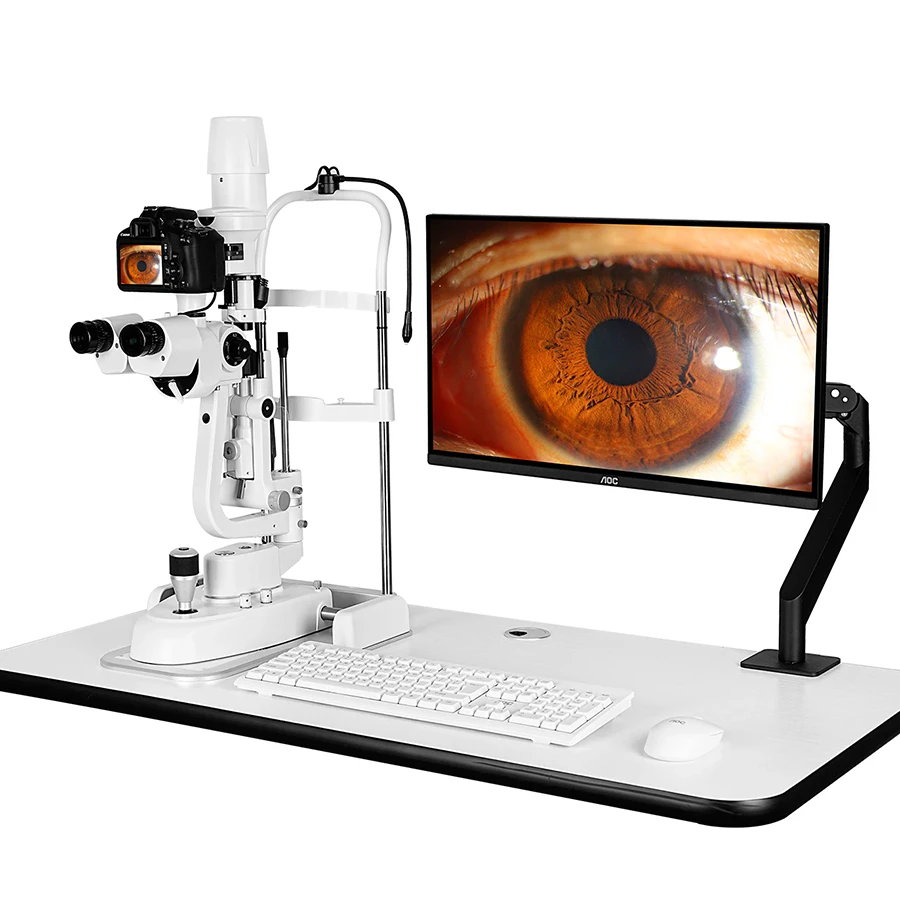

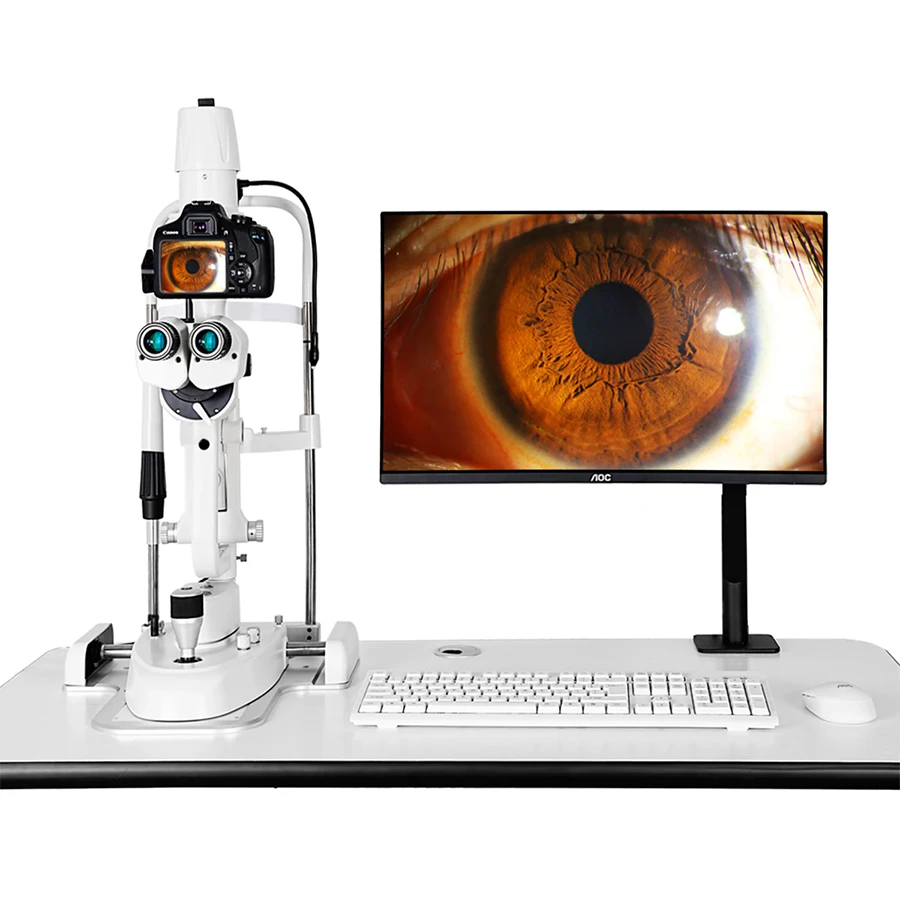

SL-520 combines slit-lamp examination with an integrated imaging system for routine clinical use. It captures clear anterior-segment images with simple operation and supports efficient data management in clinics or hospitals.

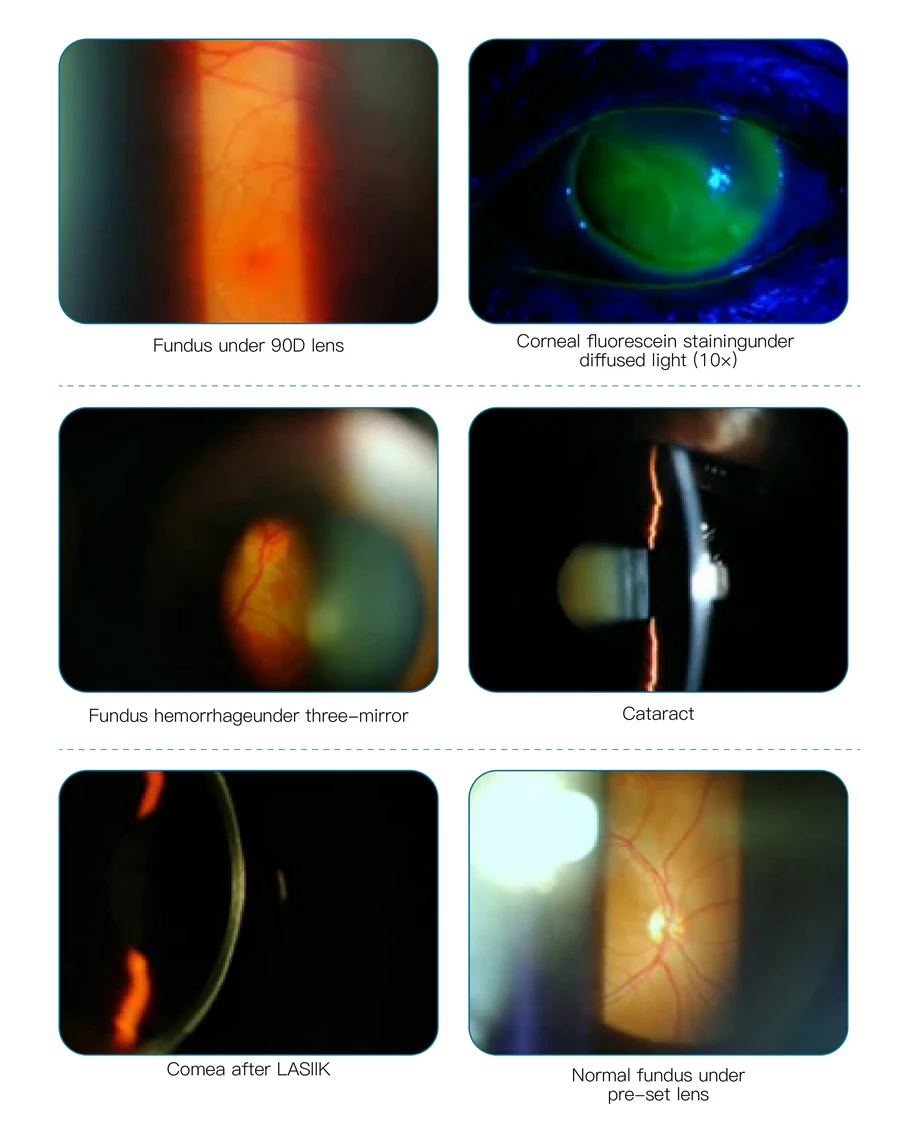

Seamlessly connects to front-facing lenses such as the 90D and three-mirror lenses, easily enabling detailed examinations of corneal epithelial cells, lens, and optic nerve at the fundus, without the need to replace complex equipment, thus improving efficiency.

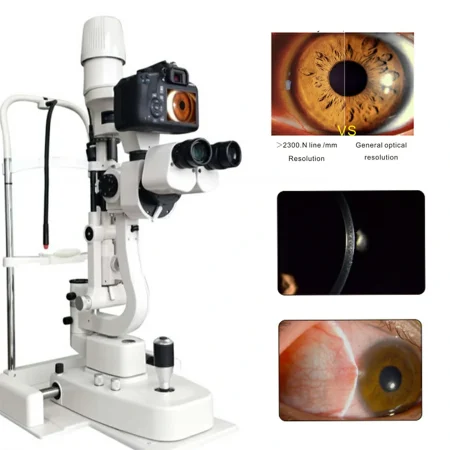

Delivers clear, detailed imaging of both anterior and posterior eye structures using versatile diagnostic techniques.
| Parameter | Specification |
|---|---|
| Microscope Type | Galilean System |
| Magnification Changer | Revolving Drum |
| Eyepiece Magnification | 12.5X |
| Slit Width | 0mm~14mm Continuously Adjustable |
| Slit Length | 1mm~14mm Continuously Adjustable |
| Slit Angle | 0~180° Continuously Adjustable |
| Filter | Heat Absorption, Grey, Redfree (Green), Cobalt Blue |
| Light Control | PWM: Pulse Width Modulation |
| Light Source | Warm LED |
Basic Series
| Parameter | Specification |
|---|---|
| Magnification | 6X, 10X, 16X, 25X, 40X |
| Diopter | ±7D |
| Pupil Range | 52mm~85mm |
| Visual Field Diameter | 6X:33mm; 10X:22mm; 16X:14mm; 25X:8.5mm; 40X:5.5mm |
| Illumination Type | Haag-Streit Type |
| Illumination Tilting | 5°, 10°, 15°, 20° |
| Slit Aperture Size | φ0.2, φ1, φ3, φ5, φ10, φ14 (mm) |
| Eyepiece Luminous Rate | 60% |
| Camera Luminous Rate | 40% |
| Background Illumination | CO-Axial |
