SL-400 slit lamp

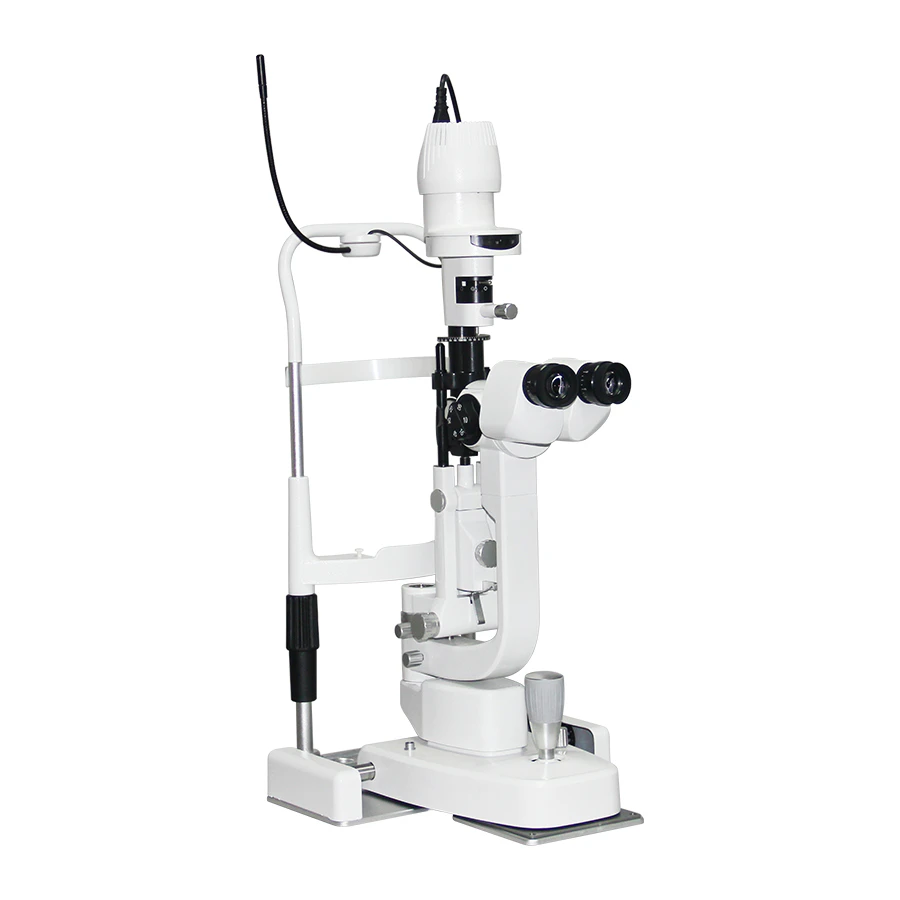

SL-400 front image

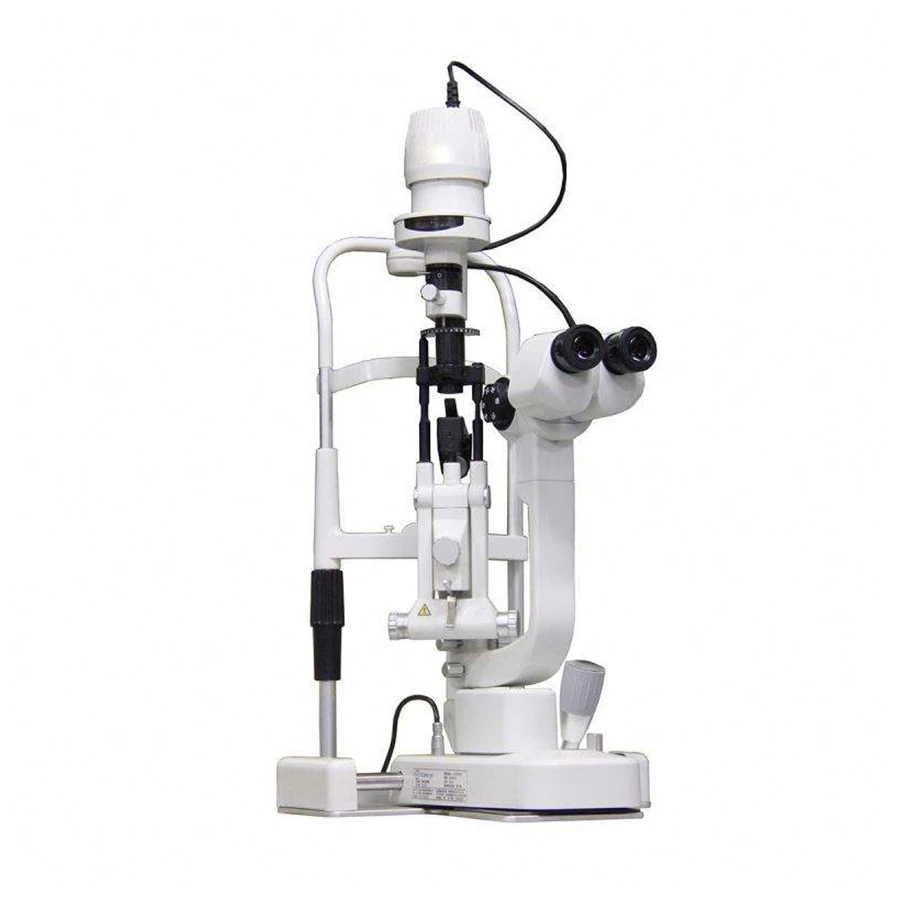

SL-400 side image

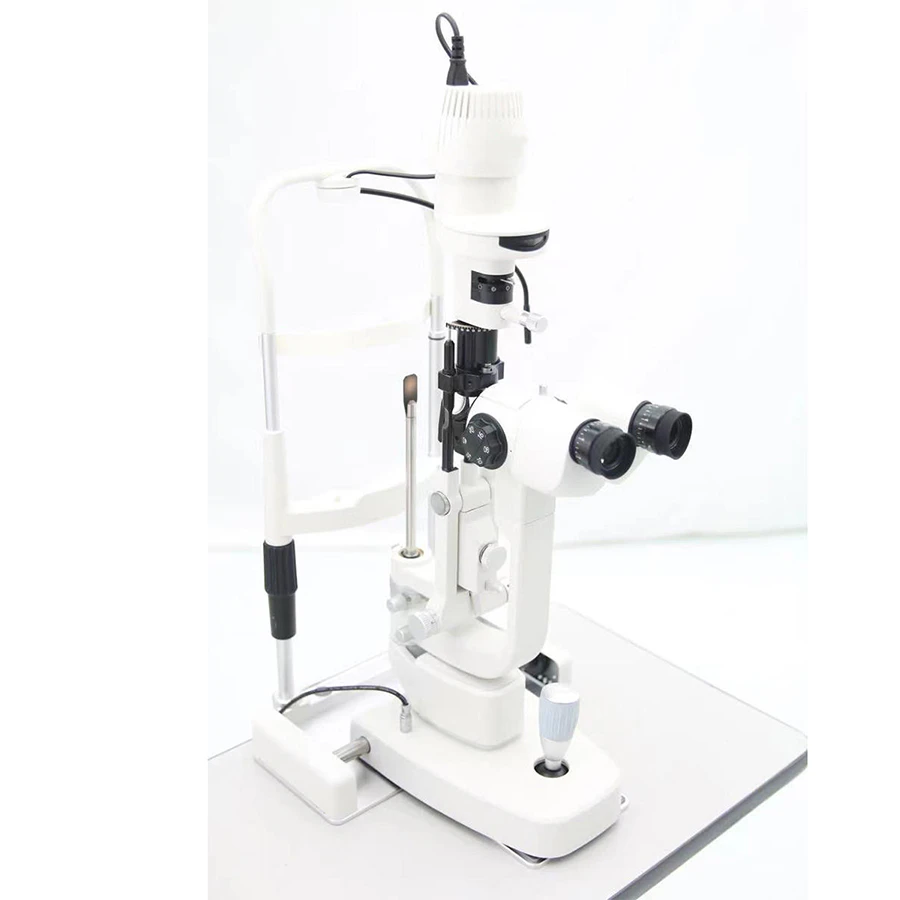

SL-400 side image

SL-400 Five Step Magnifications Slit Lamp

Model: SL-400

  • 14 mm aperture delivers a broader and clearer field of view.
  • Five-step drum magnification, with up to 40×, allowing observation of fine details such as scleral veins.
  • Metal joystick improves durability and expands operating space for smoother clinical handling.
  • International standard accessory interfaces support easy connection with imaging and diagnostic accessories.
  • Stepless adjustable illumination system enables precise brightness control based on examination requirements.
  • Four selectable filters, including a UV protection filter, ensure patient safety and improved diagnostic accuracy.
Send Inquiry

Explore Details

The SL-400 Slit Lamp is designed for routine and detailed anterior segment examinations in ophthalmic clinics and hospitals. It offers stable performance, clear imaging, and flexible operation to support daily clinical diagnosis.

With a wide aperture and multi-step magnification, it allows doctors to observe fine ocular details clearly and comfortably.

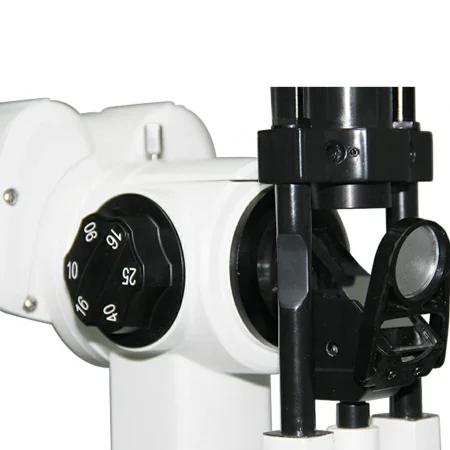

SL-400 partial image

5-Step Magnification

Switch effortlessly (6X,10X,16X,25X,40X) a broader, clearer view and detailed inspection of scleral veins, delivering unmatched diagnostic precision.

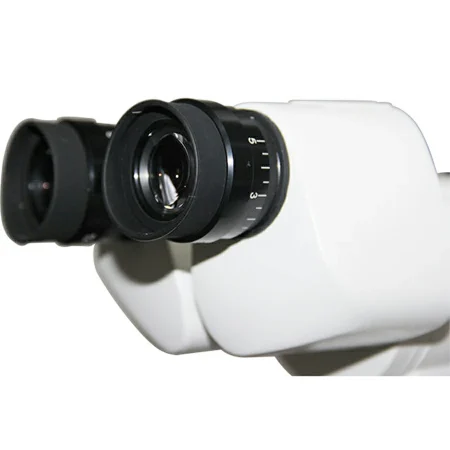

SL-400 aperture

Protective Anti-UV Illumination Filter

Safeguard patients’ eyes with an integrated anti-ultraviolet filter while enjoying customizable brightness for safe and comfortable examinations.

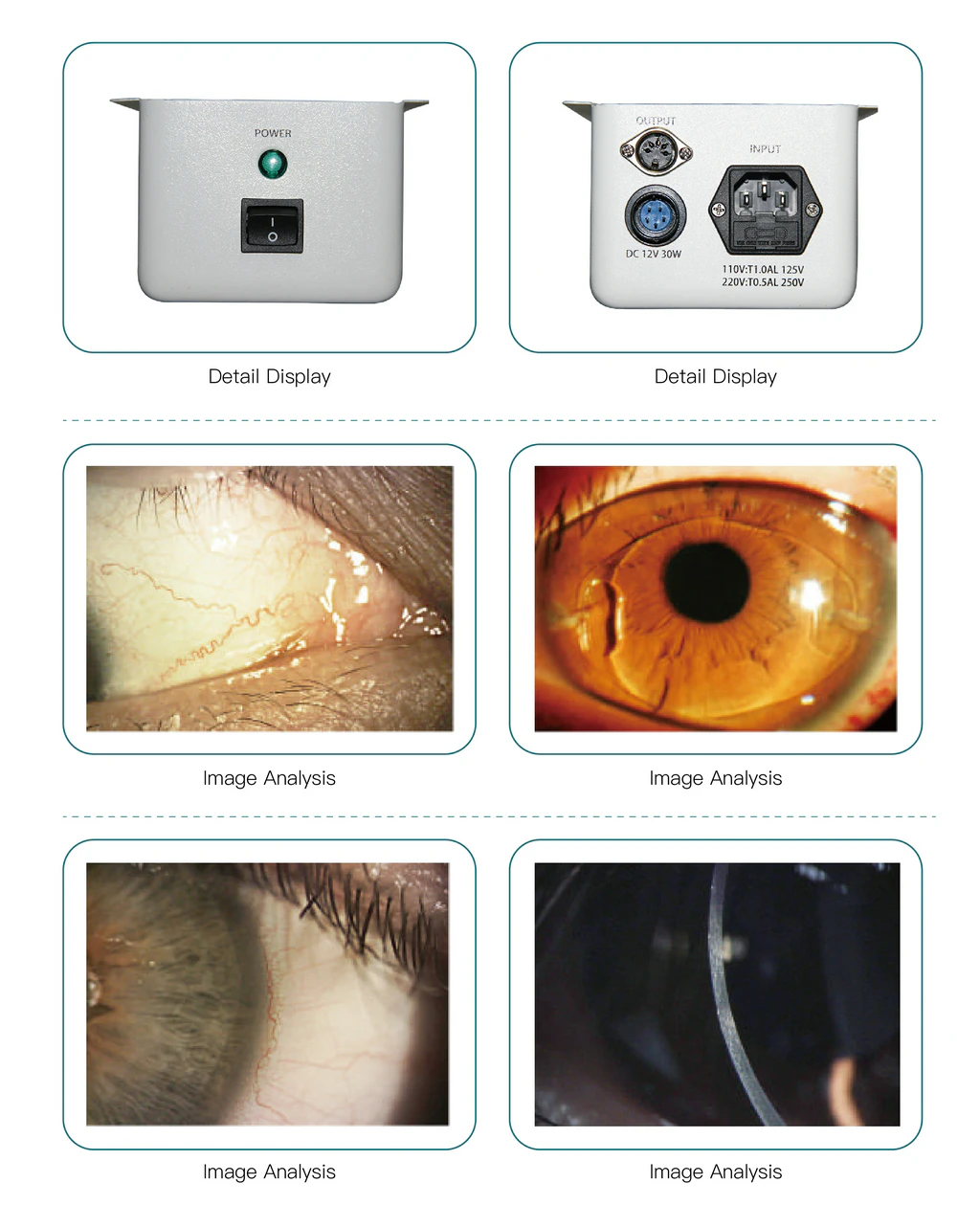

SL-400 functional illustration image

Specifications:

CategoryParameterSpecification
MicroscopeMicroscope TypeGalilean Stereoscopic Microscope
 Objective MagnificationFive-step Drum Magnification
 Eyepiece Magnification12.5X
 Total Magnifications6.3X, 10X, 16X, 25X, 40X
 Diopter Adjustment-5 D ~ +5 D
 Pupil Distance55 mm ~ 75 mm
 Field of View6.3X: 33 mm
10X: 22.5 mm
16X: 14 mm
25X: 8.8 mm
40X: 5.5 mm
Illumination AssemblySlit Width0 mm ~ 14 mm (adjustable)
 Slit Height1 mm ~ 14 mm (adjustable)
 Slit Angle0° ~ 180° (adjustable)
 Slit Inclination5°, 10°, 15°, 20°
 Diameter of Light Spotφ0.2 mm, φ1 mm, φ2 mm, φ5 mm, φ10 mm, φ14 mm
 FiltersHeat Absorption, Grey, Redfree, Cobalt Blue
 Illumination Source12 V / 30 W Halogen Lamp
Power SupplyInputAC 110 / 220 V, 50 Hz / 60 Hz

Video

Trusted Services:

1. Video chat to check SL-400 slit lamp.

2. Free online technical support and training.

3. Free online installation support.

4. 1-3 Years quality warranty.

5. Lifetime after sales support.

6. Most products are CE and ISO 13485 certificated.

7. Free input voltage and plug customization for electrical machines.

8. Fast worldwide shipping, 5-10 working days delivery for most countries.

9. Partial prepayment is acceptable before shipping.

10. Discount price, non-branded or customized products can be offered for distributors.
