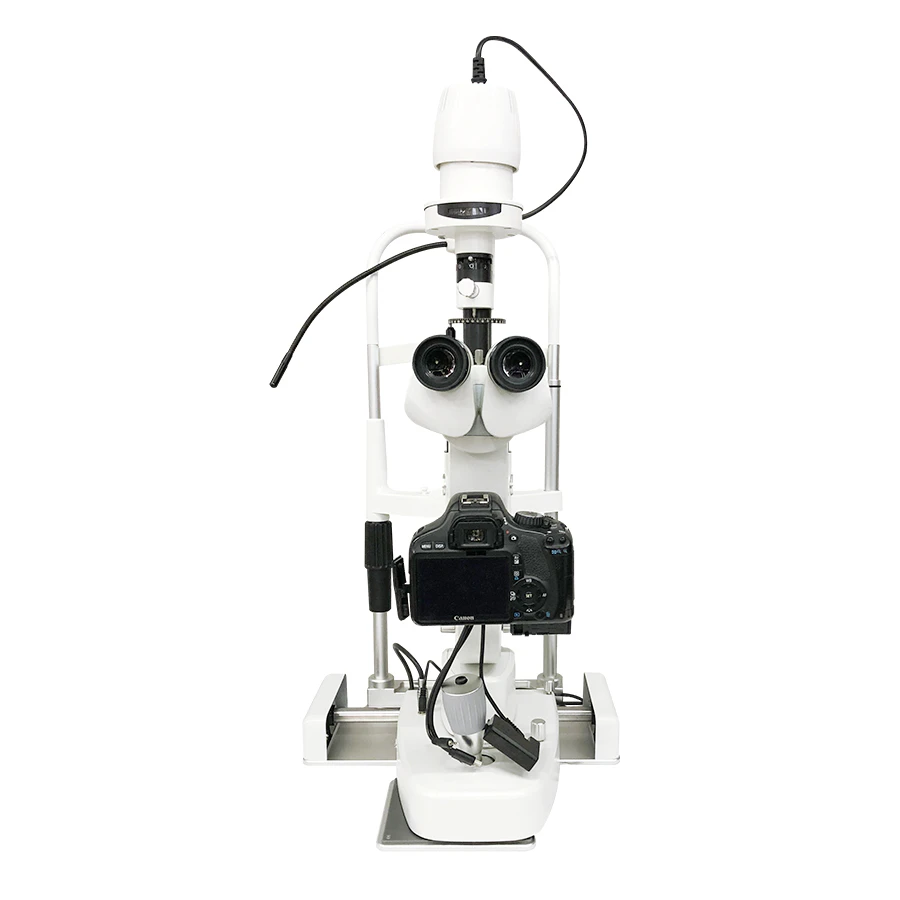

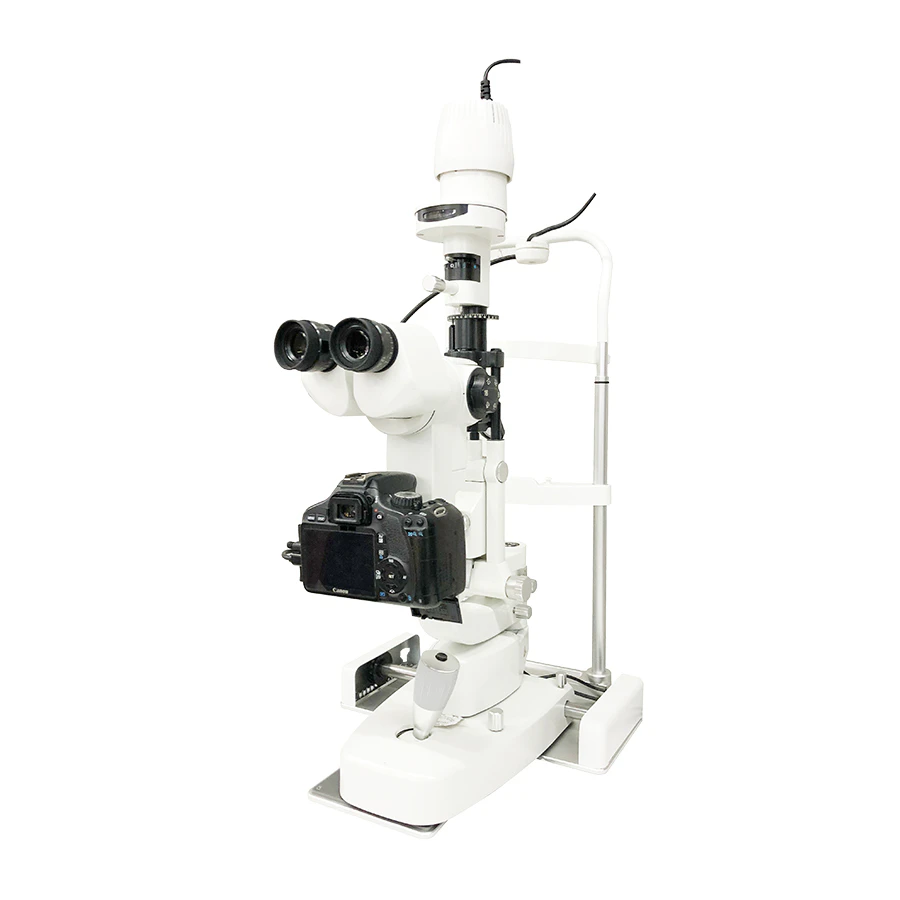

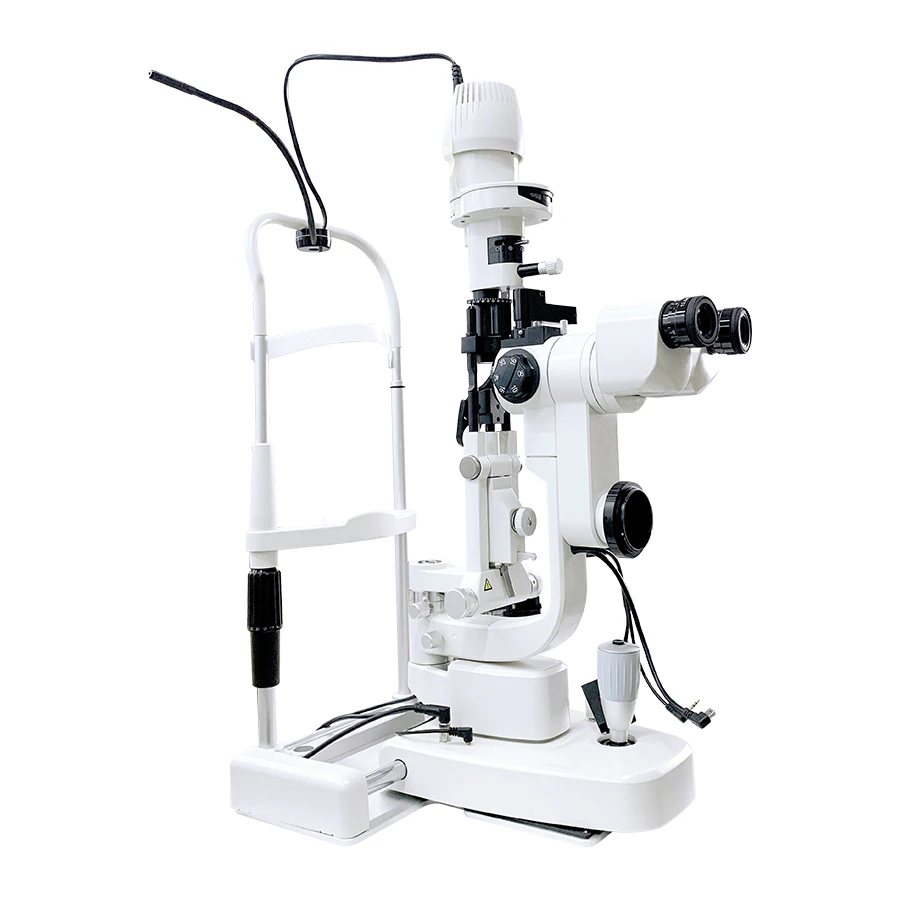

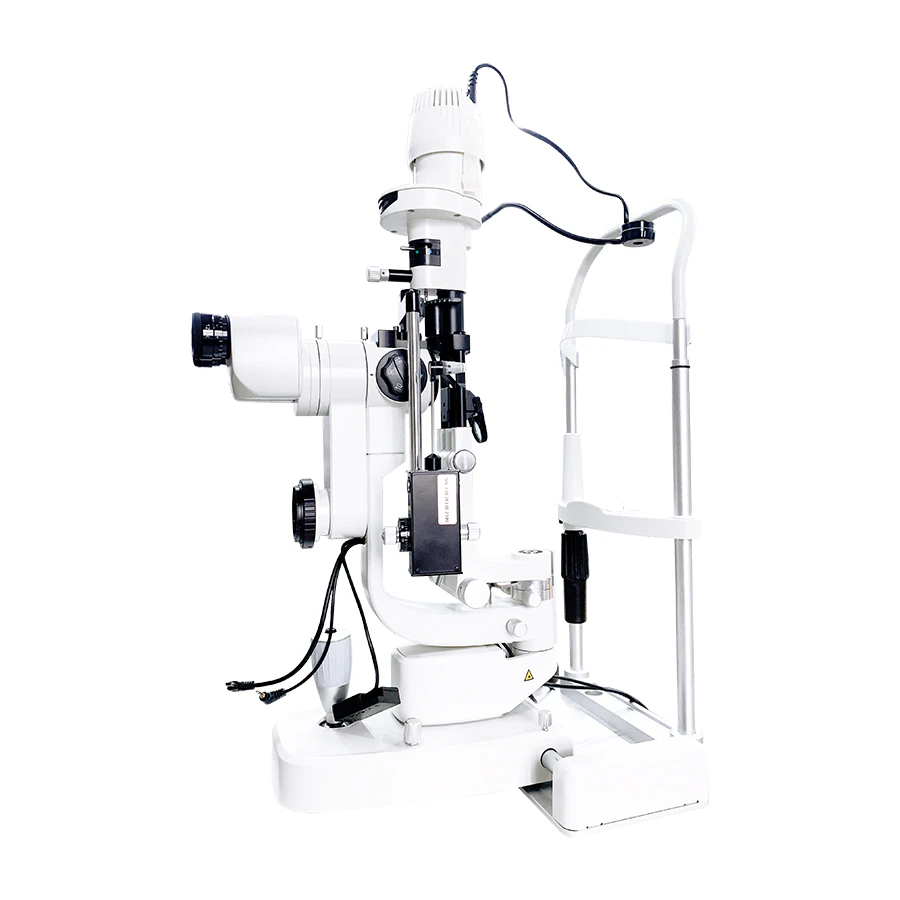

SL-400 Digital Slit Lamp with Image System
SL-400 Image System side image
SL-400 Image System side image
SL-400 Image System side image

SL-400 Digital Slit Lamp with Image System

Model: SL-400 Image System

  • 15 mm aperture for a broader, clearer field of view.
  • Joystick is made by metal, and the overall appearance is fantastic
  • With the image system, Sclera vein could be observed under the 40X magnification.
  • Five-step drum magnification, Five-step drum magnification of eyepiece.
  • All the joints can be connected by accessories with with international standards.
  • Provide all kinds of appropriate brightness of the lightening according to the clinical doctors’ actual demand.
  • Four different filters can be inserted into the illumination pathway.
  • Anti-ultraciolet radiation filter ensures patients’ safety during examination.
Send Inquiry

Explore Details

The SL-400 (include imaging system) Digital Slit Lamp combines high-precision optics with an integrated imaging system for detailed anterior segment examinations. It offers clear visualization, smooth operation, and flexible illumination suitable for clinical and diagnostic use.

Suitable For:
Ophthalmology clinics and hospitals
Routine and detailed slit lamp examinations
Clinical documentation and patient record management

partial image

Advanced 5-Step Magnification

Effortlessly switch between 6X–40X with a 15mm aperture for a wider, clearer view, enabling precise examination of scleral veins and fine ocular structures.

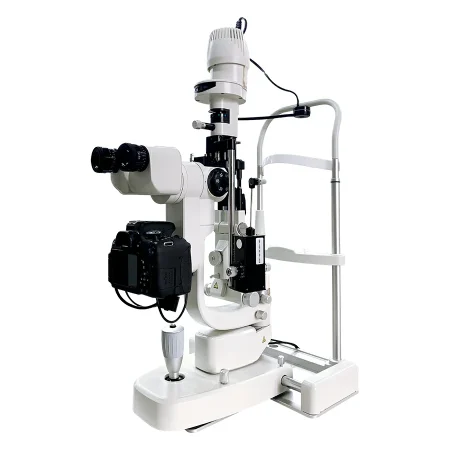

partial image

With Image System

Capture high-resolution images in real time, combining detailed observation with digital documentation for enhanced diagnostics and patient records.

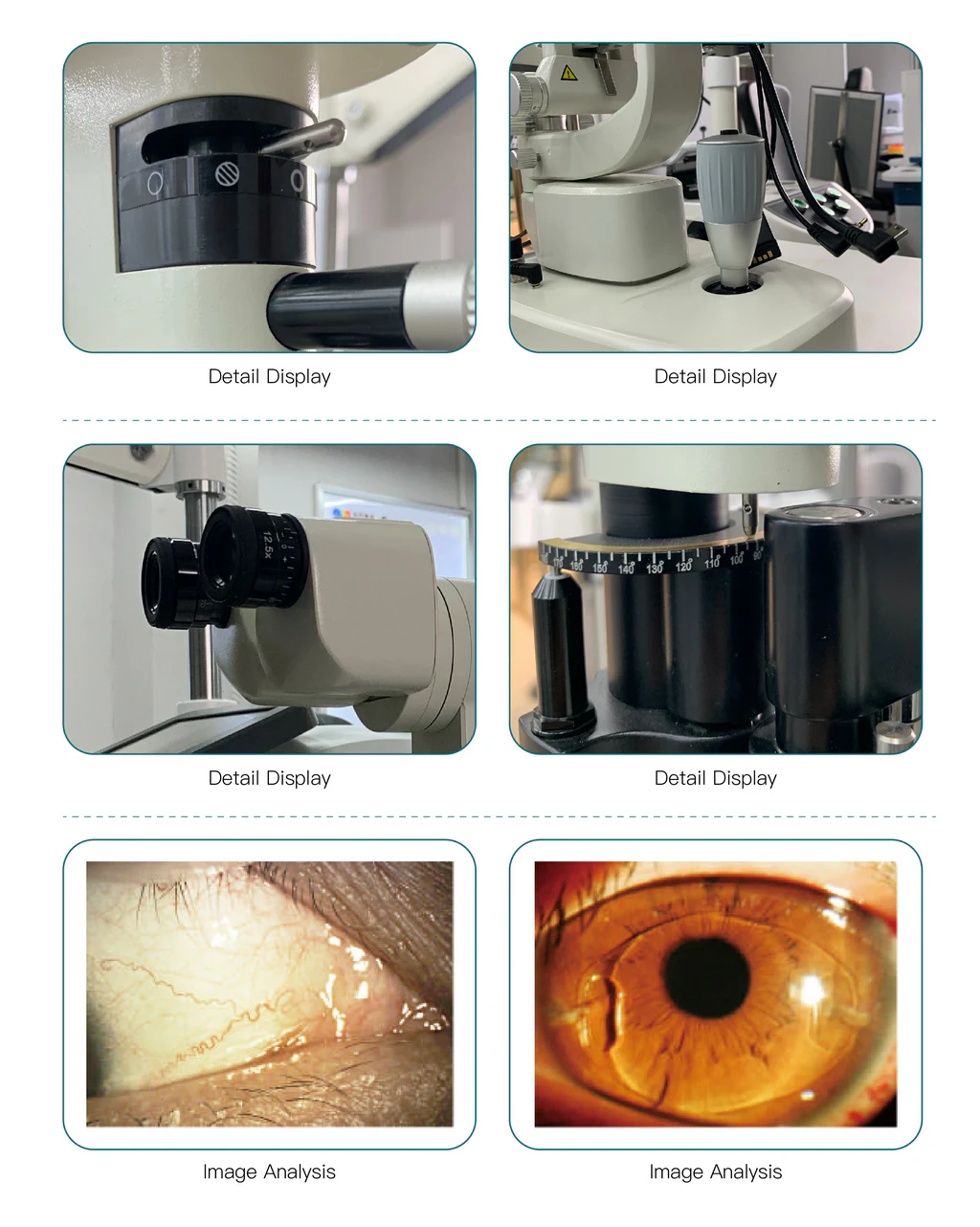

SL-400 Image System functional illustration image

Specifications:

ParameterSpecification
MicroscopeSL-400 Image System
Microscope TypeGalilean Stereoscopic Microscope
Objective MagnificationFive-step Drum Magnification
EyePiece12.5X
Magnifications6.3X, 10X, 16X, 25X, 40X
Diopter Adjustment-5 D ~ +5 D
Pupil Distance55 mm ~ 75 mm
Field of View6.3X = 33 mm, 10X = 22.5 mm, 16X = 14 mm, 25X = 8.8 mm, 40X = 5.5 mm
Illumination Assembly
Slit Width0 mm ~ 14 mm adjustable
Slit Length1 mm ~ 14 mm adjustable
Slit Angle0° ~ 180° adjustable
Slit Inclination5°, 10°, 15°, 20°
Diameter of Light Spotφ0.2 mm, φ1 mm, φ2 mm, φ5 mm, φ10 mm, φ14 mm
FiltersHeat Absorption, Grey, Redfree, Cobalt Blue
Illumination Source12 V / 30 W Halogen Lamp
Vertical MovementAvailable
Power Supply
InputAC 110 / 220 V, 50 Hz / 60 Hz

Video

Trusted Services:

1. Video chat to check SL-400 Image System Slit Lamp.

2. Free online technical support and training.

3. Free online installation support.

4. 1-3 Years quality warranty.

5. Lifetime after sales support.

6. Most products are CE and ISO 13485 certificated.

7. Free input voltage and plug customization for electrical machines.

8. Fast worldwide shipping, 5-10 working days delivery for most countries.

9. Partial prepayment is acceptable before shipping.

10. Discount price, non-branded or customized products can be offered for distributors.
