Model: OCT-500
The RetiView 500 OTC machine is easy to use. After entering patient info, one key automatically aligns, focuses, and captures OCT images of both eyes.

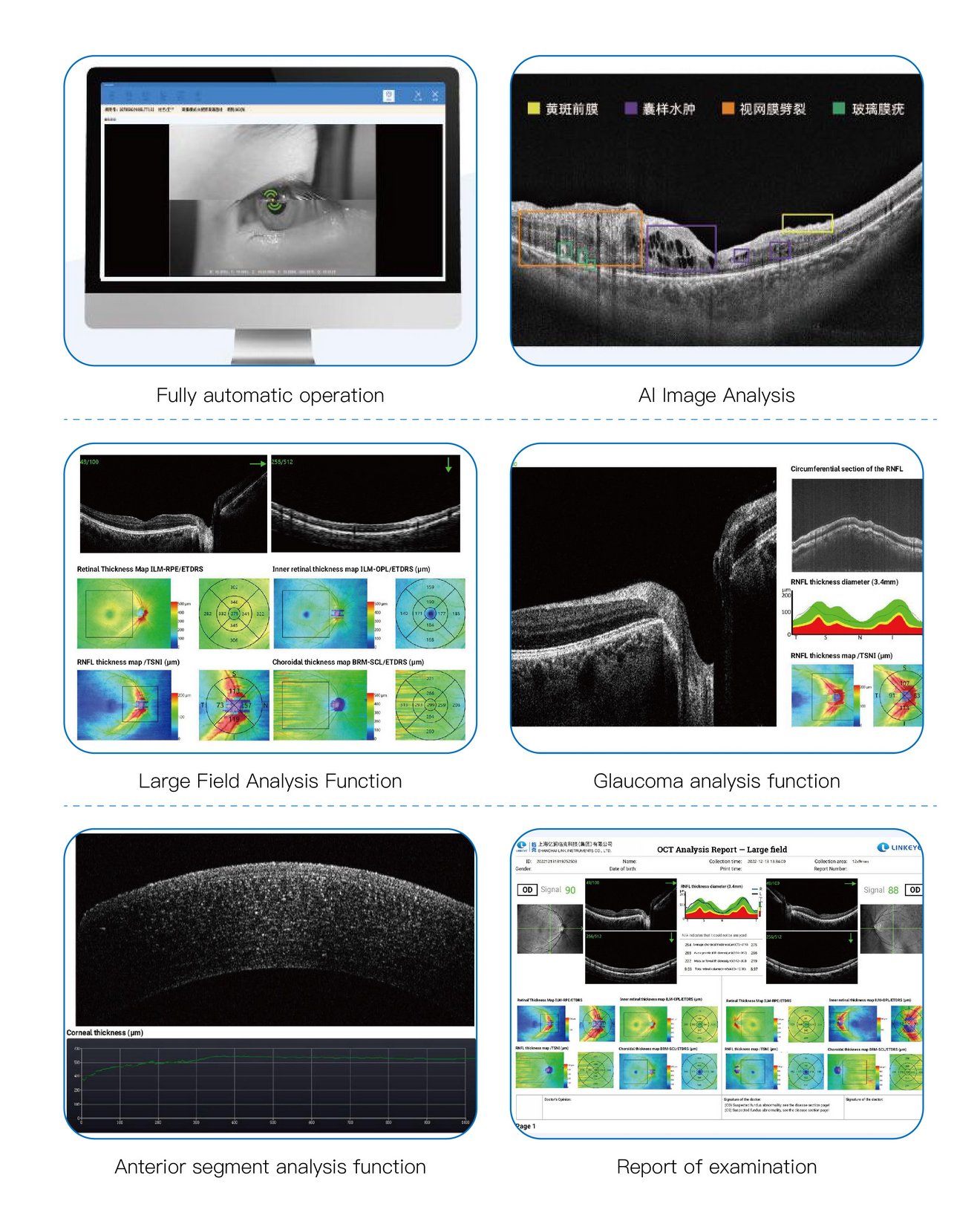

The RetiView 500 OCT machine features accurate analysis software with customized functions for each scan. It segments 10 retina layers and provides binocular comparison, single-eye follow-up, and glaucoma progress analysis for precise clinical diagnosis.
For a complicated situation or skilled operators, the OCT-500 machine provides semi-automatic and manual modes, allowing a deeper operation experience.

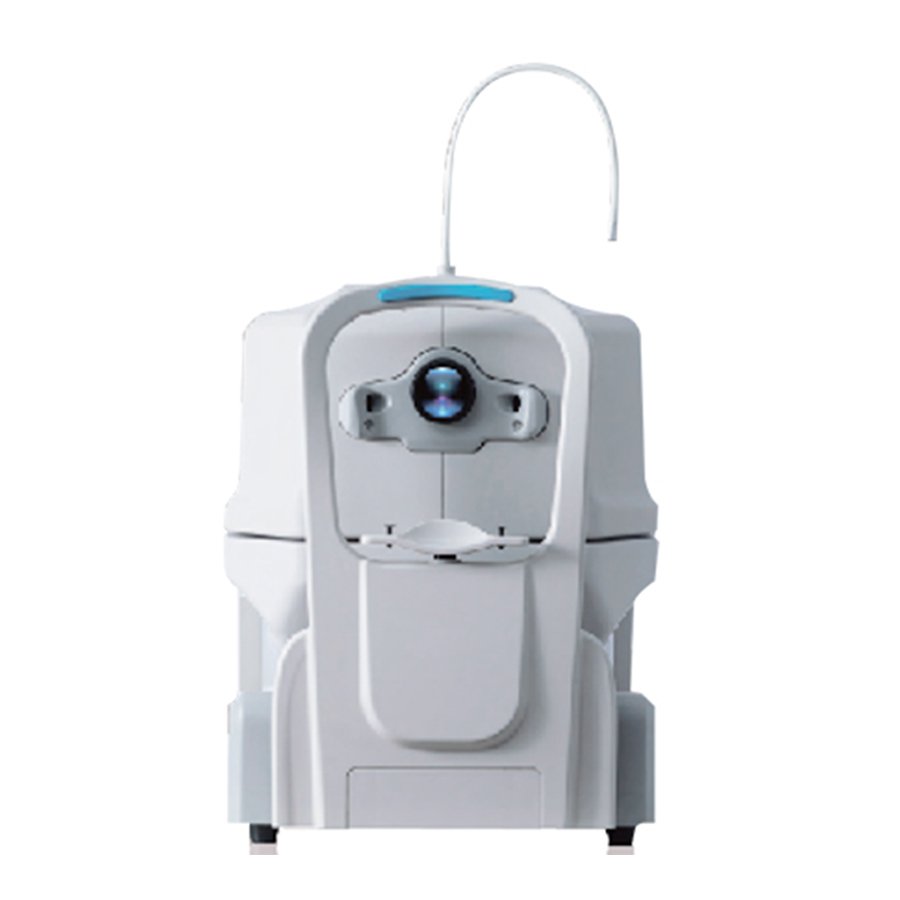

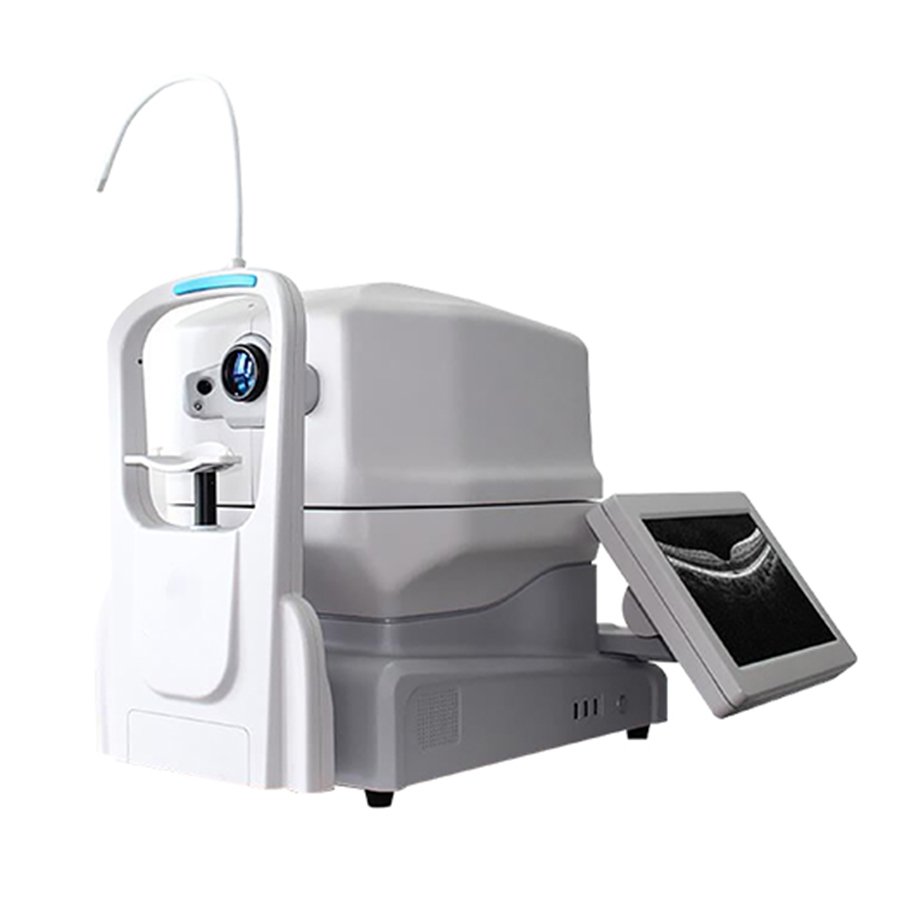

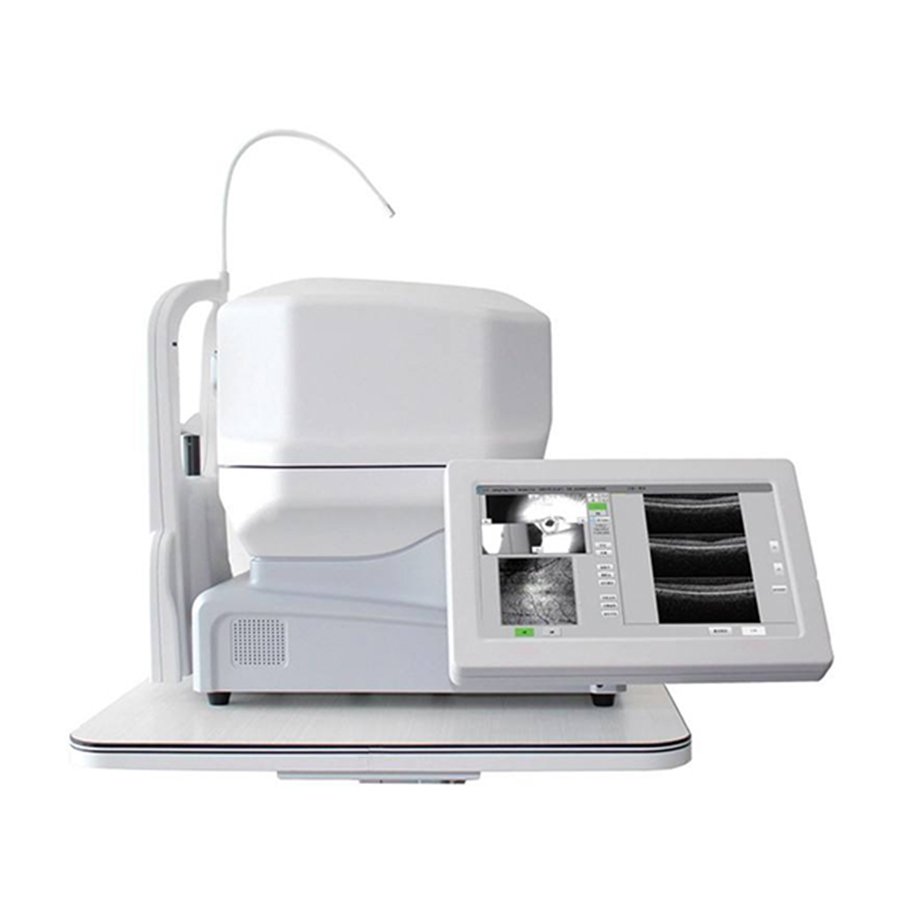

The OTC-500 combines the main unit and computer in one compact body, reducing space requirements in clinics. Its integrated structure simplifies setup, improves portability, and ensures stable performance during eye examinations.

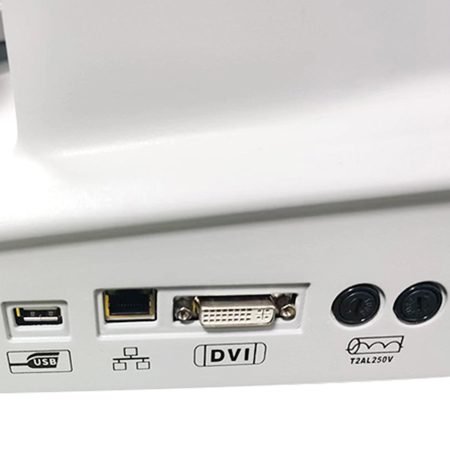

Equipped with multiple interfaces for flexible connectivity. USB ports allow quick data transfer, Internet access supports remote updates and network storage, and the DVI interface enables external display for real-time image viewing.
| Methodology | Spectral domain OCT |
| Axial resolution | ≤ 6 µm (in tissue) |
| Transverse resolution | ≤ 20 µm (in tissue) |
| Scan depth | ≥ 2.5 mm (in air) |
| Scan range | ≥ 6 mm |
| Scan speed | ≥ 24,000 A-scans/sec, up to 36,000 A-scans/sec |
| Scan modes | 30, Raster, Circle |
| Fundus image | OCT en face |
| Focus adjustment | -150 to 150 |
| Pupil diameter | ≥ 3 mm |
| OCT light source | 840 nm SLD |
| Optical power | 750 µW (at cornea) |
| Operation | 13.3’’touch screen, optional external mouse or keyboard |
| Power supply | 100-240 V, 50/60 Hz |
| Dimensions | 497 mm × 395 mm × 490 mm (L× W × H) |
| Weight | LED dot matrix |
| External fixtion | 34 kg (75 lbs) |
