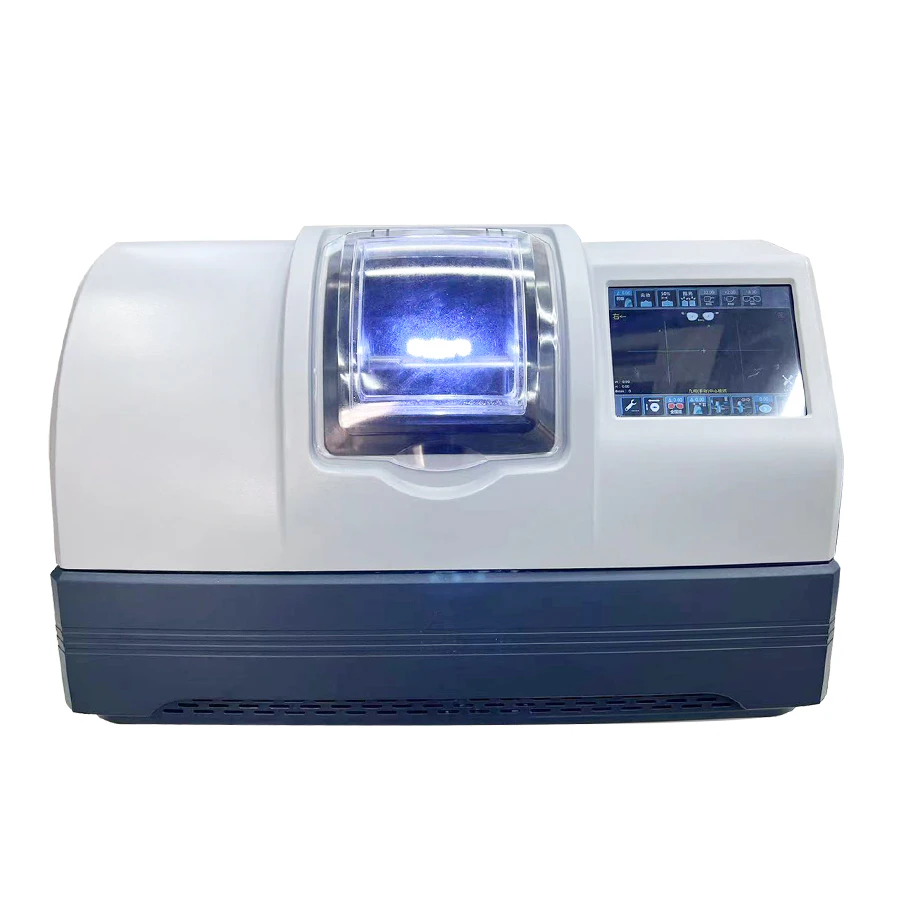

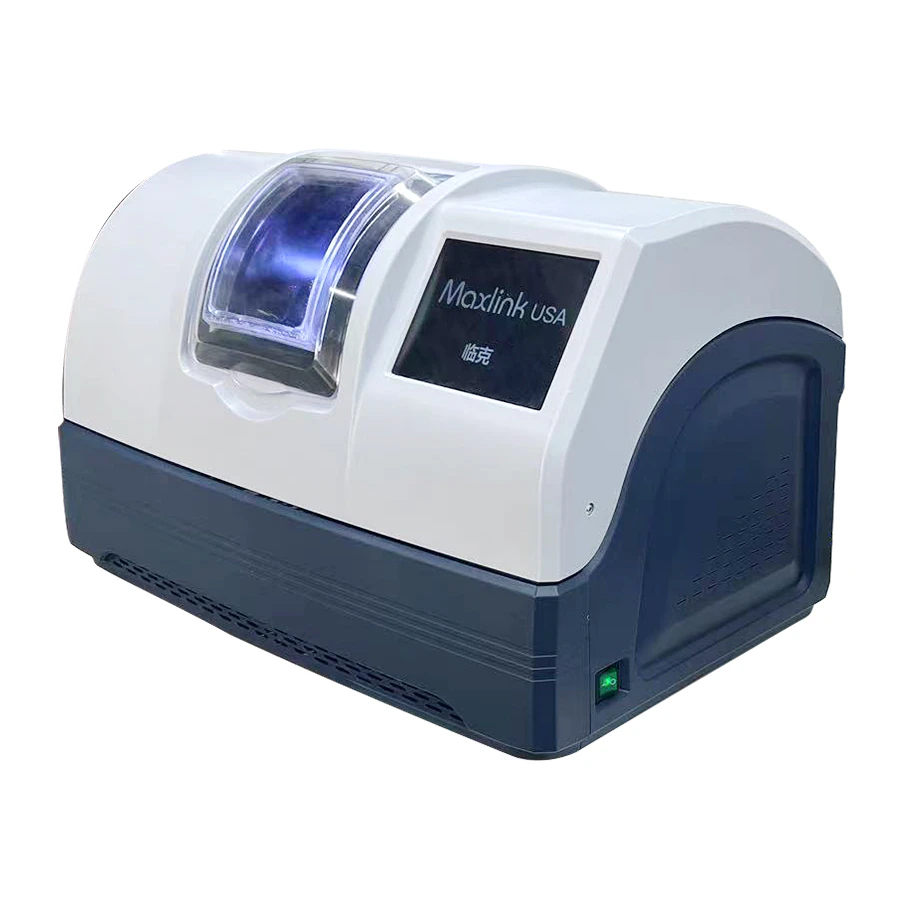

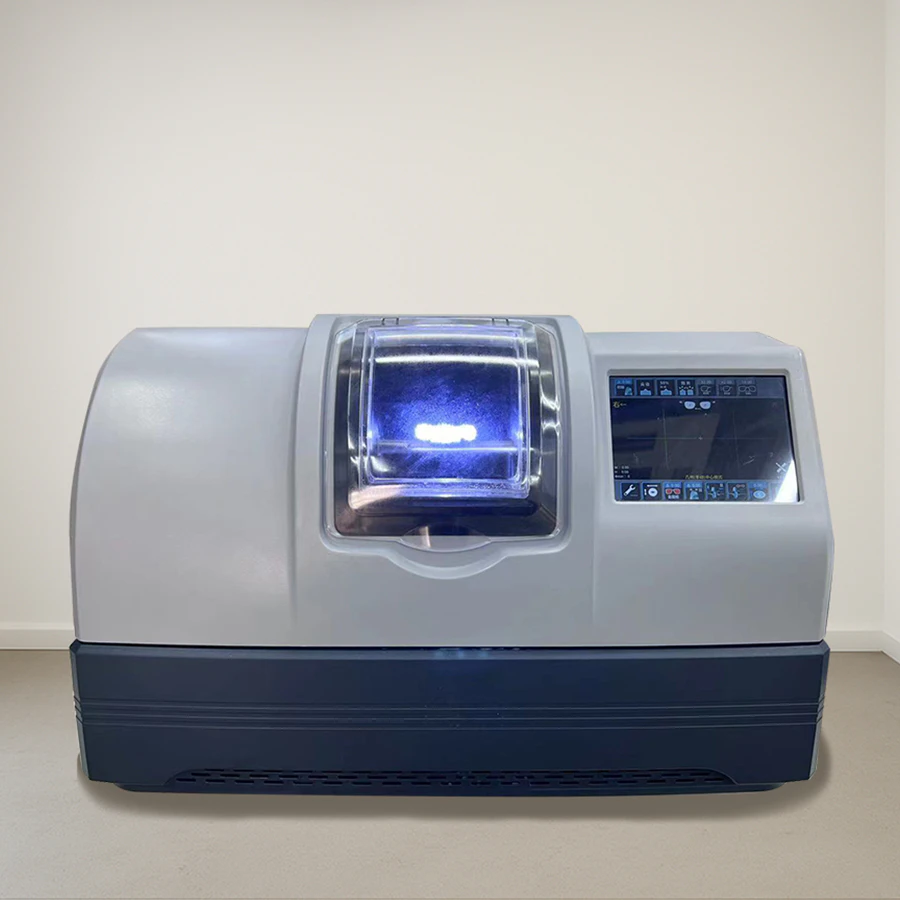

Model: MOLO-1200
MOLO-1200 is a 3D patternless lens edger designed for accurate sizing, fast grinding, and compatibility with various lens materials, frame types, and edge ratios. Compared to a 2D patternless lens edger, a 3D patternless lens edger doubles the power to 1500W, but the noise level remains the same.

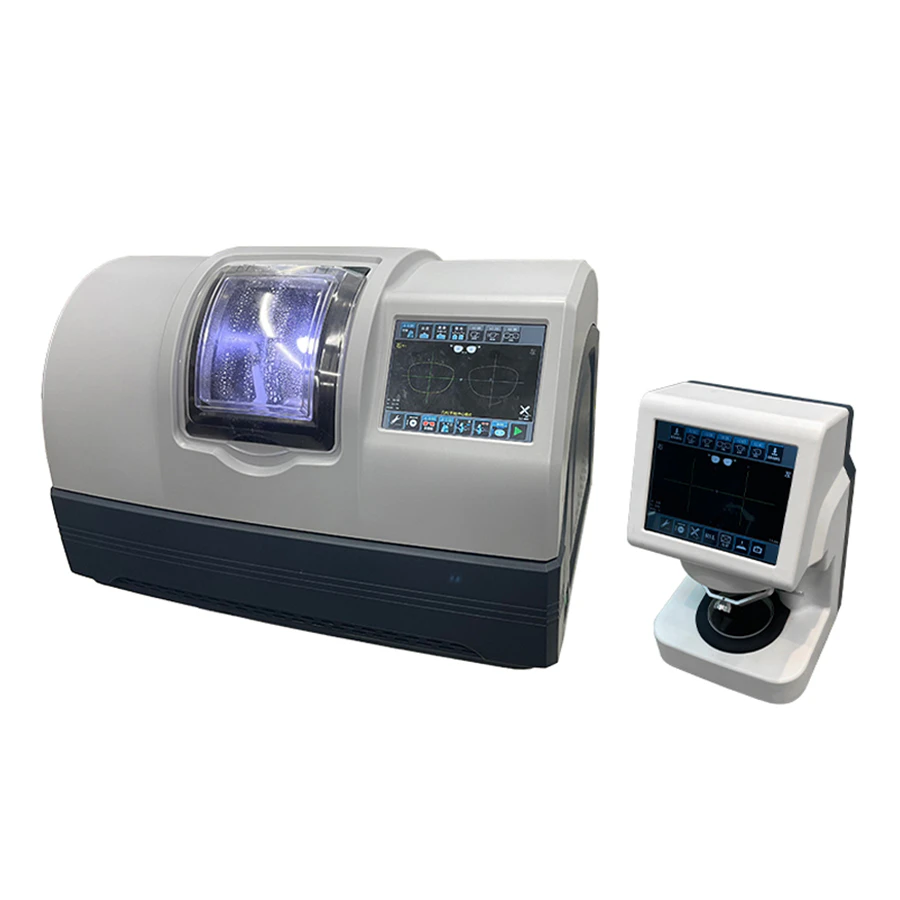

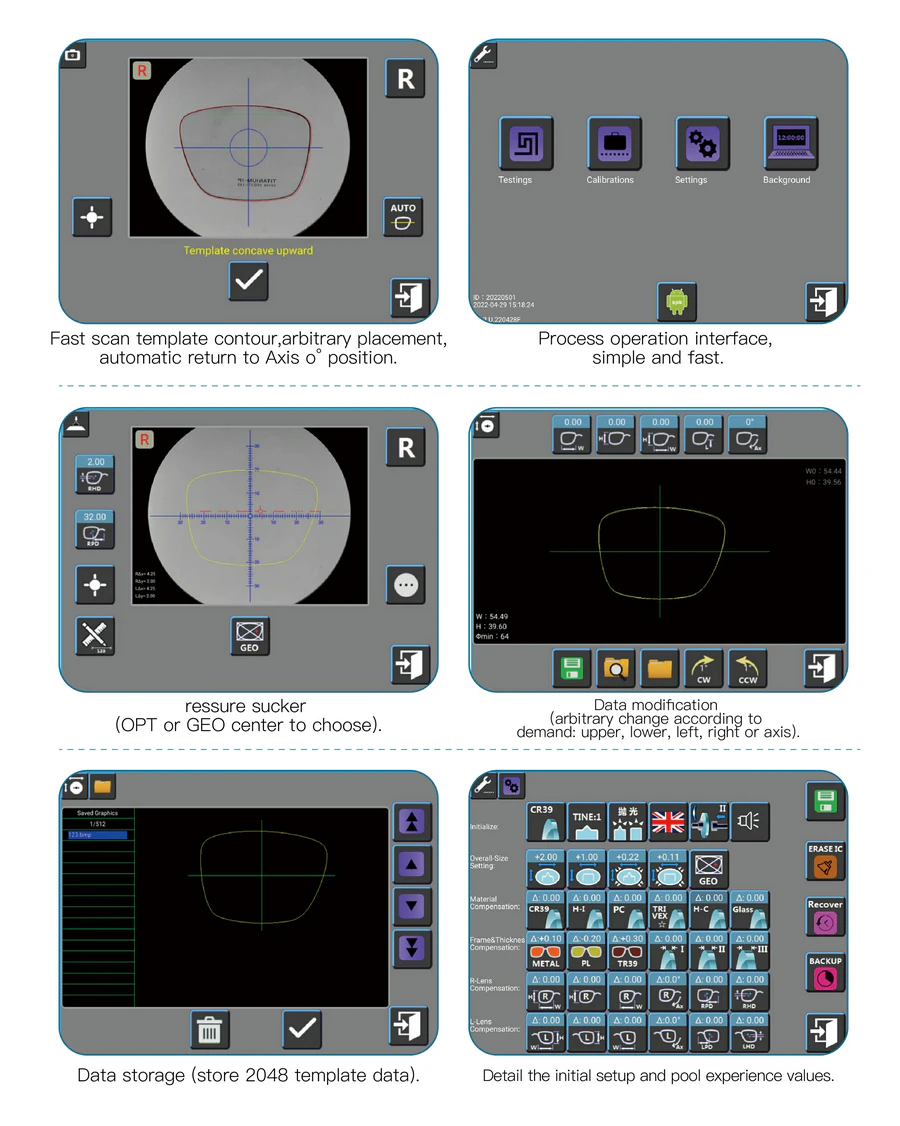

Its integrated scanning system combines liner scanning and center positioning to quickly capture frame contours and generate zero-axis graphics. The 8-inch HD touch screen provides simple, intuitive operation for efficient workflow.
Supports multiple lens materials and frame types: resin, PC, glass (glass grinding wheel needs to be customized) and so on.

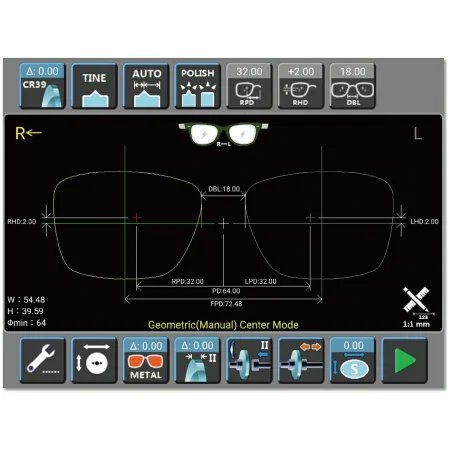

The uniform and clearly defined lens shapes on the display reflect the unit’s stable axis calibration and precise shape reproduction, reducing rework and minimizing lens waste.
3D EDGER MOLO-1200
| Dimension | 705 mm (L) × 440 mm (W) × 465 mm (H) |
| Weight | 65 kg |
| Voltage | 220V–230V / 50Hz；110V–115V / 60Hz |
| Power | 1500 W |
| Noise | 75 dB |
| Operating Temperature | -10°C ~ 40°C |
SCANNER SOLO-1200
| Dimension | 250 mm (L) × 210 mm (W) × 385 mm (H) |
| Weight | 5 kg |
| Voltage | 220V–230V / 50Hz；110V–115V / 60Hz |
| Power | 50 W |
| Saved Graphics | 512 pairs |
| LCD & Touch | 8-inch (1024 × 768) |
| Load Edger | 2 sets |
| Operating Temperature | -10°C ~ 40°C |
Trusted Services:
1. Video chat to check MOLO-1200 3D patternless lens edger.
2. Free online technical support and training.
3. Free online installation support.
4. 1-3 Years quality warranty.
5. Lifetime after sales support.
6. Most products are CE and ISO 13485 certificated.
7. Free input voltage and plug customization for electrical machines.
8. Fast worldwide shipping, 5-10 working days delivery for most countries.
9. Partial prepayment is acceptable before shipping.
10. Discount price, non-branded or customized products can be offered for distributors.
