Model: LK-920
The LK-920 ND:YAG Laser is designed for ophthalmic microsurgeries without cutting the eyeball.
LK-920 Ophthalmic ND YAG laser is a professional equipment for ophthalmologists to perform micro-surgeries without cutting the eyeball. It offers safe, stable, and accurate operation, and improves experiences for both doctors and patients.

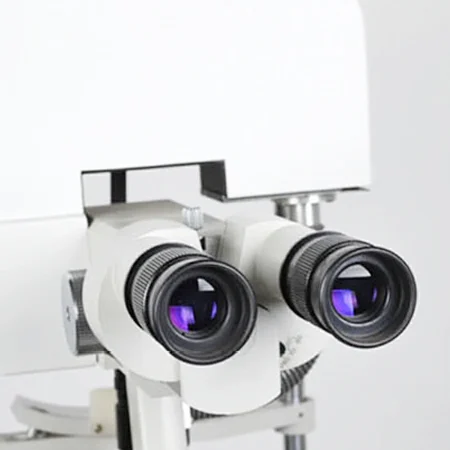

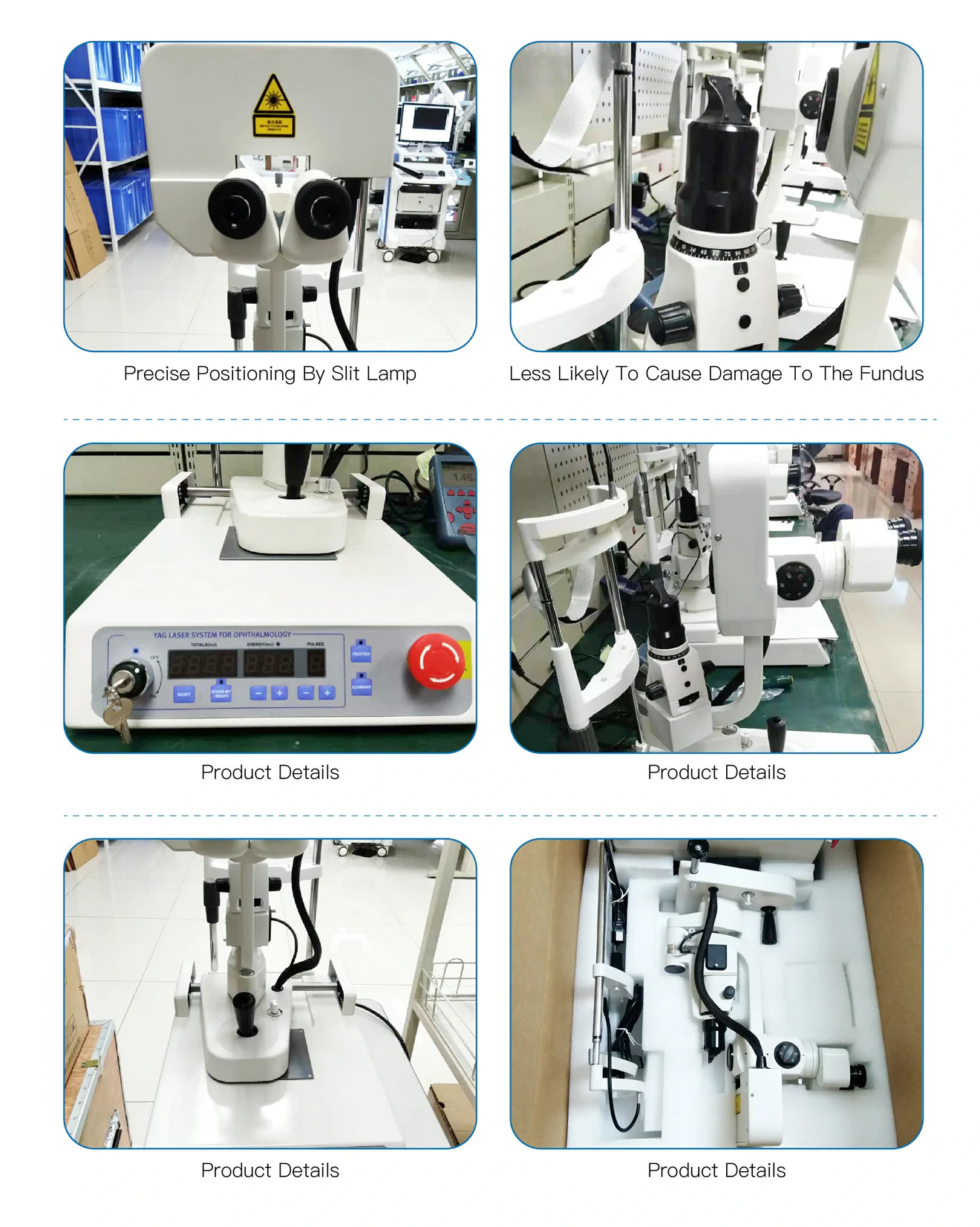

The system generates a 1064nm laser pulse focused through a slit-lamp microscope. Its dual-spot aiming beam ensures accurate positioning on ocular tissue. The laser energy concentrates on a 30μm focal point to create a controlled photodisruption effect, separating tissue precisely while minimizing surrounding damage.
LK-920’s built-in safety protection system ensures stable and reliable operation. Both the YAG and aiming lasers are coaxial and confocal with the microscope’s focal plane for clear observation and accurate targeting.

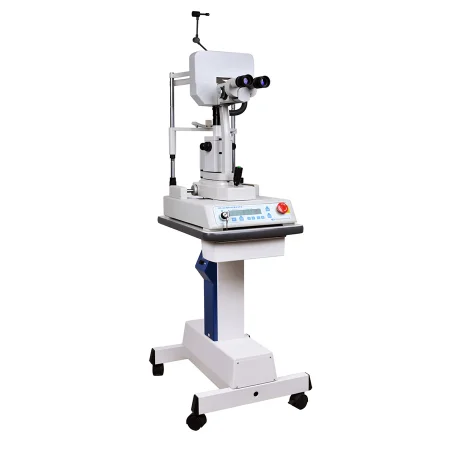

The LK-920 is designed with a modern international concept, combining style and functionality. Its ergonomic layout and compact form make it convenient for clinical use while reflecting a professional, contemporary appearance.
LK-920 use YAG Laser System for Ophthalmology produces 1064nm wavelength laser pulse.The laser pulse and dual-spot aiming beam can position precisely on the oculartissue to be treated through slit lamp.The focused 30 μm laser spot allows accurate treatment of ocular tissue with minimal impact on surrounding areas, ensuring safe, stable, and effective ophthalmic microsurgery.
| Laser Type | Nd:YAG |
| Wavelength | 1064nm ± 5nm |
| Mode | Q-Switch (multi-mode) |
| Pulse Output | Single-pulse, dual-pulse and three-pulse |
| Time characteristics of the laser pulse output | |
| Pulse Width | 4.5ns ± 10% |
| Pulse Repetition Rate | 2.5Hz |
| Duration of laser pulse sequence | dual-pulse≤30μs; three-pulse≤50μs |
| Output Energy | |
| 1 pulse maximum output | 11mJ |
| 2 pulse maximum output | 9mJ |
| 3 pulse maximum output | 28mJ |
| Output Energy Regulation | 100%~6% adjustable by 7 steps |
| Cone Angle | 18° |
| Spot Size | 30um |
| Aiming Beam Wavelength | 630-680nm |
| Aiming Output Power PC | < 0.4mW |
