Model: LK-650

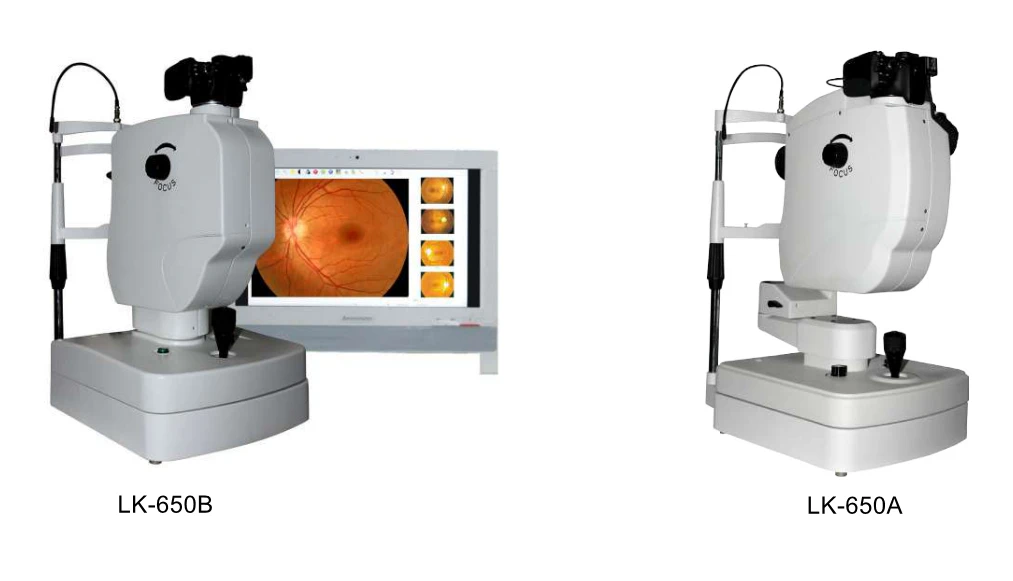

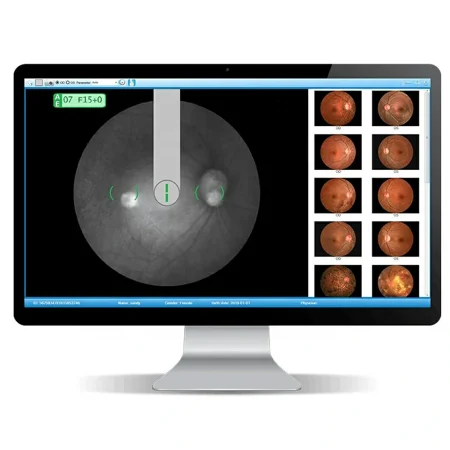

LK-650A fundus camera is a non mydriatic fundus photography machine mainly used for retina diseases examination. You can get high resolution pictures with this fundus camera. Professional software will be offered, and you can easily manage patient information, process pictures, and generate analysis reports. It has Dicom 3.0 interface that can be connected to HIS/PACS system.
LK-650B fundus camera is a non mydriatic fundus photography machine with FFA Fluorescein Fundus Angiography function, mainly used for retina diseases examination. You can get high resolution pictures with this fundus camera. Professional software will be offered, and you can easily manage patient information, process pictures, and generate analysis reports. This fundus camera has redfree mode for specific measurements. It has Dicom 3.0 interface that can be connected to HIS/PACS system.
If you don’t need fundus fluorescein angiography (FFA) function, LK-650A fundus camera will be a good choice.If you need fundus fluorescein angiography (FFA) function, you may be interested in LK-650B fundus camera.

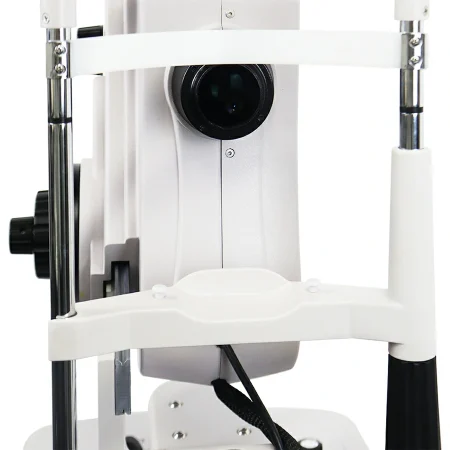

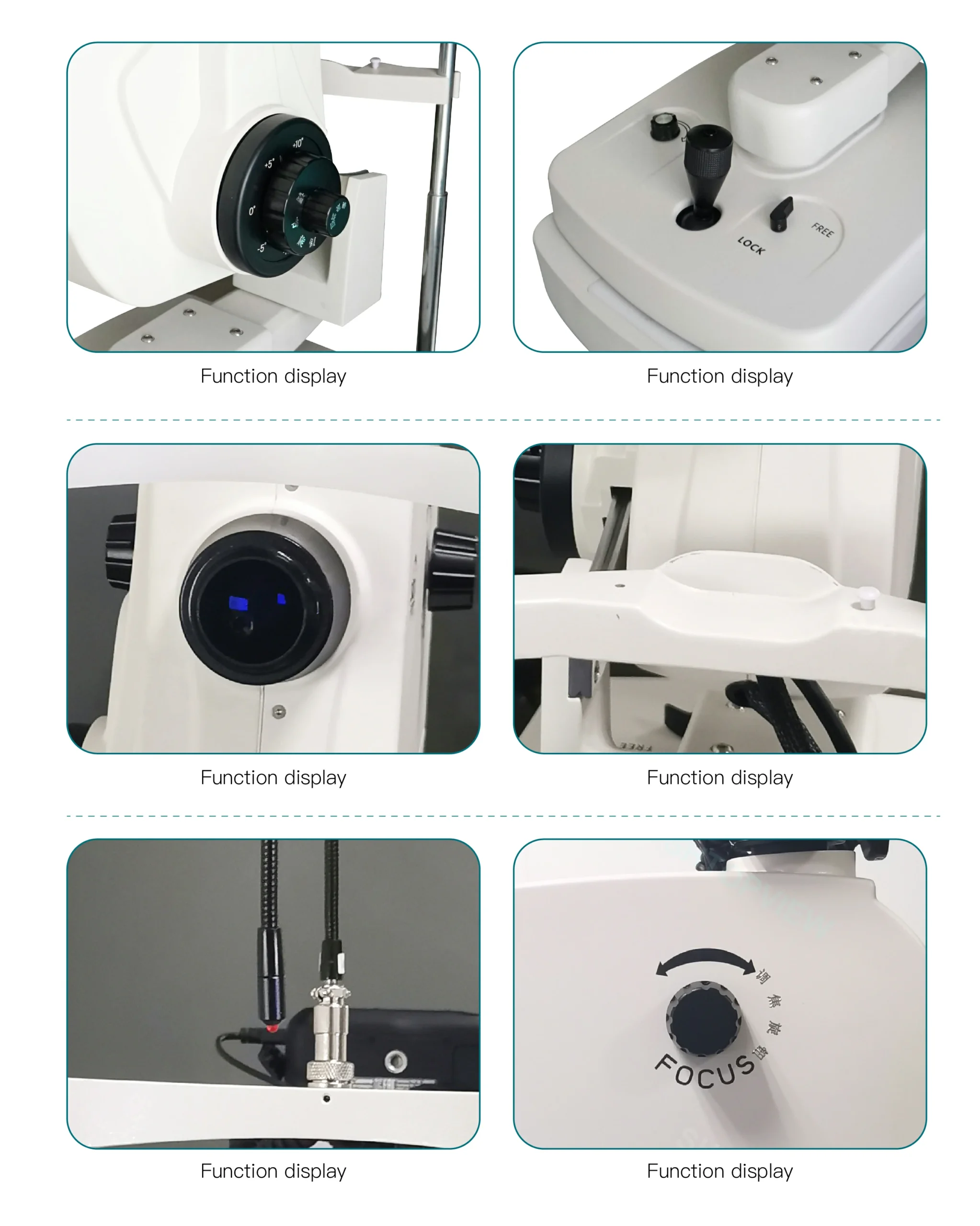

Adjustable chin support, camera angle adjustment, focus knob, smooth joystick, and illumination intensity knob, etc.
The split-line focusing method provides a more objective indication of focus status compared to traditional methods, avoiding the influence of murky visual media on image focusing. Even against a black background (such as an FFA), the split-line focusing system still helps to capture sharp images.
| Parameter Model | LK-650A | LK-650B |
|---|---|---|
| Optical lens | Aspherics system | Aspherics system |
| Test mode | Non-mydriatic fundus | Non-mydriatic and FFA |
| Fundus Observation | Switching Optical anterior-posterior compensation lens | Moved platform |
| Focus | Split-line aligning focusing | Split-line aligning focusing |
| Digital Camera | CANON EOS Technology | CANON EOS Technology |
| Color Image Resolution | 5184*3456 | 5184*3456 |
| Monochrome Image resolution | 1360*1024 | |
| Min.Pupil Size | 3.3mm | 3.3mm |
| Compensation range | -25D ~ +30D | -25D ~ +30D |
| Fundus observation para-position indication | Dots overlap | Dots overlap |
| Fixation target | External eye fixation lamp and internal fixation target (LED dot matrix-Fully controlled by software) | External eye fixation lamp and internal fixation target (LED dot matrix-Fully controlled by software) |
| Maximum angle of view | 45° | 45° |
| Optical head tilting | N/A | Horizontal±30° Vertical±12.5° |
| Working distance | 46mm (distance from examined eye to front of objective lens) | 46mm (distance from examined eye to front of objective lens) |
| Software | Support Dicom 3.0, support hospital HIS/PACS system. Image processing, easily operate, strong analysis, support fundus Mosaic, image post processing, measurement, patient profile management | Support Dicom 3.0, support hospital HIS/PACS system. Image processing, easily operate, strong analysis, support fundus Mosaic, image post processing, measurement, patient profile management |
