Model: LK-480A

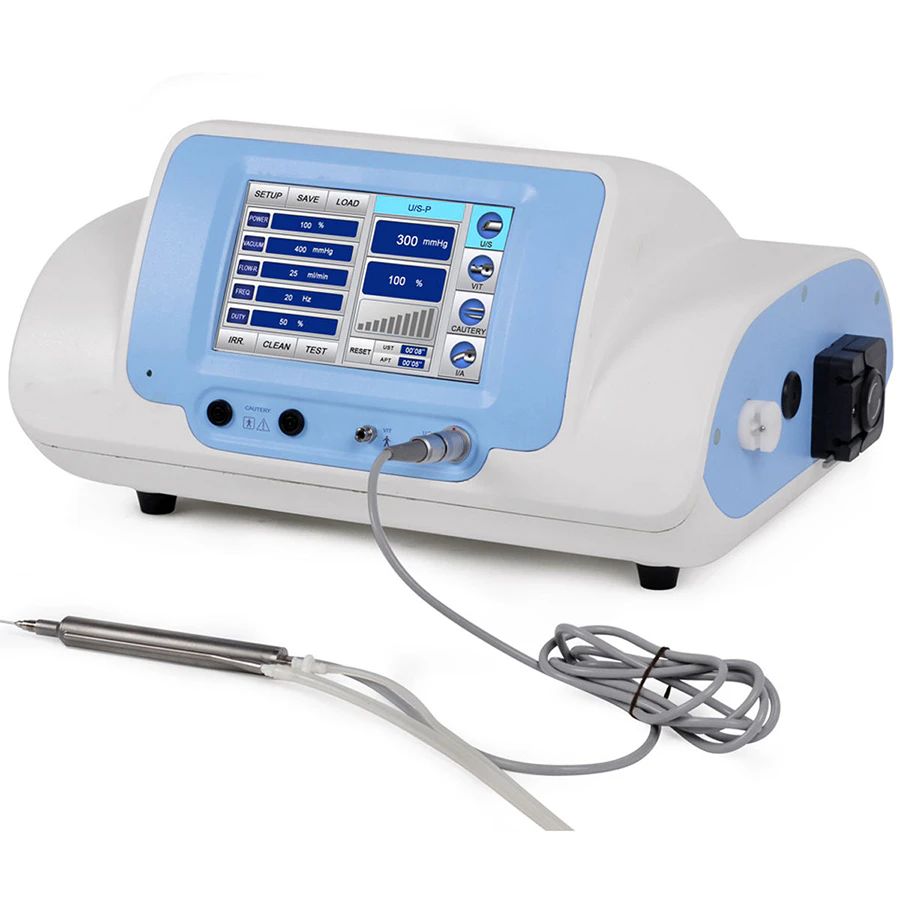

The LK-480A Ophthalmic Phacoemulsification Machine is a reliable Phaco Emulsifier designed for cataract surgery. It features microprocessor-controlled operation and digital frequency tracking for smooth, precise emulsification.
The system includes a large TFT touch screen with user-friendly menus, preset parameters for different surgical needs, and an auto test mode to check tubing and handpiece. Peristaltic pumps provide precise control of aspiration flow and stronger suction in I/A mode. Built-in vitrectomy and cautery functions, along with intelligent voice reminders, enhance safety and efficiency during surgery.

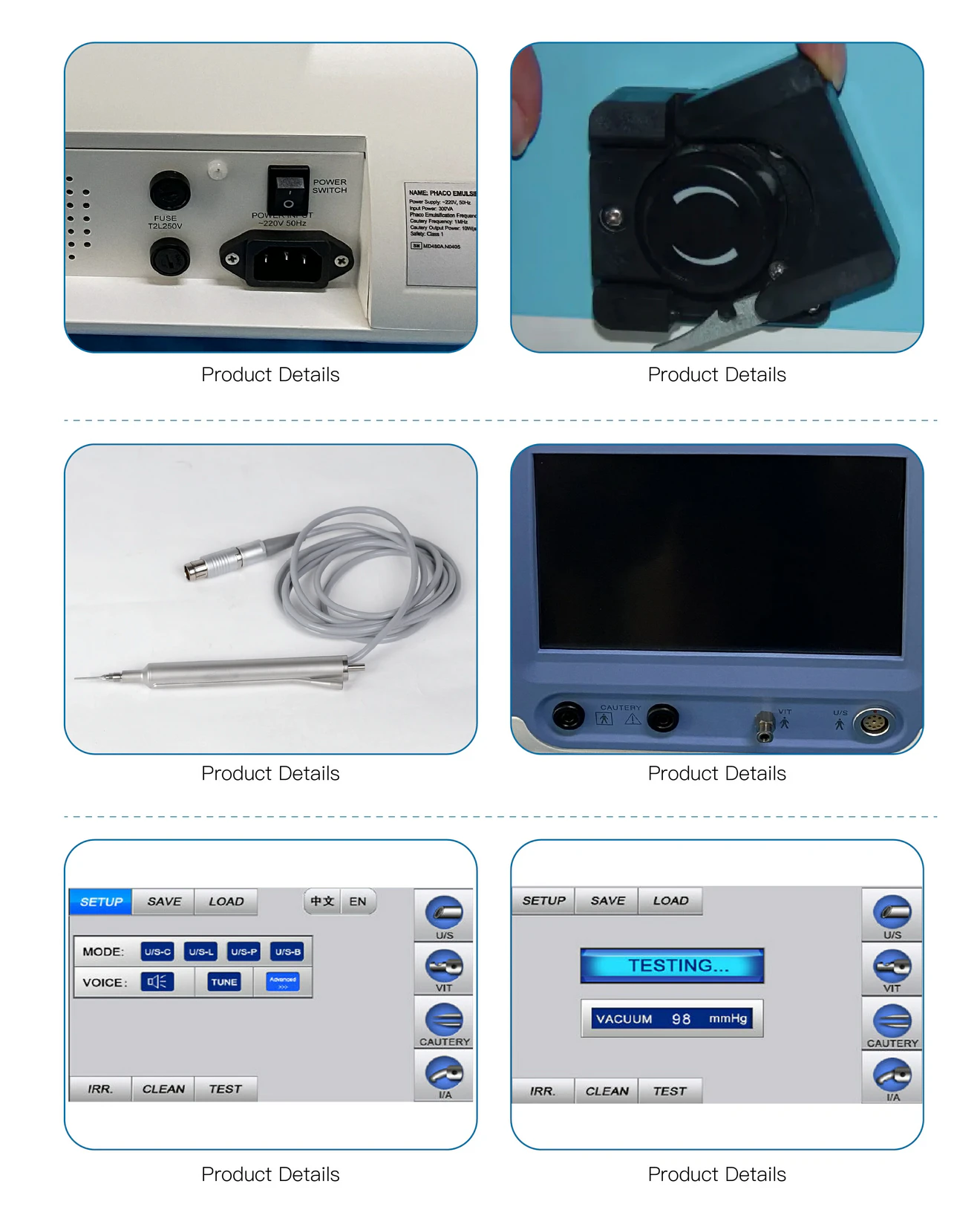

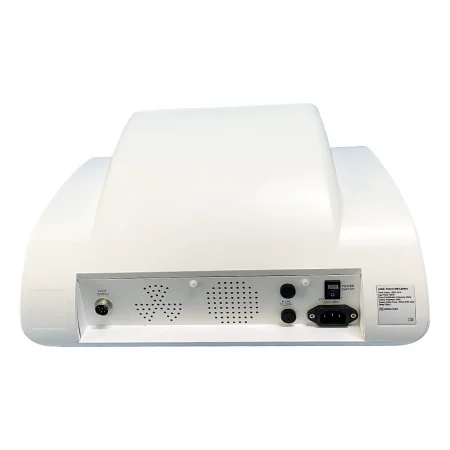

The power switch, connection ports, and pipeline locks are arranged in a reasonable manner, which facilitates maintenance and operation and improves the overall reliability and ease of use of the equipment in cataract surgery.

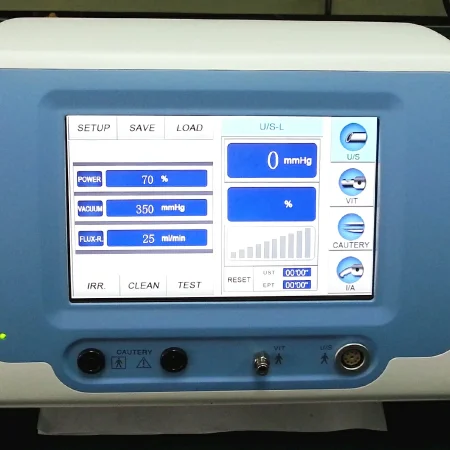

Features an intuitive touch screen interface, allowing surgeons to easily control key parameters like power, vacuum, and flux rates during cataract surgery. The display provides real-time data, ensuring precise adjustments for optimal surgical performance. With clearly labeled buttons for setup, testing, and cleaning, the interface enhances efficiency and ease of use in the operating room.
| Item | Quantity |
| Phaco Emulsifier | 1 |
| Foot Switch | 1 |
| Resuable Tubing Kit | 1 |
| U/S Handpiece | 1 |
| I/A Handpiece | 1 |
| U/S Tip (30°) | 1 |
| Tip Wrench | 1 |
| Test Chamber | 1 |
| Irrigation Sleeve | 2 |
| Irrigation Sleeve (VIT) | 1 |
| VIT Tip | 1 |
| Cautery Forceps (cable Included) | 1 |
| Subtotal | 13 |
Technical Specification:
| Ultrasonic Emulsification | |
| Frequency | 40kHz |
| Functional mode | Continuance, Pulse, Linear, Burst |
| Continuance | Emulsifying power Range: 0 ~ 100 |
| Pulse | Frequency Range 1 ~ 99Hz |
| Linear | Emulsifying power linearly controlled by the footswitch, varies between 0 ~ 100% |
| Burst-Stopping Time | 1.5 ~ 0s |
| Burst-Working Time | 5 ~ 100ms |
| Maximum Vacuum | 500 mmHg |
| Maximum Flux Rate | 40 ml/min |
| 40 ml/min | |
| Flux Rate | 0 ~40 ml/min |
| Reflux Rate | 20 ml/min |
| Max Vacuum | 0~500 mmHg |
| VIT (Vitrectomy) | |
| Cutting Power Source | Air Pump |
| Reflux Rate | 20 ~ 600/min, step 10/min |
| Max Vacuum | 500 mmHg |
| Cautery | |
| Maximum Power | 10 W ± 20 % (200Ω) |
| Type | Bipolar |
| Power preset between | ~ 100% |
Trusted Services:
1. Video chat to check LK-480A phacoemulsifier.
2. Free online technical support and training.
3. Free online installation support.
4. 1-3 Years quality warranty.
5. Lifetime after sales support.
6. Most products are CE and ISO 13485 certificated.
7. Free input voltage and plug customization for electrical machines.
8. Fast worldwide shipping, 5-10 working days delivery for most countries.
9. Partial prepayment is acceptable before shipping.
10. Discount price, non-branded or customized products can be offered for distributors.
