Model: LCP-150

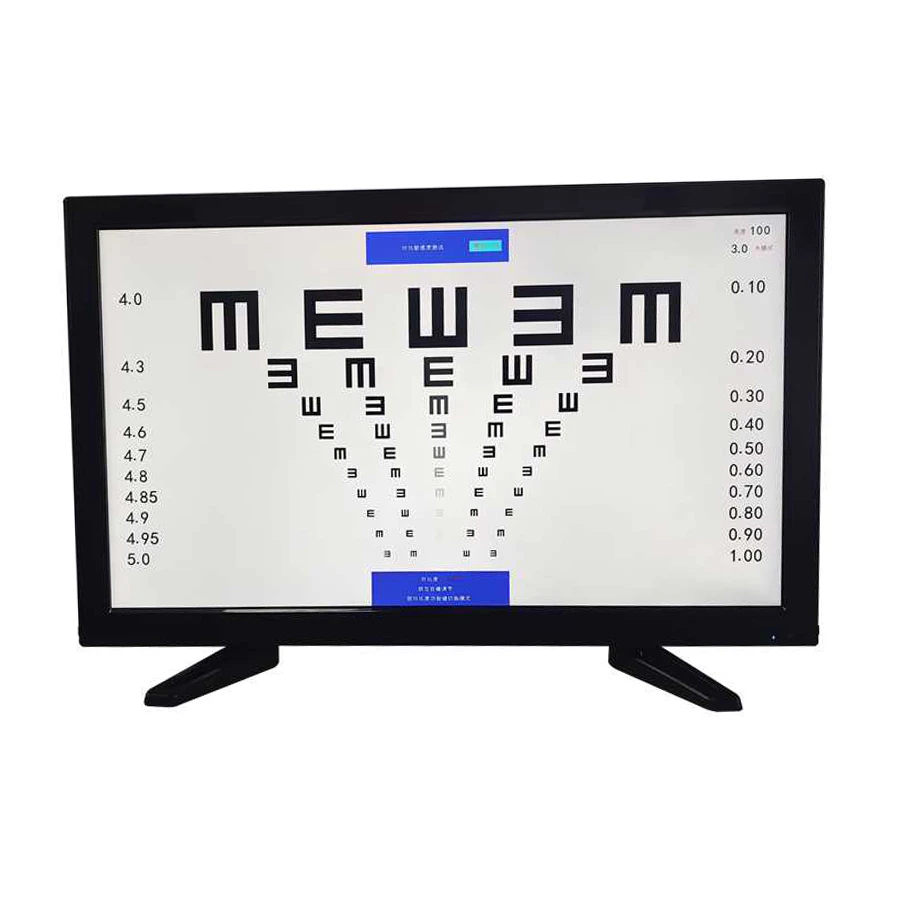

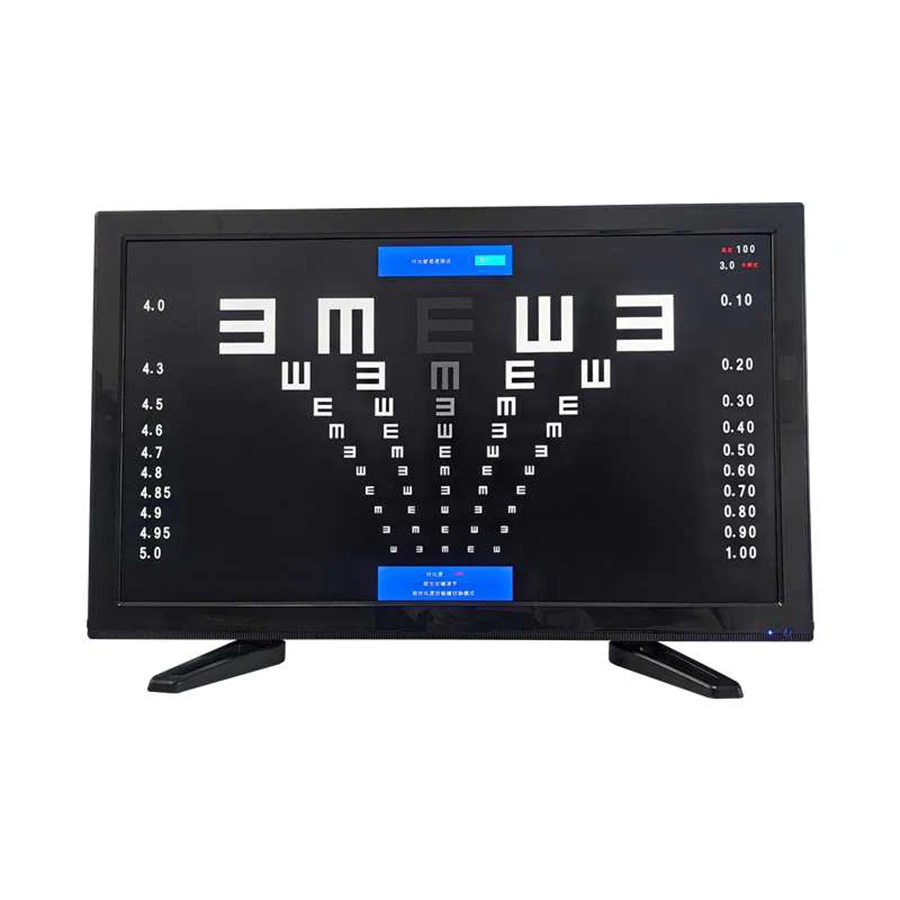

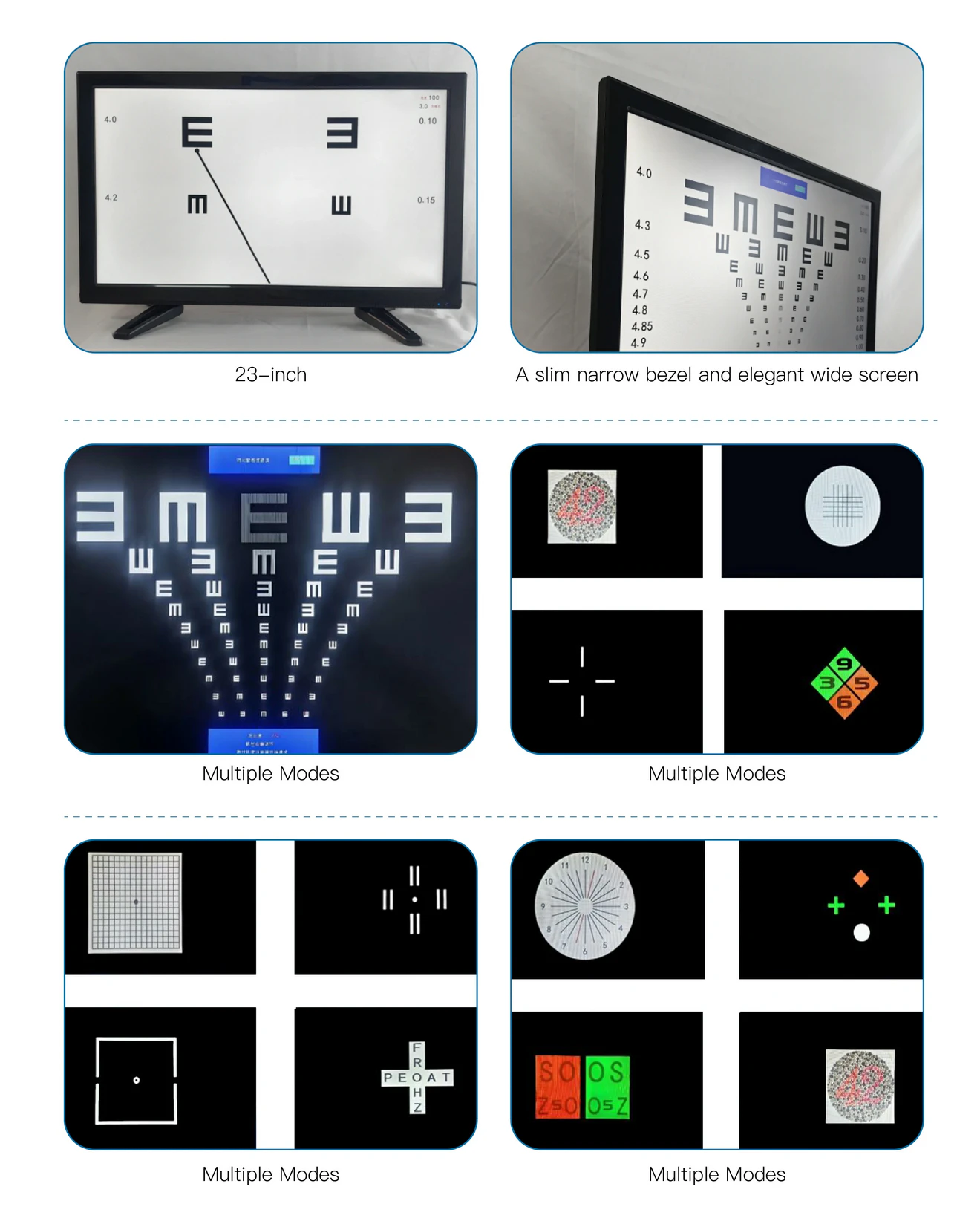

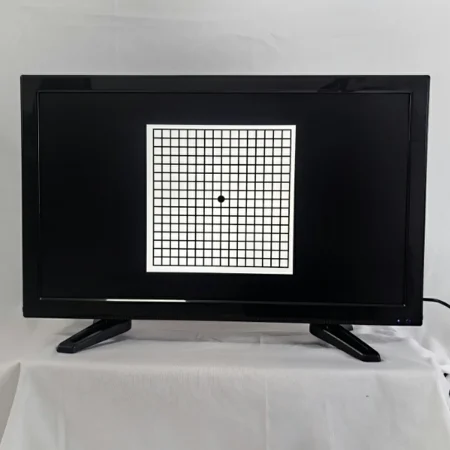

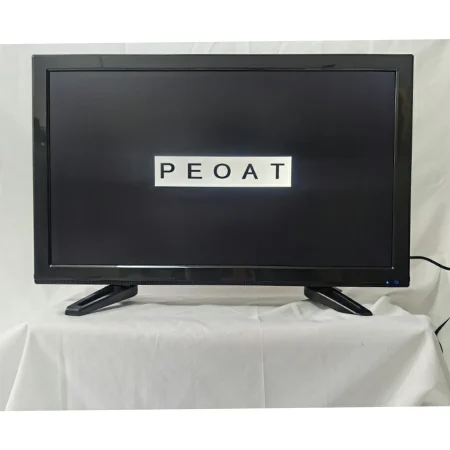

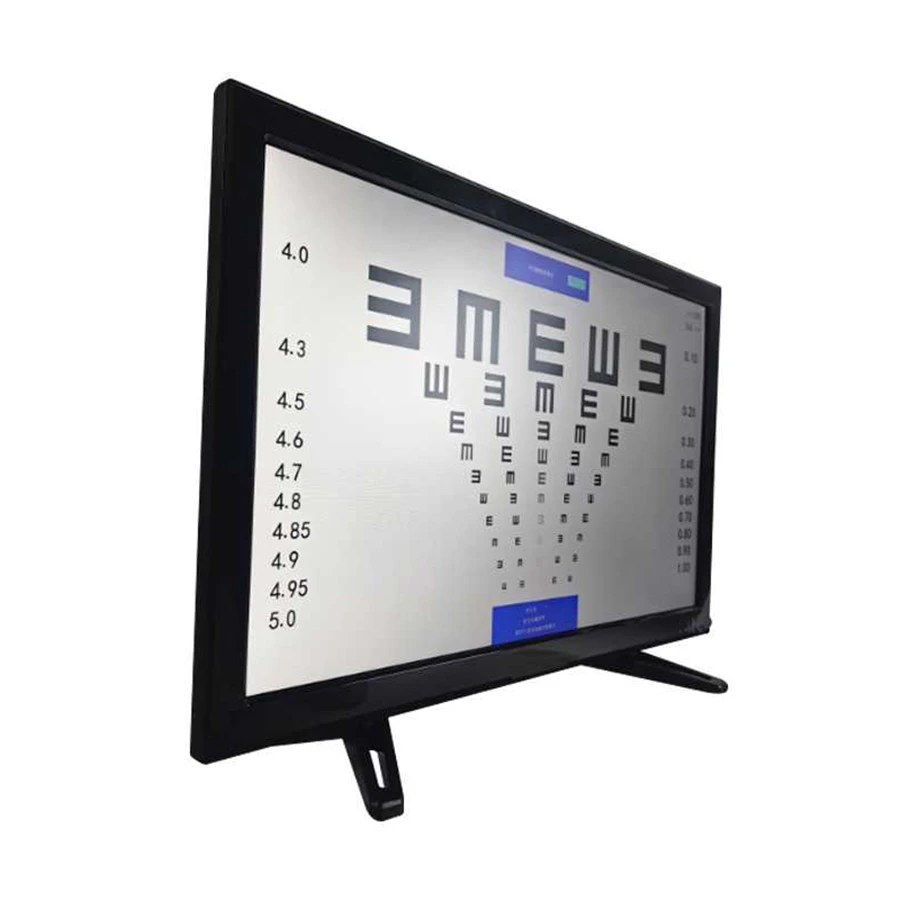

The LCP-150 Chart Projector has a 23-inch LED screen and supports multiple vision tests, including alphabet, numeric, astigmatism, binocular balance, and color vision charts.

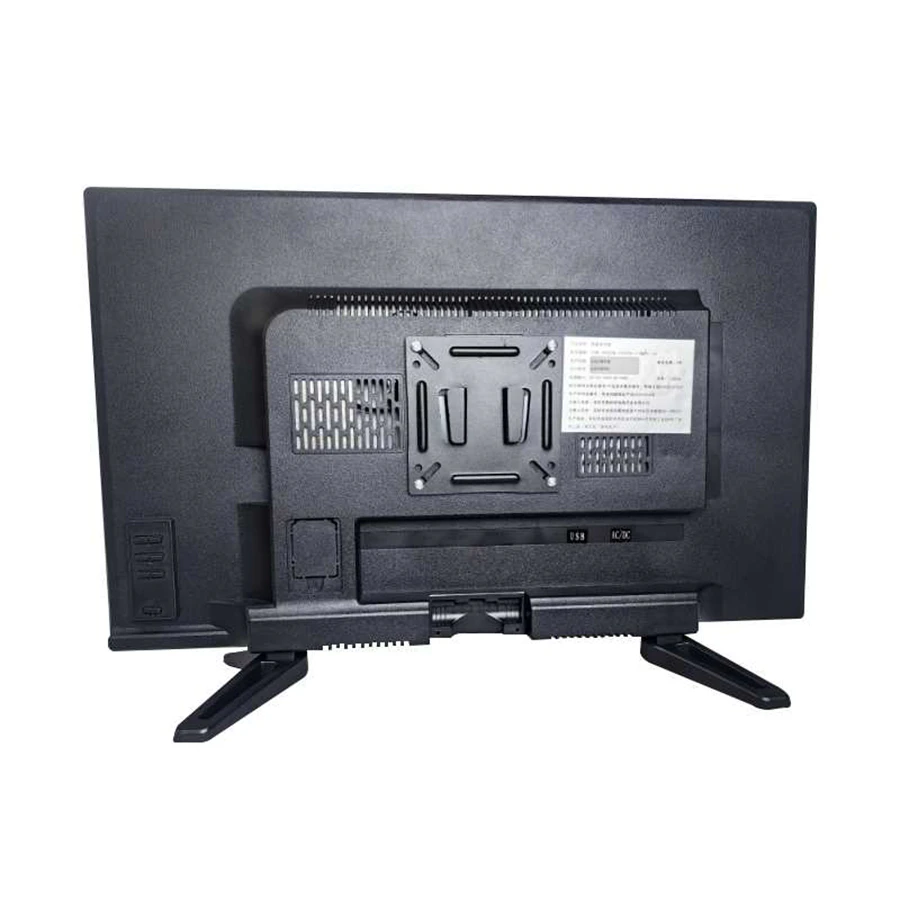

It features adjustable brightness, 1–6 m test distance, infrared remote control, quick test lists, and multimedia input via VGA, AV, YPBPR, or USB.
Brightness can be finely adjusted, from extremely low brightness in dark environments to extremely high brightness in bright environments, ensuring optimal contrast.
Equipped with a 23-inch professional medical-grade LCD display with 1080P resolution (1920×1080 pixels) and a 1000:1 high contrast ratio, ensuring optotypes are clear and sharp for more accurate vision testing.
| Parameter | Specification |
|---|---|
| Model | LCP-150 |
| Maximum Size | 600 × 430 × 150 mm (including bottom corner) |
| Screen | 23 inches (530 × 305 mm) |
| Screen Ratio | 16:9 |
| Screen Resolution | 1920 × 1080 |
| Voltage | AC 220V / 110V 50/60Hz (to DC 12V) |
| Weight | 3.5 kg |
| Packing Volume | 0.05 cubic meters |
| Packing Size | 660 × 160 × 470 mm |
