Model: KT-3100
Available models include:
KT-3100 is a fully automatic , non-mydriatic fundus camera with FFA or FAF.It captures both eyes in 10 seconds via a color LCD touch screen.
The KT-3100 is a fully automatic, non-mydriatic fundus camera for fast and accurate retina examination. It features a color LCD touch screen and captures both eyes’ images within 10 seconds.

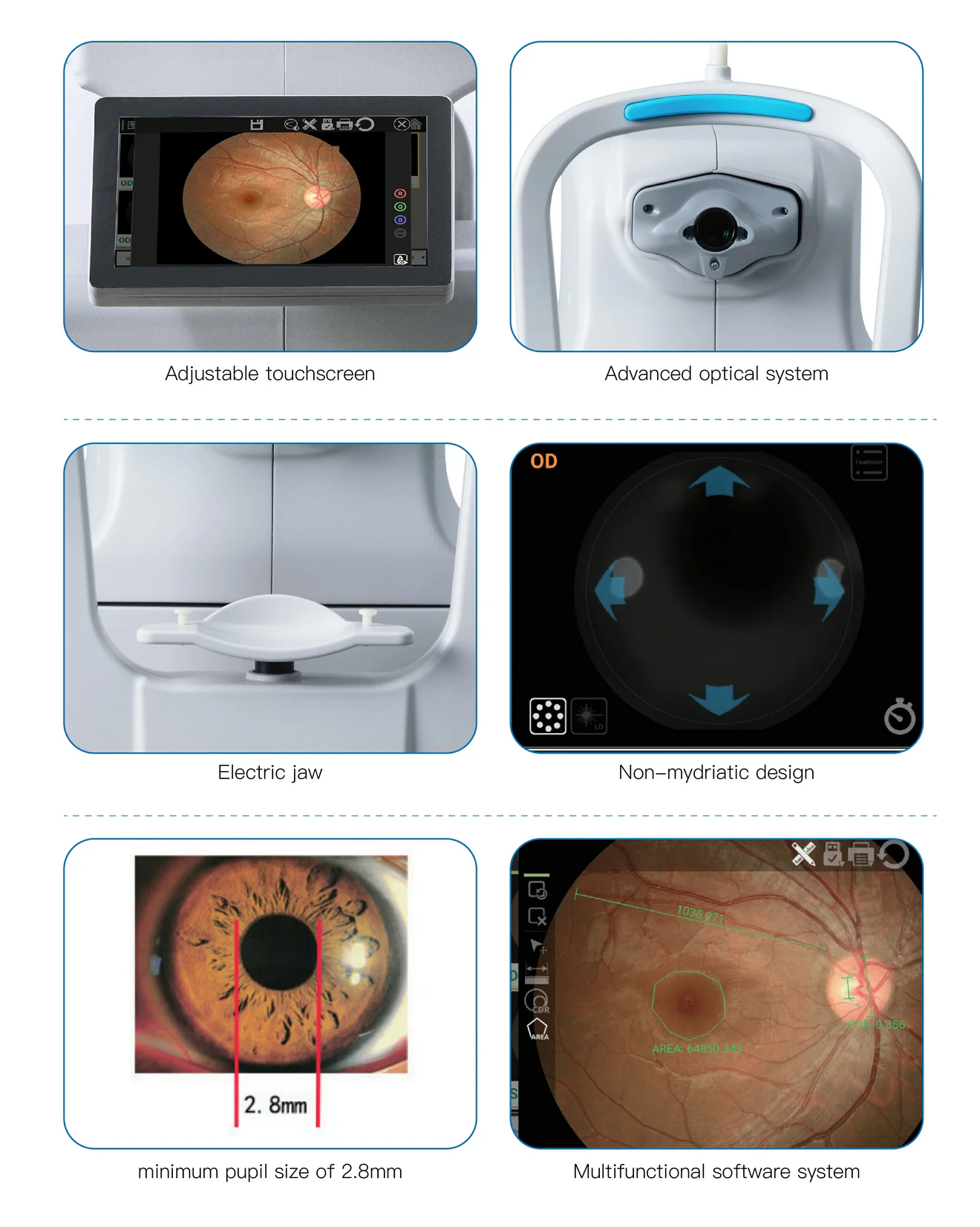

Features:
1. Fully automatic, easy to operate by just touching one button on the screen.
2. Fast and accurate measurement, fundus images of both eyes can be captured within 10 seconds.
3. Non-mydriatic examination improves patient comfort.
4. Upgraded camera system enhances image resolution.
5. Advanced optical technology with soft light reduces eye discomfort during examination.
6. Applicable for small pupil size, minimum 2.8mm.
7. Mosaic function with up to 9 pictures for 135° fundus analysis.

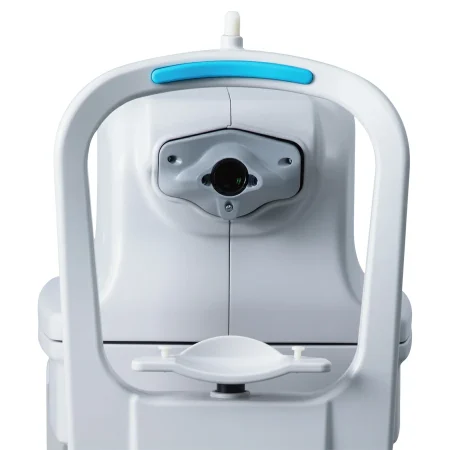

Dual-camera system is like eyes of the device.It searches and locates the pupil for fast and accurate autofocus.

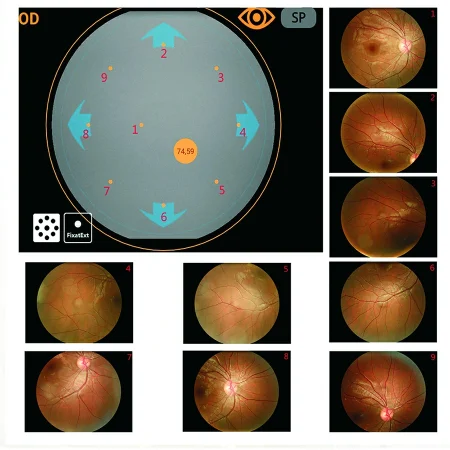

Mosaic function can generate the fundus image up to 135"field of view from 9 images of 50"feld width each. More fixation points are distributed between 9 internal fixations shown.
| Item | Specification |
| Acquisition modes | Non-Mydriatic / Mydriatic Photography, Anterior segment photography, Fundus nuorescence angiography(option) |
| Field of view | 50° |
| Minimum pupil size | 2.8mm |
| Focus modes | Auto/Manual |
| Exposure modes | Auto/manual |
| Operation | Auto |
| Image acquisition time | Within 10 seconds |
| Image resolution | 18mega pixel |
| Working distance | 35mm |
| Diopter compensation | ±25D |
| Fixation | External fixation/internal fixation |
| DICOM30 | Yes |
| Autofocus assist light | Infrared LED |
| Power supply | 100-240v 50/60HZ |
