Model: KJ5S3

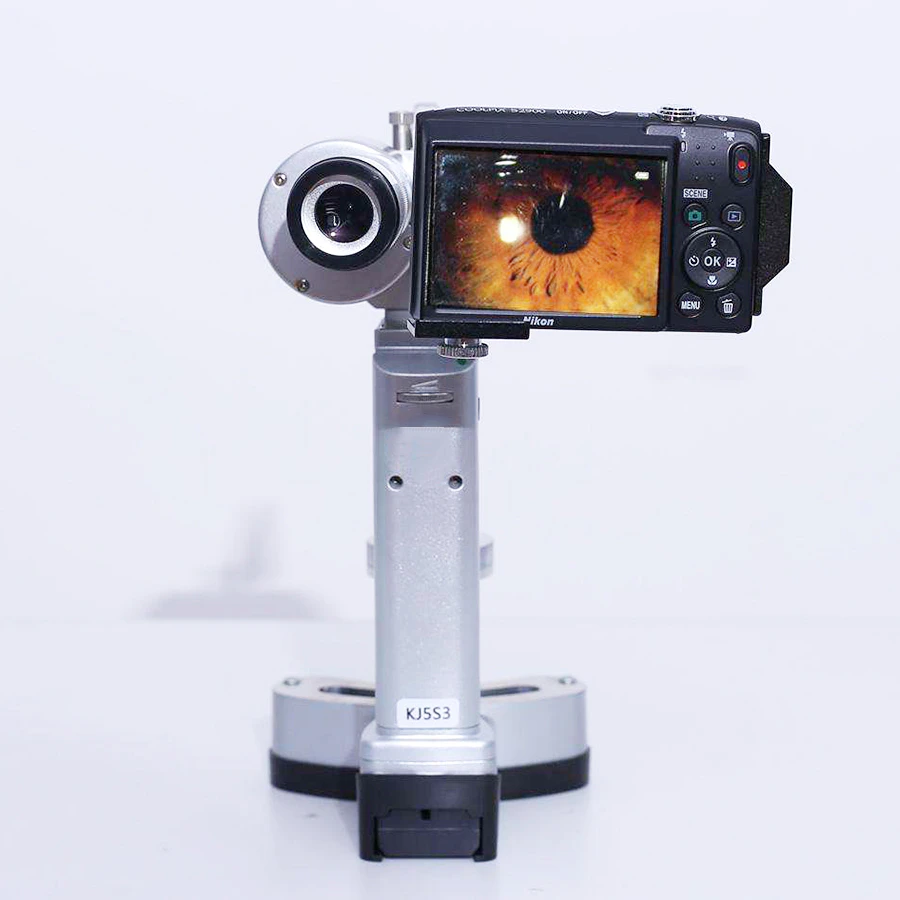

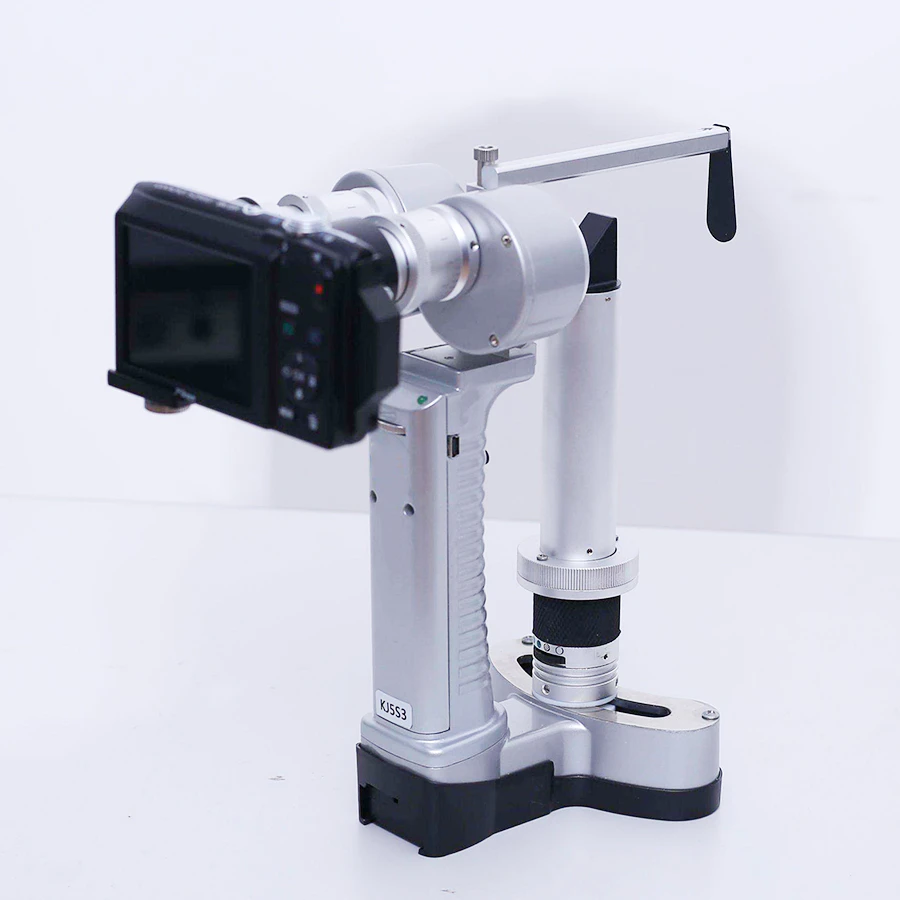

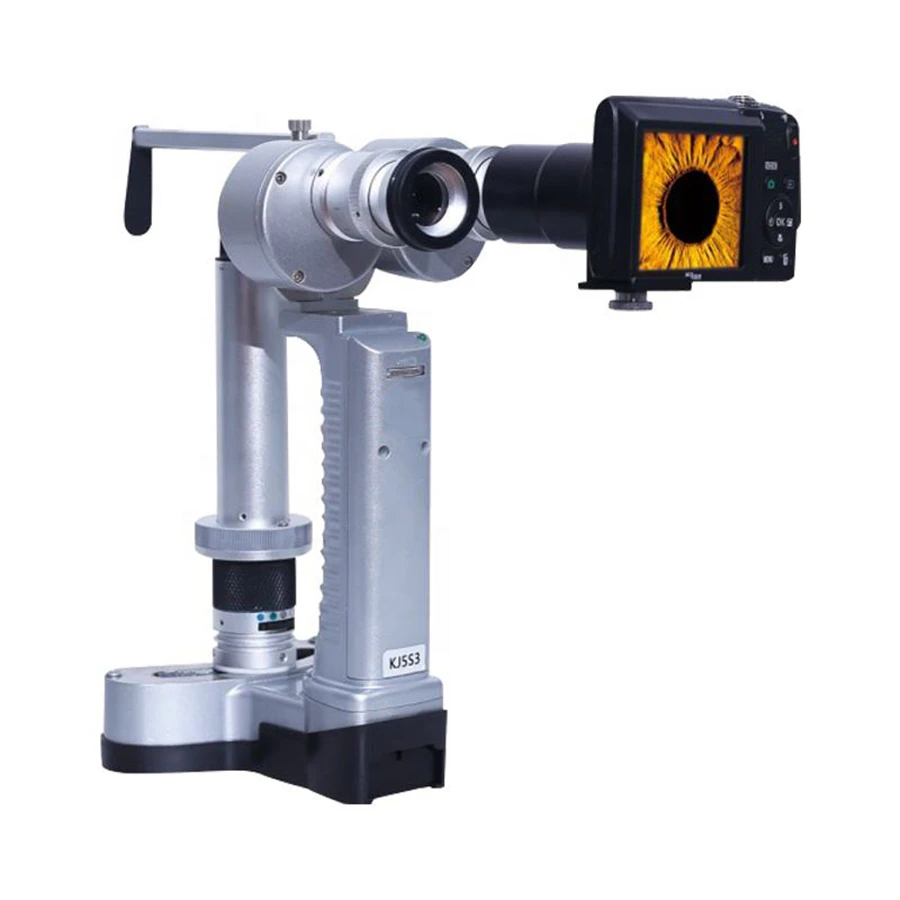

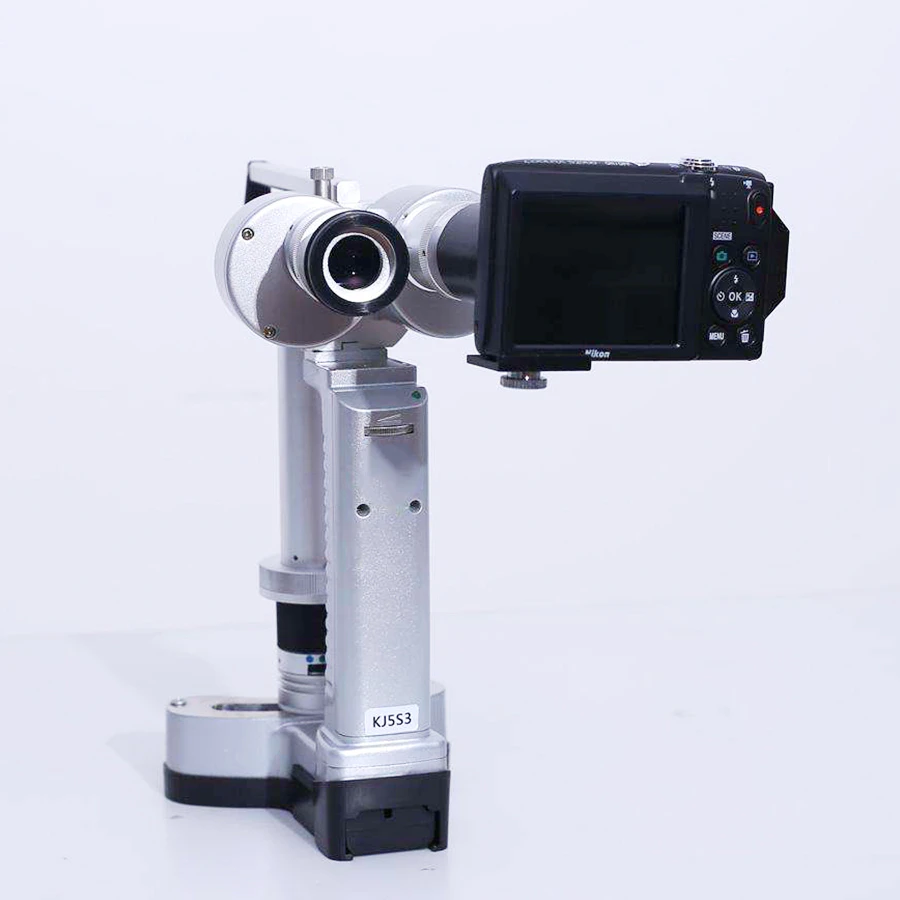

KJ5S3 is an ophthalmic portable slit lamp microscope with digital camera for eye exam. It features two step magnifications (10X, 16X), 4 filters (heat-absorption, grey, red free, cobalt blue), ±7D diopters for doctors, LED illumination for patient comfort, high definition imaging, and easy to operate.It compact and convenient, it provides high-resolution real-time imaging with easy picture capture for consultations.
10X,16X optics give you crisp, detailed views for confident on-the-spot diagnosis.
Reinforced structural base with precision alignment ensures stable positioning during examination, enhancing control and accuracy in handheld operation.
| MICROSCOPE | KJ553 |
|---|---|
| Microscope Type | Converging microscope |
| Objective Magnification | 1X |
| Eyepiece Magnifications | 10X, 16X |
| Pupil Distance | 48-70 mm |
| Diopter Compensation | ± 7 D |
| Working Distance | 80 mm |
| SLIT | Specification |
|---|---|
| Slit Width | 0-10 mm continuously adjustable |
| Diameter Of Light Spot | φ1 mm, φ3 mm, φ5 mm, φ10 mm |
| Slit Angle | Horizontal ± 30° |
| Filter | Heat absorption, Grey, Redfree, Cobalt blue |
| Light Source | White LED |
| Power | 7.4 V 680 mAh lithium battery, rechargeable |
| Working Time | 5-6 hours |
| Packing Volume | 400 × 200 × 230 mm |
| Camera | Nikon Camera |
| Pixel | ≥ 14 Megapixel |
| Display | 2.7 inches |
Trusted Services:
1. Video chat to check KJ5S3 Digital Portable Slit lamp Microscope.
2. Free online technical support and training.
3. Free online installation support.
4. 1-3 Years quality warranty.
5. Lifetime after sales support.
6. Most products are CE and ISO 13485 certificated.
7. Free input voltage and plug customization for electrical machines.
8. Fast worldwide shipping, 5-10 working days delivery for most countries.
9. Partial prepayment is acceptable before shipping.
10. Discount price, non-branded or customized products can be offered for distributors.
