Model: HFC-200
Compact at only 560 g, the HFC-200 combines portability, efficiency, and professional imaging for reliable eye examinations anywhere.

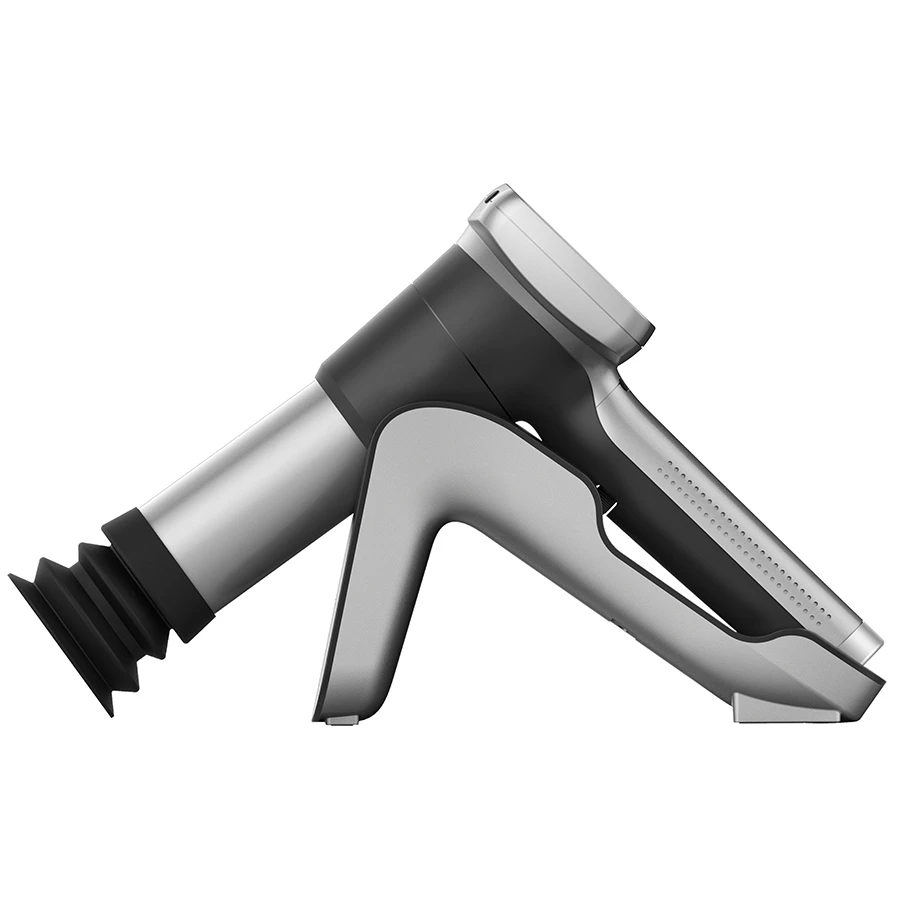

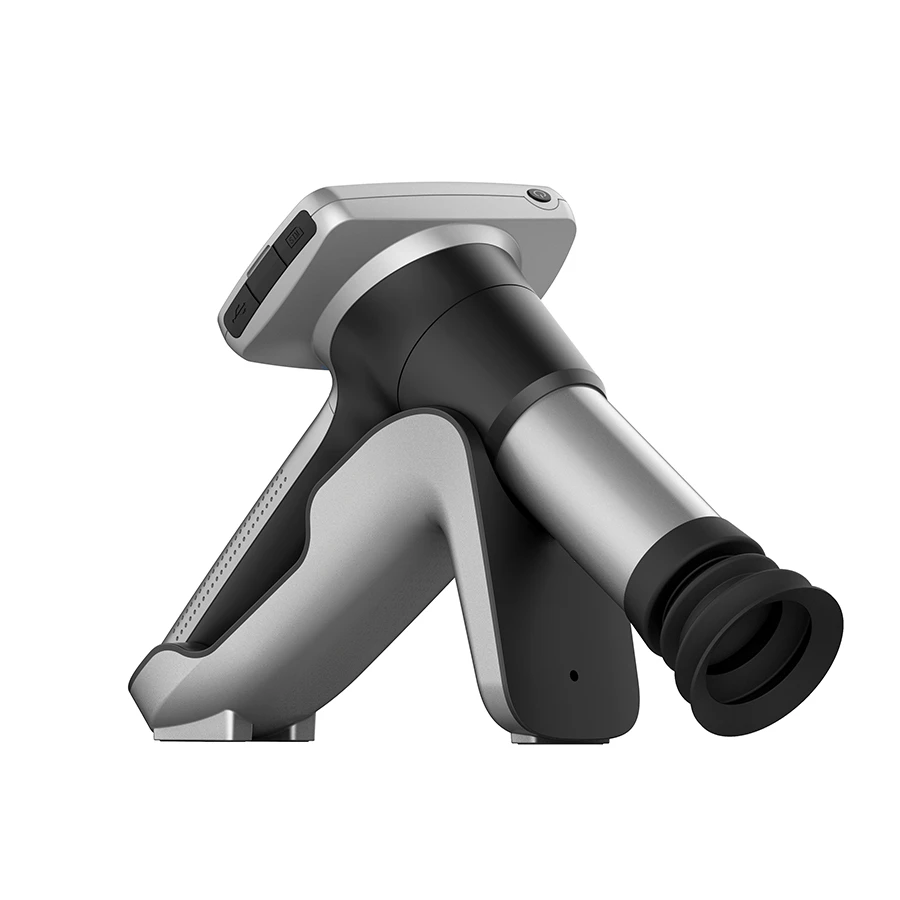

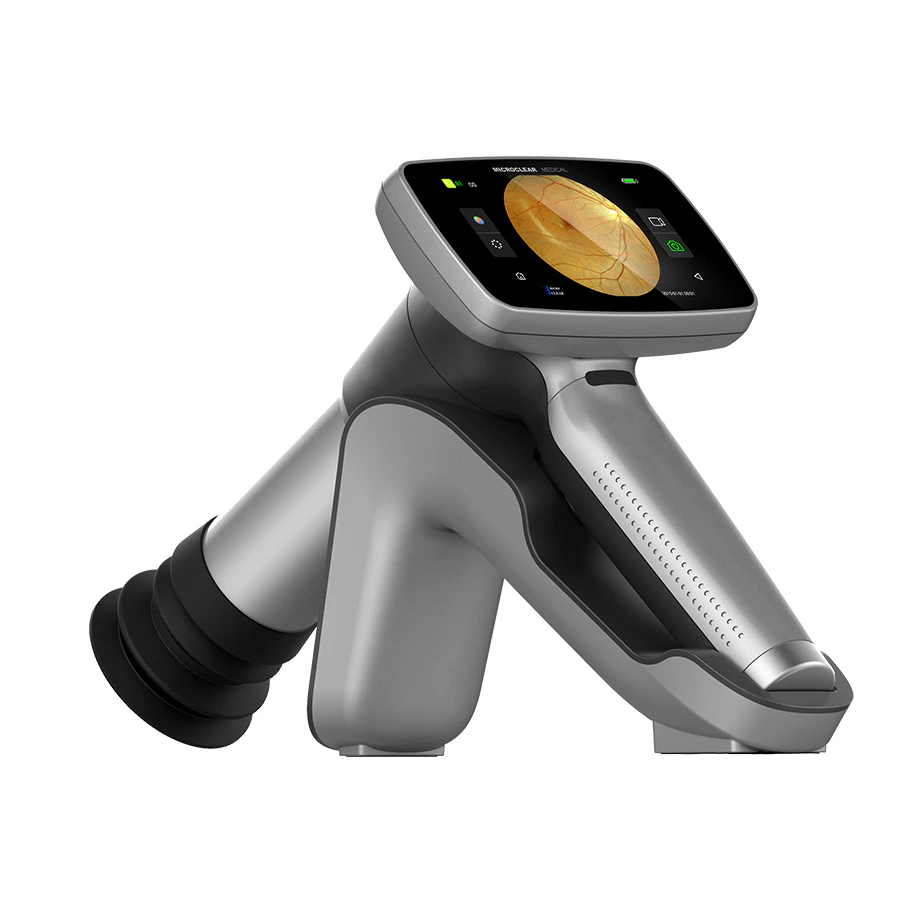

The HFC-200 is a lightweight, non-mydriatic handheld retinal camera designed for fast and clear fundus imaging. It captures 16MP high-resolution images with a 45° field of view and supports pupil sizes as small as 2.5 mm.
Features:
1. Non-mydriatic and minimum measurable pupil size is 2.5mm.
2. Stable LED light with reduced flash and 480×800 HD touch screen
3. Auto focus and 8 target fixations

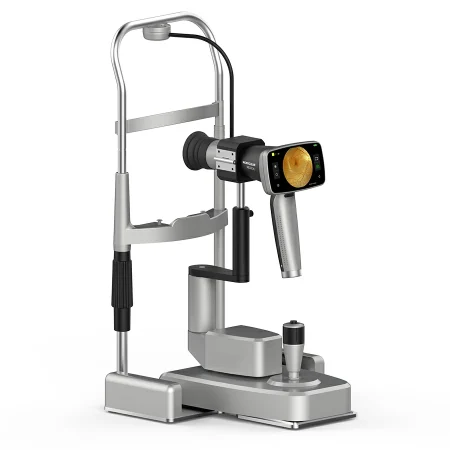

4. Fast and HD funds imaging: 16 mega pixel
Android based system:
1. Android system, easy to operate and store data
2. Wireless data transmission.
3. DICOM interface
4. 4G NETWORKS.
5. No additional computer or mobile device needed.
6. Integrated design only 560g
7. Wireless printing

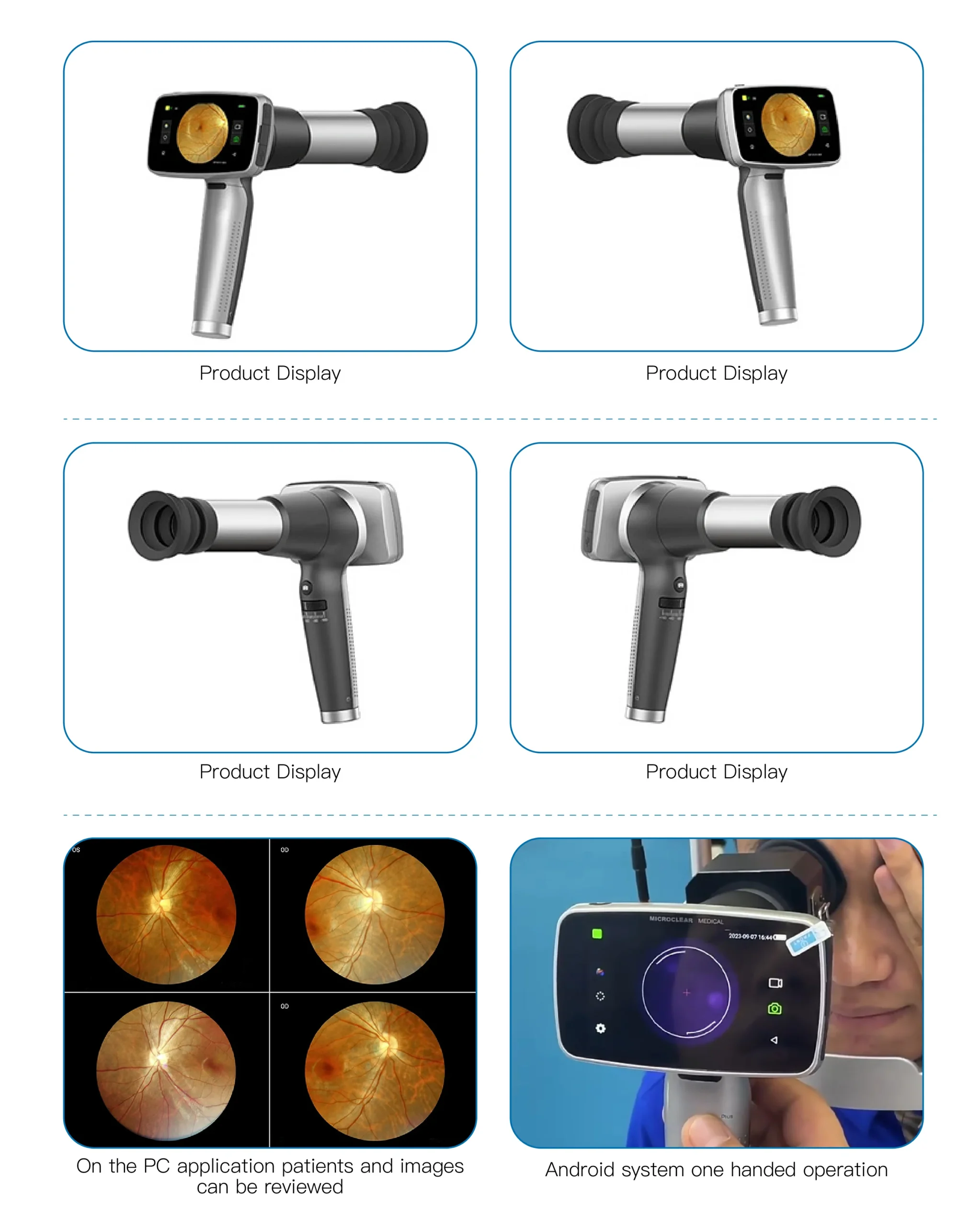

The HFC-200 with 16MP captures high-resolution fundus images quickly, providing clear and detailed views of the retina. This allows clinicians to perform accurate and efficient retinal assessments, supporting early detection of ocular conditions.
The built-in Android system enables easy operation, data storage, and wireless transmission without needing an external computer. It supports DICOM standards and 4G connectivity, streamlining workflow and making the device convenient for clinical and mobile use.
| Field of View | 45° |
| Minimum pupil | 2.5mm |
| Refractive compensation | -20D~ 20D |
| Focus way | Auto/manual |
| Focus mode | 8 targets fixation |
| Image resolution | 16MP |
| Screen | 3.97 inch multi targets touch screen 800×480 |
| Shoot type | Infrared, white light |
| Image format | JPEG |
| Transmission and storage | Internal capacity 16GB; USB/Wifi/BT/4G |
| Weight | 560g |
| Power supply | Lithium Battery 3.7V 3400mAh |
| The battery continuously working time | 6h (Standby time exceeds 24h) |
| Total charging time | 3.5-4h |
| Operating system | PC: Windows system APP:Android |
| ID Card reading and collection | Support |
| NFC card reader | support |
| Connect function | Professional software, APP, support DICOM, support cloud service system, patient data management software, support wireless printing |
