Model: HE-100
The HE-100 hand lens edger is designed for accurate edging, grinding, shaping, and polishing of optical lenses. It features a compact design with diamond grinding wheel options and a low-noise, low-vibration DC motor for stable operation. CE-certified, it meets EU safety standards, and the machine offers both rough and fine grinding with wheel sizes of 35mm—right side 16mm for rough grinding and left side 19mm for fine grinding.

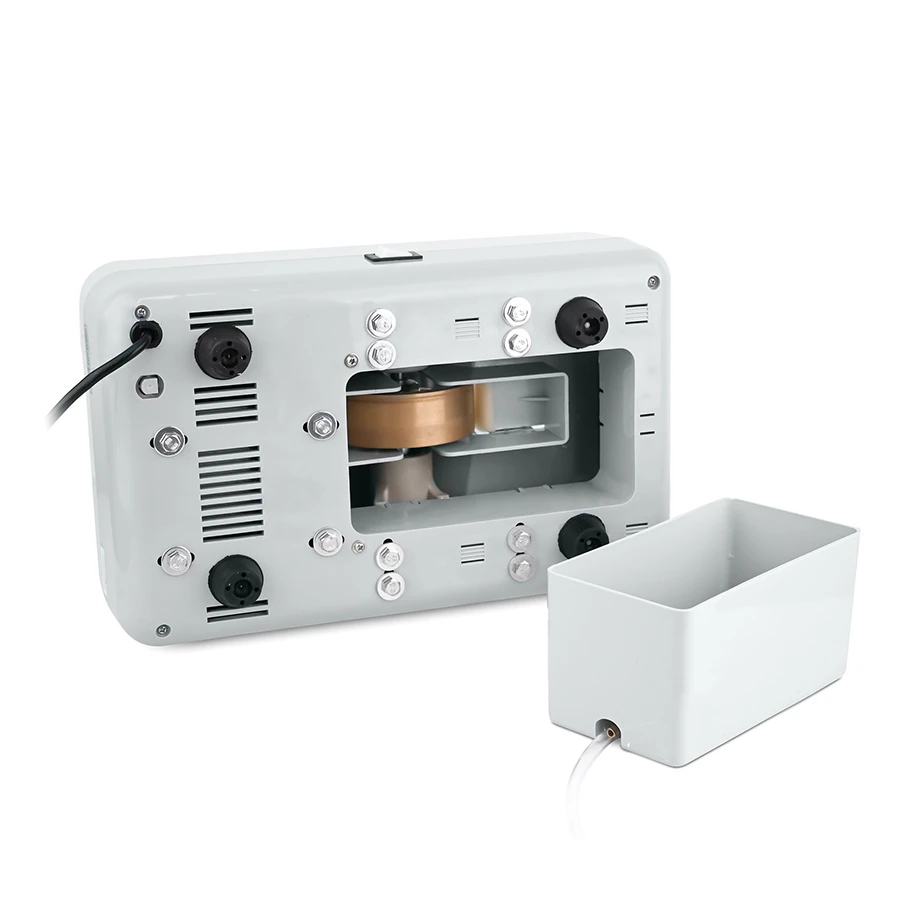

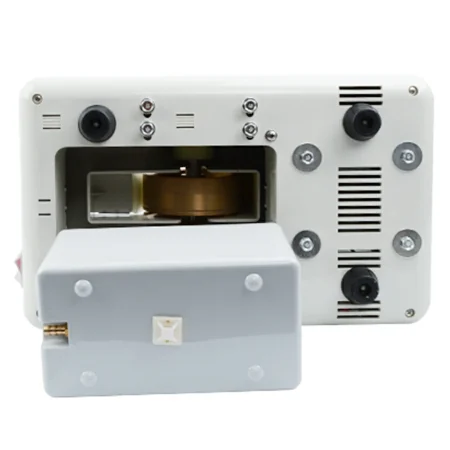

Detachable Sink Adjusted according to the needs of different materials, changing the water is more convenient and quickly.
Equipped with a detachable drain tank, the machine makes water collection and cleaning simple. The removable design allows quick maintenance and helps keep the workspace clean and efficient.
| Parameter | Specification |
|---|---|
| Wheel Width | 35 mm |
| Right Wheel (Rough) | 16 mm |
| Left Wheel (Fine) | 19 mm |
| Function | Edge trimming |
| Grinding Grits | Rough: 180#; Fine: 240#, 280#, 320# (Optional) |
| Electric Voltage | AC 200-240V / 50Hz, AC 110-120V / 60Hz |
| Dimensions (L × W × H) | 230 × 150 × 160 mm |
| Weight | 8 kg |
