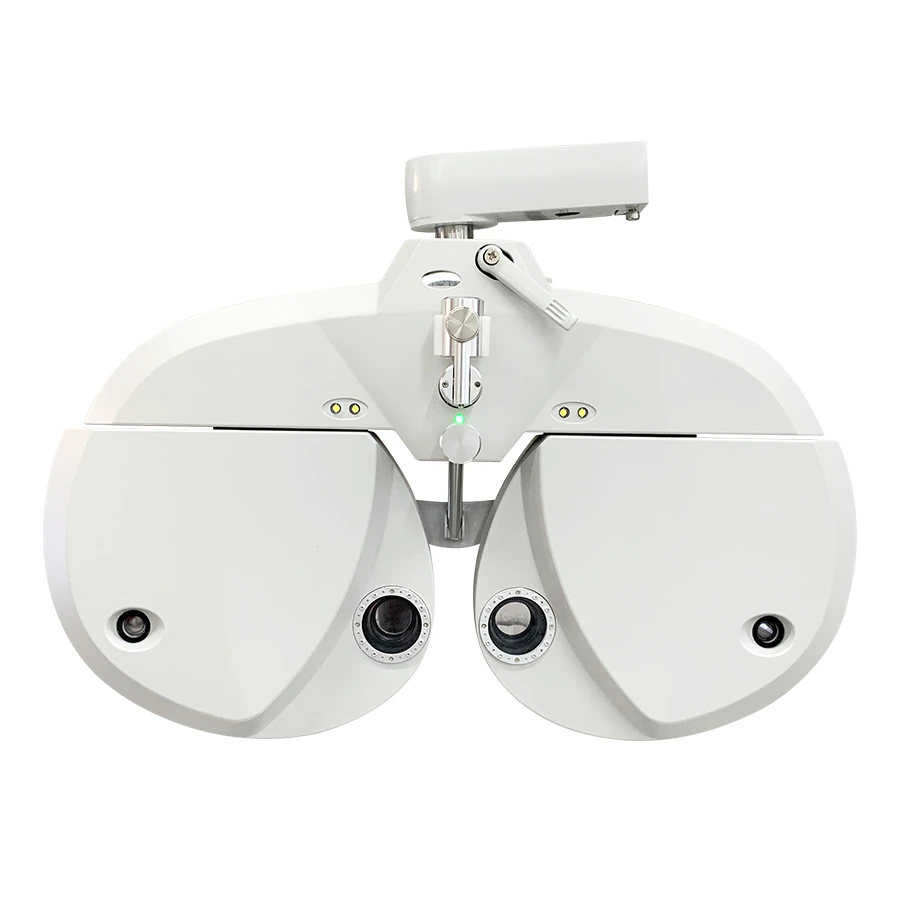

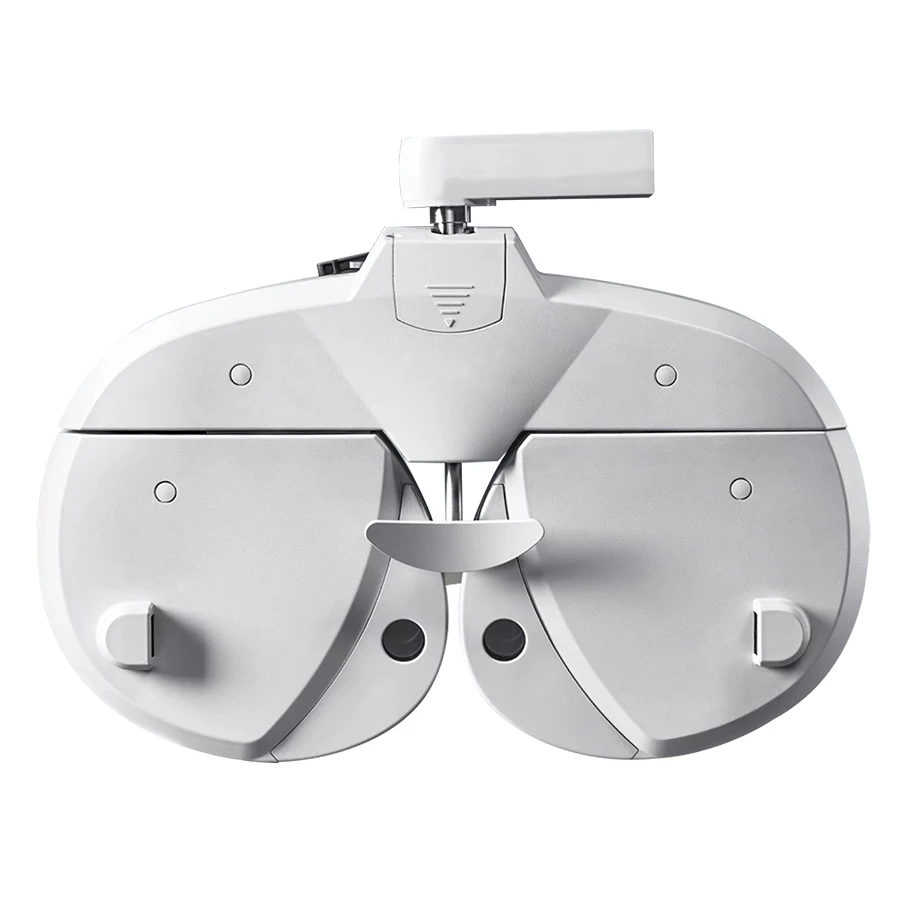

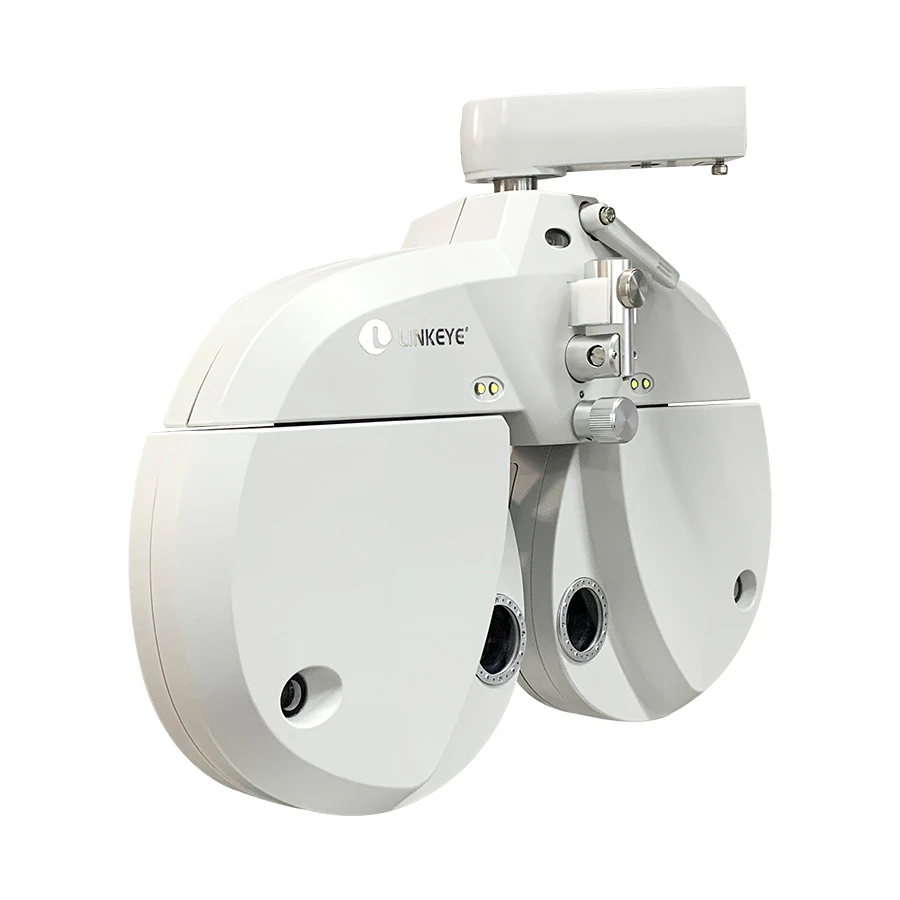

Model: DVT-1000A
The DVT-1000A Digital Vision Tester (Auto Phoropter) is designed for daily use in optometry clinics and vision care centers. It provides stable, accurate refraction support while simplifying workflow through wireless connectivity and digital control.
Built for professional clinical environments, the system supports routine subjective refraction, binocular vision testing, and auxiliary lens operation. Its ergonomic structure and adjustable patient support help ensure correct alignment and patient comfort during exams.

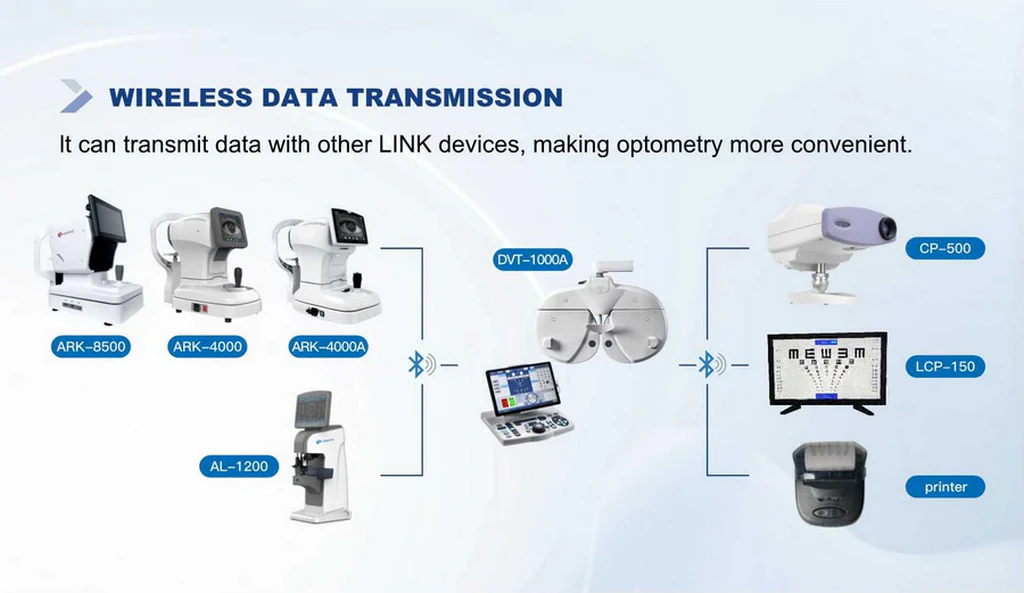

Wireless Bluetooth Data Transmission
Built-in Bluetooth enables stable wireless connection with digital chart projectors and other LINK devices, reducing cable clutter and supporting a fully digital exam room.
Clinical-Oriented Structural Design
Includes a horizontal bubble level, adjustable headrest, and patient support frame to maintain proper positioning and reliable test results.
Multiple Refraction Modes
Supports auxiliary lens mode, binocular function testing, and adjustable PD input to meet different clinical testing needs.

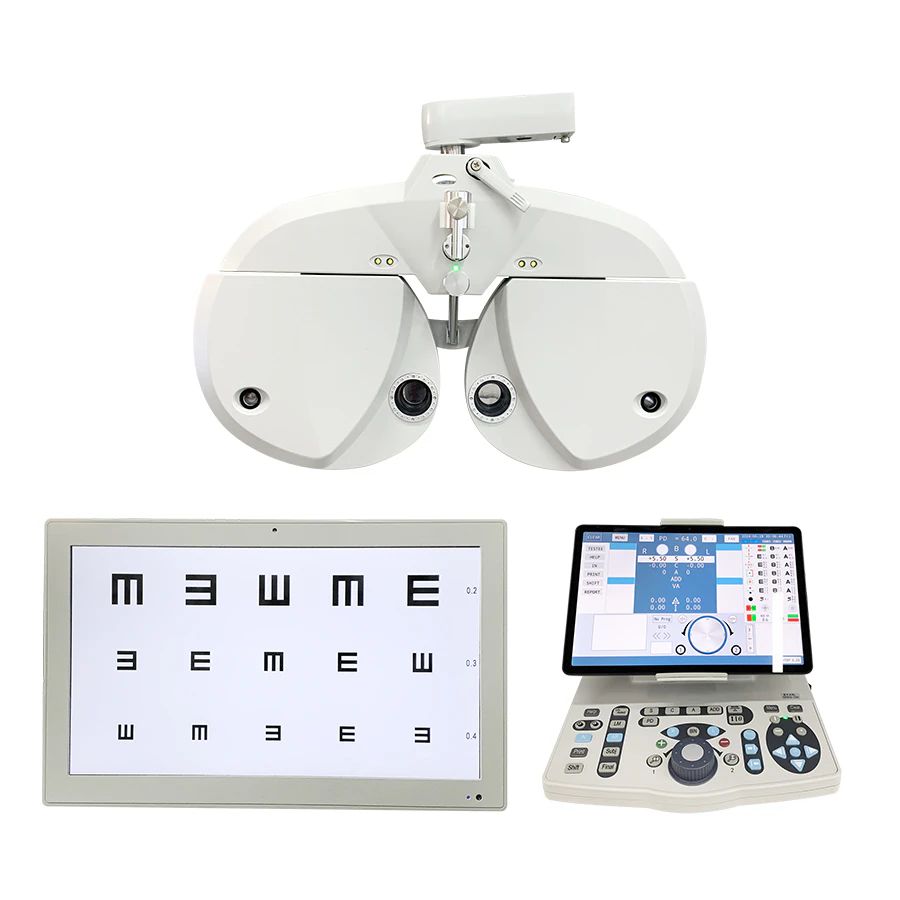

Tablet-Based Intelligent Control
Tablet APP interface shows real-time test data and system status. Touch controls allow fast, intuitive operation during refraction.
Automatic Self-Test on Startup
The system performs a self-check when powered on and quickly enters working status. Device connection status is clearly displayed on screen.
Hygienic and Durable Materials
All patient-contact areas are made of high-grade ABS material, easy to clean and suitable for long-term clinical use.
Flexible System Settings
Step size, timing, and Bluetooth parameters can be adjusted to match different examination habits and clinic workflows.
Easy Installation and Alignment
Mounting bracket fits standard refraction units. Simple positioning controls allow precise horizontal and optical alignment.
| Parameter | Specification |
|---|---|
| Product Name | Auto Optical Head |
| Product Size | 390 mm × 110 mm × 310 mm |
| Supply Voltage | 220 V |
| Input power | 130 VA |
| Weight | 4.3 kg |
| Rated Power | 50 Hz |
| Power Output | 24 V, 3.75 A |
Measurement Items
| Measurement Items | Measurement Range | Step Length |
|---|---|---|
| Spherical Mirror | -29.00 D ~ +26.75 D | 0.12 D, 0.25 D, 0.50 D, 1.00 D, 3.00 D |
| Cylinder Mirror Degree | -8.75 D ~ +8.75 D | 0.25 D, 0.50 D, 1 D, 2 D, 3 D |
| Cylinder Mirror Axis | 0° ~ 180° | 1°, 5°, 15° |
| Prism Degree | 0 ~ 20 △ | 0.1 △, 0.5 △, 1 △, 2 △, 3 △ |
| Prism Base | 0° ~ 360° | 1°, 5° (Prism base can be optionally labelled horizontally or vertically) |
| Pupillary Adjustment | 48 mm ~ 75 mm | — |
