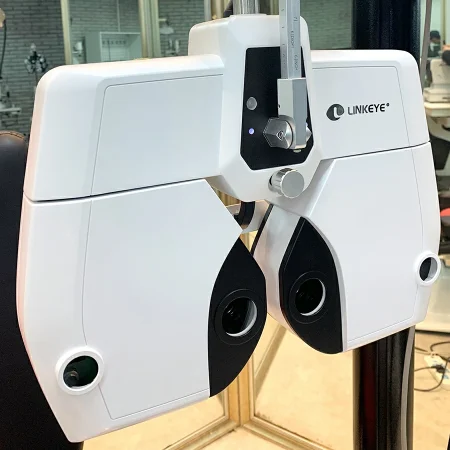

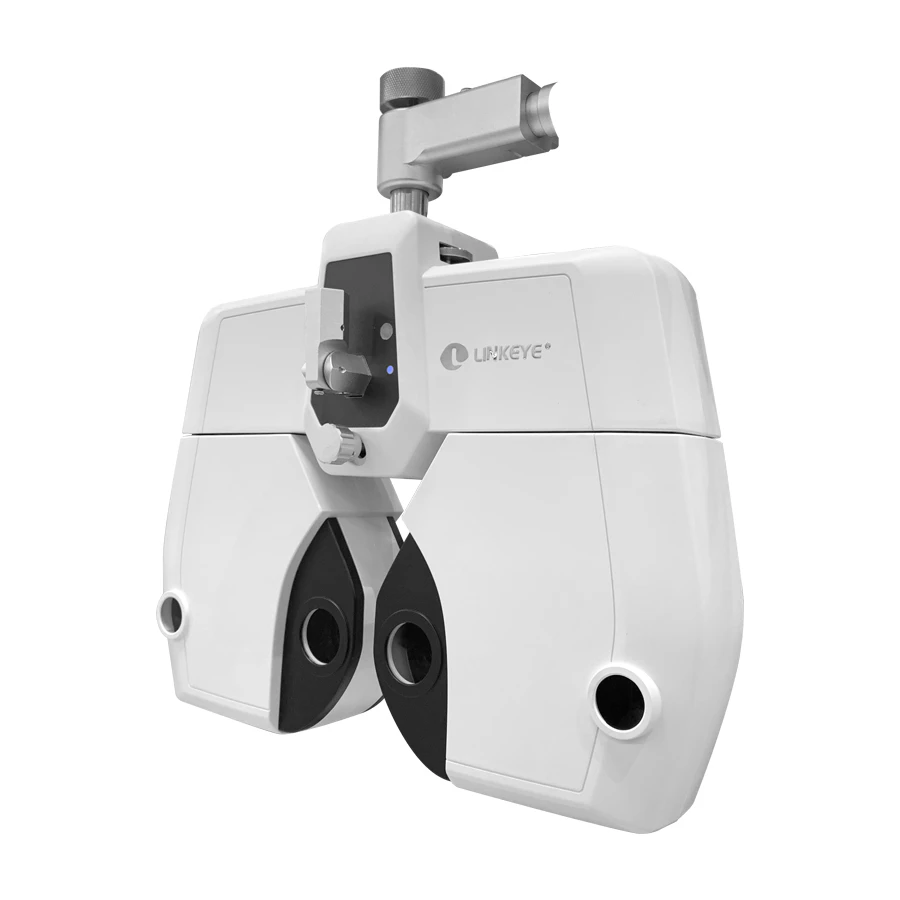

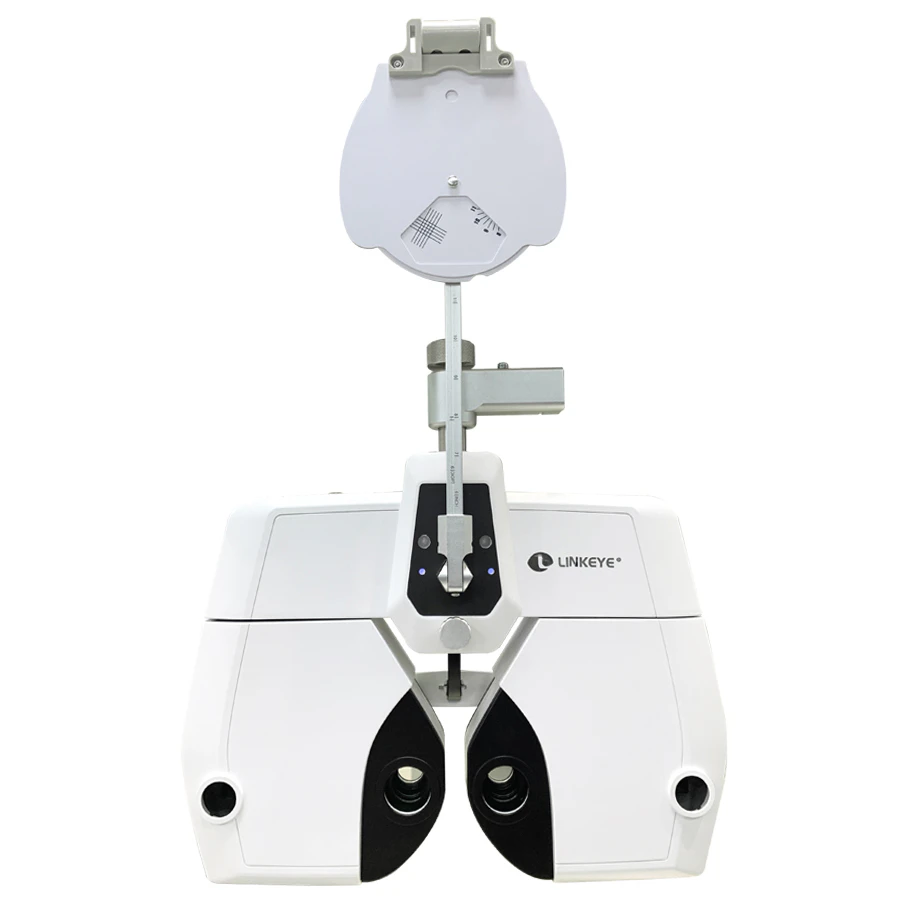

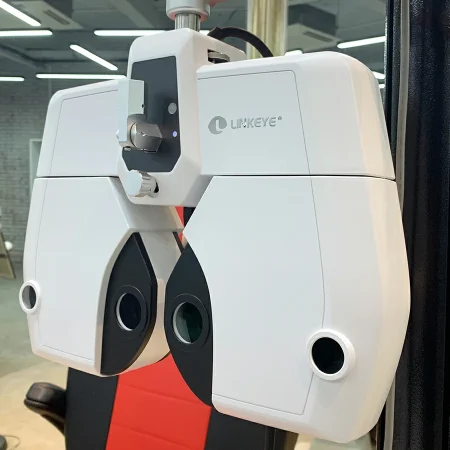

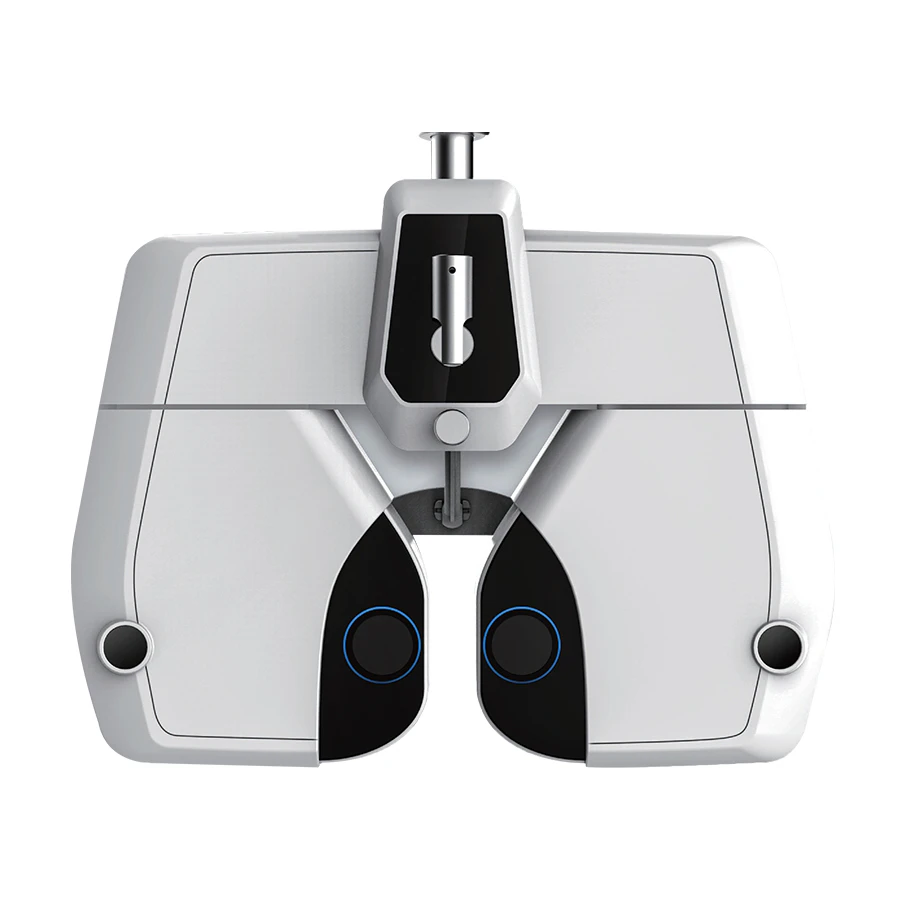

Model: DVT-1000
The DVT-1000 is a digital phoropter designed for fast lens switching, stable refraction testing, and smooth data connectivity. It supports wireless communication with multiple devices, provides precise astigmatism measurement tools, and offers streamlined operation through tablet control and intuitive on-screen guidance.
with smaller size,lenss witch fast and smoothly, provide more comfortable optometry experience.
Left and right PD independent adjust ment,to achieve more accurate measurement.
I. Basic Technical Parameters
| Parameter | Specification |
|---|---|
| Spherical Lens | -29.00 D to +26.75 D (0.25D/0.5D/1D/2D/3D steps) |
| Cylindrical Lens | 0.00 D to -8.75 D (0.25D/0.5D/1D/2D/3D steps) |
| Cylinder Axis | 0° to 180° (1°/5° steps) |
| Working Distance | 35 cm to 70 cm (Step: 5 cm) |
| Rotary Prism | 0 to 20 Δ (Step: 1Δ/2Δ) |
| Crossed Cylinder | Jackson Crossed Cylinder 0.25D Jackson Crossed Cylinder 0.50D |
| Double cross cylinder(separating prism) | |
| Retinoscopy Lens: | +1.5D,+ 2.0D(test distance 67cm,50cm) |
II. Auxiliary Lenses
Pinhole lens Φ 1mm
Markov lever: Right eye (horizontal Markov lever), Left eye (vertical Markov lever)
Red-green filter: Right eye (red), Left eye (green)
Polarizing filter: Right eye (135°, 45°), Left eye (45°, 135°)
Separation prism: Right eye (6 Δ BU), Left eye (10 Δ BI)
Fixed Cross Cylinder: Jackson Cross Cylinder 0.50D, Axis fixation 90°
Vision: 32°
III. Data link with optometry series and focal length meter series.
IV. Light body and ultra-low sound
| Parameter | Specification |
|---|---|
| Maximum Size | 600 × 400 × 200 mm |
| Host Size | 360 × 85 × 360 mm |
| Tablet Size | 247 × 179 × 4.68 mm |
| Tablet Resolution | 2860 × 1600 |
| Tablet Screen | 10.1 inches |
| Voltage | AC 100–240V 50/60Hz |
| Power | 90W |
| Weight | 7.5 kg |
| Packaging Volume | 0.05 cubic meters |
| Packing Size | 520 × 450 × 220 mm |
| Packaging Material | Aluminum alloy box |
Trusted Services:
1. Video chat to check DVT-1000 Digital Auto Phoropter.
2. Free online technical support and training.
3. Free online installation support.
4. 1-3 Years quality warranty.
5. Lifetime after sales support.
6. Most products are CE and ISO 13485 certificated.
7. Free input voltage and plug customization for electrical machines.
8. Fast worldwide shipping, 5-10 working days delivery for most countries.
9. Partial prepayment is acceptable before shipping.
10. Discount price, non-branded or customized products can be offered for distributors.
