Model: DM-200

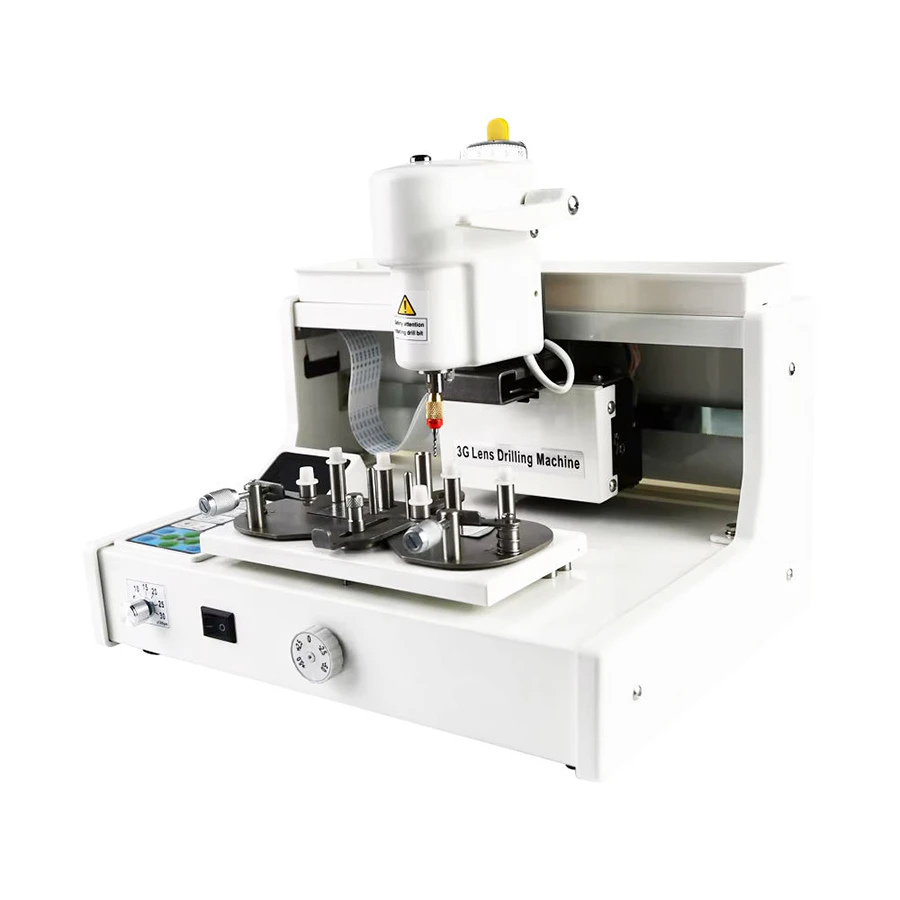

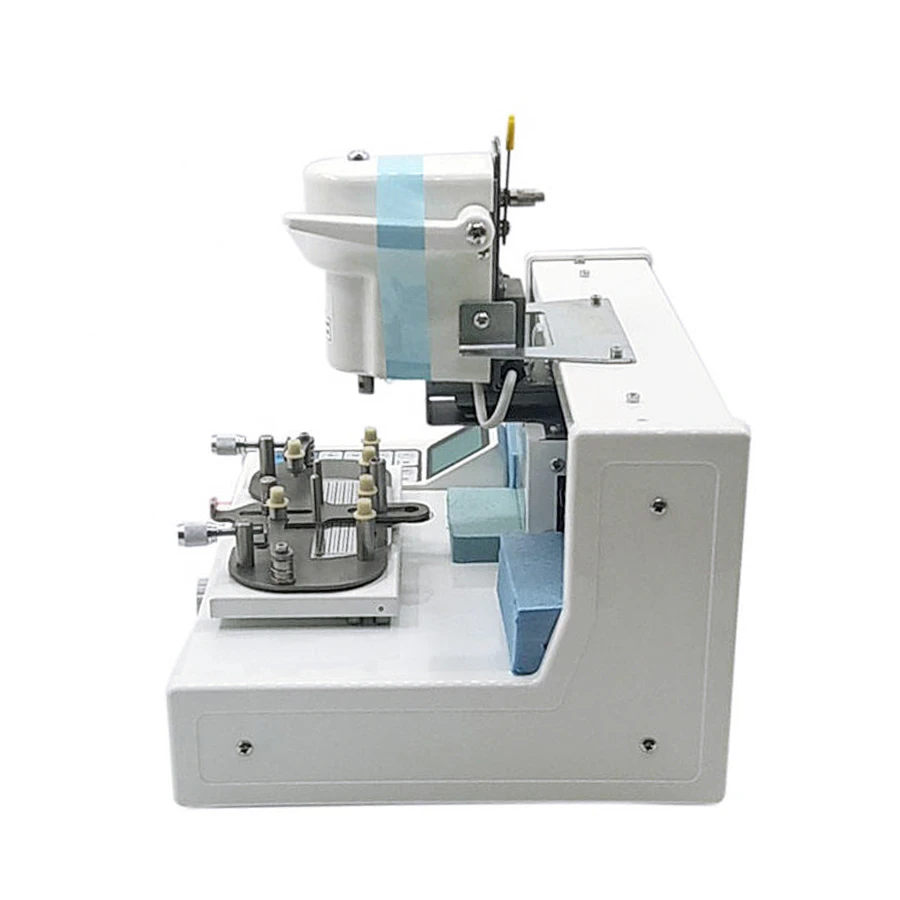

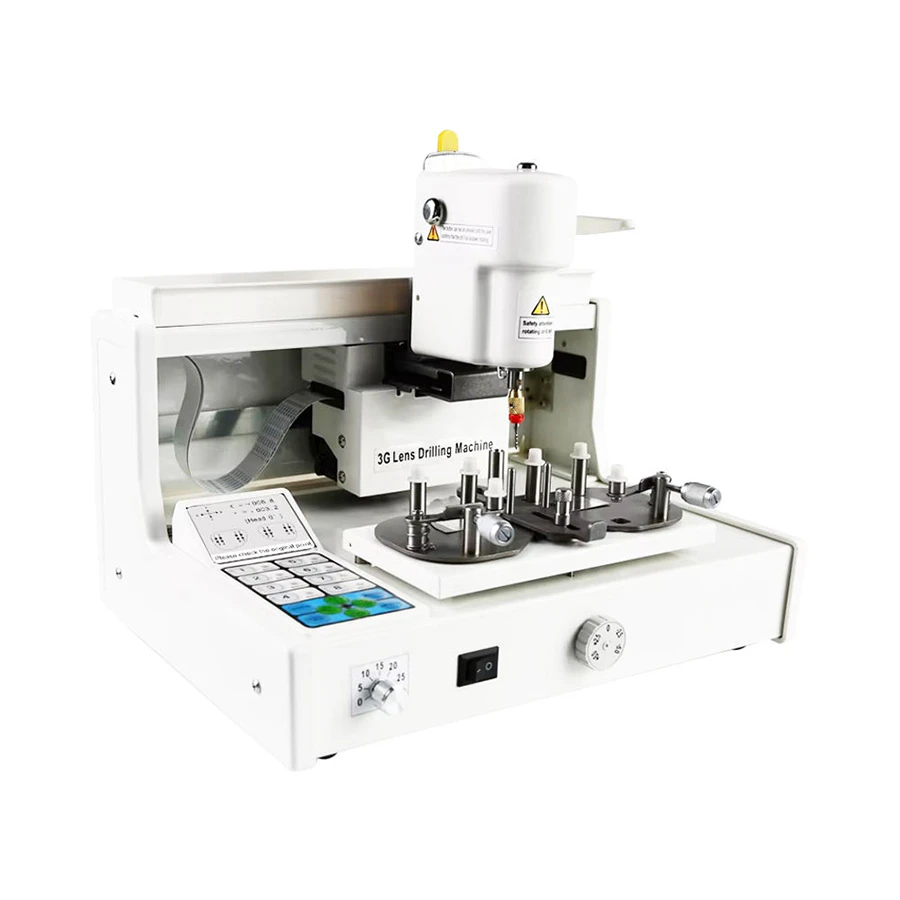

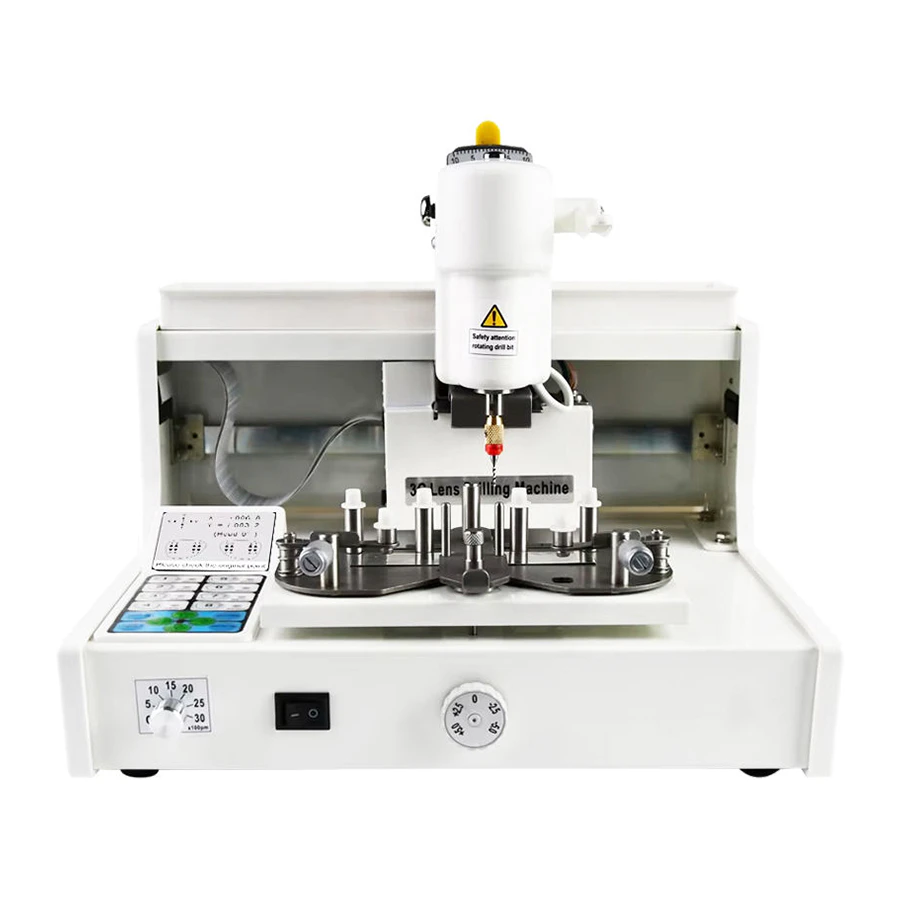

The DM-200 Lens Drilling Machine is a fully digital, intelligent drilling solution designed for rimless and semi-rimless eyewear processing. It delivers high drilling accuracy and stable performance, making it suitable for optical labs and eyewear manufacturing workshops.
With automatic positioning and clamping, the DM-200 maintains consistent accuracy even after clamp changes. The digital display provides clear drilling coordinates and step-by-step guidance, improving efficiency and reducing operator error.
Automatically aligns and secures the lens, minimizes manual adjustment and guarantees stable, repeatable results.

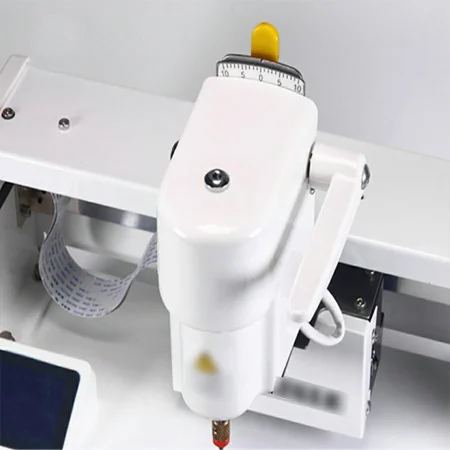

Designed for intelligent lens processing, this drilling module combines digital guidance, automatic repositioning, and consistent accuracy.
| Parameter | Specification |
|---|---|
| Voltage | AC 100 V – 240 V / DC 24 V |
| Power | 50 W |
| Weight | 5 kg |
| Dimensions | 302 × 228 × 270 mm |
| Drilling Speed | 1 – 5000 rpm |
| Moving Range | X-axis: 155 mm Y-axis: 38 mm |
Trusted Services:
1. Video chat to check DM-200 Lens Drilling Machine.
2. Free online technical support and training.
3. Free online installation support.
4. 1-3 Years quality warranty.
5. Lifetime after sales support.
6. Most products are CE and ISO 13485 certificated.
7. Free input voltage and plug customization for electrical machines.
8. Fast worldwide shipping, 5-10 working days delivery for most countries.
9. Partial prepayment is acceptable before shipping.
10. Discount price, non-branded or customized products can be offered for distributors.
