Model: CT-360

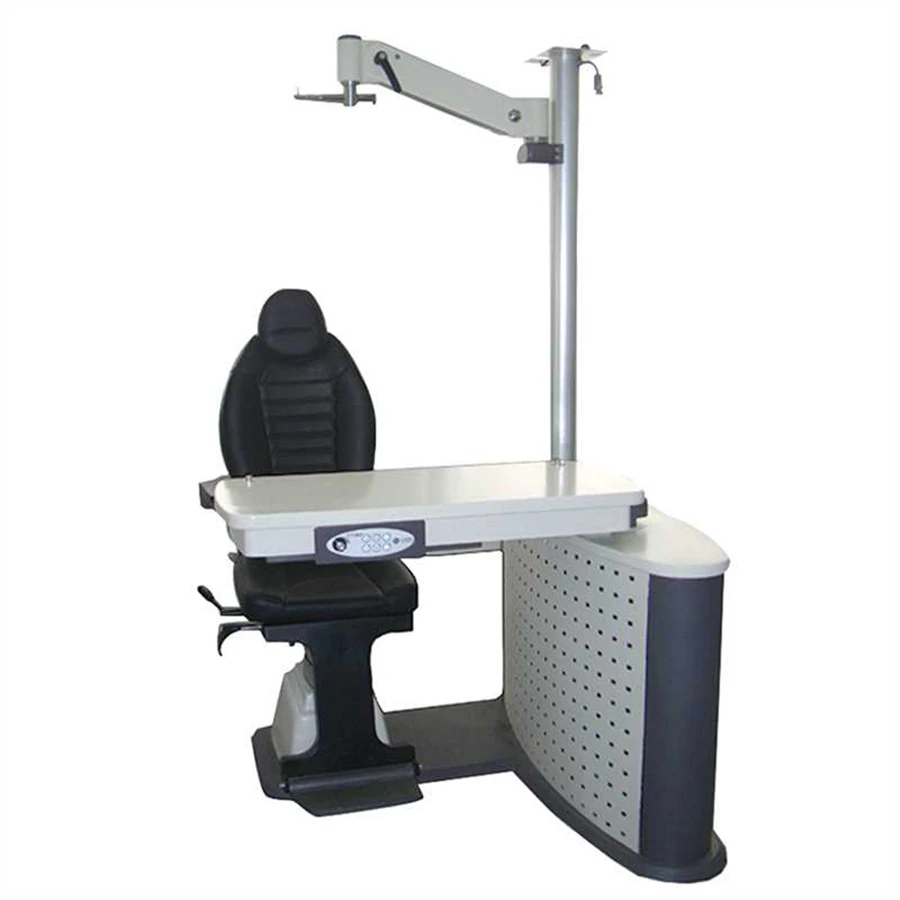

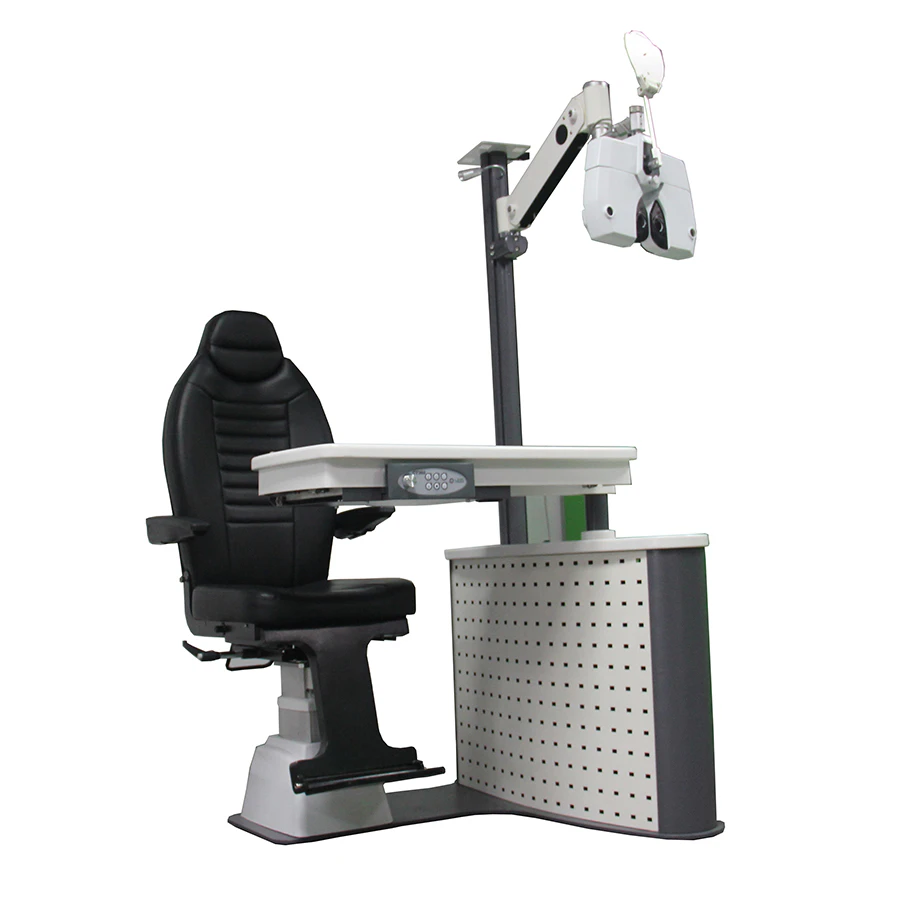

The CT-360 Combined Ophthalmic Unit integrates multiple examination functions into one streamlined workstation, offering flexible movement, ergonomic design, and stable performance. Built with durable materials and customizable options, it enhances workflow efficiency for refraction rooms, optometry stations, and diagnostic clinics.
The table can move up and down electrically, making it simple to adjust instrument height for different patients and exam needs.

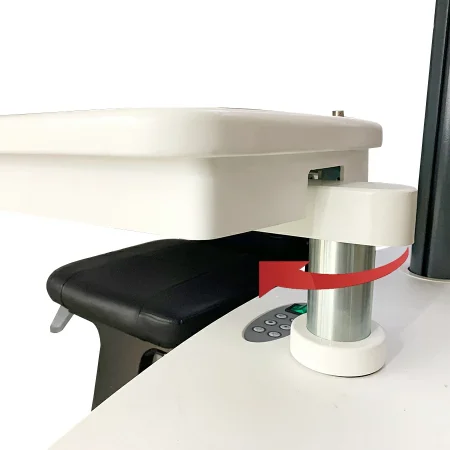

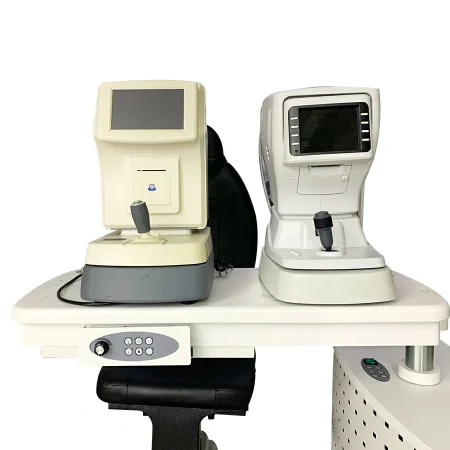

The CT-360 features a tray table that can rotate 90° and slide left or right, designed to hold an Auto Ref-Keratometer or other instruments. This flexibility allows quick positioning of devices for easy access and efficient workflow during exams.
| Parameter | Specification |
|---|---|
| Maximum Size | 1200 × 1055 × 1850 mm |
| Table Size | 890 × 405 mm |
| Table Rotation Angle | 90° |
| Table Moving Distance | 335 mm |
| Swing Arm Angle | 60° |
| Seat Rotation Angle | 45° |
| Seat Height | 150 mm (550–700 mm range) |
| Seat Load | 250 kg |
| Seat Moving Distance | 150 mm |
| Seat Armrest Load | 100 kg |
| Seat Reclining Angle | 120–140° |
| Spotlight Light Source | LED (24V 5W white light) |
| Voltage | AC220V / 110V 50 / 60 Hz |
| Gross Weight | 200 kg |
| Packing Size | 1200 × 1100 × 1050 mm |
| Packing Volume | 1.38 cubic meters |
