Model: BM-6000
The BM-6000 Optical Biometry Machine is a fully automatic device for optical biometry and IOL calculation. It features a compact design with built-in computer and thermal printer, micron-level accuracy for axial length measurement, and biological progress analysis for comprehensive eye assessment. The device is fast, easy to use, and suitable for clinics and hospitals.

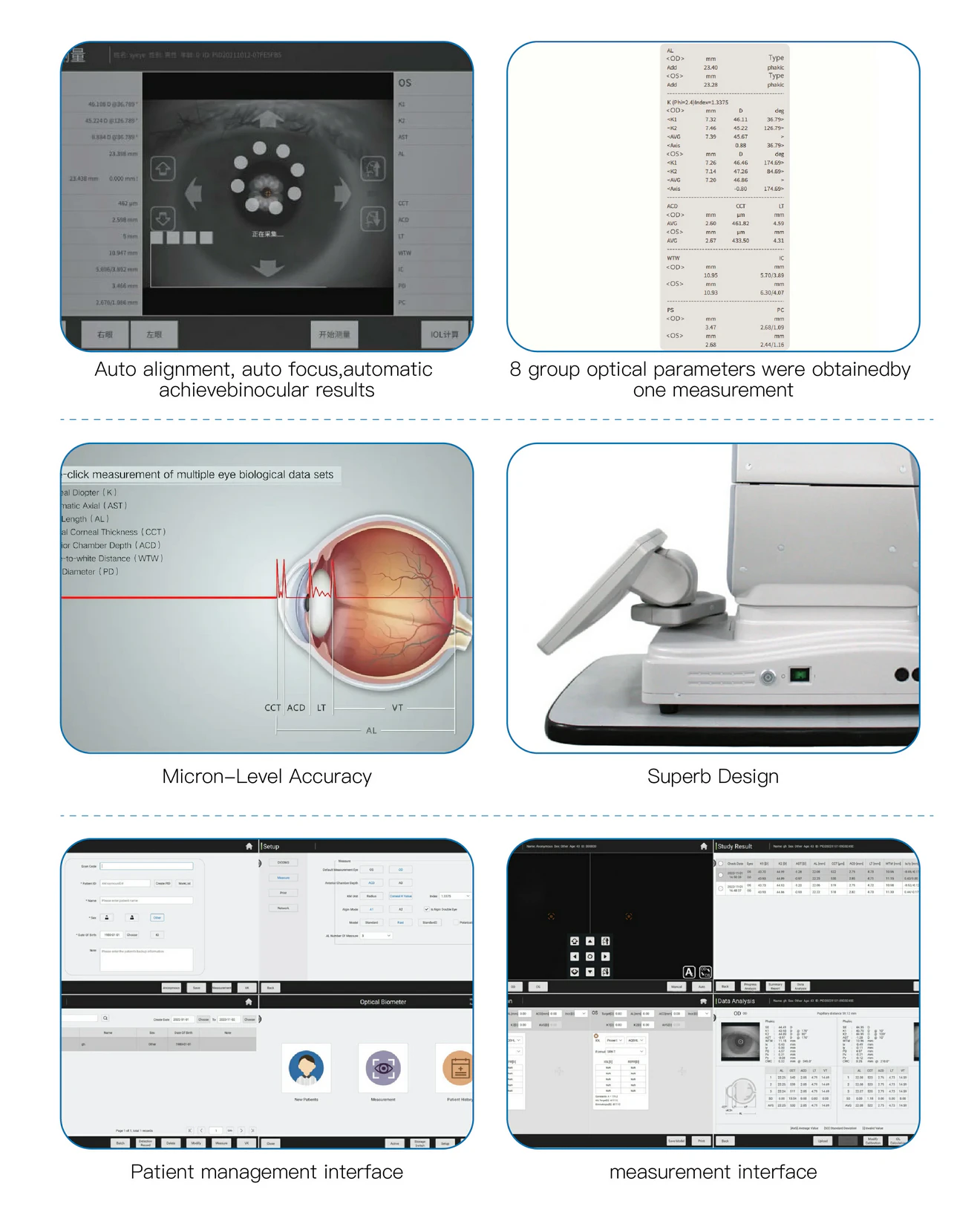

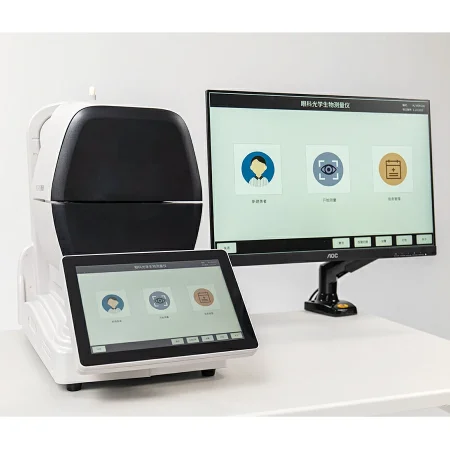

The BM-6000 features a built-in computer and touchscreen for fully automatic one-touch measurement. Its dual-screen design provides clear, real-time data display and analysis, making eye biometry faster, easier, and more precise.
The BM-6000 Optical Biometry Machine allows patients to complete eye measurements effortlessly. With its non-contact, one-touch automatic system, it ensures accurate and comfortable biometry results without manual adjustment.
| Technical Specifications | |
| Measuring Range | |
| axial length | 14-38mm |
| Corneal curvature | 5-11mm |
| Anterior chamber depth | 0.7-8mm |
| Lens thickness | 1-10mm(lens); 0.13-2.5mm(intraocular lens) |
| Center cornea thickness | 0.2-1.2mm |
| Cornea white to white | 7-16mm |
| Pupil diameter | 2-13mm |
| Curvature range | 180 degree |
| Accuracy | |
| Axial length | 0.01mm |
| Corneal curvature | 0.01mm |
| Anterior chamber depth | 0.01mm |
| Lens thickness | 0.01mm |
| Center cornea thickness | 0.01mm |
| White to white | 0.1mm |
| Pupil diameter | 0.01mm |
| Axis of sight eccentricity | 0.01mm |
| Axis angle | 1 degree |
| Repeatability | |
| Axial length | 0.02mm |
| Corneal curvature | (1σ)+/-30μm |
| Anterior chamber depth | 0.02mm |
| Lens thickness | 0.02mm |
| Center cornea thickness | 0.02mm |
| White to white | (1σ)+/-0.3μm |
| Curvature difference | ±9 degree |
| Software and Hardware | |
| Calculation formula of intraocular lens | BinkHorst-Ⅱ、Holladay、Hoffer-Q、Haigis、SRK-T、SRKⅡ |
| interfaces | USB2.0 window 10 |
| voltage/frequency | AC 110-240V/50HZ |
