Model: BIO-1100
BIO-1100 is a projection-type dynamic (kinetic) visual field analyzer mainly used for ophthalmologists or optometrists to monitor or detect glaucoma progression.
BIO-1100 is a projection type humphrey visual field analyzer machine for visual field defects examination, especially for glaucoma test. It has much more test spots than static auto perimeter, so it provides more accurate results.
This BIO-1100 visual field testing machine has professional software. There are several testing strategies (threshold, screen, special, custom, dynamic and custom dynamic) and testing patterns to choose for fast examinations. It has blue-yellow examination mode, and you can setup white or yellow background light. Ophthalmologists can easily manage patient information and print detailed test reports.
Features:
1. Conform to Goldman international standard.
2. Halogen projection system: stimulation light source is from wide band visible spectrum, fully meet colored cone cell stimulation.
3. Accurate and rich database of normal population of all age groups, helps early diagnosis of minor visual field defects.
4. GHT glaucoma semi vision analysis, make glaucoma diagnosis easier.
5. Upgraded GPA glaucoma progression analysis helps obviously monitor slight glaucoma development.
6. Standard SWAP blue-yellow visual field examination, effective for earlier visual field defects detection.
7. Scientific and intelligent interactive inspection strategies ensures fast measurement, 30 degree range visual field inspection only takes 3 minutes.
8. Simple and user-friendly software makes it easy to learn operation of the machine.
The BIO-1100 uses a detailed, age-stratified normal population database to identify minor visual field changes that may be overlooked by conventional perimeters, enabling earlier and more accurate diagnosis of visual disorders.

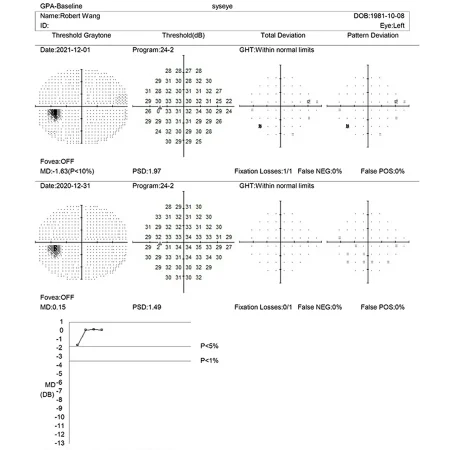

The BIO-1100 offers similar advanced visual field testing functions as the Zeiss Humphrey 860, including high-density projection testing, multiple strategies and patterns, SWAP blue-yellow mode, and comprehensive glaucoma analysis (GHT & GPA). It provides accurate, early detection of subtle visual field defects, fast examination, and user-friendly software for efficient patient management, making it a cost-effective alternative for professional ophthalmic clinics.
| Testing scope | 90° |
| Testing distance | 30 cm |
| Background light | white31.5asb, yellow315asb |
| Visual target | 0.08 asb -10000 asb (0-51DB) |
| Target size | Goldmann I , II, Ⅲ, IV, V |
| Visual target stimulation time | 200 ms |
| Visual target interval time | Standard and custom |
| Threshold policy | Macula, 10-2, 24-2, 30-2, 60-4, nasal side |
| Upper threshold policy | C-40, C-64, C-76, FF-81, FF-120, FF-135…… |
| Special detection strategy | Esterman monocular, Esterman binocular, upper 36°screening, blind point testing |
| Yellow- blue testing | Standard 440nm blue V visual target + 315asb OG530 yellow background brightness |
| Visual target | Red, blue |
| Dynamic policy | Standard dynamic, blind dynamic, dark spot dynamic, straight line dynamic |
| Custom policy | Static custom dynamic custom |
| Pupil size measurement | Auto |
| Fixation monitoring | Physiological blind spot monitoring, eye position monitoring, eye position moving alarm, eye tracking curve |
| Environment light testing | Auto |
| Analysis software | Reliability analysis , single report, triple report, GHT glaucoma semi vision report, GPA glaucoma developing analysis, VFI analysis, Blue-yellow analysis |
| System | Win7 above |
Trusted Services:
1. Video chat to check BIO-1100 projection type humphrey visual field analyzer.
2. Free online technical support and training.
3. Free online installation support.
4. 1-3 Years quality warranty.
5. Lifetime after sales support.
6. Most products are CE and ISO 13485 certificated.
7. Free input voltage and plug customization for electrical machines.
8. Fast worldwide shipping, 5-10 working days delivery for most countries.
9. Partial prepayment is acceptable before shipping.
10. Discount price, non-branded or customized products can be offered for distributors.
