Model: BIO-1000

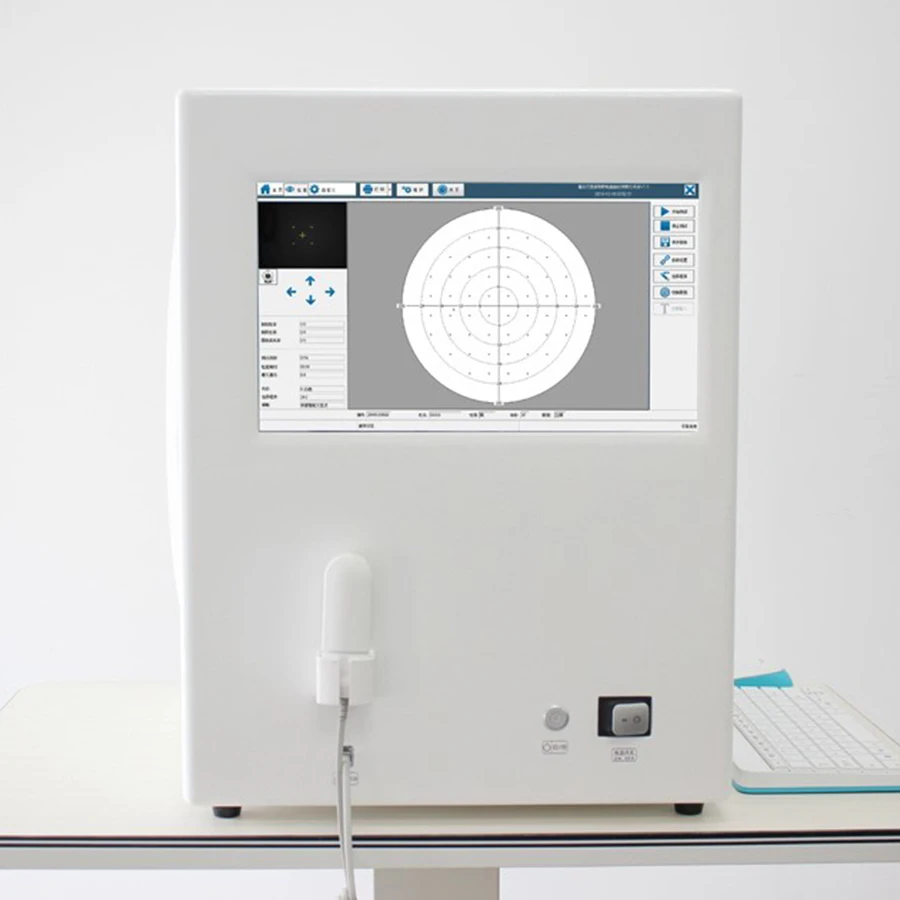

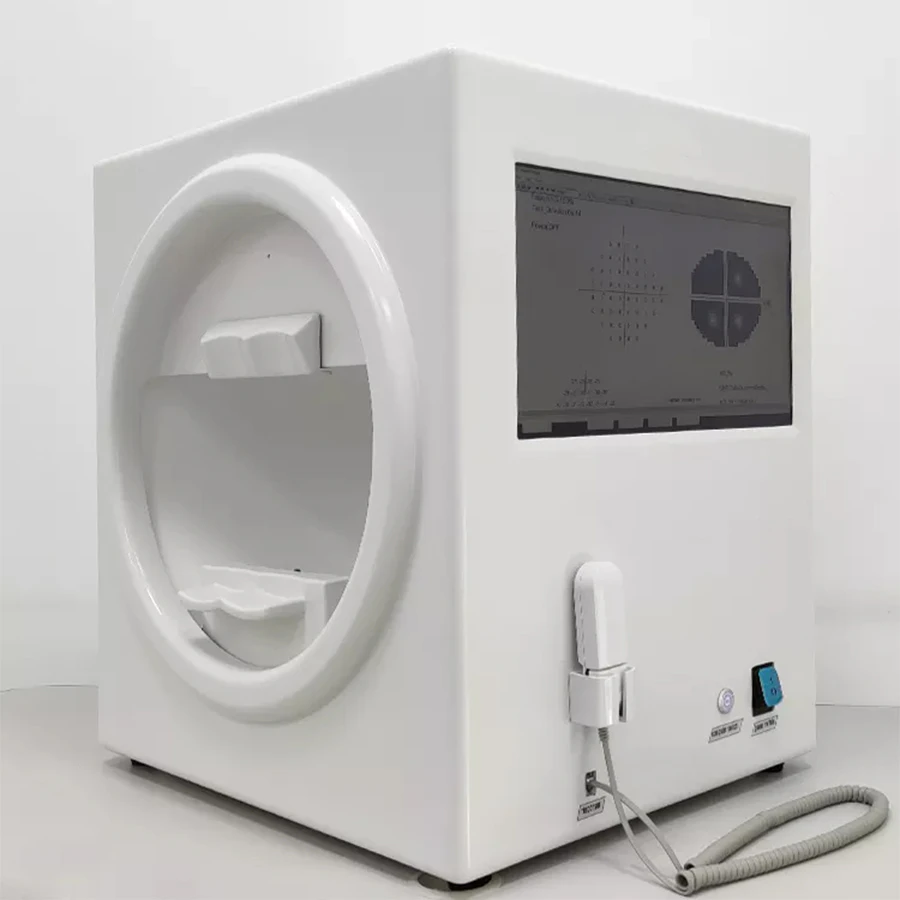

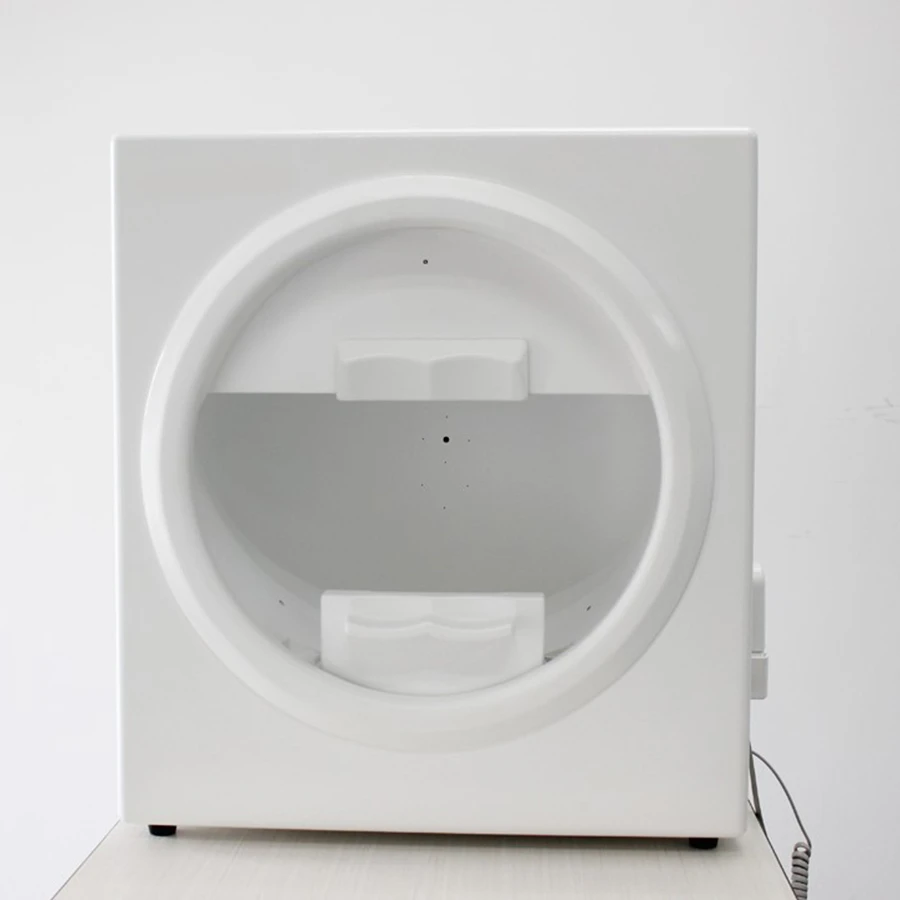

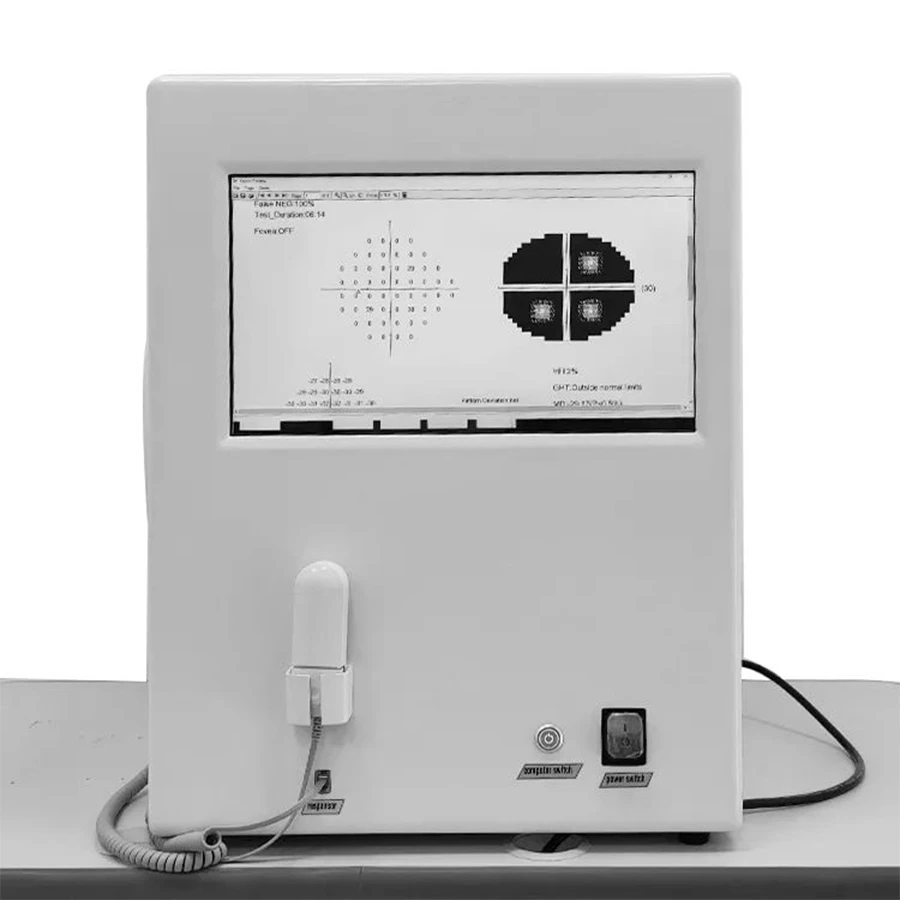

The BIO-1000 visual field analyzer is a static visual field analyzer used to detect vision loss and blind spots, providing key data for glaucoma diagnosis.
BIO-1000 visual field analyzer is a static perimetry test machine. It features real-time monitoring of gaze, head position, and physiological blind spots. Automatic pupil diameter measurement reduces pupil-related effects. The system uses professional clinical analysis for accurate, fast testing and follows the international Goldman standard with multiple classic test procedures and detailed report analysis.It provides important reference data for glaucoma diagnosis.
The visual field examination assesses the range and sensitivity of a patient’s vision to detect blind spots or vision loss. It provides essential diagnostic data for glaucoma and other optic nerve or retinal disorders.

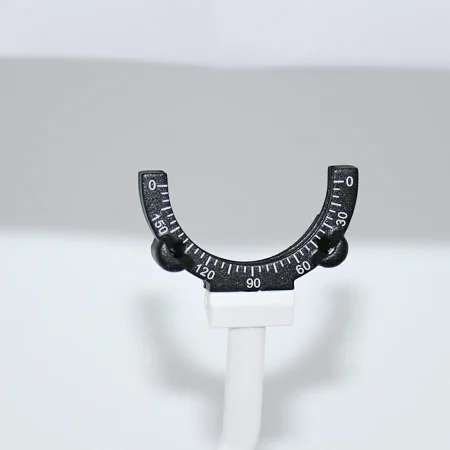

The 0° to 150° scale can be used to adjust the angle, allowing for precise control of the angle of optical components (such as lenses, light sources, etc.) to meet the requirements for angle accuracy in testing or experiments.
| Basic specification | |
| Inspection range | 90° |
| Inspection distance | 30cm |
| Background light brightness | White 31.5asb |
| Visual target brightness | 1asb— -10000asb |
| Visual target size | GoldmannIII |
| Visual target interval time | 200ms |
| Visual target interval time | Standard or adjustment according to patient reflection |
| Threshold test model | Center5-°16, center10° -68, 24 -2, 30-2, 30° -60° nasal step |
| Upper Threshold test model | 30°- 40, 30°-76, P-60, 60°-81, 60°-120,190°-135 nasal side |
| Special detection strategy | Esterman monocular, Esterman binocular . user- customized test, 150P driver monocular fast detection, 150P driver monocular standard detection , upper 36 detection, blind spot detection,150horizontal straightness detection |
| Pupil size test | Automatic |
| Fixation monitoring | Blind spot monitoring , eye position eye position deviation alarm, eye deviation curve |
| Environment light detection | Automatic |
| Analysis software | Reliability analysis , single vision report, triple visionreport, GPA half vision analysis, GPA glaucoma developing analysis , VFI vision index analysis |
| Operation system | Win7 above |
| Others | |
| Size | 412mm ( length) * 497mm ( width ) * 513mm ( height ) |
| Weight | 17kg |
| Power | 100-240V , 50-60Hz |
