Model: ASP-100AP

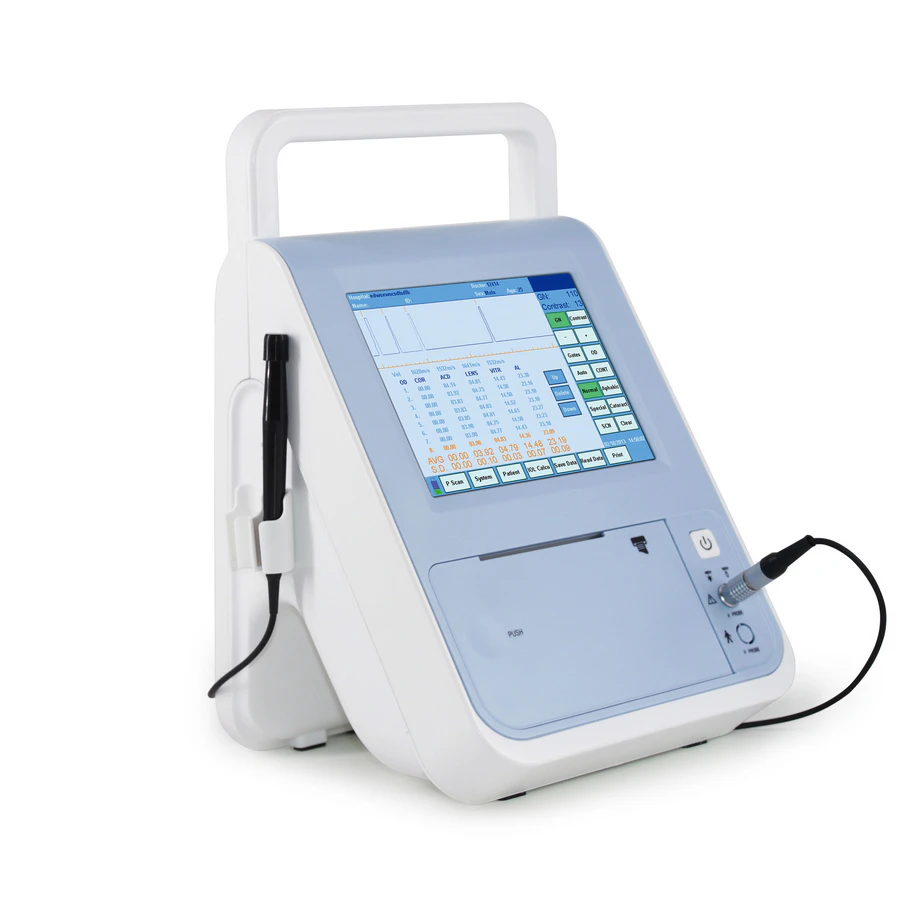

ASP-100AP Ophthalmic A Scan and Pachymeter combines A-scan biometry and pachymetry in one compact system for routine ophthalmic measurements. It includes a 10.0 MHz A-scan probe and a 20.0 MHz angled pachymeter probe, supporting accurate axial length and corneal thickness assessment.

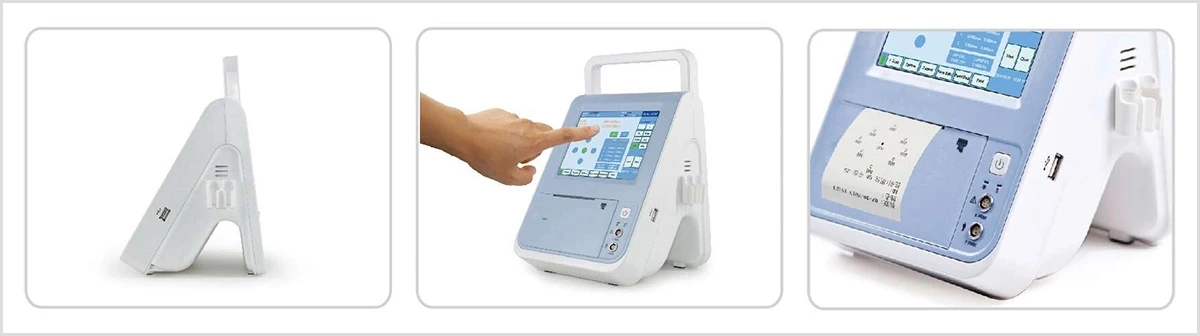

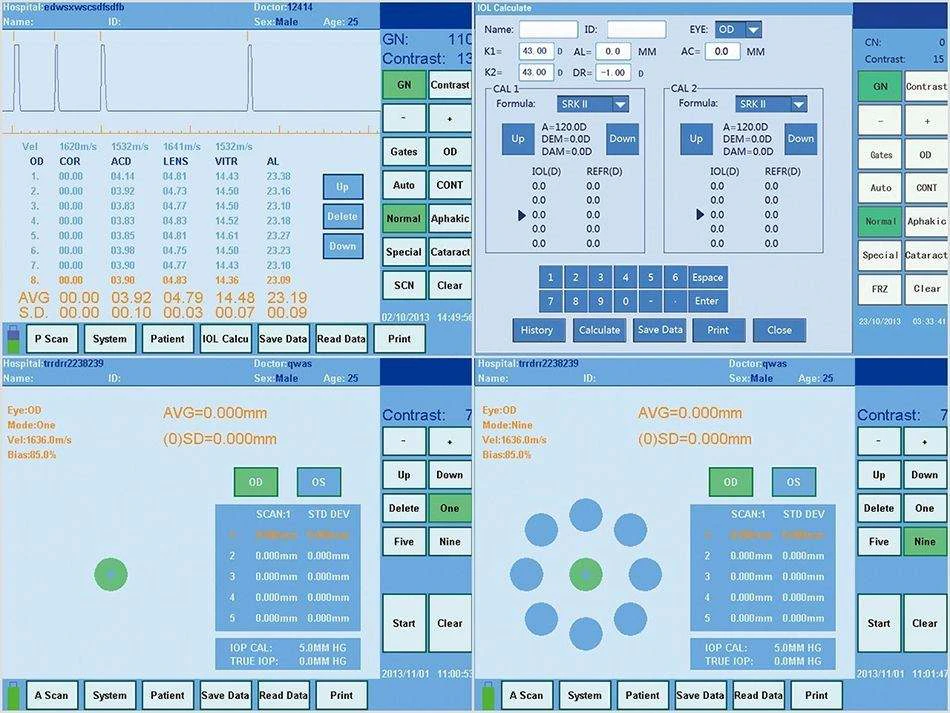

The device features a 5.7-inch color touch screen, contact and immersion measurement modes, and a built-in thermal printer for instant reports. I-Station software enables large data storage, report transfer, and printing, supporting efficient and reliable daily clinical use.
- A-Scan: 10MHz red-light A scan probe
- Pachymeter: 20MHz angled pachymeter probe

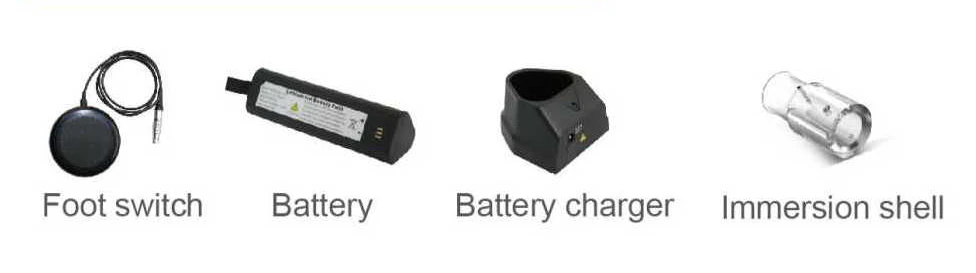

Removable battery for flexible use and easy replacement
| Item | Description |
|---|---|
| Product Model | ASP-100AP Biometer / Pachymeter |
| Main Unit | Main unit |
| A-Scan Probe | 10.0MHz A probe |
| Pachymeter Probe | 20.0MHz angled probe |
| Calibration | Two kinds of gage blocks |
| Power Supply | Power adapter |
| Accessories | Touch screen pen |
| Feature | Specification |
|---|---|
| A-Scan Probe | 10MHz red-light A scan probe |
| Resolution | 0.01mm |
| Accuracy | ±0.1mm |
| Gain Adjustable | 0–120dB |
| Measurement Range | 15–35mm (vel 1640m/s) |
| Measurements | ACD, Lens, Vitreous, and AXL |
| Examination Modes | Support Normal, Catarct, Aphakic and Special eye model |
| Measurement Mode | Immersion and contact, auto and manual |
| IOL Formulas | SRK-II, SRK-T, BINKHORST, HOLLADAY, HOFFER-Q, HAIGIS |
| Feature | Specification |
|---|---|
| Pachymeter Probe | 20MHz angled pachymeter probe |
| Resolution | 1um |
| Measurement Range | 0.23–1.2mm |
| Accuracy | ±0.01mm |
| Measurement Method | Single or nine points measurement, average reading increases accuracy |
