Model: ASP-100A
ASP-100A Ophthalmic A-Scan Biometer is an ultrasound biometry device for accurate axial length and intraocular measurements. It uses a 10 MHz red-light probe with 0.01 mm resolution and supports ACD, lens, vitreous, and AXL measurements for routine and cataract cases.
It supports contact and immersion modes, auto and manual measurement, and multiple eye models. Built-in IOL formulas, a 5.7-inch touch screen, thermal printer, and I-Station software make data storage, reporting, and printing simple and efficient.

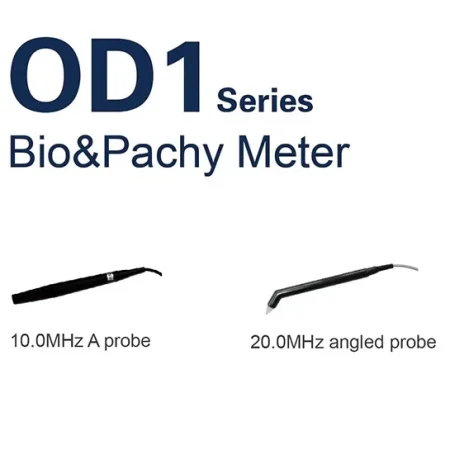

- A-Scan: 10MHz red-light A scan probe
- Pachymeter: 20MHz angled pachymeter probe

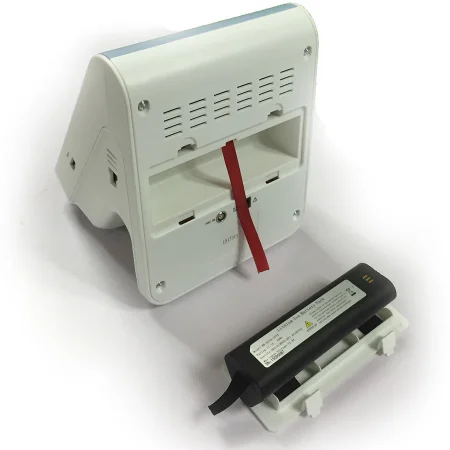

Removable battery for flexible use and easy replacement
| Feature | Specification |
|---|---|
| A-Scan Probe | 10MHz red-light A scan probe |
| Resolution | 0.01mm |
| Accuracy | ±0.1mm |
| Gain Adjustable | 0-120dB |
| Measurement Range | 15~35mm (vel 1640m/s) |
| Measurements | ACD, Lens, Vitreous, and AXL |
| Examination Modes | Support Normal, Catarct, Aphakic and Special eye model |
| Measurement Mode | Immersion and contact, auto and manual |
| IOL Formulas | SRK-II, SRK-T, BINKHORST, HOLLADAY, HOFFER-Q, HAIGIS |
| Display | 5.7″ color LED touch screen, more convenient for your operation |
