Model: ARK-980
ARK-980 Auto Refractometer offers fast, accurate, fully automatic eye measurements with smart tracking.

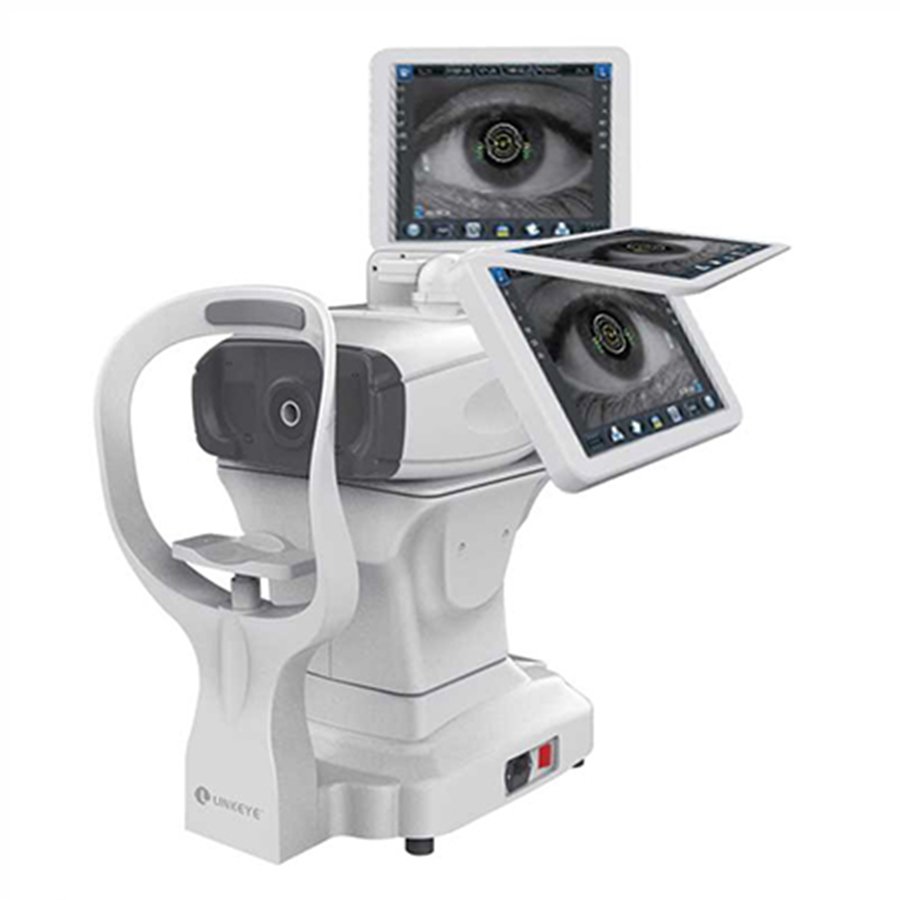

The ARK-980 is a fully automatic auto refractometer designed for fast and accurate vision measurement. It features automatic pupil tracking with left/right eye switching and a 10.4-inch TFT capacitive touch screen that can flip and rotate for easy operation.
LINK’s ARK-980 includes a built-in thermal printer with automatic paper cutting and supports measurements of refractive adjustment, IOL, and PD. Optional WiFi, Bluetooth, and VGA connections enable flexible data management. With measurement speed under 0.5 seconds and stable repeatability, the ARK-980 ensures efficient and reliable eye examinations.

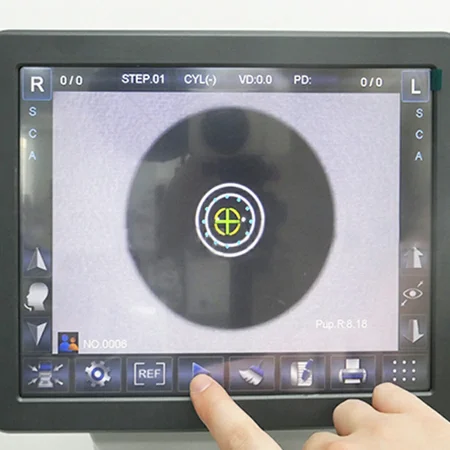

LINK’s ARK-980 allows a full eye examination with a single touch. The automatic system quickly aligns, focuses, and measures both eyes, reducing operator workload and improving testing efficiency while maintaining high accuracy.

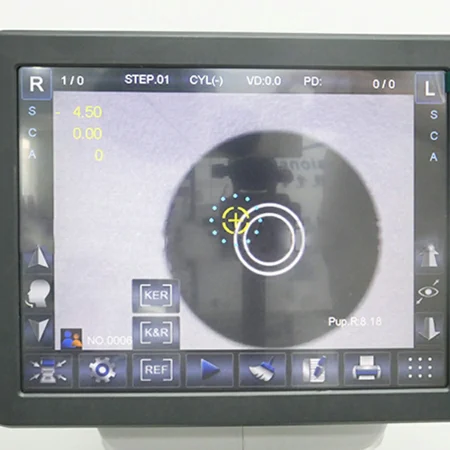

The ARK-980 supports separate KER (keratometry), REF (refraction), and combined K&R testing modes. LINK’s device provides precise, repeatable measurements in each mode, offering flexible testing options for clinics and ensuring reliable data for diverse patient needs.
| Sphere Power | -30 ~ 30D 0.01D Step |
| Cylinder | 0 ~ 12D 0.12D step |
| Axis | 0-180° 1° step |
| Curvature Radius | 6.5 ~10.5mm |
| Corneal Refractive power | 32.1 ~ 51.9D |
| Pupil Diameter | 2 ~14 mm |
| Pupillary Distance | 10 ~ 85 mm |
| Measurement Speed | ≤0.5s |
| Display | 10.4 inch TFT touch screen |
| Thermal printer with automatic paper cutting | |
| Power supply | 100 – 240V 50/60HZ |
Trusted Services:
1. Video chat to check ARK-980 Fully Auto Refractometer.
2. Free online technical support and training.
3. Free online installation support.
4. 1-3 Years quality warranty.
5. Lifetime after sales support.
6. Most products are CE and ISO 13485 certificated.
7. Free input voltage and plug customization for electrical machines.
8. Fast worldwide shipping, 5-10 working days delivery for most countries.
9. Partial prepayment is acceptable before shipping.
10. Discount price, non-branded or customized products can be offered for distributors.
