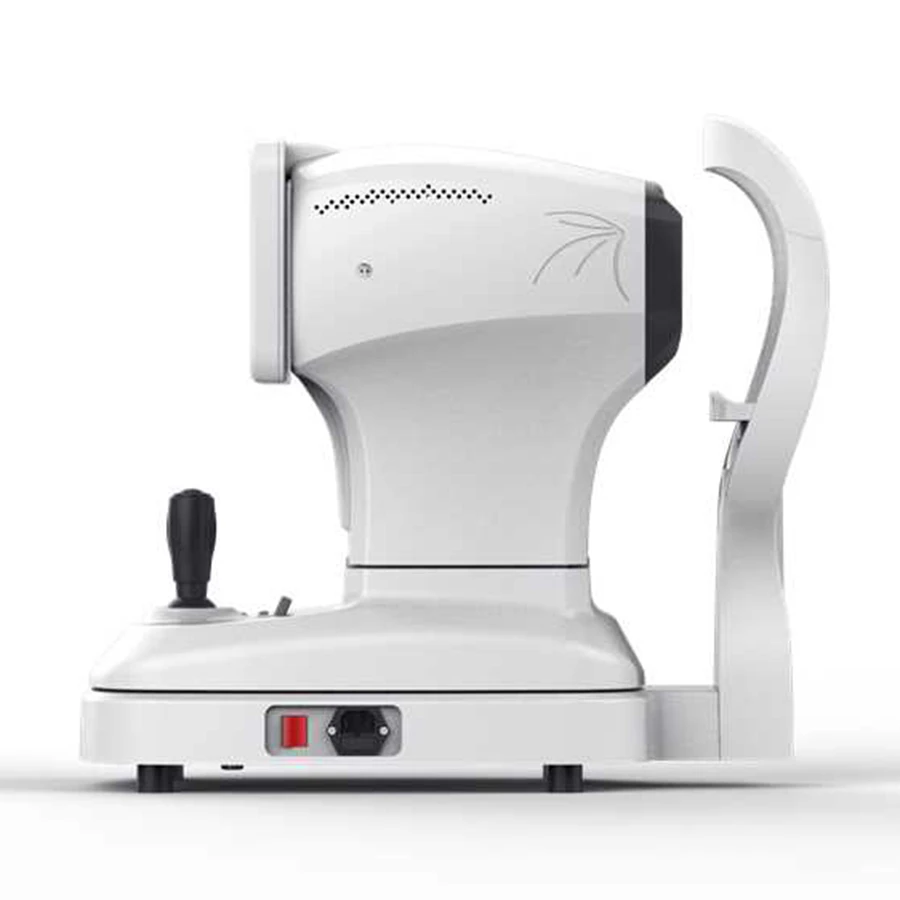

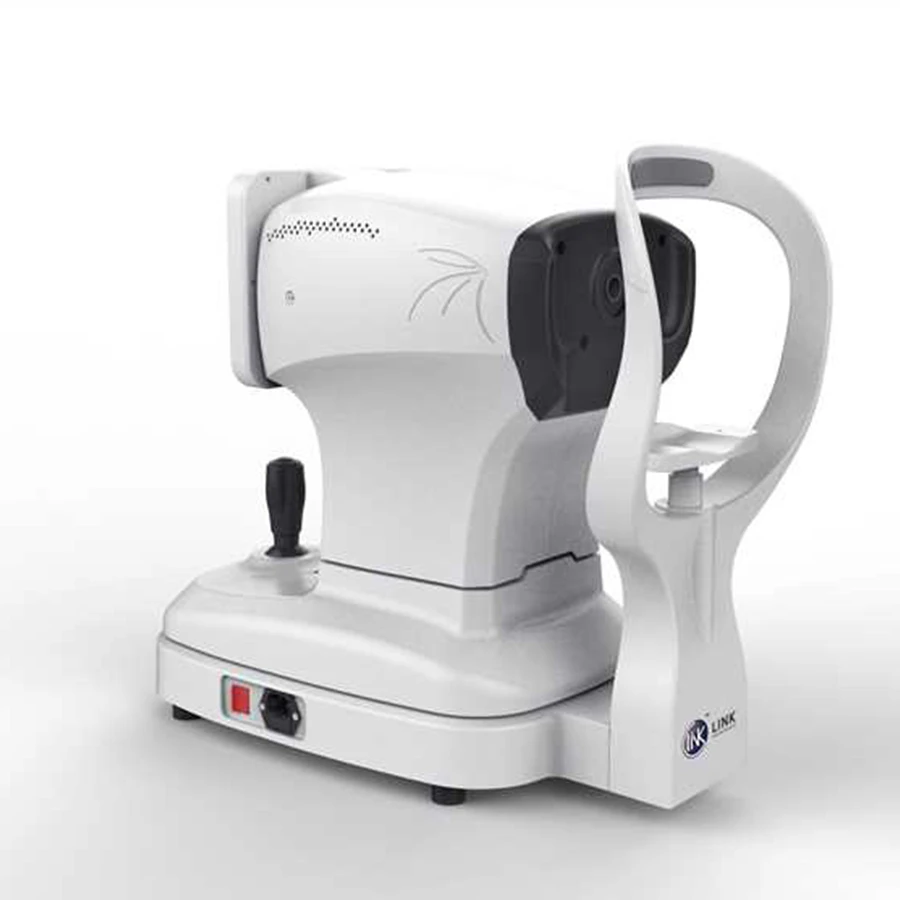

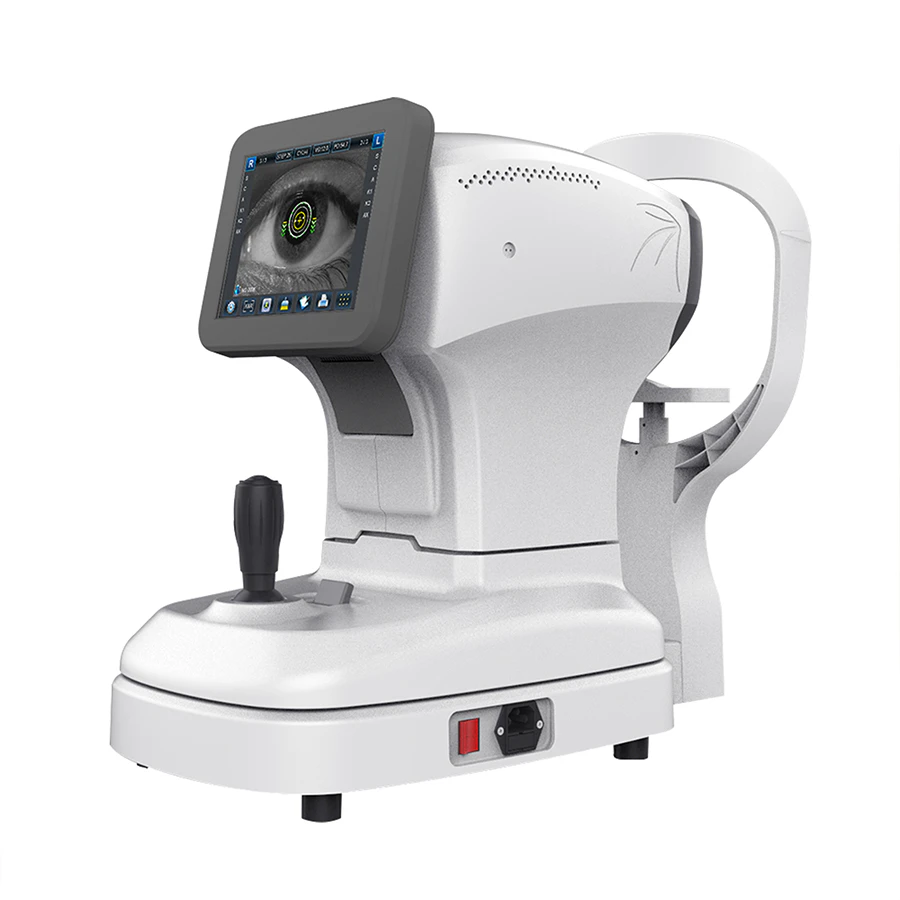

Model: ARK-4000
The ARK-4000 provides measurement of sphere power, cylinder power, axis, pupil distance, and corneal curvature. It offers dependable data for eyeglass fitting and clinical evaluation. With Hartmann Imaging Processing technology, the device uses an 850 nm infrared lenslet array to capture fundus reflections and calculate refractive parameters, ensuring stable and accurate results for optical shops, clinics, and hospitals.

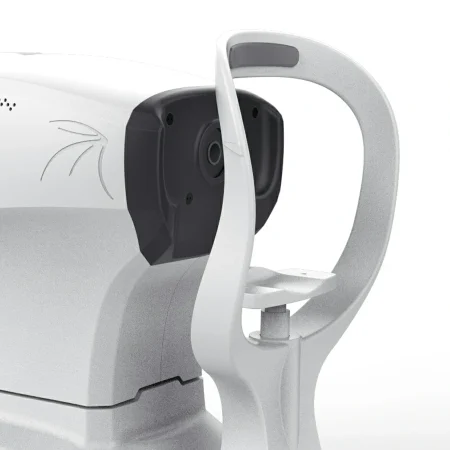

By pressing the Up & Don buttons,the users can set and adjust the height of the patient's chin freely and quicky.

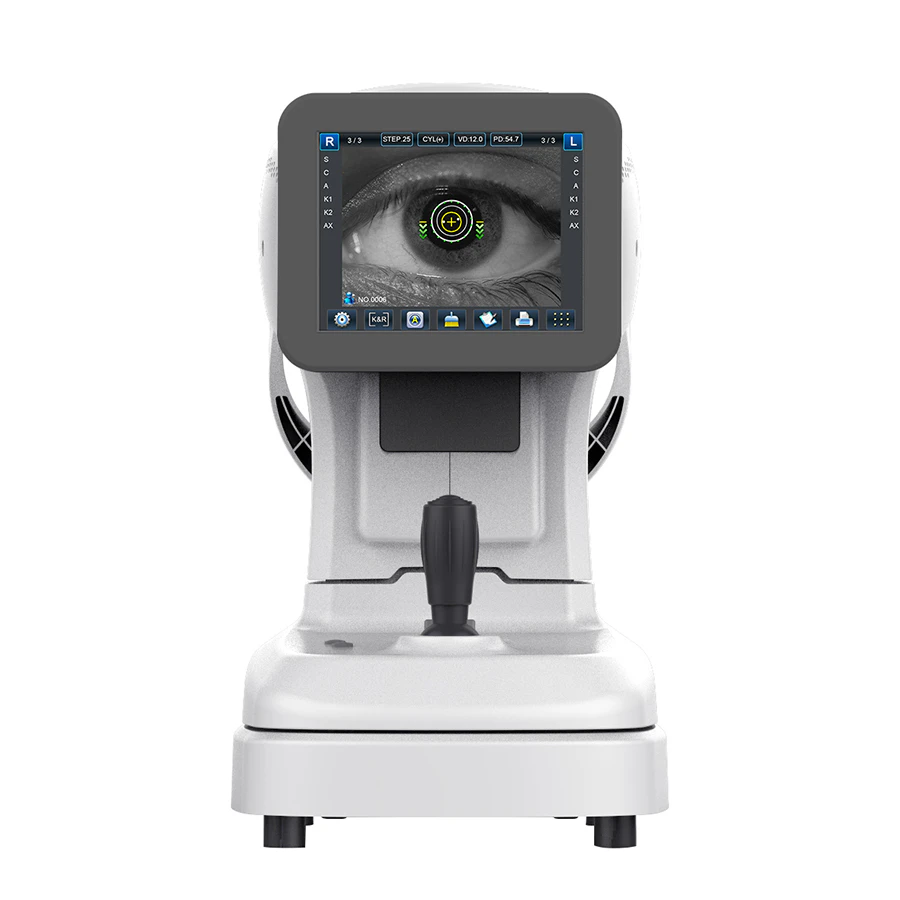

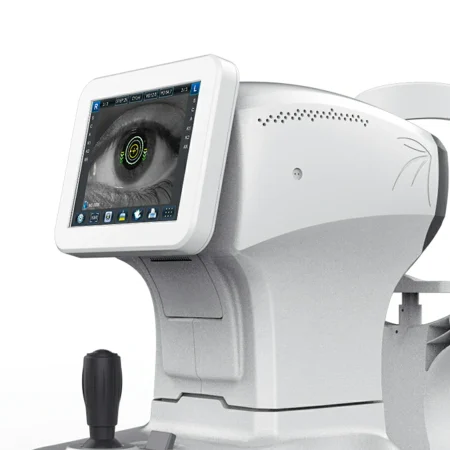

High brightness and contrast 8” wide color TFT LCD screen, smooth touch mode, different angle can be adjusted.
| Corneal apex distance: | 0.0, 12.0, 13.75, 15.0 |
| Spherical mirror degree: | -20.00D ~ + 20.00D (VD = 12mm, 0.01, 0.06, 0.12, 0.25 units) |
| Cylindrical power: | 0.00D ~ + 10.00D (0.06, 0.12, 0.25 units) |
| Axis position: | 10 ~ 180 ° (1 ° unit) |
| Astigmatism symbol: | -, +, ± |
| Interpupillary distance: | 10 ~ 86mm |
| Minimum pupil diameter: | 2.0mm |
| Pupil diameter: | 2.00-8.00mm |
| Measure light energy: | <30uw (ensure measurement safety) |
| Cornea curvature radius: | 5.0 ~ 10.0mm (0.01mm accuracy) |
| Cornea diopter: | 33.00D ~ 67.0D (when the corneal equivalent diopter is 1.3375) |
| Corneal astigmatism: | 0.00D-15.00D (0.06D / 0.12D / 0 25D units) |
| Stored data: | 10 measurements each |
| Axis position: | 1 ° ~ 180 ° |
| Visual target: | Guided cloud map |
| Display: | 8-inch TFT touch screen (adjustable viewing angle) |
| Printer: | 57mm thermal printer |
| Power supply: | AC 100 ~ 250V, 50 / 60Hz, wide power supply |
| Net weight: | 22 kg |
| Gross weight: | 26.5 kg |
| Packing size: | (length) 680mm x (width) 400mm x (height) 640mm |
