Model: ARK-1800
The ARK-1800 with a clear icon-based interface for easy operation. Its hexagon prism and high-sensitivity CCD deliver accurate and consistent refractive measurements. With the auto-focus function, simply move the device into position and it will automatically focus and capture the measurement, making daily eye exams fast and efficient.

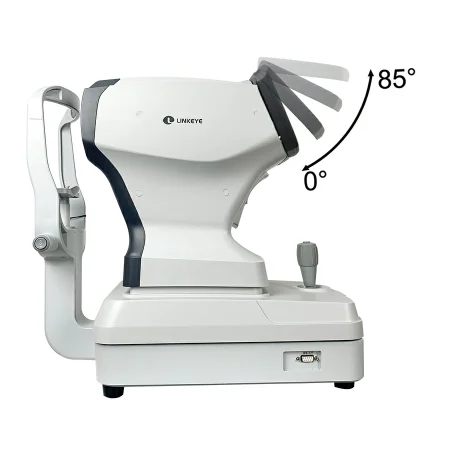

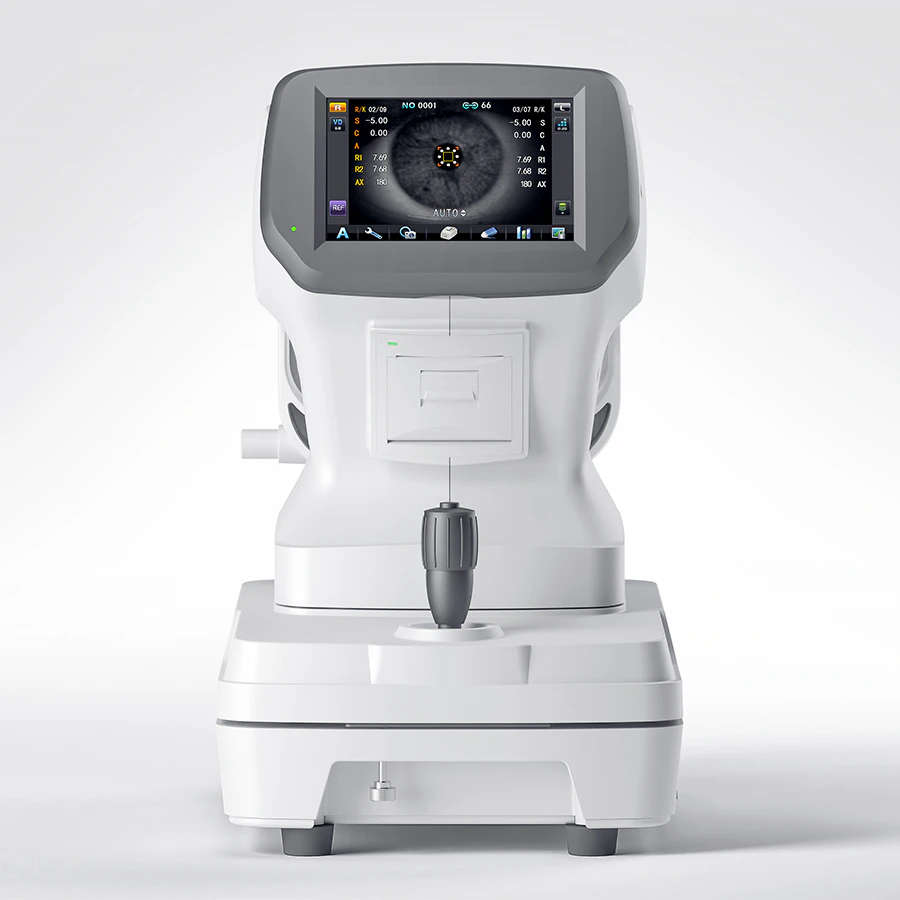

7.0 inchs touch screen, 85° angel adjustable, provideoperator with comfortable viewing angle both when sit or stand.

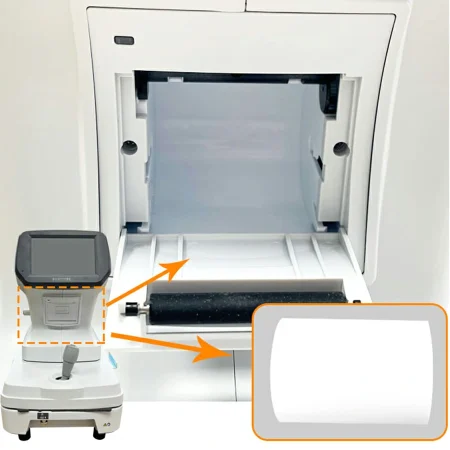

Built-in fast thermal printer, with easy loading and auto cutter function.
Refractormeter
| Vertex distance | 0 mm, 12 mm, 13.75 mm |
| Spherical | –20 m⁻¹ ~ +20 m⁻¹ (VD = 12 mm) |
| Spherical Step | 0.12 / 0.25 m⁻¹ Step |
| Cylinder form (range) | –8 m⁻¹ ~ +8 m⁻¹ (VD = 12 mm) |
| Cylinder Step | 0.12 / 0.25 m⁻¹ Step |
| Axis | 0° ~ 180°, 1° Step |
| Cylinder form (type) | –, +, ± |
| Pupil distance | 45 ~ 88 mm, 1 mm Step |
| Minimum pupil size | 2.0 mm |
Keratometry
| Radius of curvature | 5.0–10 mm (increment: 1 mm) |
| Corneal diopter | 33.75 m⁻¹ – 67.5 m⁻¹ (when corneal equivalent refractive index is 1.337) |
| Corneal astigmatism | 0.0–8.0 m⁻¹ (increment selectable: 0.12, 0.25 m⁻¹) |
| Axis | 1–180° (increment: 1°) |
| Corneal diameter | 2.0–14.0 mm (increment: 0.1 mm) |
Other
| Chart | Follow-up colorful fogging chart system |
| Memory of data | 10 measurement values for each right and left eye |
| Display | 7″ LCD/TFT |
| Thermal printer | |
| Power supply | 100V-240V~ 50Hz 60VA |
| Dimensions | 66x52x66cm |
| Weight | 16Kg |
