Model: ARK-1500

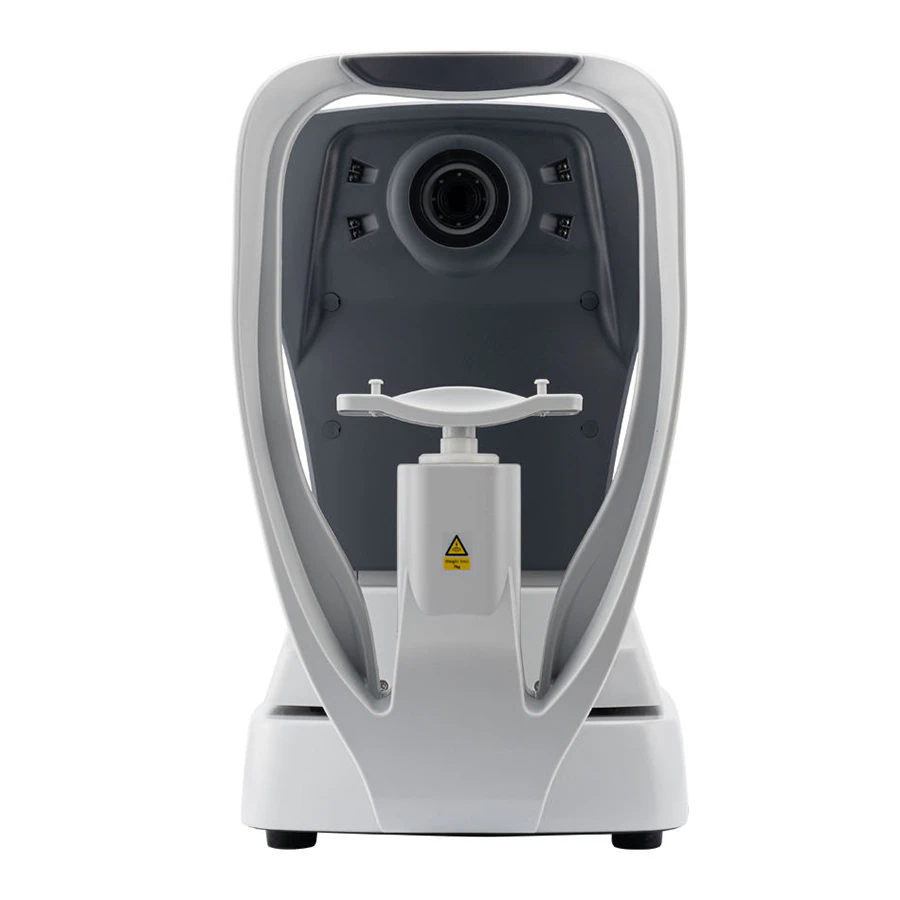

The ARK-1500 auto ref-keratometer designed for precise and efficient vision testing. It combines refractometry and keratometry functions in one device, making it ideal for clinics and optical shops. The machine measures sphere, cylinder, and corneal curvature with high accuracy. Its durable design ensures long service life and lower maintenance costs.

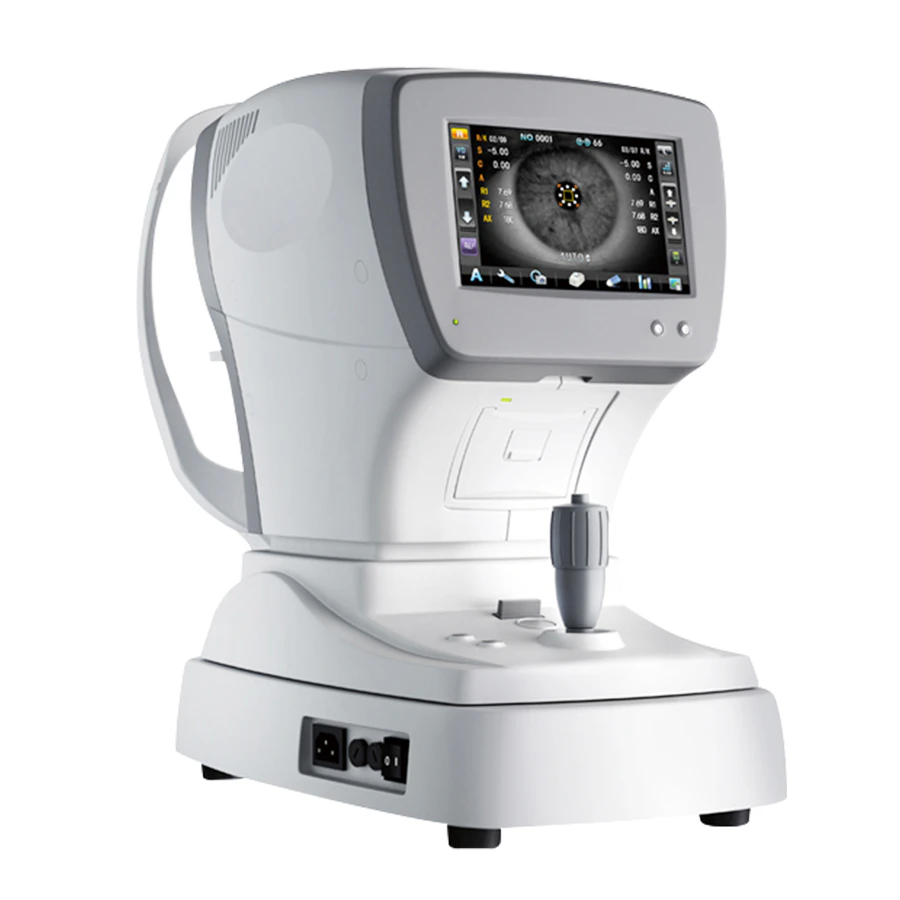

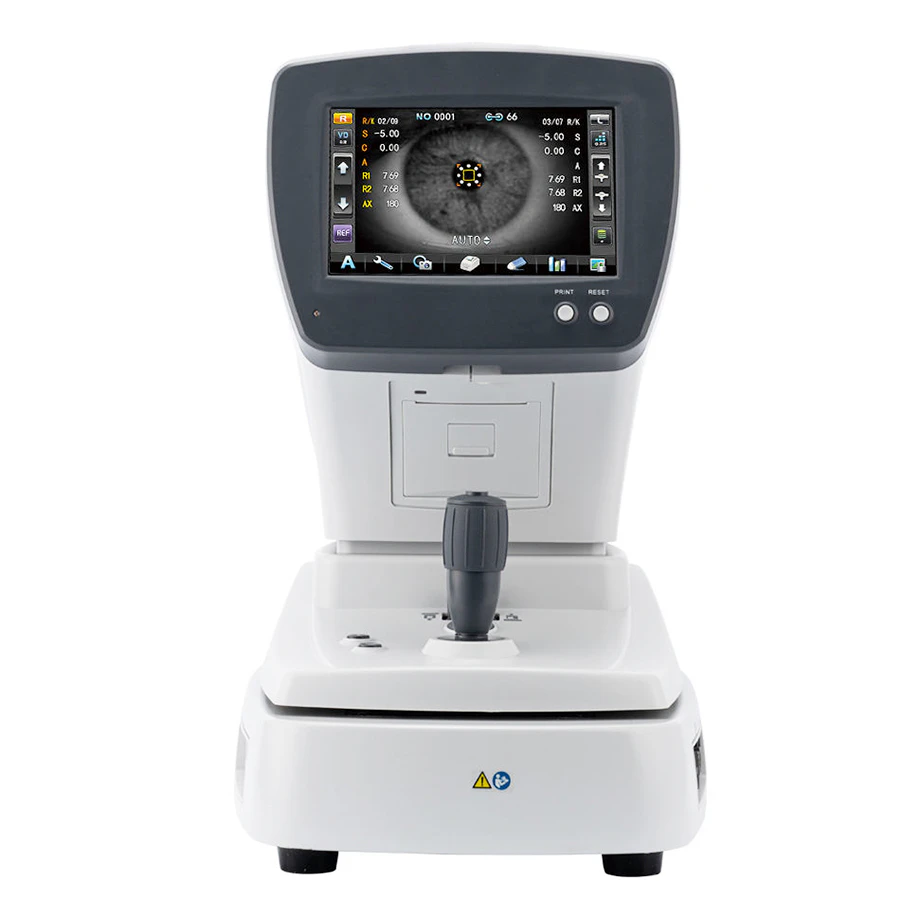

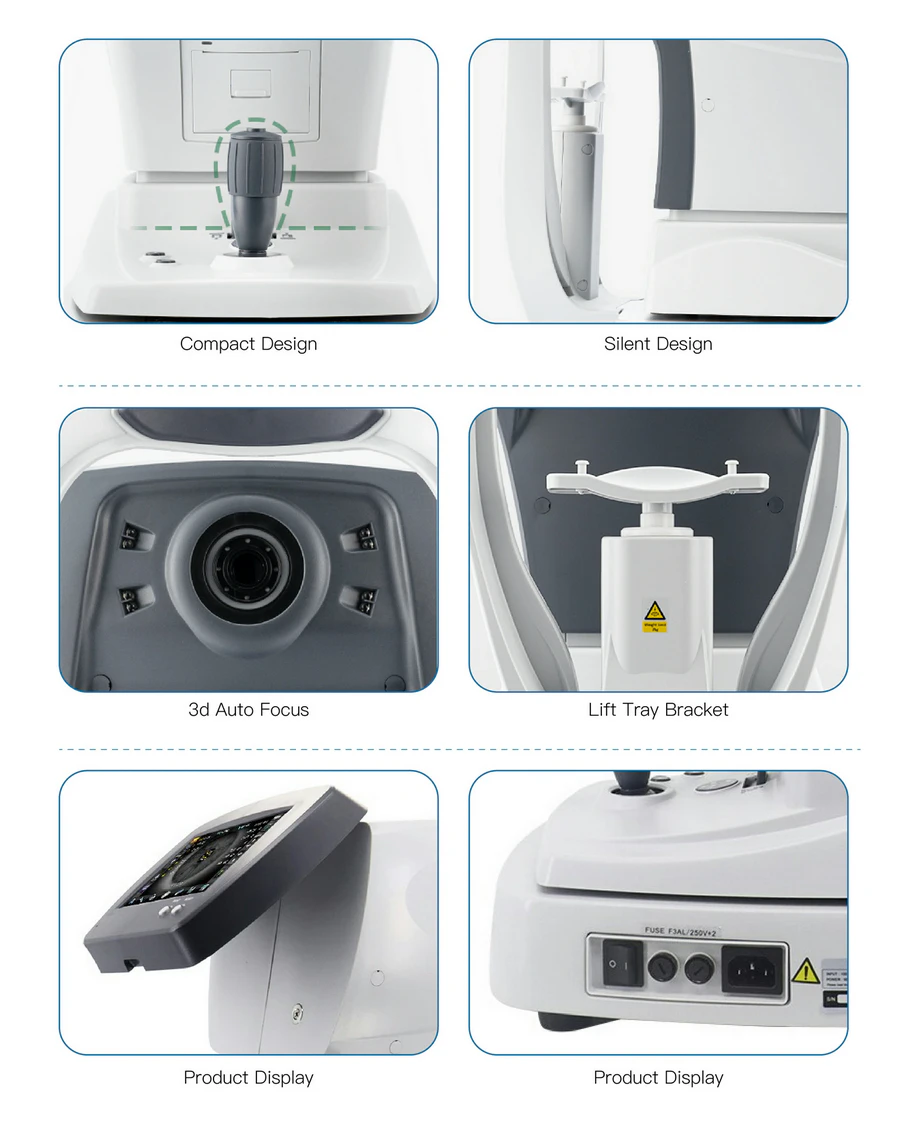

ARK-1500 features a 7-inch TFT LCD screen for clear display, a motorized joystick for easy control, and a motorized chinrest for better patient comfort. The tilting screen and auto-focus function help streamline eye examinations, while the built-in thermal printer allows quick result printing.

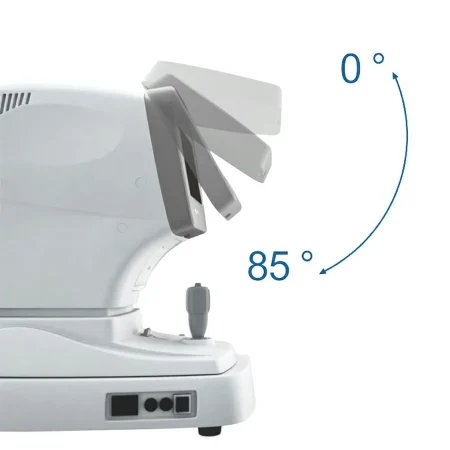

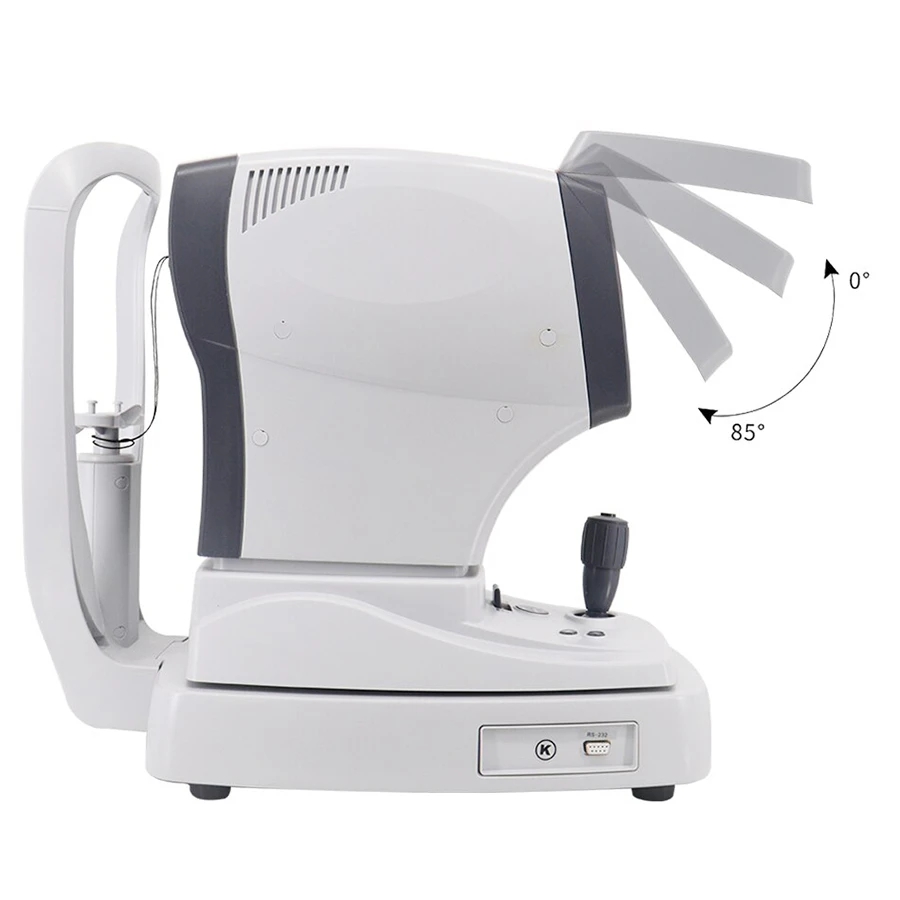

The 7-inch TFT LCD can rotate the screen freely(85°), and it be freely rotated and tilted, giving you a comfortable viewing angle whether you're sitting, standing, or working around the patient. This makes daily operation smoother and reduces strain during repeated measurements.

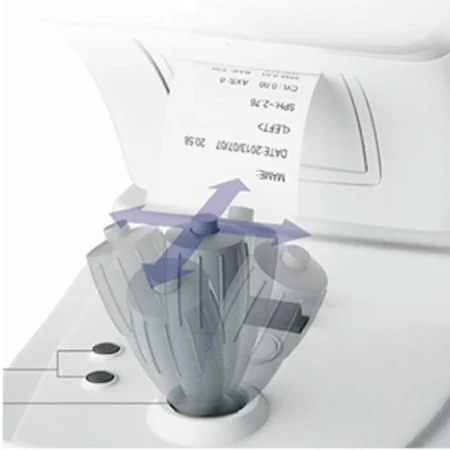

The motorized joystick provides precise, effortless focusing. You can align the eye quickly and accurately, helping the ARK-1500 capture stable refraction and keratometry readings with less adjustment time.
| Refractometer | |
| Spherical | -20 – 20D (VD=12) 0.125D Step |
| Cylinder | -8 – 8D 0.125D step |
| Axis | 0-180° 1° step |
| Pupil distance | 45-88mm, 1mm step |
| VD | 0mm,12mm, 13.75mm |
| Min. pupil size | 2.0mm |
| Keratometry | |
| Radius of curvature | 5.0-10mm (increment:0.01mm) |
| Corneal Power | 33.75-67.50D (when corner equivalent refractive index is 1.337) |
| Increment selectable from 0.12,0.25D | |
| Corneal astigmatism | 0.00-8.00D (Increment selectable from 0.12,0.25D) |
| Axis | 1-180D (increment :1°) |
| Corneal diameter | 2.0 -14mm (increment:0.1mm) |
| Memory of data | 10 measure value for each right and left eye |
| Others | |
| Chart | Follow-up Colorful Fogging Chart System |
| Display | 7” TFT LCD |
| Thermal printer | |
| Power supply | 100 – 240V 50/60HZ |
| Dimension | 476x268x472mm |
| Weight | 20kg (44lb) |
