Model: ALE-2000G

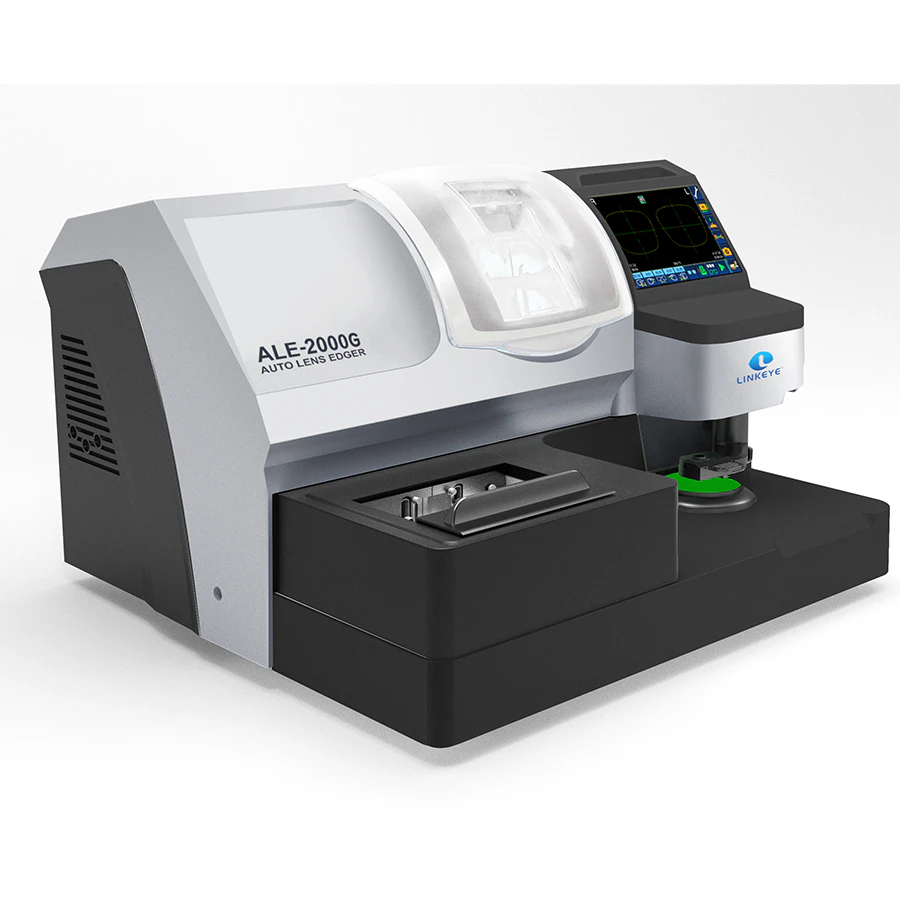

ALE-2000G Auto 3D Lens Edger integrates a built-in high-precision optical scanner and a fast, distortion-free scanning system that ensures exceptional accuracy for all edging tasks. Equipped with both optical and 3D mechanical scanning modes, it supports single lenses, binocular lenses, and template tracing, making it highly versatile for modern optical shops and production.

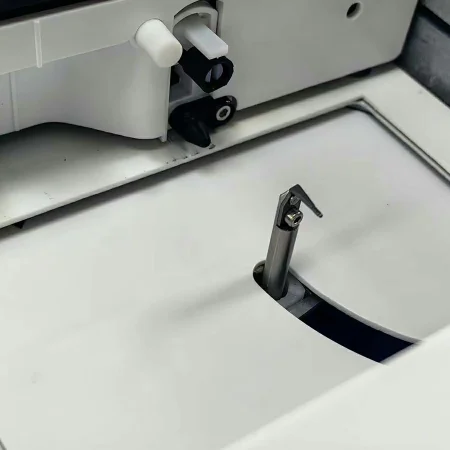

3D mechanical scan stays stable from start to finish, capturing lens shapes accurately for single lenses, binocular jobs, and templates. This keeps tracing data consistent and reduces rework.

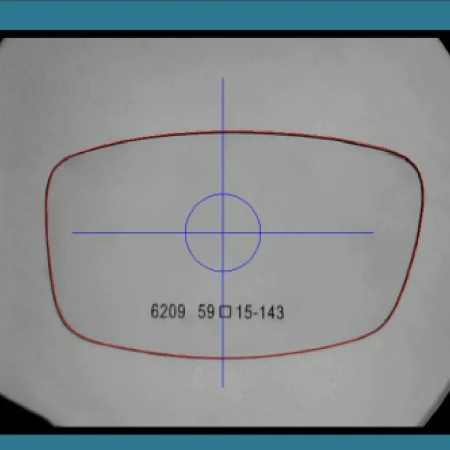

High-precision optical scanner completes a clean, distortion-free scan in just three seconds, cutting prep time and keeping the edging workflow fast and efficient.
Technical :
| Parameter | Specification |
|---|---|
| Host size | 720mm × 653mm × 470mm (L×W×H) |
| Weight | 75 kg |
| Voltage | AC100–240V 50/60Hz |
| Power | 1500 W |
| Water Pump Voltage | AC220V 50Hz |
| Water Pump Electric Power | ≤350 W |
| Working Noise | ≤75 dB |
| Operating Ambient Temperature | 5°C – 40°C |
| Edge Diameter | ≤80 mm |
| Flat Edge Processing (No Safety Edge) | ≥19.00 mm |
| Tip Machining (No Safety Edge) | ≥19.00 mm |
Mechanical Scanning Range:
| Parameter | Minimum | Maximum |
|---|---|---|
| Width Scan Size | 20 mm | 58 mm |
| Length Scan Size | 30 mm | 68 mm |
| Frame Thickness | 2.0 mm | 16 mm |
