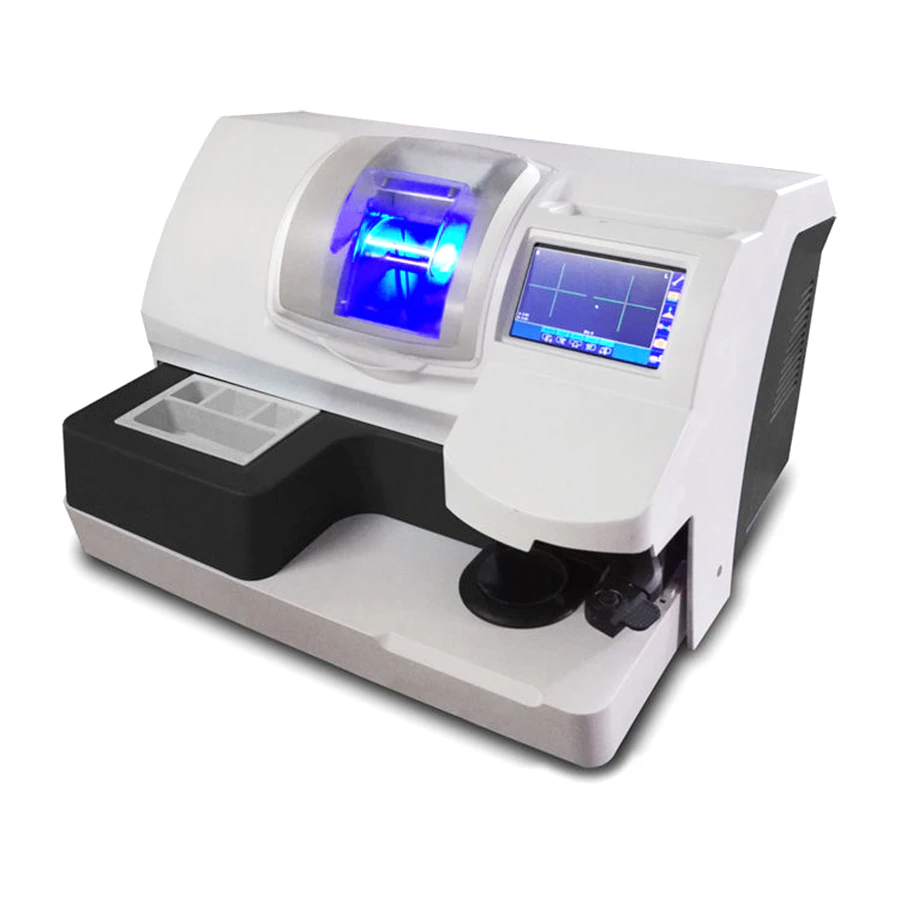

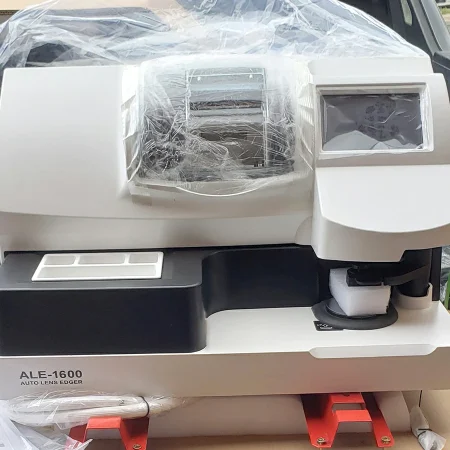

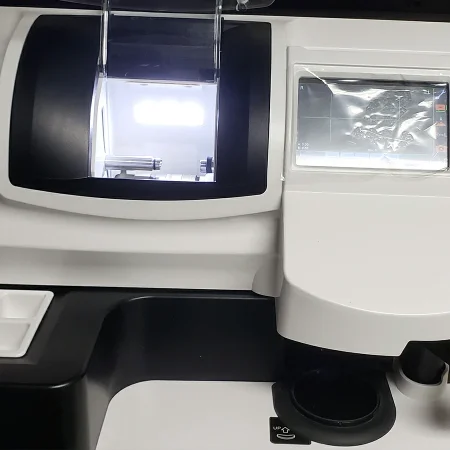

Model: ALE-1600
ALE-1600 features a 7-inch HD touch screen and a no-parallax optical system for fast, precise 3-second scanning with flexible shape adjustment and data storage for up to 500 templates.
ALE-1600 Auto Lens Edger has a 7-inch HD touch screen and optical system for 3-second scanning, shape adjustment, and data storage. It is used in optical labs, workshops, and eyewear production for processing different lens materials with an integrated center meter and adjustable bevel.
Features:
1. 7 inch hd LCD touch screen：Resolution 1024×600;
2. Data storage：The scan data can be saved when power down and can store 500 template data;
3. Date form change: The scanned shape could be changed freely(to zoom in or out from left to right, fromup to down, from lower edge, or to zoom in and out from axial position);
4. The operation interface is simple and fast;
5. 3 seconds quick scan;
6. Preview interface can input PD, PH convenientty;
7. It can meet different material lens processing requrement( Cr-39, PC, HC,HI, glass, etc) ;
8. Adjusting bevel position freely: The user can adjust full frame ratio by themselves (Auto,33%,55%, Bend forwards , Curve backward , etc. )
9. Precision, no-parallax optical scanner,optical center meter, with fast scanning speed, low failure rate;
10. Combined Scanner with Center meter as one;
11. External storage containers canprovide easy storage for customer;
12. Built-in wheel with diameter of small specification90mm, with fast processing speed.
Powered by a 7" HD touchscreen and integrated optical center meter, the ALE-1600 delivers 3-second scans.
Built-in wheel with diameter of small specification90mm, with fast processing speed.It can meet different material lens processing requrement( Cr-39, PC, HC,HI, glass, etc) .
| Size | 728mm x 600mmx 442mm |
| Weight | 75kg |
| Voltage | 230V-50Hz 115V-60Hz |
| Power | 1500W |
| Pump Voltage | 230V~50Hz , 115V~-60Hz |
| Pump Power | ≤350W |
| Noise | ≤75dB |
| Environment Temperature | 5℃ ~40℃ |
Trusted Services:
1. Video chat to check ALE-1600 Auto Lens Edger.
2. Free online technical support and training.
3. Free online installation support.
4. 1-3 Years quality warranty.
5. Lifetime after sales support.
6. Most products are CE and ISO 13485 certificated.
7. Free input voltage and plug customization for electrical machines.
8. Fast worldwide shipping, 5-10 working days delivery for most countries.
9. Partial prepayment is acceptable before shipping.
10. Discount price, non-branded or customized products can be offered for distributors.
