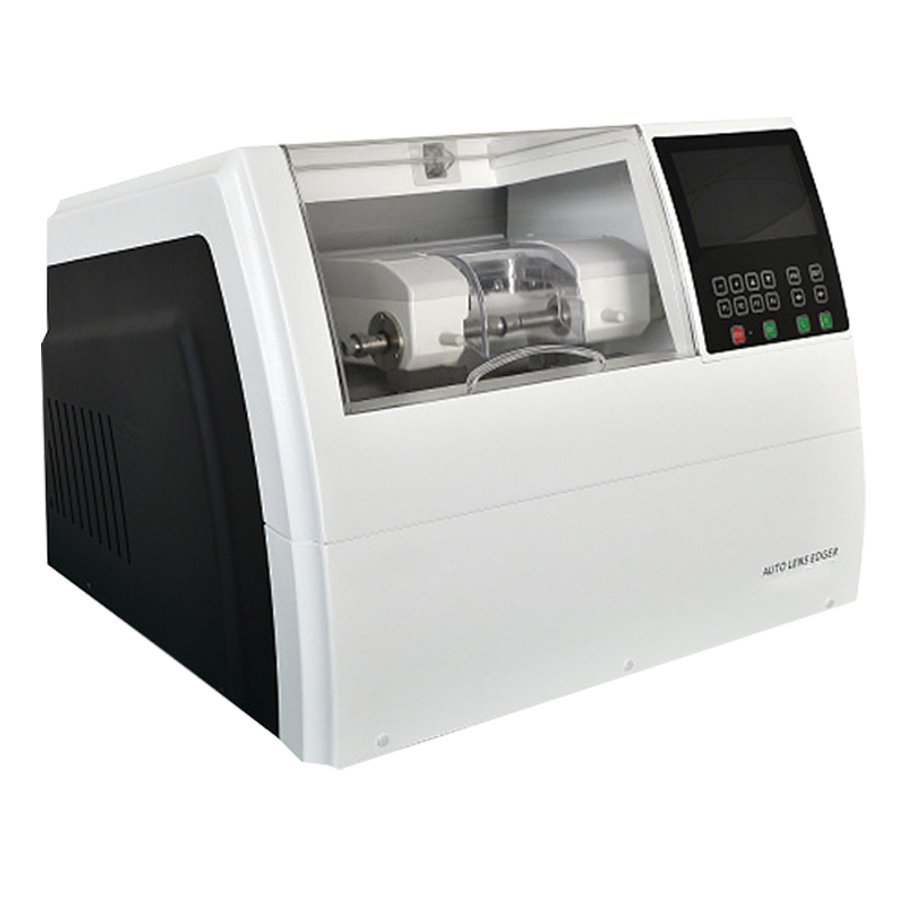

Model: ALE-1000B
The ALE-1000B provides fast, precise edging for different lens materials with adjustable grinding pressure. It supports both bevel and flat polishing for accurate shaping and smooth finishing.

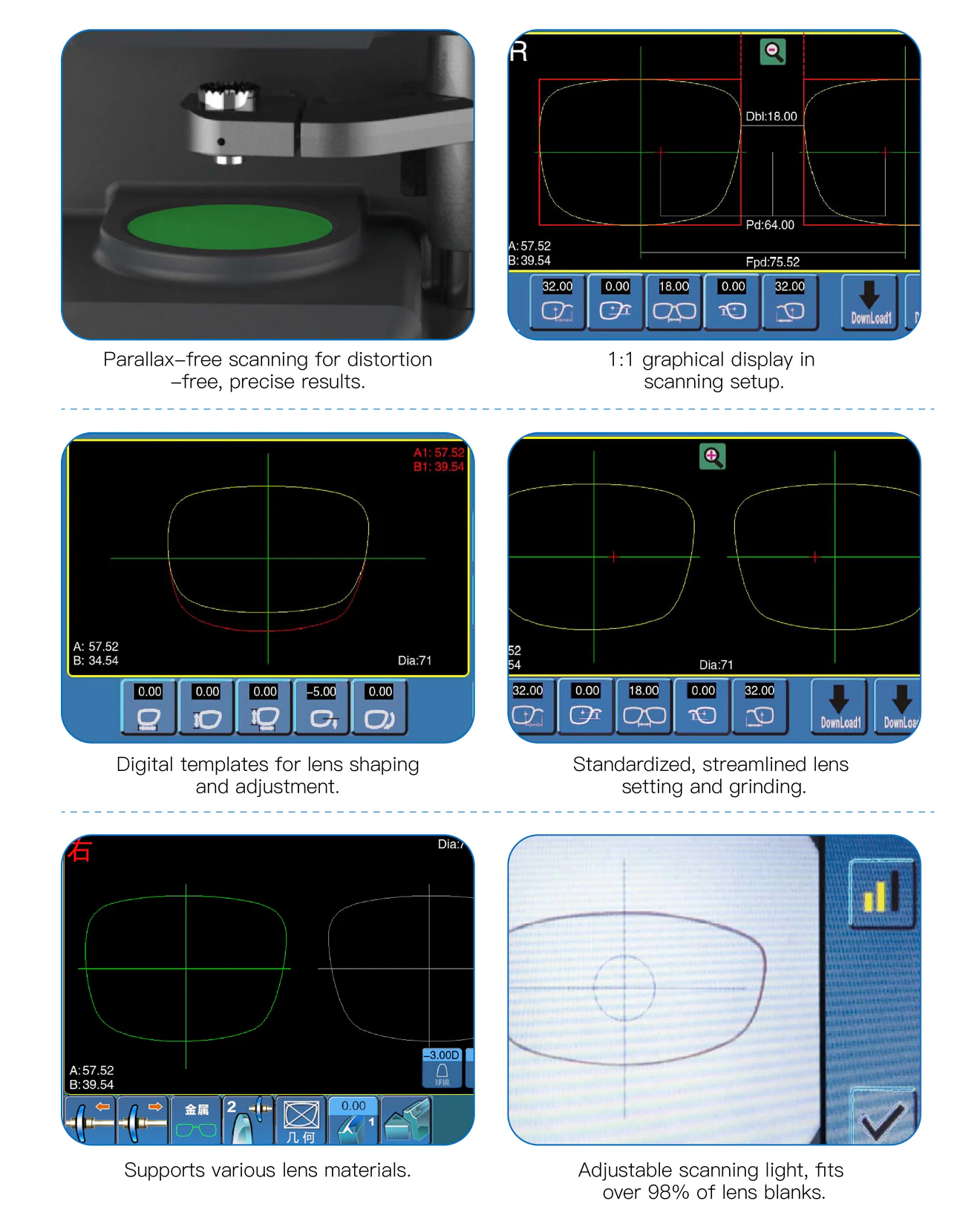

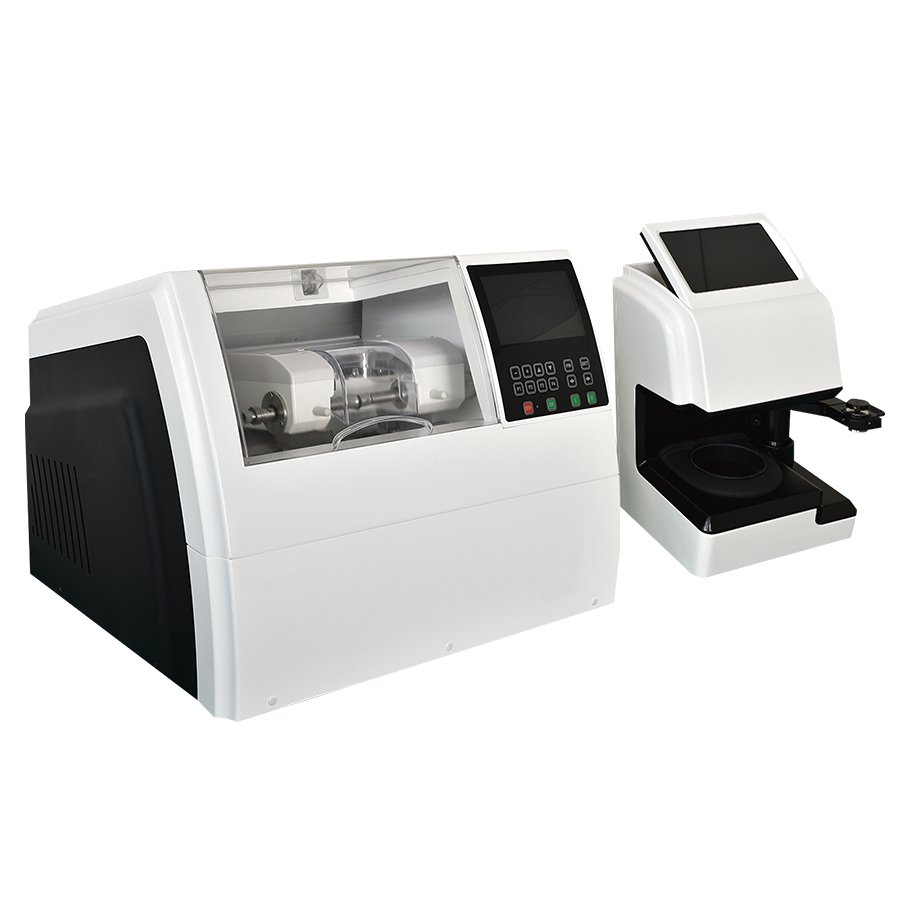

The optical tracing system scans and centers in one step, capturing the frame shape in 0.5 seconds. Real-time imaging ensures alignment accuracy and removes degree, prism, and parallax errors. A 7-inch touch screen allows simple control, and the unit can connect to two RS8000 milling machines for integrated processing.

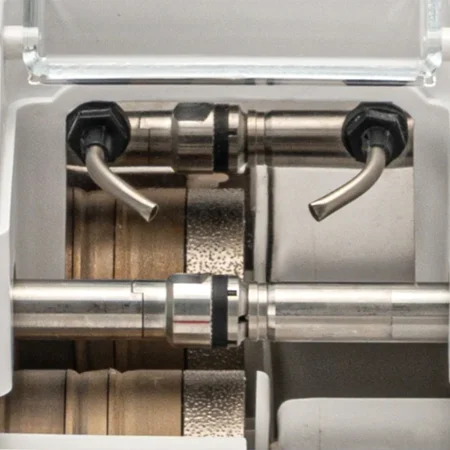

The ALE-1000B can process different lens materials quickly and safely. You can adjust the grinding pressure according to the lens type, ensuring precise edging without damaging the lens.

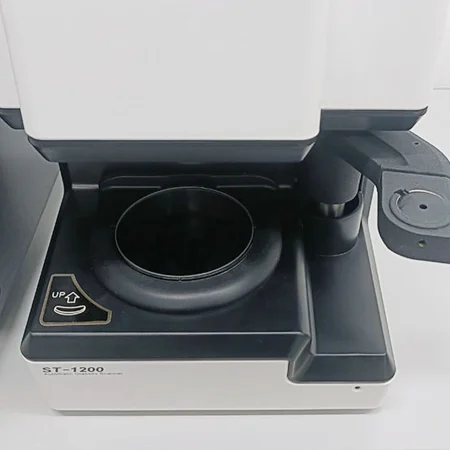

The optical tracing system captures the frame shape in just 0.5 seconds using real-time imaging guidance. This ensures fast and accurate lens fitting for all frame types.
Auto lens edger Technical Data:
Dimension | 625mm*510mm*510mm |
Weight | 49kg |
Voltage | AC 220V/110V , 50/60Hz |
Power | 550W |
Lens size range | Diameter 22-80mm |
Clamping pressure | Third gear adjustable |
Wheel diameter | 100mm |

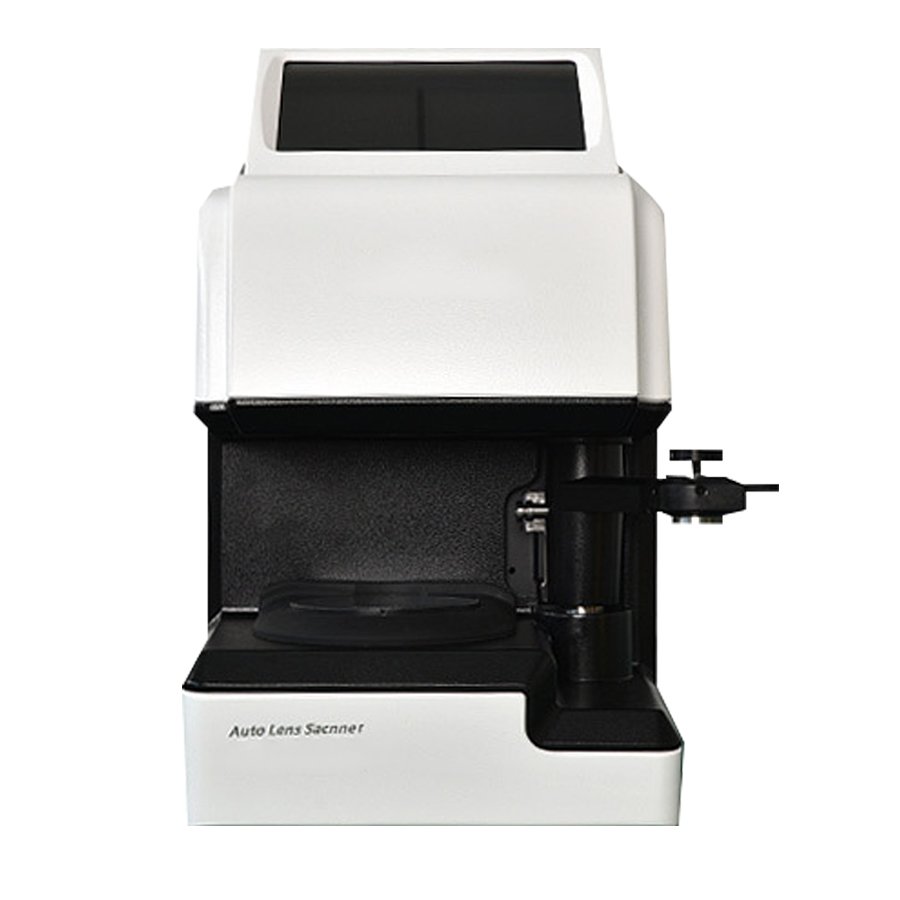

Auto lens scanner Technical Data:
Dimension | 240mm*180mm*130mm |
Weight | 5kg |
Voltage | AC 220V/110V 50/60Hz |
Power | 60W |
Screen tilt angle | 20°-100° |
Touch screen | 7” capacitive screen |
Quantity of connecting with the main machine | 2 unit |
