Model: AL-860

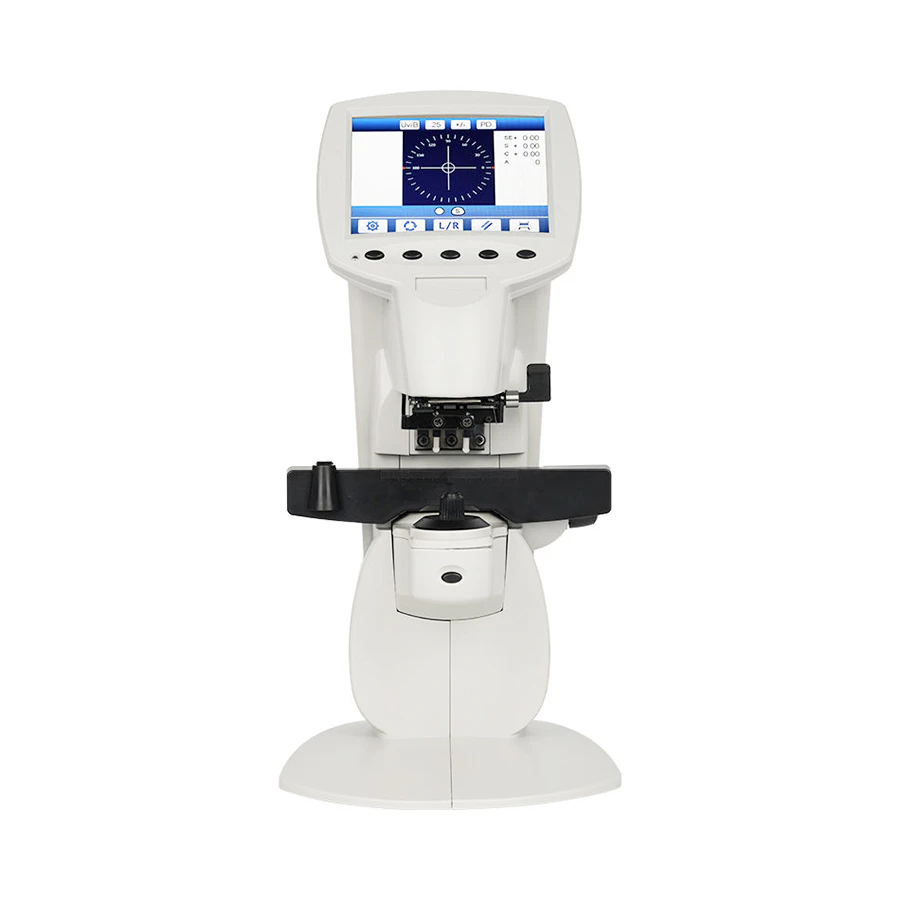

The AL-860 is an advanced digital auto lensmeter designed for precise and efficient lens measurement. Featuring cutting-edge technology, this lensmeter offers fast, automatic measurements with easy-to-read results. It is perfect for optometrists and eye care professionals seeking high-performance, reliable equipment.
Automatically recognizes different lens types and completes measurement without manual selection. This reduces operation steps, avoids input errors, and keeps testing fast and consistent.

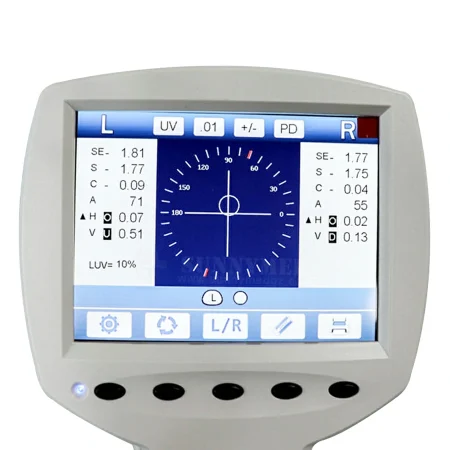

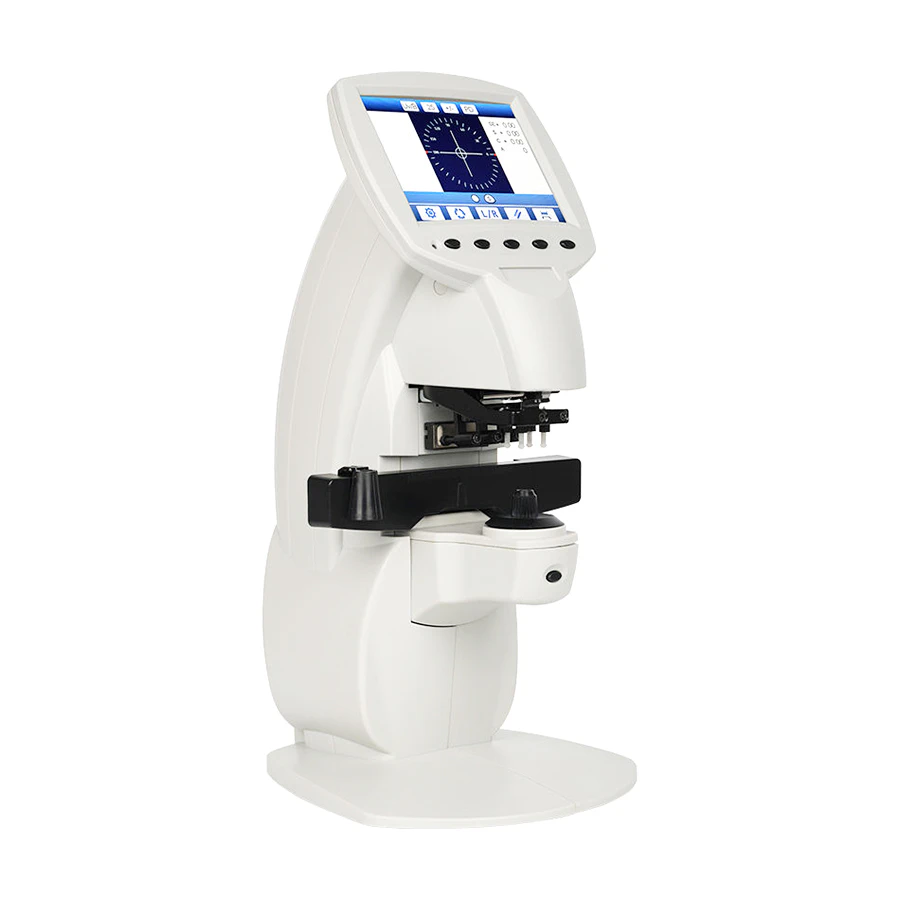

5.6-inch high-resolution LCD touch screen can be tilted for better viewing angles. Measurement data is clear and easy to read, allowing comfortable operation whether sitting or standing during continuous lens testing.
| Parameter | Specification |
|---|---|
| Measuring Range (Sphere) | 0 to ±25D (0.01D/0.06D/0.12D/0.25D steps) |
| Sphere Accuracy | |
| Range | Accuracy |
| <OD, ≥-5D / >OD, ≤+5D | ±0.06D |
| <-5D, ≥-10D / >+5D, ≤+10D | ±0.09D |
| <-10D, ≥-15D / >+10D, ≤+15D | ±0.12D |
| <-15D, ≥-20D / >+15D, ≤+20D | ±0.18D |
| <-20D, ≥-25D / >+20D, ≤+25D | ±0.25D |
| Cylinder | 0 to ±10D (0.01D/0.06D/0.12D/0.25D steps) |
| Axis | 0° to 180° (1° steps) |
| ADD | 0 to 10D (0.01D/0.06D/0.12D/0.25D steps) |
| Prism | 0 to 20△ (0.01△ steps) |
| Prism Accuracy | |
| Range | Accuracy |
| >0△, ≤5△ | 0.1△ |
| >5△, ≤20△ | 0.2△ |
| Cylinder Mode | +, +/-, – |
| Prism Mode | X-Y: Cartesian Coordinates H: I, O; V: U, D P-B: Polar Coordinates mm: mm expression |
| Reading Resolving Power | 0.01D/0.06D/0.12D/0.25D |
| PD Measure | Supported |
| Lens Types Measurable | Single vision lens, bifocal lens, trifocal lens and progressive lens, etc. |
| Contact Lens Measure | Supported |
| UV Transmissivity Test | Supported Measurable transmissivity: >10%; >20% at ±10D and over |
| Contact Lenses Range | 0 to ±25D, BC 6.00 to 9.00 |
| Display | 5.6″ TFT LCD |
| Menu | Readable diagram, easy operation |
| Lens Diameter | 20 mm – 100 mm |
| Power Source | AC100 (±10%)–240 (±10%) V, 50/60 Hz, 40 VA |
| Power Consumption | 40 W |
| Gross Weight | 7.2 kg |
| Dimensions (Packing) | 525 mm × 320 mm × 310 mm (W × D × H) |
| Environmental Conditions | a. Temperature: 5–40℃ (In usage) –20–60℃ (In storage/transference) b. Humidity: 30–85% (Non-condensing) (In usage) 10–95% (In storage/transference) c. Atmospheric pressure: 700–1060 kPa d. Altitude: up to 2000 me. Others: No harmful dust or smoke |
| Optional Accessories | Printer (built-in thermosensitive paper size: 57 mm) |
