Model: AL-360
Its fast, precise measurements and versatile lens compatibility make the AL-360 a popular choice for efficient and reliable optical testing.

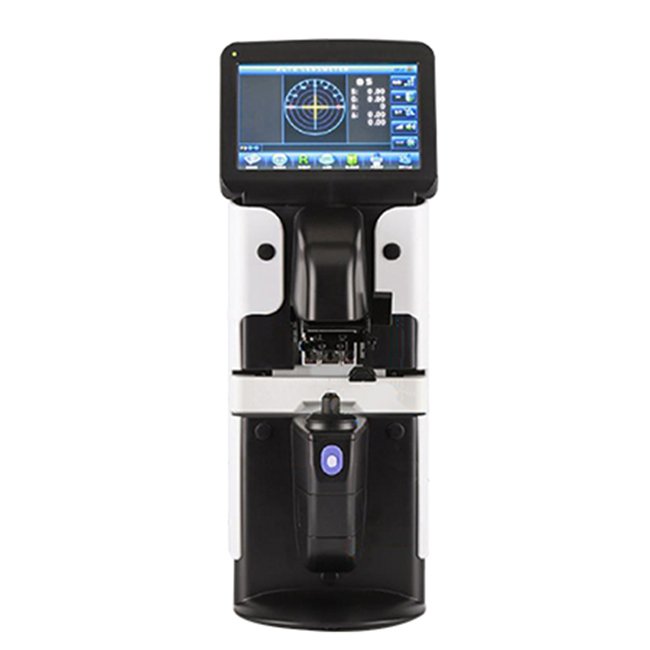

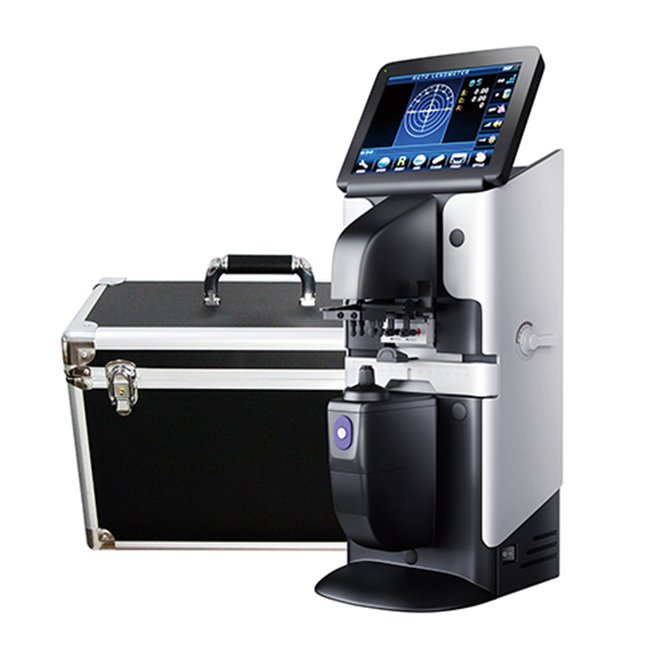

The AL-360 Auto Lensmeter is designed for precise measurement of various lens types, including single vision, bifocal, trifocal, progressive lenses, and contact lenses. It also supports testing of green, UV, and blue light transmittance, offering comprehensive optical analysis for modern optometry practices.
The camera marker pole helps keep a fixed reference point and ensures that each image or video frame is taken from the same angle and height. The pole supports accurate alignment in optical, industrial, and laboratory applications.
The structure is stable and easy to adjust. The height can be changed quickly, and the locking system keeps the pole steady during use. It is made for simple setup, repeatable measurement, and reliable camera placement in daily operation.

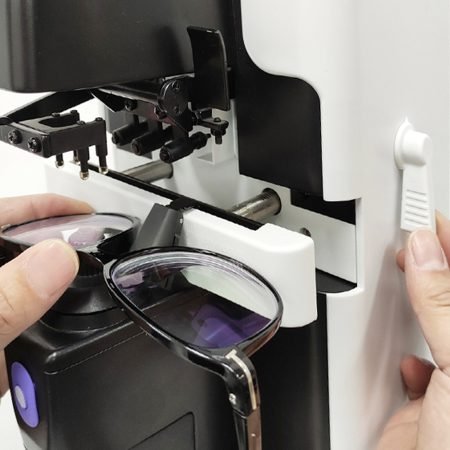

The lens stand is used to hold eyeglass lenses during measurement and inspection. It keeps the lens stable and aligned with the testing device, helping ensure accurate optical readings for single vision, bifocal, and progressive lenses.
The stand is easy to place and adjust. It supports quick lens replacement and steady positioning during testing. The design helps reduce manual handling and improves consistency in lens verification and calibration.
| Range of measurement | |
| Sphere | 0~ – 25D, 0.01/0.12/0.25D step; |
| Cylinder | 0~ -9.99 D 0.01/0.12/0.25D step. |
| Axis | 0-180 ° (1 ° step) |
| Add. | 0-9.99 D 0.01/0.12/0.25D step. |
| Prism degree | 0-15 D 0.01/0.12/0.25D step. |
| Measurement mode | |
| Cylinder | , /-, – |
| Prism | X-Y, P-B |
| Contact Lens | soft/hard; |
| Measuring mode | Single/progressive/automatic recognition |
| Specifications | |
| Diameter of lens | 20-108mm; |
| PD | 40-90mm, 0.5mm step; |
| Speed of measurement | 0.1s |
| Display | JD-2600A: 7” TFT LCD; |
| Printer | Thermal Printer |
| Weight | 5.5kg |
| Power supply | 100-240V, 50-60HZ |
Trusted Services:
1. Video chat to check AL-360 Auto Lensmeter.
2. Free online technical support and training.
3. Free online installation support.
4. 1-3 Years quality warranty.
5. Lifetime after sales support.
6. Most products are CE and ISO 13485 certificated.
7. Free input voltage and plug customization for electrical machines.
8. Fast worldwide shipping, 5-10 working days delivery for most countries.
9. Partial prepayment is acceptable before shipping.
10. Discount price, non-branded or customized products can be offered for distributors.
