Model: AL-1000

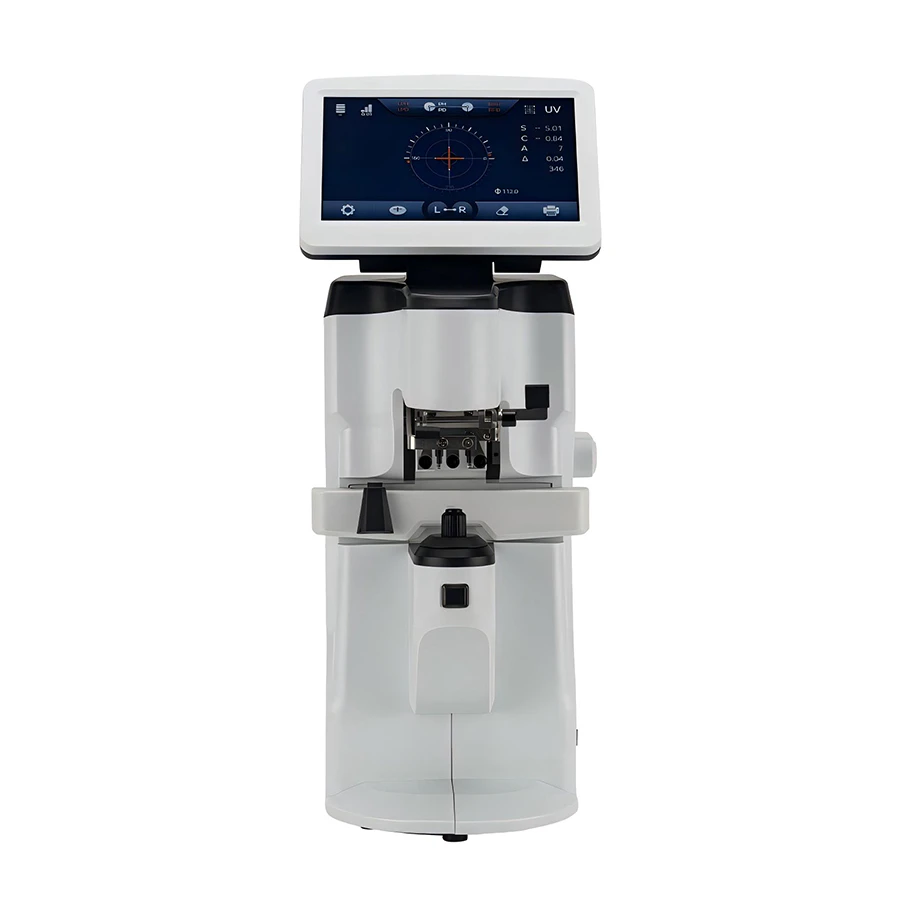

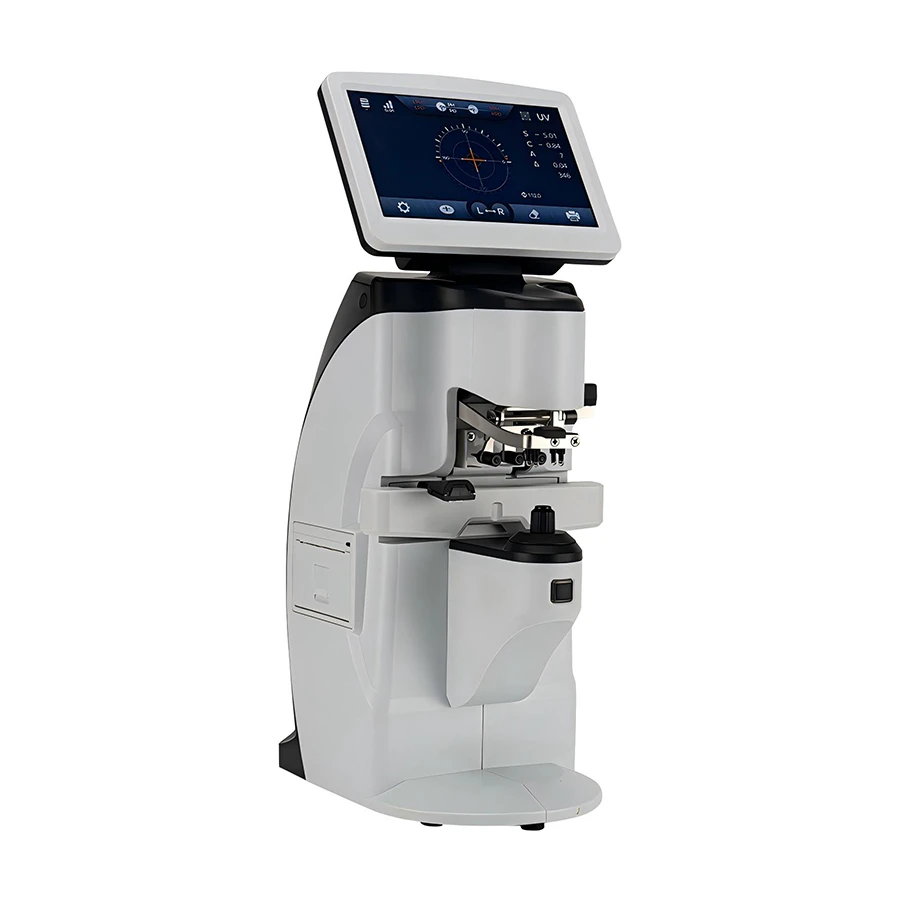

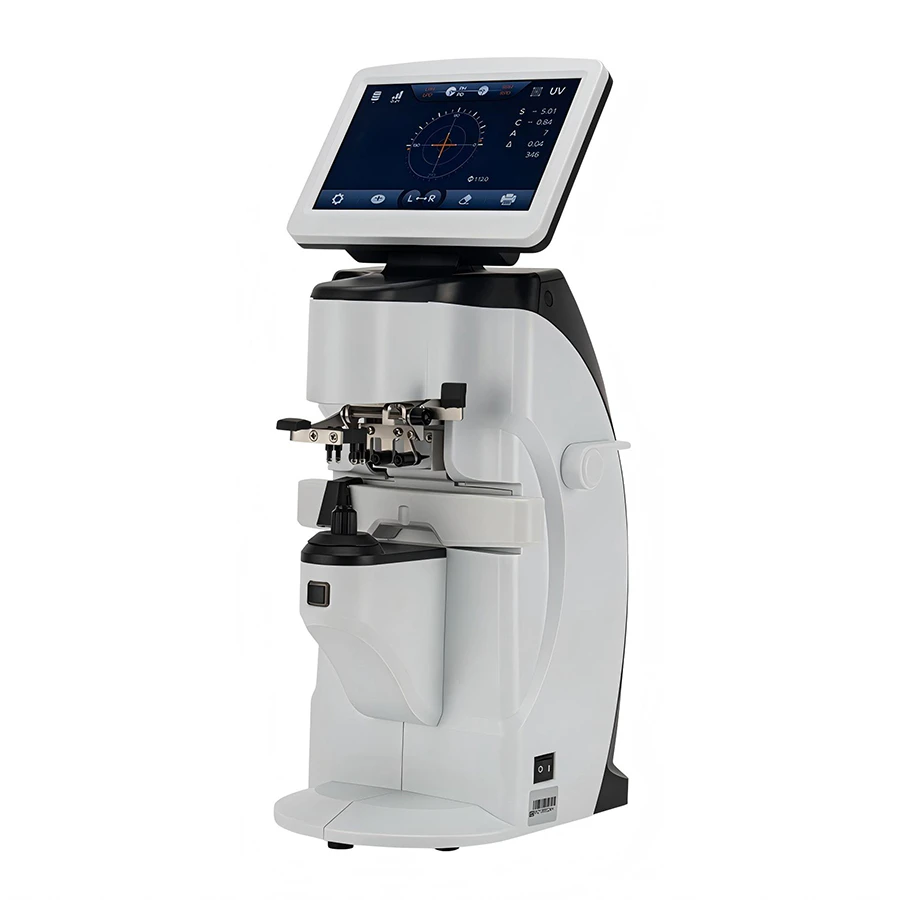

The AL-1000 Digital Auto Lensmeter is a state-of-the-art device offering versatile, high-precision measurements for optometry and ophthalmology. Designed to meet the needs of modern optical practices, it combines advanced features like Bluetooth connectivity, UV and green light measurement, and a new touch panel.

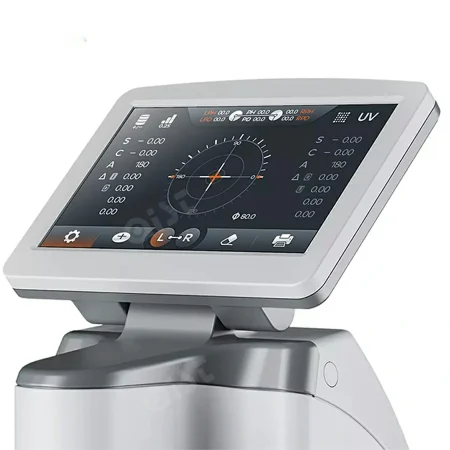

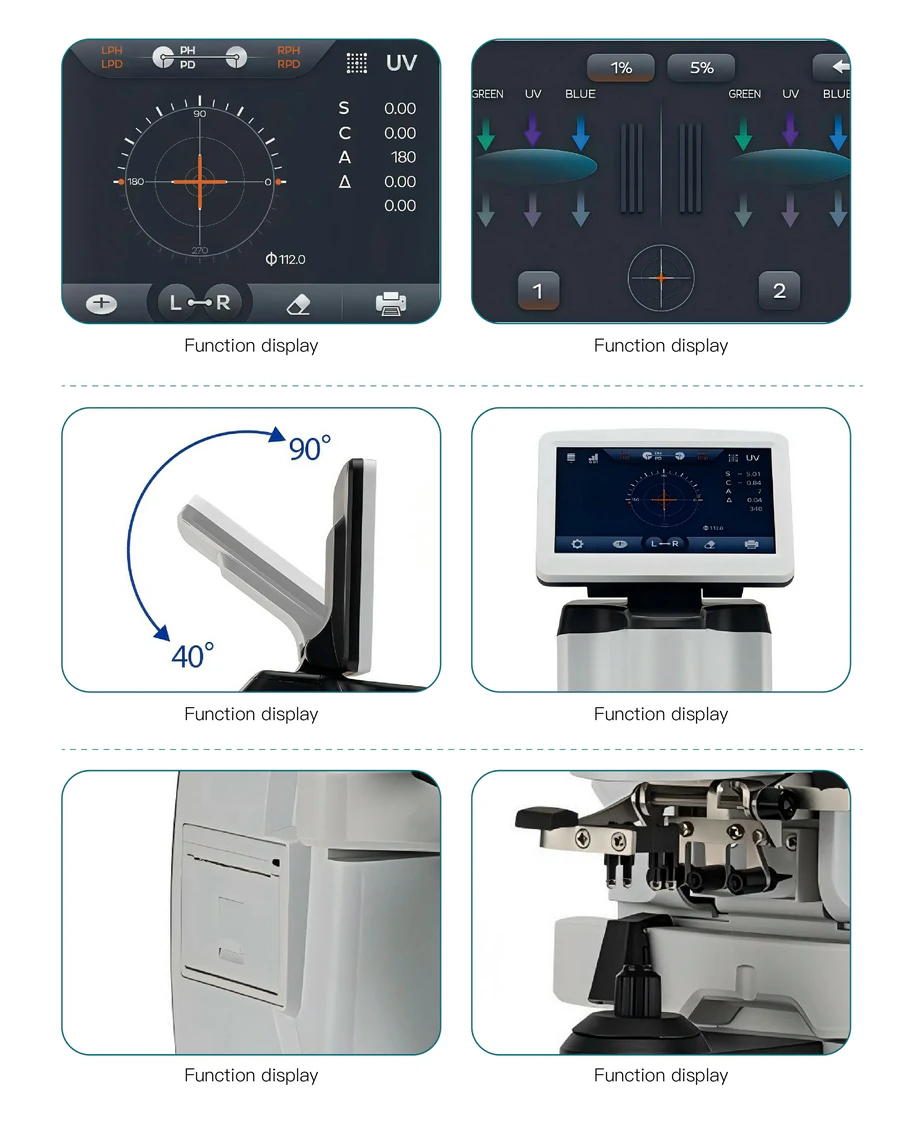

AL-1000 is equipped with a high-resolution capacitive LCD touch screen that can be tilted for a comfortable viewing angle.

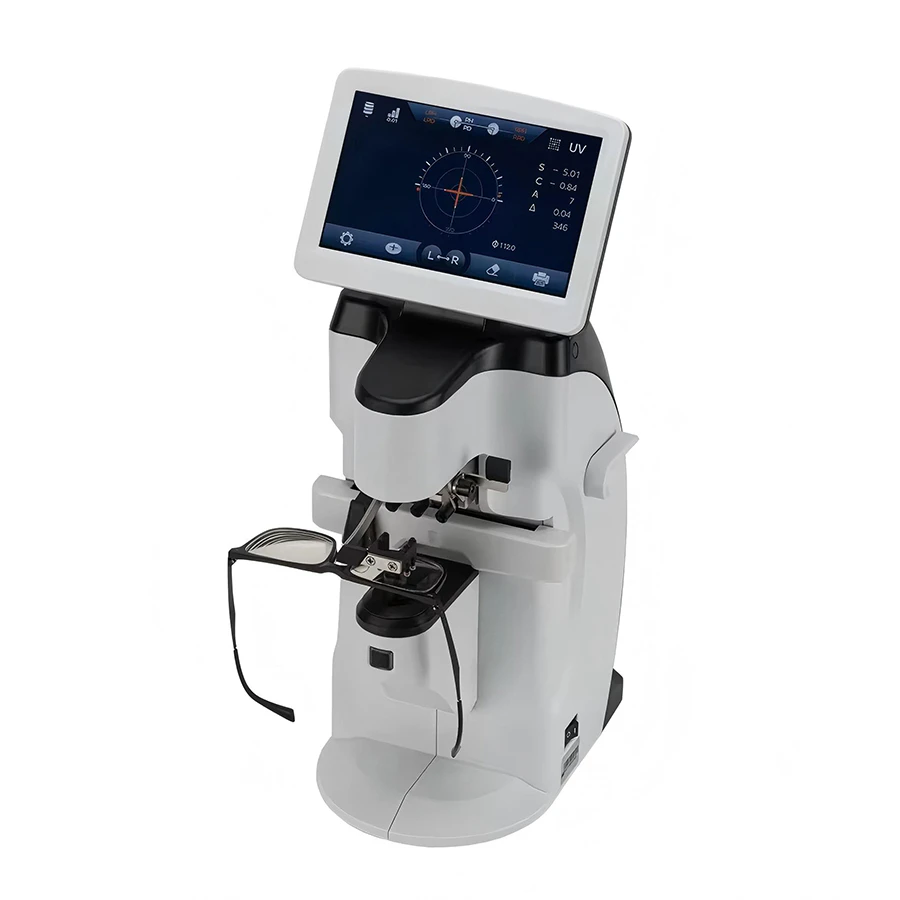

The removable lens support makes it easier to place and adjust different lens types during measurement. This simplifies operation, supports stable lens positioning.
| Parameter | Specification |
|---|---|
| Range of Measurement | |
| Sphere | 0 ~ +25 m, 0.01/0.12/0.25 m steps |
| Cylinder | 0 ~ +9.99 m, 0.01/0.12/0.25 m steps |
| Axis | 0 – 180° (1° step) |
| Addition | 0 ~ +9.99 m, 0.01/0.12/0.25 m steps |
| Prism | 0 ~ 15 cm/m, 0.01/0.12/0.25 m steps |
| Cylinder Mode | +, +/-, – |
| Prism Mode | X-Y, P-B |
| Contact Lens | Soft/hard lens |
| Measurement Mode | Single / Progressive / Automatic recognition |
| Diameter of Lens | Φ12 – Φ112 mm |
| PD | 40 – 90 mm (0.5 mm step) |
| Measuring Speed | 0.1 second |
| Abbe Number | 30 ~ 60 |
| Display | 7″ LCD/TFT |
| Printer | Thermal printer |
| Dimension | 180 mm × 255 mm × 455 mm |
| Package Weight | 12 kg |
| Unit Weight | 12 kg |
| Power Supply | 100-240 V 50-60 Hz 25 VA |
