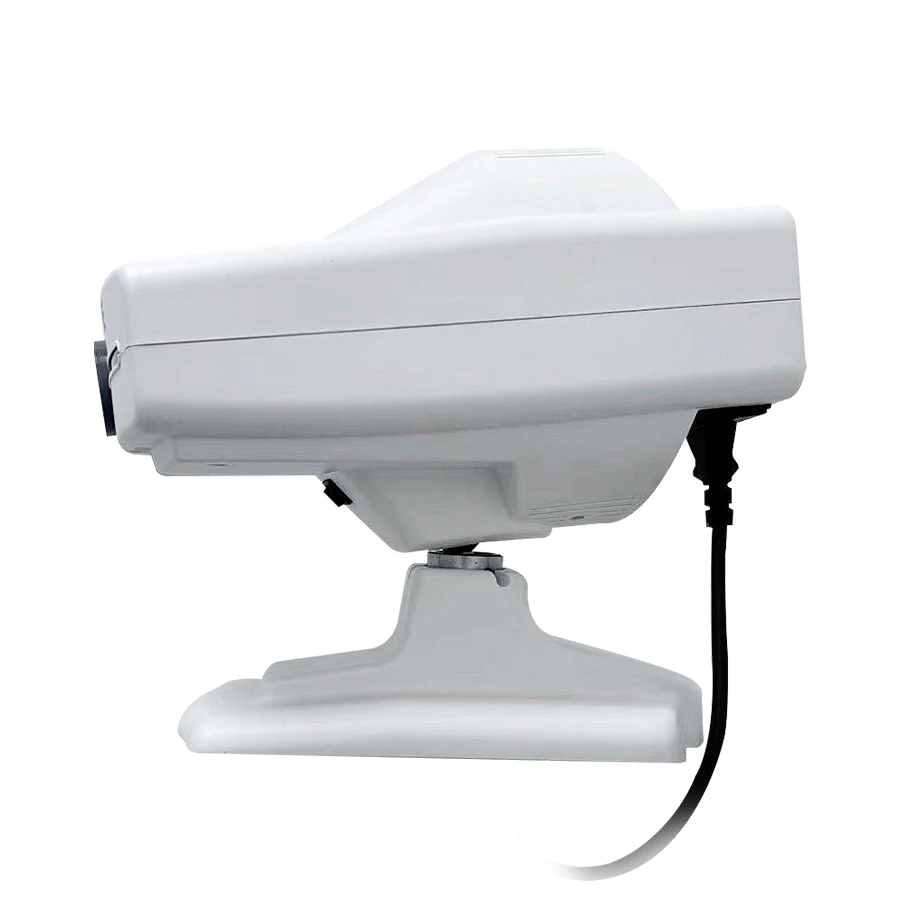

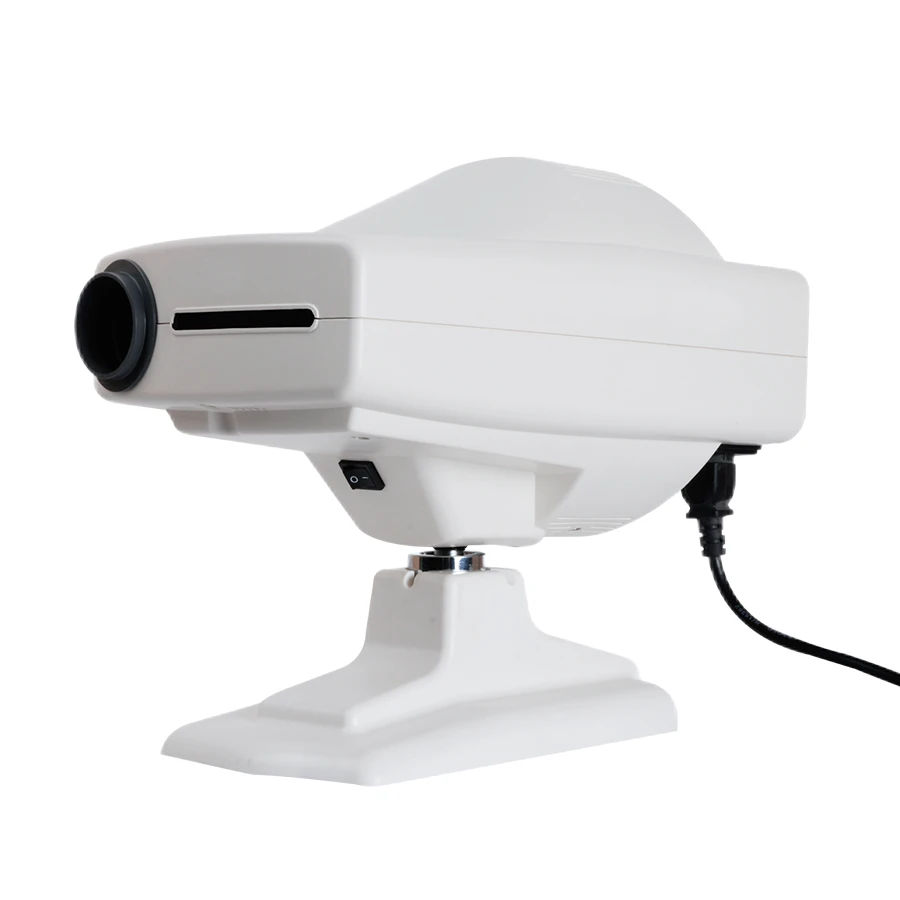

Model: ACP-350
The ACP-350 Auto Chart Projector is designed to deliver high-quality visual testing with precise accuracy. Featuring advanced functions like automatic error correction and wireless control, it offers clear and sharp projections for a variety of clinical tests.
Applications:
Precise and clear visual tests for ophthalmic and optometric clinics
Comprehensive chart testing with various masks and filters for a range of eye conditions
Efficient, wireless control for seamless operation during patient exams
| Parameter | Specification |
|---|---|
| Projection Distance | 2 – 6 m |
| Projection Magnification | 30 × (in 5 m refraction) |
| Projection Size | 330 × 225 mm, Ø275 mm (in 5 m refraction) |
| Numbers of Charts | 33 |
| Chart Change-over Speed | 3 frame/sec |
| Numbers of Masks | Open 1, Horizontal line 8, Vertical line 8, Single isolation 16, Red and green filter 1 |
| Tilt Range | 10° horizontally and vertically |
| Projection Lamp | 6 V, 20 W (halogen lamp) |
| Automatic Shut-off Mechanism | 5 minutes |
| Power Supply | AC 110 V / 60 Hz or 220 V / 50 Hz |
| Power Consumption | 65 W |
| Dimensions | 196 (W) × 292 (L) × 234 (H) mm |
| Weight | 6.5 kg |
Trusted Services:
1. Video chat to check ACP-350 Chart Projector.
2. Free online technical support and training.
3. Free online installation support.
4. 1-3 Years quality warranty.
5. Lifetime after sales support.
6. Most products are CE and ISO 13485 certificated.
7. Free input voltage and plug customization for electrical machines.
8. Fast worldwide shipping, 5-10 working days delivery for most countries.
9. Partial prepayment is acceptable before shipping.
10. Discount price, non-branded or customized products can be offered for distributors.
